Product Description

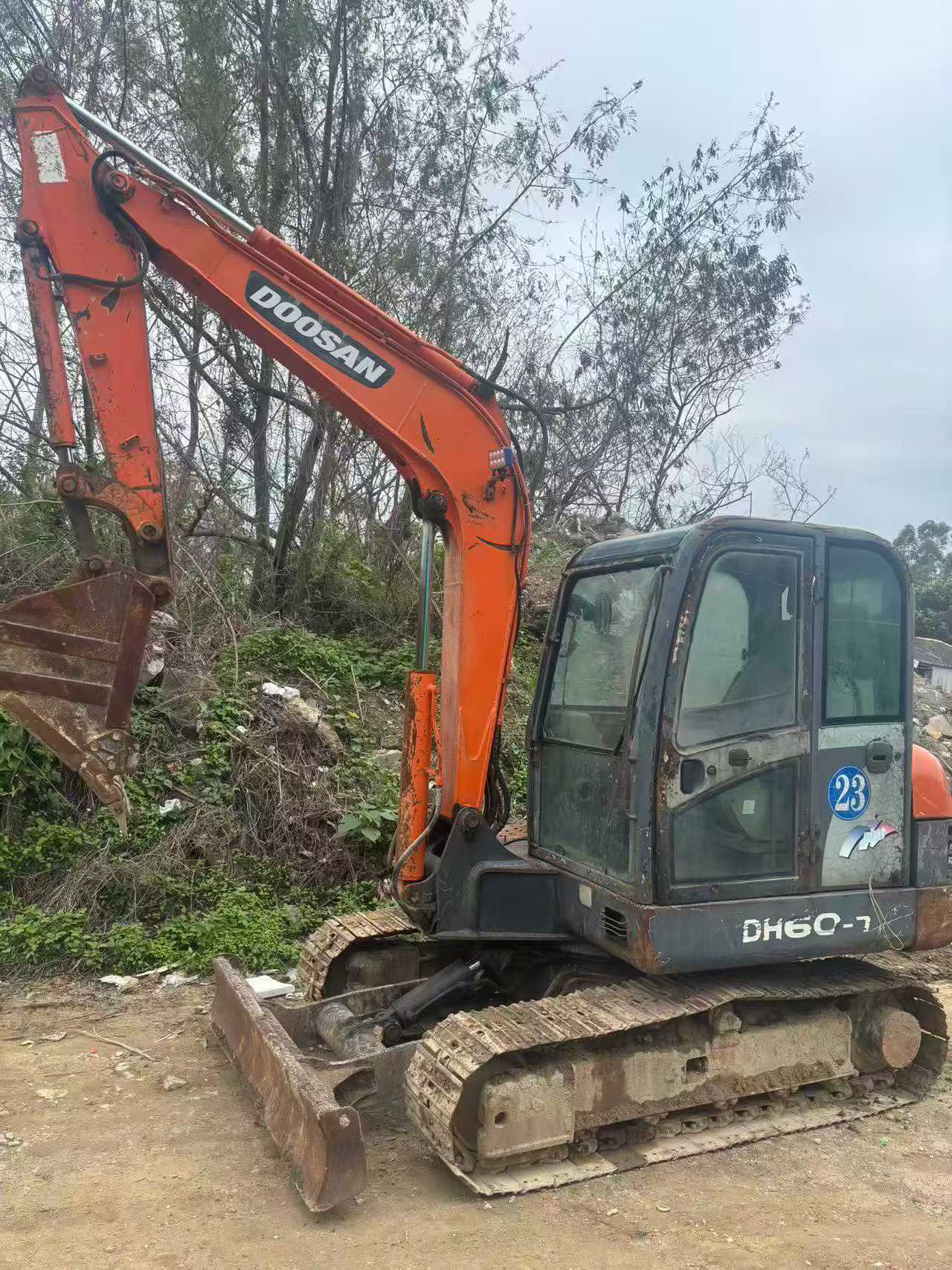

With a robust 6-ton capacity, the 2020 Doosan DH60-7 excavator, currently located in Guangdong, China, stands as a reliable choice for construction and excavation projects. Powered by a Yanmar 4TNV94L engine, this machine delivers 38.1 kW of power at 2200 rpm, ensuring efficient performance. Its 3000 mm boom and 1600 mm rod provide extensive reach, while the 0.09-0.2 m³ bucket capacity handles various digging tasks with ease. Doosan's reputation for durability and parts availability makes it a solid investment. The DH60-7 also boasts a strong resale value, further enhancing its appeal. Key features include a water-cooled, 4-cylinder engine, variable axial piston pumps, and a maximum digging depth of 3820 mm, making it a versatile and dependable addition to any fleet.
- Engine: Yanmar 4TNV94L, 38.1 kW/2200 rpm
- Boom Length: 3000 mm
- Rod Length: 1600 mm
- Bucket Capacity: 0.09-0.2 m³
- Maximum Digging Depth: 3820 mm
- Water-cooled, 4-cylinder engine
- Variable axial piston pump ×2
| Specifications | Value |
|---|---|
| No. | 1058326 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.09-0.2 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 38.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Working form | Air-to-air cooling |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Maximum flow of main pump (l/min) | 55 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 20.6 |
| Pilot pump flow (L/min) | 9.9 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880 |
| Total transport height (mm) | 2575 |
| Full cab height (mm) | 2575 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1885 |
| Total track length (mm) | 2540 |
| Track gauge (mm) | 1480 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1880 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4030 |
