2020 Doosan DH60-7

1/4

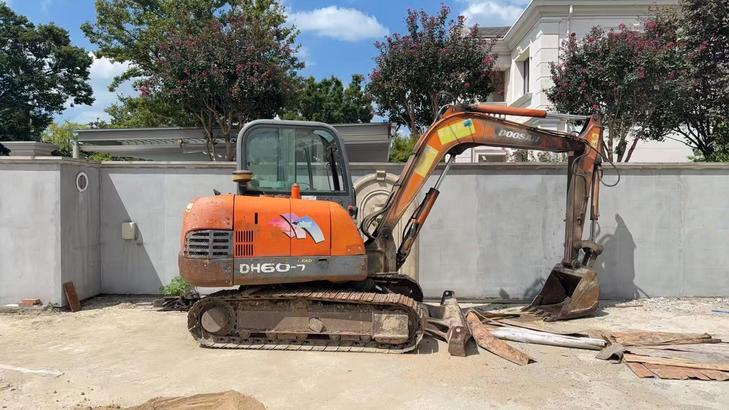

Buy Doosan DH60-7 Used Excavator / 1
Buy Doosan DH60-7 Used Excavator / 2
Buy Doosan DH60-7 Used Excavator / 3
Buy Doosan DH60-7 Used Excavator / 4

Product Description

This 2020 Doosan DH60-7 mini excavator is currently available in Zhejiang, China. The DH60-7 is a compact 6-ton class machine designed for versatility in confined job sites and urban construction projects. Doosan's 7-series models are known for their fuel efficiency and operator comfort, making them suitable for extended work cycles.

Key features of the DH60-7 include:

  • Compact dimensions for maneuverability in tight spaces
  • Zero tail swing design for enhanced safety near obstacles
  • Reliable hydraulic system for smooth operation
  • Reduced emissions compliance
  • Suitable for trenching, landscaping, and utility work

This used unit represents an economical entry point for contractors seeking dependable mini excavator capacity. Inspection is recommended to verify current operating condition and maintenance history. Contact us for detailed specifications and pricing information.

SpecificationsValue
No.1140217
Tonnage (tons)6
Working weight (kg)5550
Bucket capacity (m³)0.09-0.2
Boom length (mm)3000
Rod length (mm)1600
Country of originYantai, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)38.1/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Working formAir-to-air cooling
Bucket digging force (kN)37.7
Rod digging force (kN)28.4
Maximum flow of main pump (l/min)55 x 2
Traveling Hydraulic Circuit (Mpa)20.6
Rotary Hydraulic Circuit (Mpa)21.6
Main pump typeVariable axial piston pump ×2
Working Hydraulic Circuit (Mpa)20.6
Pilot pump flow (L/min)9.9
Total transport length (mm)5850
Total transport width (mm)1880
Total transport height (mm)2575
Full cab height (mm)2575
Minimum ground clearance (mm)350
Back end turning radius (mm)1650
Onboard width (mm)1885
Total track length (mm)2540
Track gauge (mm)1480
Track plate width (mm)400
Total track width (mm)1880
Track ground length (mm)1990
Maximum digging radius (mm)6150
Maximum digging depth (mm)3820
Maximum excavation height (mm)5760
Maximum unloading height (mm)4030
see more

Overview

No.1140217

Brand Name:

Doosan

Model Number:

DH60-7

Year:

2020

Location:

Zhejiang China
