Product Description

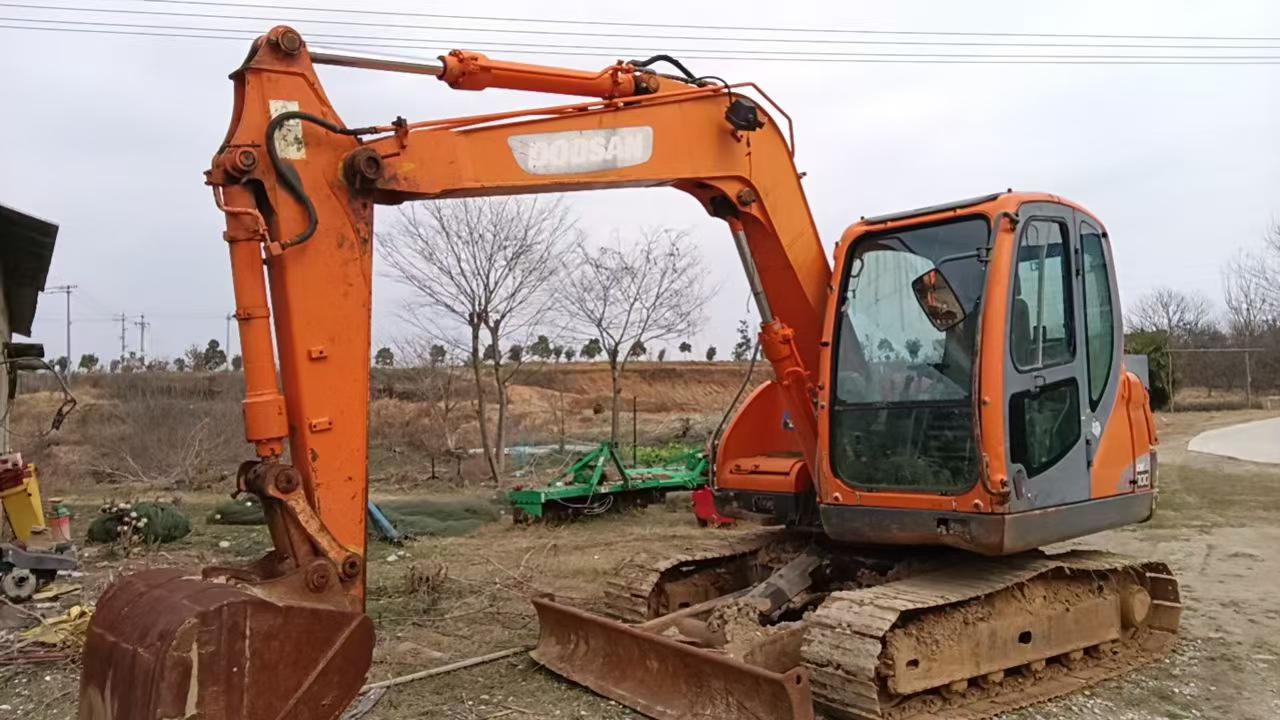

With a robust working weight of 7,830 kg and powered by a reliable Kubota V3300-DI engine, this 2013 Doosan DH80 excavator is an ideal addition to any contractor's fleet. Offering a bucket capacity of 0.28-0.32 m³ and a maximum digging depth of 4,060 mm, it ensures efficient performance on a variety of job sites. The hydraulic system, with a maximum flow of 162.8 l/min, provides the necessary power for demanding tasks, while the water-cooled engine maintains optimal operating temperatures.
- Tonnage: 8 tons
- Boom length: 3,100 mm
- Rod length: 1,800 mm
- Bucket digging force: 55 kN
- Traveling Hydraulic Circuit: 250 Mpa
- Total transport dimensions: 5,920 mm (length) x 2,200 mm (width) x 2,585 mm (height)
Located in 湖南, this excavator is ready to integrate seamlessly into your existing fleet, providing the reliability and versatility needed for consistent project success.
| Specifications | Value |
|---|---|
| No. | 1023260 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7830 |
| Bucket capacity (m³) | 0.28-0.32 |
| Boom length (mm) | 3100 |
| Rod length (mm) | 1800 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota KubotaV3300-DI |
| Rated power (kw/rpm) | 45.8/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.318 |
| Working form | Fuel consumption is 163g/ps.hr |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum flow of main pump (l/min) | 162.8 |
| Traveling Hydraulic Circuit (Mpa) | 250 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Hydraulic crushing pipeline is standard | is |
| Bucket cylinders - Number × diameter × stroke (mm) | 85*55*715 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95*60*850 |
| Boom cylinders - Number × diameter × stroke (mm) | 110*65*865 |
| Total transport length (mm) | 5920 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2585 |
| Full cab height (mm) | 2585 |
| Counterweight ground clearance (mm) | 764 |
| Back end turning radius (mm) | 1710 |
| Total track length (mm) | 2568 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2050 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6170 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 6918 |
| Maximum unloading height (mm) | 5032 |
