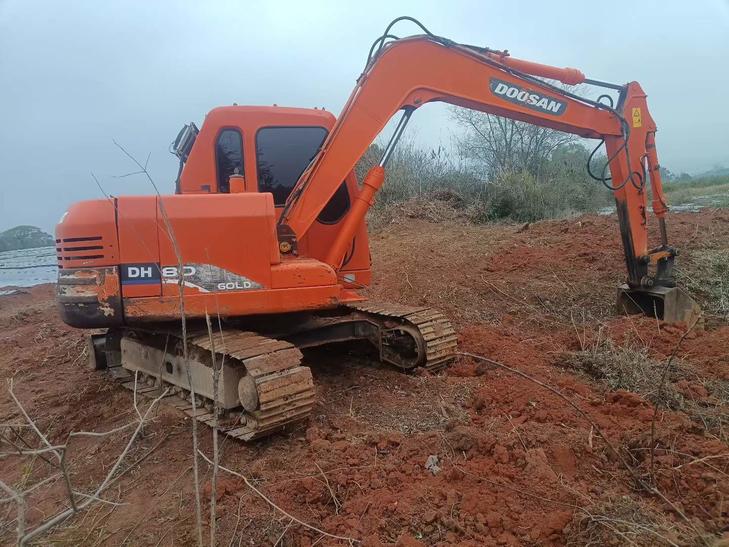

2016 Doosan DH80

Engineered with precision in Yantai, this 8-ton compact excavator delivers exceptional hydraulic performance through its advanced 162.8 l/min main pump system. Powered by a reliable Kubota V3300-DI engine producing 45.8 kW at 2200 rpm, the DH80 combines fuel efficiency (163g/ps.hr) with robust digging capability—55 kN bucket force and 38 kN arm force ensure productive operation in demanding conditions.

Hydraulic circuits operate at 250 Mpa (travel) and 190 Mpa (swing), providing responsive control across all functions. Standard hydraulic crushing pipeline compatibility extends versatility for demolition and specialty attachments. With a maximum digging reach of 6,170 mm and depth capability to 4,060 mm, this joint-venture manufactured machine balances compact dimensions (5,920 mm transport length, 2,200 mm width) with impressive working range.

Key specifications include:

• Operating weight: 7,830 kg with 0.28-0.32 m³ bucket capacity
• 3,100 mm boom and 1,800 mm arm configuration
• Water-cooled 3.318L displacement engine for reliable thermal management
• 400 mm track plates with 1,990 mm ground contact length for stability
• 764 mm counterweight clearance and 1,710 mm tail swing
