Product Description

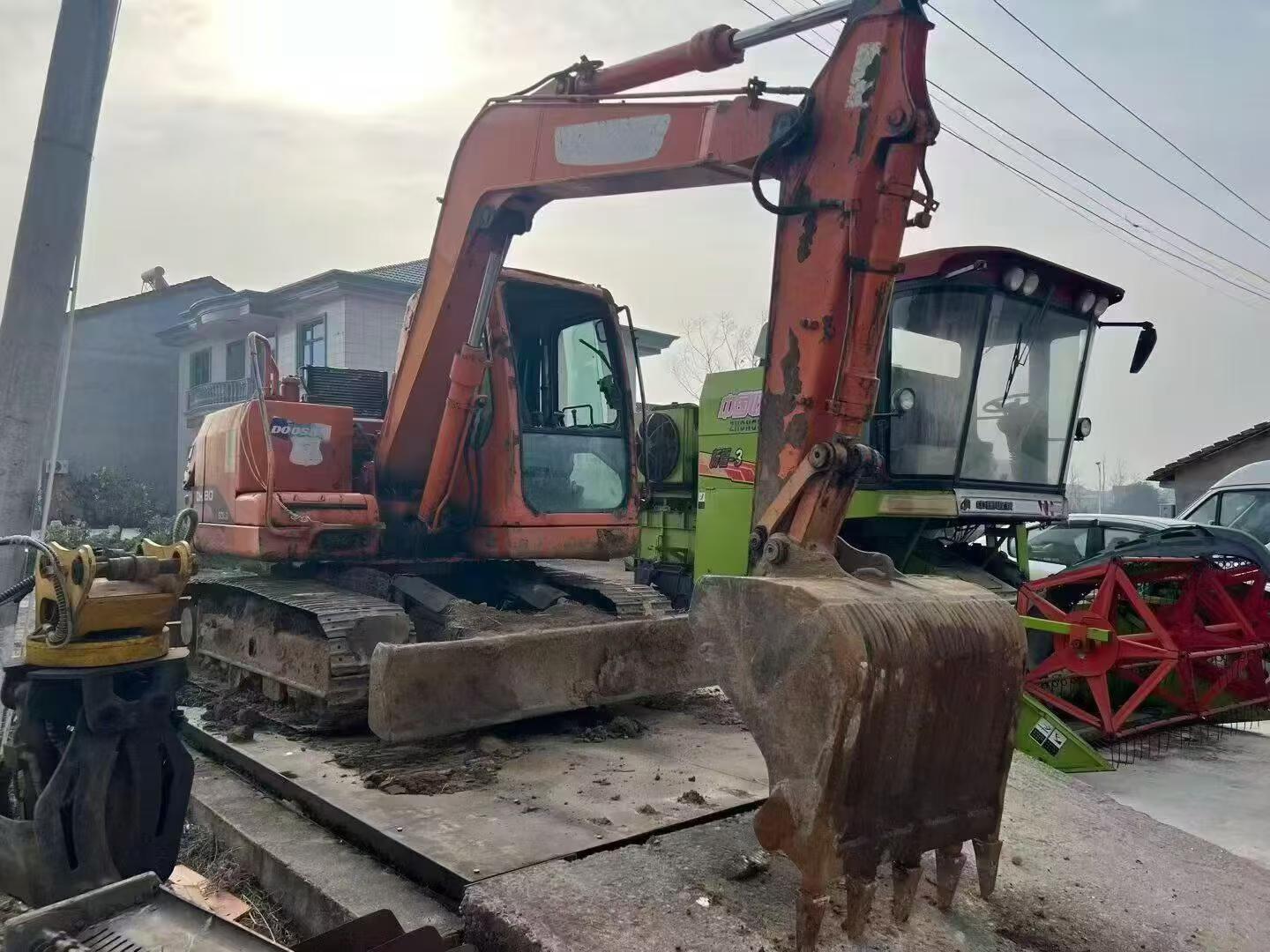

Built for precision work in confined spaces, this 2016 Doosan DH80 mini excavator delivers 45.8 kW of Kubota power with exceptional operator control. Weighing 7,830 kg with an 8-ton working capacity, this machine combines compact dimensions (5,920 mm transport length) with serious digging performance—6,170 mm maximum reach and 4,060 mm depth capability ensure versatility across jobsites.
Operators benefit from responsive hydraulics featuring 162.8 L/min main pump flow and independent circuit pressures (250 Mpa travel, 190 Mpa swing) that provide smooth, predictable movements. The cab design offers clear sightlines to the 0.28-0.32 m³ bucket, while the 1,710 mm rear swing radius minimizes tail overhang for safe operation near obstacles. Standard hydraulic quick-coupler plumbing adds functionality without complexity.

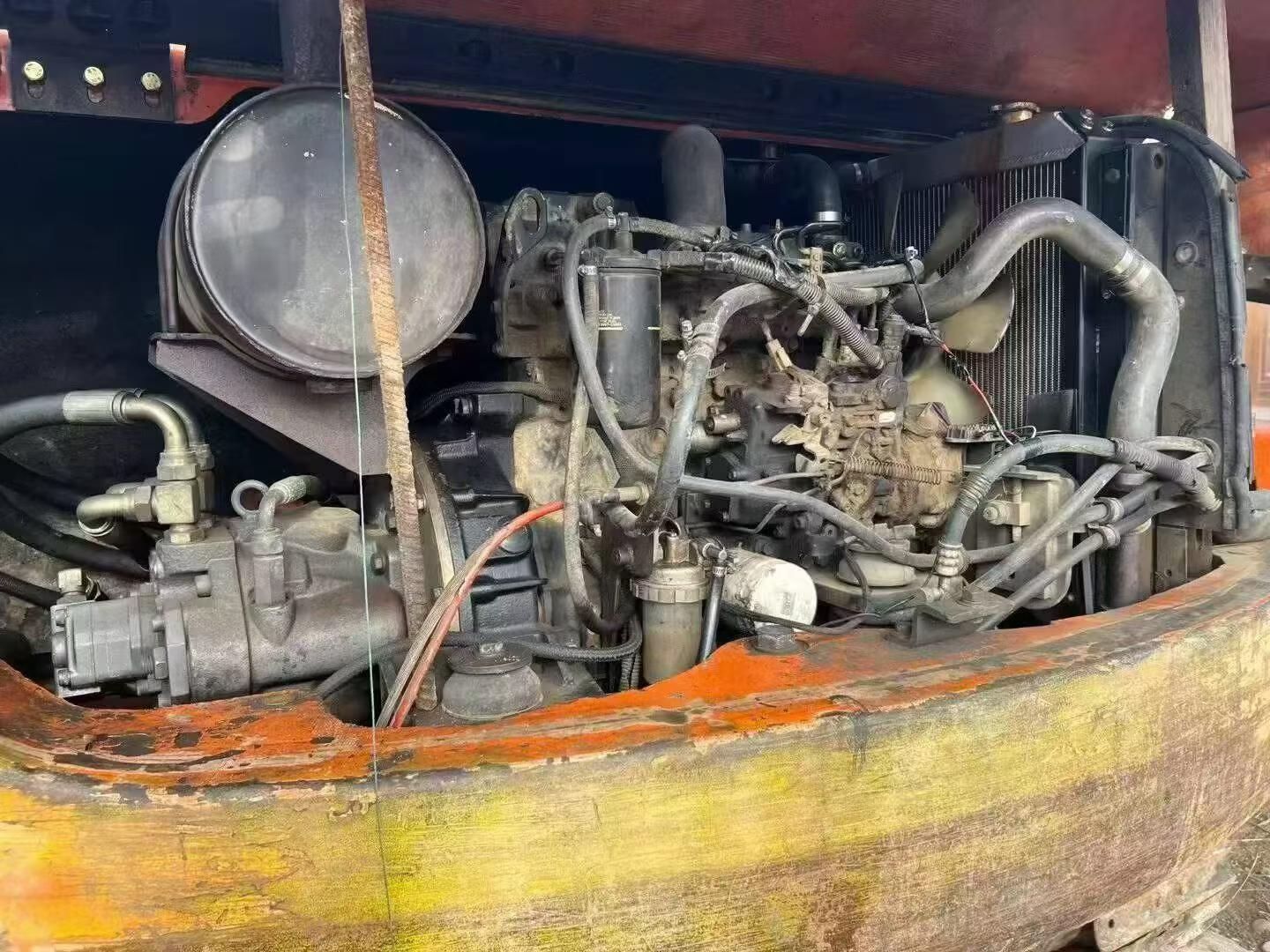

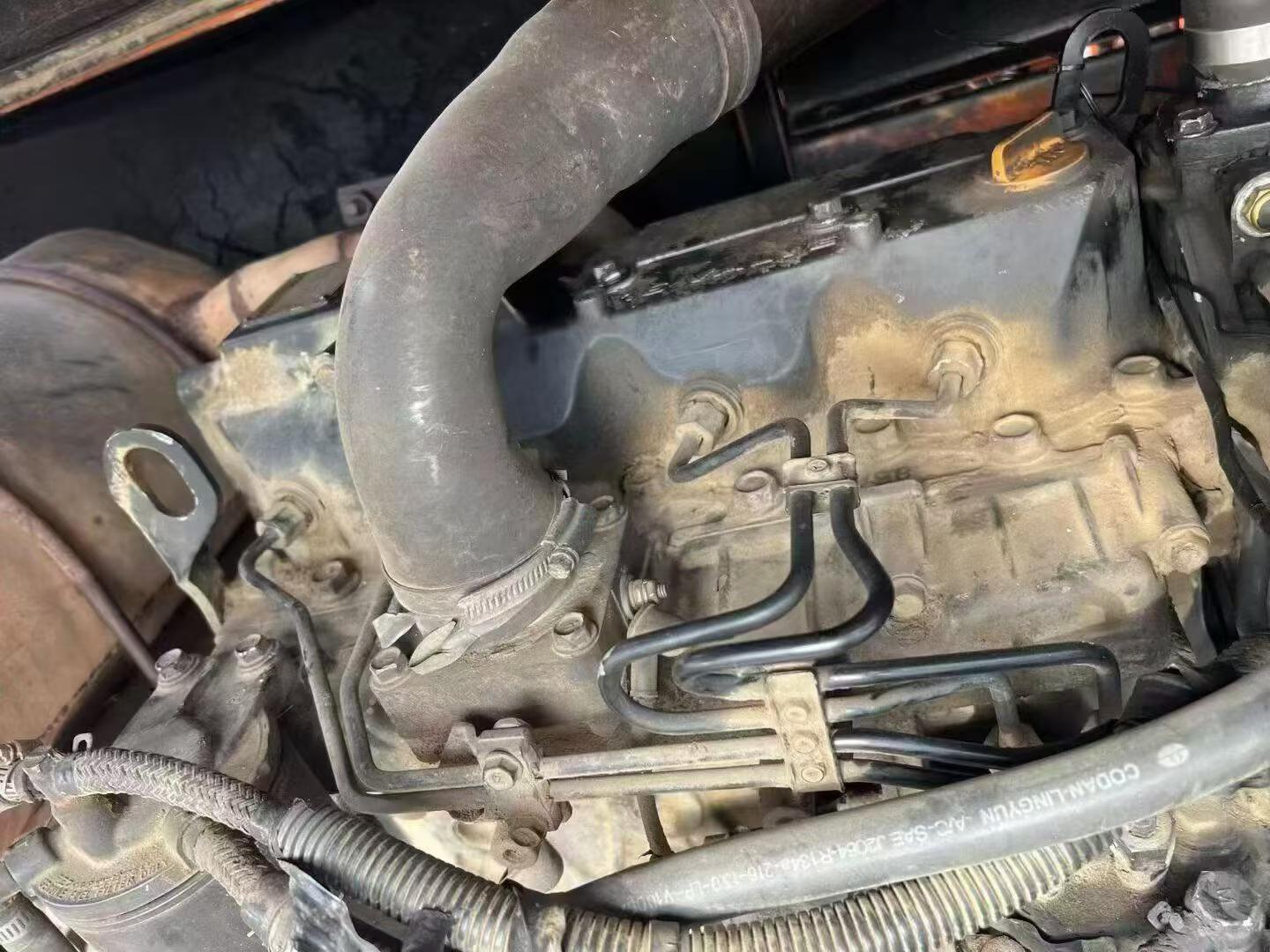

- Kubota V3300-DI engine: proven reliability, water-cooled efficiency
- 55 kN bucket digging force, 38 kN arm force for tough materials
- 400 mm track plates on 1,650 mm gauge for stable footing
- Currently located in Hunan Province, China
| Specifications | Value |
|---|---|
| No. | 1024626 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7830 |
| Bucket capacity (m³) | 0.28-0.32 |
| Boom length (mm) | 3100 |
| Rod length (mm) | 1800 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota KubotaV3300-DI |
| Rated power (kw/rpm) | 45.8/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.318 |
| Working form | Fuel consumption is 163g/ps.hr |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum flow of main pump (l/min) | 162.8 |
| Traveling Hydraulic Circuit (Mpa) | 250 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Hydraulic crushing pipeline is standard | is |
| Bucket cylinders - Number × diameter × stroke (mm) | 85*55*715 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95*60*850 |
| Boom cylinders - Number × diameter × stroke (mm) | 110*65*865 |
| Total transport length (mm) | 5920 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2585 |
| Full cab height (mm) | 2585 |
| Counterweight ground clearance (mm) | 764 |
| Back end turning radius (mm) | 1710 |
| Total track length (mm) | 2568 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2050 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6170 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 6918 |
| Maximum unloading height (mm) | 5032 |
