Product Description

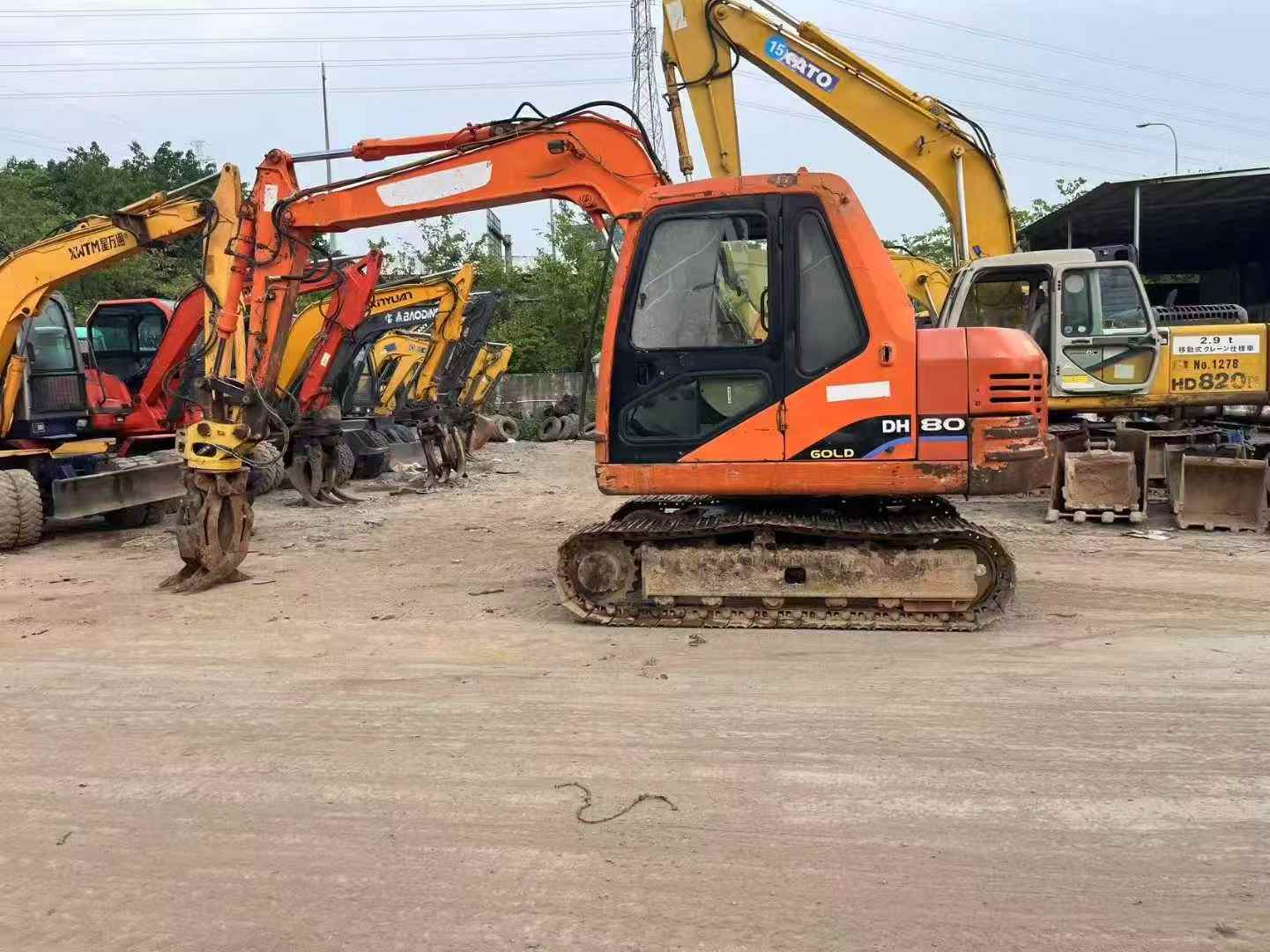

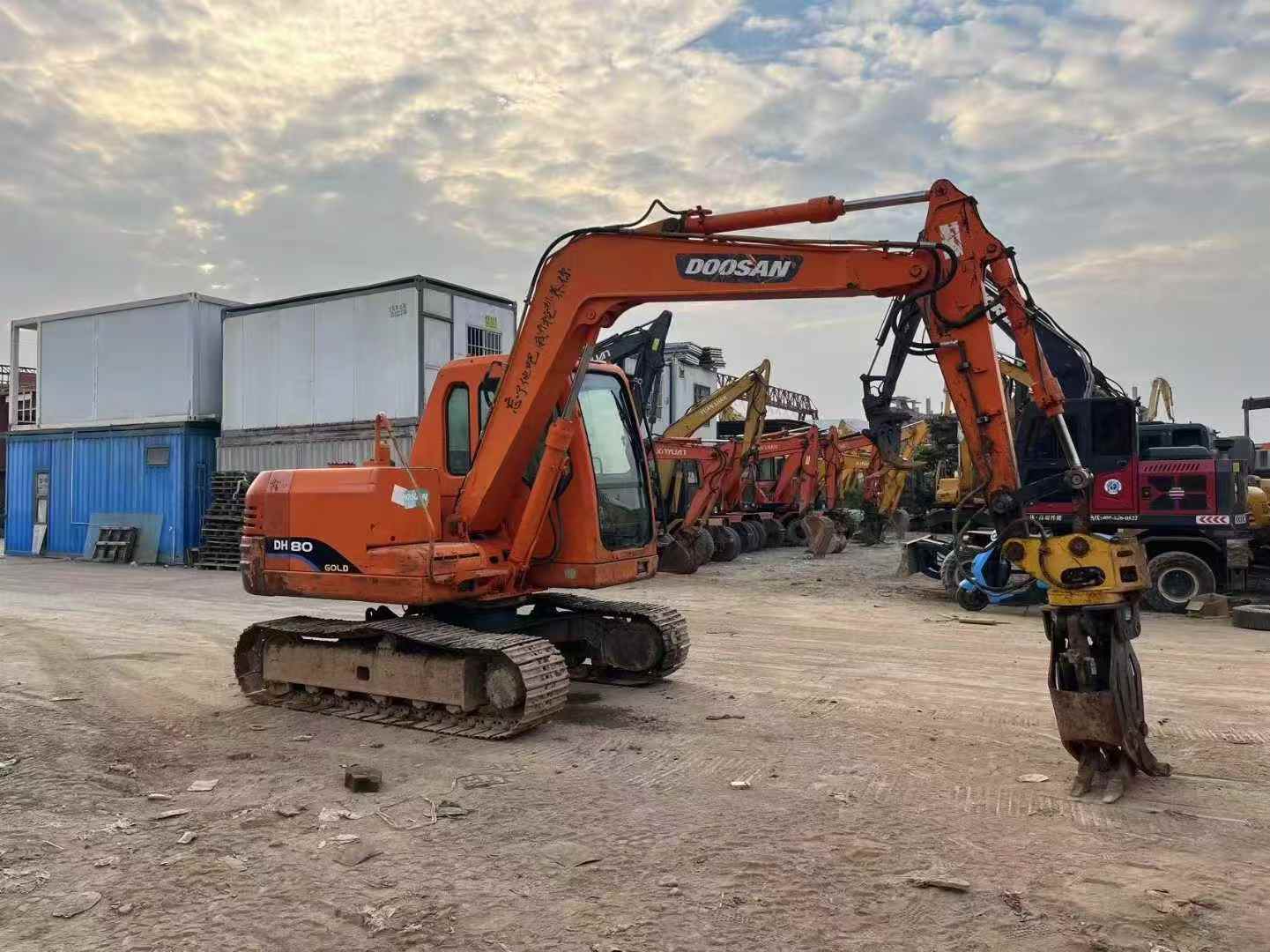

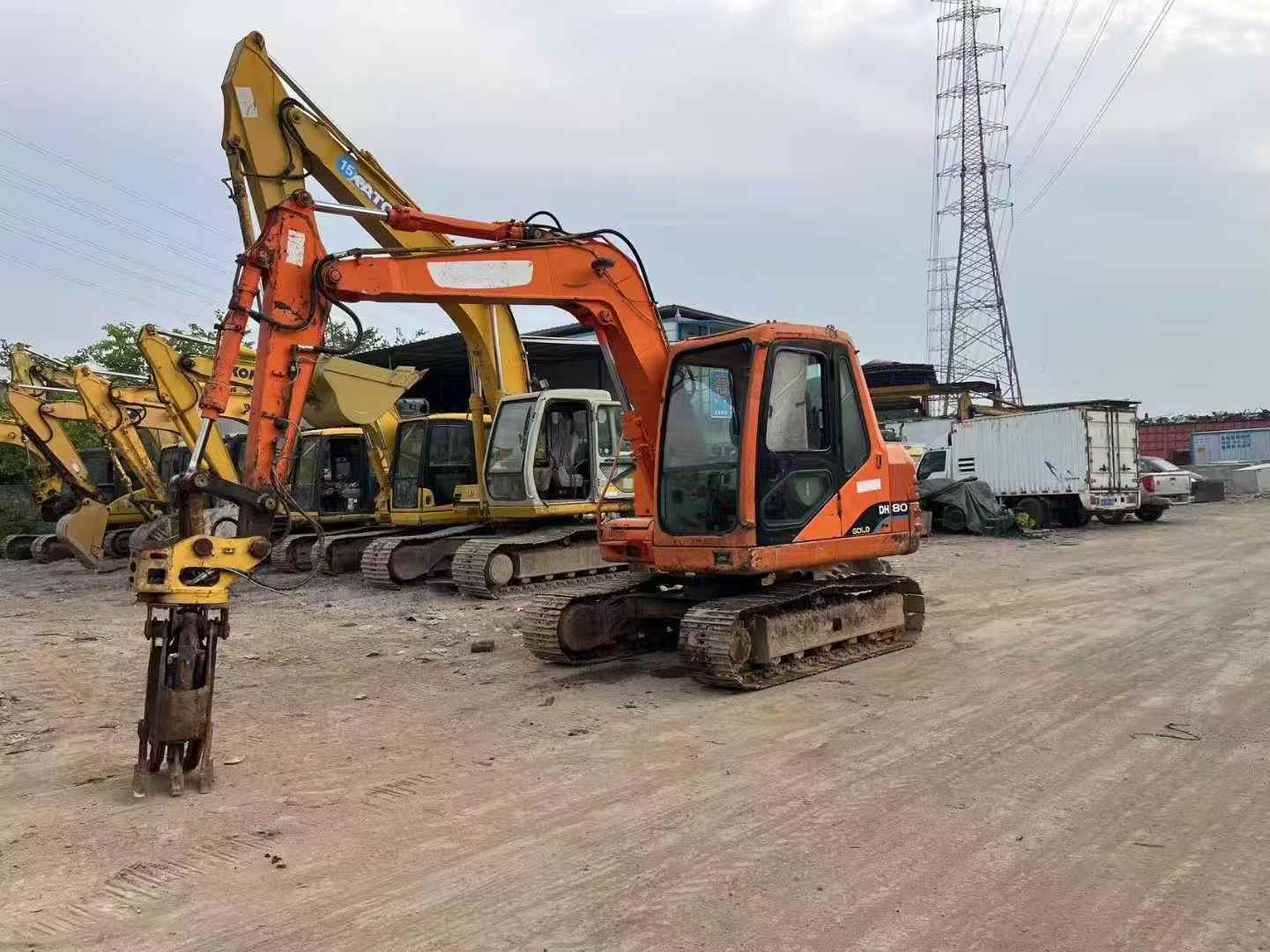

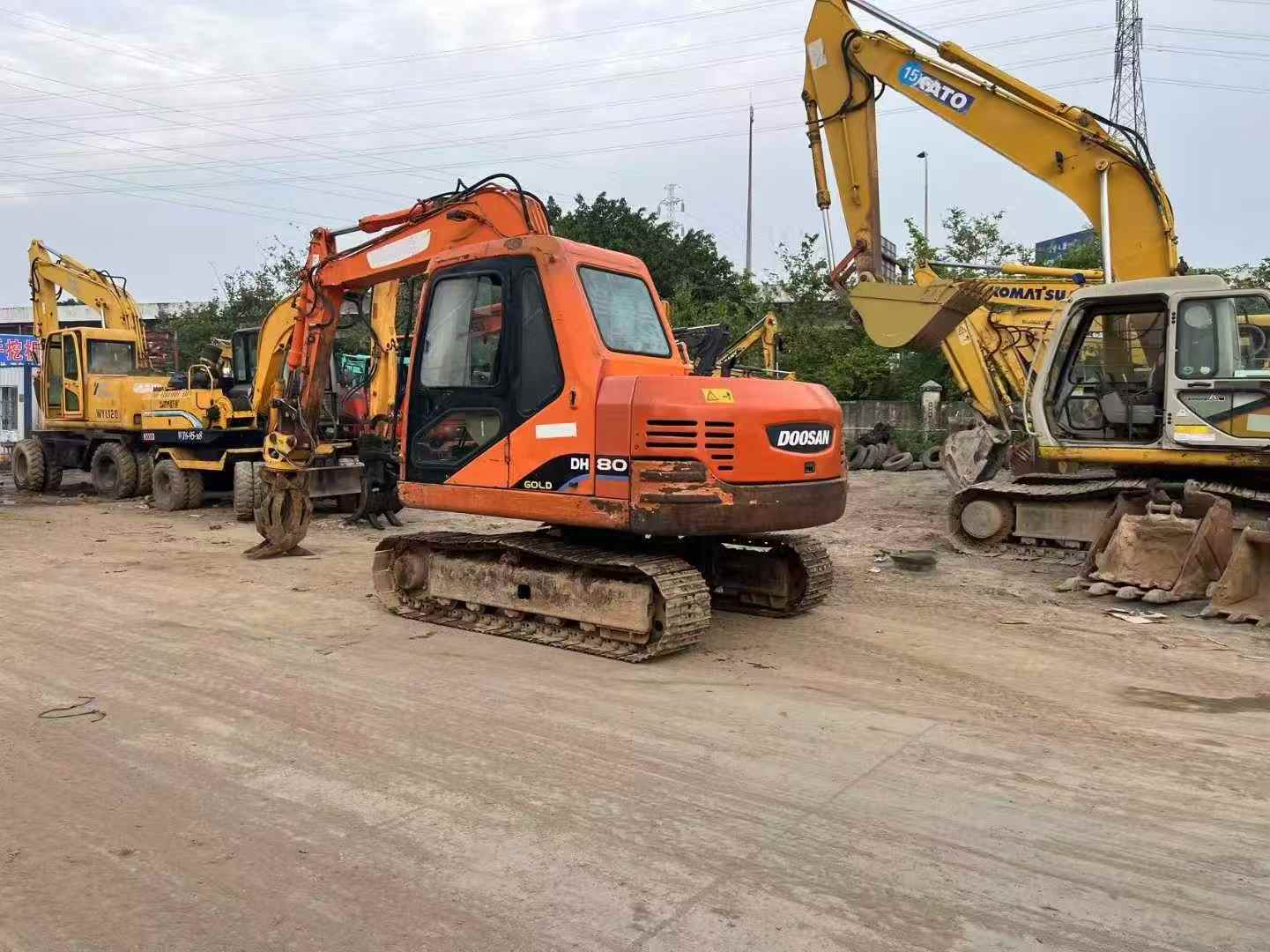

Built in 2016, this Doosan DH80 compact excavator delivers proven reliability in the 8-ton class with robust Kubota V3300-DI power. Operating at 45.8kW and backed by Doosan's global parts network, this machine offers exceptional long-term value retention—a critical factor when investing in used equipment. The 0.28-0.32m³ bucket capacity and 4,060mm maximum digging depth handle diverse jobsite demands, while the hydraulic crushing pipeline comes standard for versatile attachment use.
Currently located in Guangzhou, Guangdong, this DH80 features:
- 7,830kg working weight with 2,200mm transport width for easy mobilization
- 55kN bucket digging force and 38kN arm digging force for productive cycles
- Water-cooled Kubota engine delivering fuel efficiency at 163g/ps·hr
- Compact 1,710mm rear swing radius for confined-space operations
- 162.8L/min hydraulic flow ensuring responsive control
Doosan's joint-venture manufacturing quality and widespread dealer support make this DH80 a smart acquisition. Parts availability remains strong across Asia-Pacific markets, protecting your investment and minimizing downtime. Contact Fair Trade Machinery for inspection details and competitive
| Specifications | Value |
|---|---|
| No. | 1031268 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7830 |
| Bucket capacity (m³) | 0.28-0.32 |
| Boom length (mm) | 3100 |
| Rod length (mm) | 1800 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota KubotaV3300-DI |
| Rated power (kw/rpm) | 45.8/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.318 |
| Working form | Fuel consumption is 163g/ps.hr |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum flow of main pump (l/min) | 162.8 |
| Traveling Hydraulic Circuit (Mpa) | 250 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Hydraulic crushing pipeline is standard | is |
| Bucket cylinders - Number × diameter × stroke (mm) | 85*55*715 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95*60*850 |
| Boom cylinders - Number × diameter × stroke (mm) | 110*65*865 |
| Total transport length (mm) | 5920 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2585 |
| Full cab height (mm) | 2585 |
| Counterweight ground clearance (mm) | 764 |
| Back end turning radius (mm) | 1710 |
| Total track length (mm) | 2568 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2050 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6170 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 6918 |
| Maximum unloading height (mm) | 5032 |
