Name: Used Excavators 2016 Doosan DH80
Brand: Doosan
SKU: USED-1046627
Availability: InStock
Rating: 4.2 (76 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Built for precision and productivity, this 2016 Doosan DH80 mini excavator delivers 45.8 kW of Kubota diesel power across demanding jobsites. With an 8-ton operating weight and 0.28-0.32 m³ bucket capacity, this machine tackles trenching, grading, and utility work with exceptional efficiency. Its 4060 mm maximum digging depth and 6170 mm reach position it perfectly for foundation excavation, drainage projects, and site preparation tasks.

<ul>
 <li>Kubota V3300-DI engine: 45.8 kW at 2200 rpm for reliable performance</li>
 <li>Hydraulic system: 162.8 l/min pump flow with 250 MPa travel circuit pressure</li>
 <li>Digging force: 55 kN bucket force, 38 kN arm force for tough soil conditions</li>
 <li>Compact dimensions: 5920 mm transport length, 2200 mm width for easy mobilization</li>
 <li>Factory-equipped hydraulic breaker lines ready for demolition attachments</li>
 <li>Water-cooled system ensures consistent operation in extended shifts</li>
</ul>

Currently located in Guangxi, this site-ready excavator comes from Doosan's Yantai facility and requires minimal setup time. Fuel consumption rated at 163 g/ps·hr keeps operating costs predictable across multi-day projects.

Built for demanding excavation work, this 2016 Kobelco SK200-8 delivers 20 tons of proven performance across construction, demolition, and earthmoving projects. Powered by a Hino J05E engine producing 114kW at 2000rpm with water-cooling and turbocharging, this machine handles continuous operation in challenging conditions. The 0.8m³ bucket and 2.94m rod configuration provide optimal reach and capacity for foundation work, trenching, and material handling tasks.

Operational specifications include:
<ul>
<li>Maximum digging depth of 6700mm and reach extending to 9900mm</li>
<li>Bucket digging force of 143kN with 102kN rod digging force for breaking tough ground</li>
<li>Dual variable displacement hydraulic pumps delivering 2×220 l/min flow</li>
<li>Travel speeds up to 6.0 km/h with 70% grading capability</li>
<li>Standard hydraulic crushing pipeline for attachment versatility</li>
<li>370L fuel capacity supporting extended work shifts</li>
</ul>

Currently located in Jiangsu, this SK200-8 arrives site-ready with complete hydraulic systems, reliable Japanese engineering, and the digging power your project demands. Contact Fair Trade Machinery for shipping arrangements and competitive pricing.

Kobelco SK200-8

Engineered with precision in Xuzhou, this 13-ton excavator delivers exceptional hydraulic performance through its dual plunger pump system, generating 2×123 L/min flow at 31.4/34.3 MPa main overflow pressure. The ISUZU BB-4BG1TRP turbocharged engine produces 69.6 kW at 2200 rpm, providing reliable power through a water-cooled, 4-cylinder configuration with 4.329L displacement. Hydraulic circuits are optimized for demanding operations: 34.3 MPa for travel, 25 MPa for rotation, and 3.9 MPa pilot control.

Built on XCMG's proven mid-size platform, the XE135B combines robust digging forces—85 kN bucket, 65 kN arm—with impressive reach capabilities: 8296mm maximum radius and 5538mm dig depth. The 0.4-0.52 m³ bucket capacity paired with a 4600mm boom and 2510mm arm ensures versatile performance across construction and earthmoving applications.

<ul>
<li>Operating weight: 13,800 kg with 42 KPa ground pressure</li>
<li>Travel speed: 5.16/3.03 km/h with 35° climbing ability</li>
<li>Compact transport dimensions: 7770×2512×2880mm</li>
<li>Fuel capacity: 250L; Hydraulic tank: 130L</li>
<li>Currently located in Anhui, China</li>
</ul>

XCMG XE135B

Engineered with Komatsu's proven SAA6D107E-1 engine delivering 110 kW at 2000 rpm, this 2014 PC210LC-8 represents a benchmark in 21-ton excavator performance. The 6.69-liter displacement unit drives a sophisticated hydraulic system generating 152 kN bucket digging force and 130 kN arm digging force, ensuring consistent power delivery across demanding earthmoving applications.

Built to joint venture/import standards, the PC210LC-8 features precision-engineered reach capabilities including a 9,380 mm maximum digging radius and 6,095 mm digging depth. Operating weight of 20,900 kg provides exceptional stability during full-extension operations, while the 1.0 m³ backhoe bucket optimizes material handling efficiency.

Key technical specifications:
<ul>
<li>Maximum digging height: 9,800 mm with 6,890 mm unloading clearance</li>
<li>Transport dimensions: 9,495 mm × 2,980 mm × 3,190 mm</li>
<li>Travel speed: 5.5 km/h for efficient site mobility</li>
<li>Vertical digging depth: 5,430 mm for trench work</li>
</ul>

Currently located in Jiangsu, this machine offers proven Komatsu durability backed by comprehensive component engineering. Immediate availability for international shipping.

Komatsu PC210LC-8

Available now from our Jiangsu facility, this 2011 Hitachi EX200-3 delivers immediate deployment without factory wait times. Operating at 20 tons with proven traditional power, this joint venture-manufactured excavator is ready for fast mobilization to your project site. Skip months of lead time and secure a backhoe-equipped machine that's inspection-ready and prepared for immediate shipping across domestic and international routes.

<ul>
<li>20-ton operating capacity for medium-duty excavation</li>
<li>Traditional power system with reliable fuel efficiency</li>
<li>Factory backhoe configuration for trenching and foundation work</li>
<li>Joint venture manufacturing ensures quality component integration</li>
<li>Stationed in Jiangsu for rapid logistics throughout Asia-Pacific</li>
<li>2011 model year with documented service history</li>
</ul>

Bypass extended manufacturing queues and accelerate project timelines. This EX200-3 represents immediate equipment access from a strategic logistics hub, cutting weeks from your procurement cycle. Contact our team for current inspection reports, shipping quotes, and same-week departure scheduling from Jiangsu.

Hitachi EX200-3

Built for demanding excavation work, this 2021 Sany SY205C delivers 20-ton performance with operator-centered engineering. Powered by a robust 118kW engine at 2000 rpm, this Chinese-manufactured excavator combines proven hydraulic strength with enhanced jobsite control. The spacious cab sits at 3075mm, providing commanding visibility across a 10,280mm maximum digging radius and 6,600mm depth capability.

Operators benefit from precise handling through an 11 rpm rotation speed and responsive travel speeds of 5.4/3.3 km/h. Stability remains exceptional even on challenging terrain, supported by 47.3 kPa ground pressure distribution and a 70% (35°) climbing ability. The 600mm track plates and 3,360mm ground contact length ensure solid footing during heavy digging cycles.

<ul>
<li>Bucket digging force: 138 kN</li>
<li>Arm digging force: 109 kN</li>
<li>Bucket capacity: 0.9–1.1 m³</li>
<li>Operating weight: 21,500 kg</li>
<li>Compact turning radius: 2,900mm rear swing</li>
<li>Location: Zhejiang, China</li>
</ul>

Currently available in Zhejiang, this machine offers reliable performance for contractors requiring dependable mid-size excavation capacity.

Sany SY205C

Engineered for heavy-duty performance, this 2022 Hitachi ZX470H-3 excavator delivers 260 kW of power through its robust Isuzu AH-6WG1XYSA-01 engine at 1800 rpm. With a 47-ton working weight and 15.7L displacement, this machine combines exceptional hydraulic capacity with precise control across demanding job sites. The 560L hydraulic system ensures consistent operation, while the 2.1 m³ bucket capacity maximizes productivity in high-volume earthmoving applications.

<ul>
<li>Maximum digging depth of 7,200 mm with 11,090 mm excavation radius</li>
<li>Advanced Isuzu engine technology providing reliable 260 kW output</li>
<li>Low ground pressure of 88 kPa for superior stability on varied terrain</li>
<li>725L fuel tank capacity minimizes refueling downtime</li>
<li>Compact 3,645 mm rear turning radius for confined work areas</li>
<li>Joint venture manufacturing ensures international quality standards</li>
</ul>

Currently located in Zhejiang, this backhoe configuration excavator represents Hitachi's commitment to engineering excellence in the 47-ton class. Factory-grade specifications guarantee operational reliability for contractors requiring proven performance in infrastructure and mining sectors.

Hitachi ZX470H-3

Powered by the CATERPILLAR 3116T engine, this 2016 Caterpillar M318 delivers a rated power of 104.4 kW, ensuring robust performance and reliability. With a total displacement of 6.6 L, it offers the strength needed for demanding tasks. The hydraulic system, set at a main overflow pressure of 33 Mpa, provides precise control and efficiency.
<ul>
<li>Working weight: 19,500 kg</li>
<li>Total transport width: 2,950 mm</li>
<li>Maximum excavation radius: 8,490 mm</li>
<li>Maximum digging depth: 5,090 mm</li>
<li>Maximum unloading height: 6,080 mm</li>
</ul>
Featuring a 370 L fuel tank and a 300 L hydraulic system, this machine is designed for long, uninterrupted work cycles. The full cab height of 3,100 mm and counterweight ground clearance of 1,280 mm enhance operator comfort and safety. Engineered with a wheelbase of 2,750 mm, it ensures stability and maneuverability on various terrains. This Caterpillar M318, located in 浙江, stands out for its technical superiority and durable construction, making it an ideal choice for heavy-duty applications.

Caterpillar M318

Built for high-volume earthmoving and precision excavation, this 2021 Sany SY205C delivers 118 kW of rated power and a 20-ton operating weight designed for demanding job sites. With a maximum digging depth of 6,600 mm and a reach extending to 10,280 mm, this machine handles deep trenching, foundation work, and heavy-duty grading with authority. The backhoe configuration and 0.9-1.1 m³ bucket capacity move material efficiently across construction, demolition, and site preparation projects.

<ul>
<li>138 kN bucket digging force tackles compacted soils and challenging ground conditions</li>
<li>70% gradeability and 440 mm ground clearance ensure mobility on rough terrain</li>
<li>9,600 mm maximum excavation height reaches elevated loading applications</li>
<li>3,730 mm minimum turning radius enables operation in confined spaces</li>
<li>Currently located in Zhejiang, China—available for immediate deployment</li>
</ul>

Equipped with traditional power systems and proven Sany engineering, this SY205C arrives site-ready for contractors requiring reliable performance in excavation, utility installation, and material handling operations. Specifications verify its capability: 109 kN stick force, 2,900 mm rear turning radius, and dual

Designed for mid-range excavation projects, this 2019 XCMG XE200 delivers reliable performance through its 20-ton operating capacity and traditional power system. Built by a joint venture manufacturer, this model combines proven hydraulic technology with operator-centered design principles that prioritize daily productivity and control precision.

Operators benefit from enhanced cabin visibility across all working angles, reducing blind spots during backhoe operations and material handling tasks. Stability remains consistent across varied terrain conditions, supported by the machine's balanced weight distribution and robust undercarriage design. Hydraulic responsiveness allows smooth transitions between digging, swinging, and lifting functions, minimizing operator fatigue during extended shifts.

<ul>
<li>20-ton operating class with backhoe configuration</li>
<li>Traditional power system for straightforward maintenance</li>
<li>Joint venture manufacturing standards</li>
<li>Currently located in Nanchang, Jiangxi Province</li>
<li>2019 production year with documented service history</li>
</ul>

Suitable for construction sites, infrastructure development, and material excavation projects requiring dependable mid-class pe

XCMG XE200

Expand your operational capacity with this 2012 Kobelco SK210 hydraulic excavator, currently positioned in Hubei and ready for immediate deployment. Built to joint venture/import standards, this 21-ton workhorse delivers consistent performance across demanding jobsites where downtime isn't an option.

Equipped with traditional power systems and a proven backhoe configuration, this SK210 integrates seamlessly into existing fleets without requiring specialized training or maintenance protocols. Contractors managing multiple projects simultaneously will appreciate the redundancy this unit provides—keeping crews productive when primary machines undergo scheduled service or unexpected repairs.

<ul>
<li>Operating weight: 21 tons—ideal for mid-range excavation and loading tasks</li>
<li>Traditional power plant ensures parts availability and service familiarity</li>
<li>Backhoe setup optimized for trenching, foundation work, and material handling</li>
<li>2012 production year offers mature technology with proven field reliability</li>
<li>Currently located in Hubei for efficient regional deployment</li>
</ul>

Strengthen your equipment roster with a machine engineered for versatility. This SK210 represents smart fleet plannin

Kobelco SK210

Engineered for precision and daily performance, this 2022 Sany SY215C delivers 21-ton capacity with operator-centric design throughout. Powered by a Mitsubishi 4M50 engine generating 118kW at 2000rpm, this excavator combines reliable torque delivery with water-cooled efficiency for extended shifts in demanding conditions.

Operators benefit from exceptional sightlines and ergonomic cabin layout, critical for accurate positioning during complex excavation tasks. With a 3730mm minimum turning radius and 2900mm rear swing radius, maneuverability remains precise even in confined job sites. Ground-specific pressure of 47.4kPa ensures stable operation across varied terrain, while 70% climbing ability tackles challenging gradients confidently.

<ul>
<li>Maximum digging reach: 10,280mm with 6,600mm depth capability</li>
<li>Bucket digging force: 138kN for tough material penetration</li>
<li>Travel speed: 5.4km/h (high) / 3.3km/h (low) for efficient repositioning</li>
<li>390L fuel capacity supports full-day operations</li>
<li>Standard 1.1m³ bucket (0.8~1.2m³ range available)</li>
</ul>

Currently located in Zhejiang, China. Ready for immediate deployment in construction, mining, or infrastructure projects requiring dependable

Sany SY215C

Secure immediate deployment with this 2019 Doosan DH220-3 excavator, positioned in Jiangsu and ready for rapid dispatch. Built as a joint venture/import model, this 22-ton workhorse delivers proven traditional power without the months-long factory queues that drain your project timeline. Skip extended lead times—this machine is available now for fast mobilization to your construction site, quarry, or infrastructure project.

<ul>
<li>Model Year: 2019</li>
<li>Operating Weight: 22 tons</li>
<li>Power System: Traditional diesel</li>
<li>Configuration: Backhoe bucket</li>
<li>Manufacturer Origin: Joint venture/Import quality standards</li>
<li>Current Location: Jiangsu, China</li>
</ul>

Operators benefit from Doosan's field-proven hydraulics and responsive controls, minimizing training time while maximizing productivity from day one. With immediate availability from our Jiangsu facility, you eliminate procurement delays and keep equipment budgets predictable. Arrange inspection and logistics coordination today—your project schedule won't wait, and neither should your equipment acquisition.

Doosan DH220-3

Available now in Fujian, this 2020 Kobelco SK495D eliminates factory wait times and delivers immediate productivity to your project. Operating at 49 tons with a robust 52,700 kg working weight, this crawler excavator combines Hino P11C power (257 kW at 1850 rpm) with exceptional reach capabilities—11,770 mm maximum digging radius and 7,360 mm digging depth. Dual variable displacement axial piston pumps deliver 2 × 370 l/min flow for responsive hydraulic performance across demanding applications.

<ul>
 <li>Engine: Hino P11C, 6-cylinder, 10.52L displacement, water-cooled with intercooling</li>
 <li>Digging Force: 266 kN bucket force, 223 kN arm force for tough material handling</li>
 <li>Capacity: 2.3 m³ backhoe bucket, 650L fuel tank for extended operation</li>
 <li>Performance: 7.8 rpm swing speed, 70% grading ability, 417 kN maximum tractive force</li>
 <li>Transport Dimensions: 12,080 × 3,570 × 3,800 mm</li>
</ul>

Fast deployment from Fujian ensures minimal downtime. Ready to ship directly to your site—contact Fair Trade Machinery today for immediate availability and competitive export pricing.

Kobelco SK495D

With immediate availability in 福建, the 2021 Caterpillar 新一代CAT352 液压 excavator is ready for rapid deployment to your site. Skip the factory lead times and enhance your project's logistics with this high-performance machine. Featuring advanced hydraulic systems, it ensures efficient operation and fast turnaround times, crucial for any demanding construction or excavation task.
<ul>
 <li>Available now in 福建</li>
 <li>Advanced hydraulic technology for superior performance</li>
 <li>Ideal for quick mobilization and high-speed operations</li>
</ul>

Caterpillar CAT352

With a powerful 212 kW engine and a robust 37-ton working weight, the Sany SY375H excavator is designed for efficiency and speed. Located in 浙江, this machine is available now, allowing you to skip the factory lead times and get to work immediately. Featuring a maximum travel speed of 5.5 km/h and a climbing ability of 70%, it ensures fast deployment to your site. The 1.9 m³ bucket capacity and 235 kN bucket digging force make it ideal for demanding tasks. Built with a water-cooled, 6-cylinder, turbocharged engine, the SY375H guarantees reliable performance. Its total transport dimensions of 11425 mm x 3190 mm x 3825 mm facilitate easy transportation. Choose the Sany SY375H for a swift, reliable addition to your fleet.

Sany SY375H

Secure exceptional value with this 2021 XCMG XE380K excavator, currently located in Anhui. Operating at 38 tons with a working weight of 38,500 kg, this fuel-powered machine delivers 254 kW of rated power at 1900 rpm—professional-grade performance at a fraction of new equipment costs. Built for demanding applications, it features a bucket digging force of 292 kN and a maximum digging radius of 10,968 mm, ensuring productivity across large-scale projects.

<ul>
<li>Year: 2021</li>
<li>Model: XCMG XE380K</li>
<li>Working Weight: 38,500 kg</li>
<li>Bucket Capacity: 1.9-2.1 m³</li>
<li>Rated Power: 254 kW @ 1900 rpm</li>
<li>Bucket Digging Force: 292 kN</li>
<li>Maximum Digging Radius: 10,968 mm</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Made in China</li>
</ul>

Invest smart—acquire proven XCMG reliability with minimal depreciation. Contact Fair Trade Machinery today for competitive pricing on this high-capacity excavator.

Specifications	Value
No.	1046627
Tonnage (tons)	8
Working weight (kg)	7830
Bucket capacity (m³)	0.28-0.32
Boom length (mm)	3100
Rod length (mm)	1800
Country of origin	Yantai, Shandong Province
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Kubota KubotaV3300-DI
Rated power (kw/rpm)	45.8/2200
Cooling mode	water-cooling
Displacement (L)	3.318
Working form	Fuel consumption is 163g/ps.hr
Bucket digging force (kN)	55
Rod digging force (kN)	38
Maximum flow of main pump (l/min)	162.8
Traveling Hydraulic Circuit (Mpa)	250
Rotary Hydraulic Circuit (Mpa)	190
Hydraulic crushing pipeline is standard	is
Bucket cylinders - Number × diameter × stroke (mm)	8555715
Bucket rod cylinders - Number × diameter × stroke (mm)	9560850
Boom cylinders - Number × diameter × stroke (mm)	11065865
Total transport length (mm)	5920
Total transport width (mm)	2200
Total transport height (mm)	2585
Full cab height (mm)	2585
Counterweight ground clearance (mm)	764
Back end turning radius (mm)	1710
Total track length (mm)	2568
Track gauge (mm)	1650
Track plate width (mm)	400
Total track width (mm)	2050
Track ground length (mm)	1990
Maximum digging radius (mm)	6170
Maximum digging depth (mm)	4060
Maximum excavation height (mm)	6918
Maximum unloading height (mm)	5032

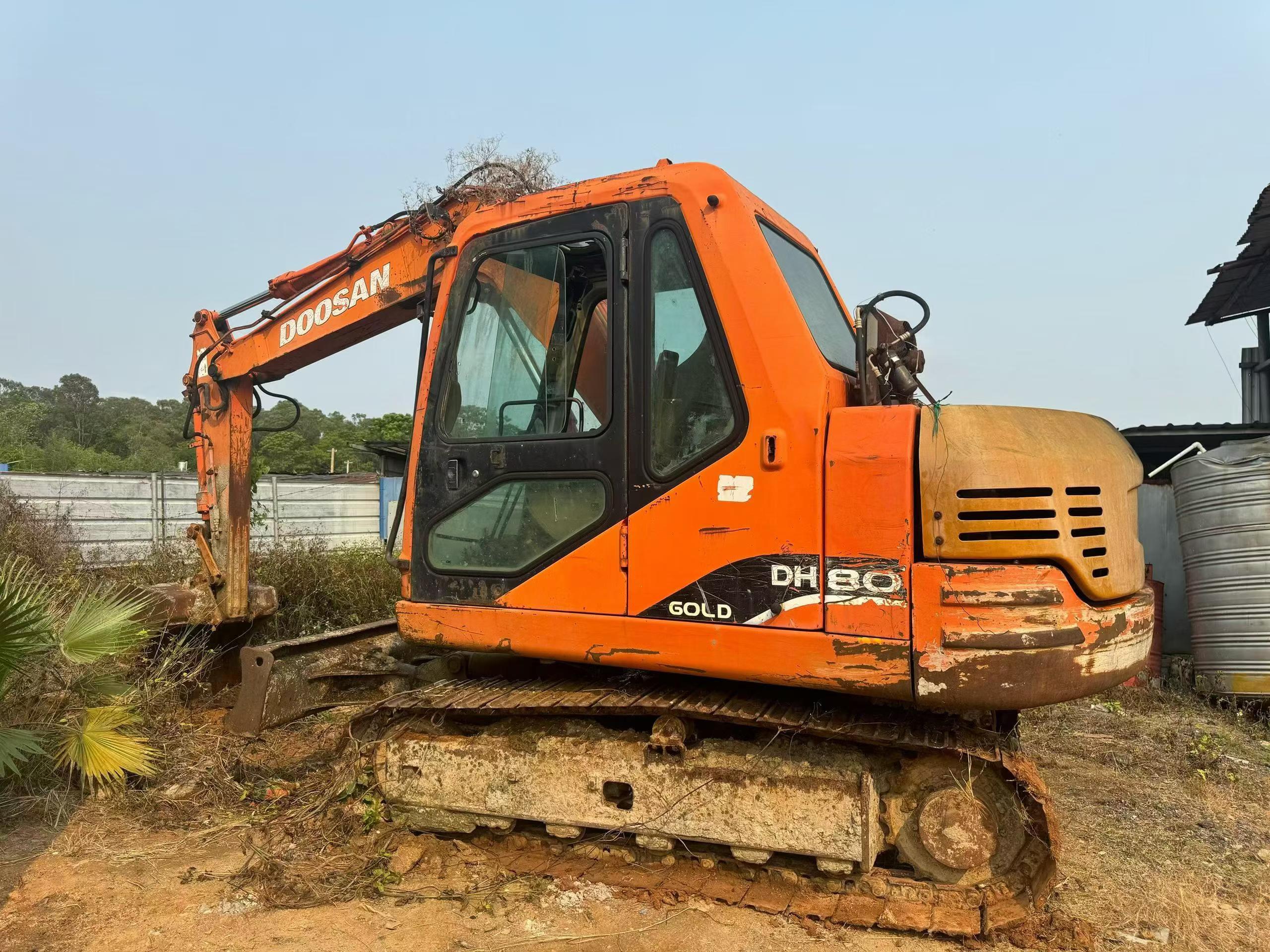

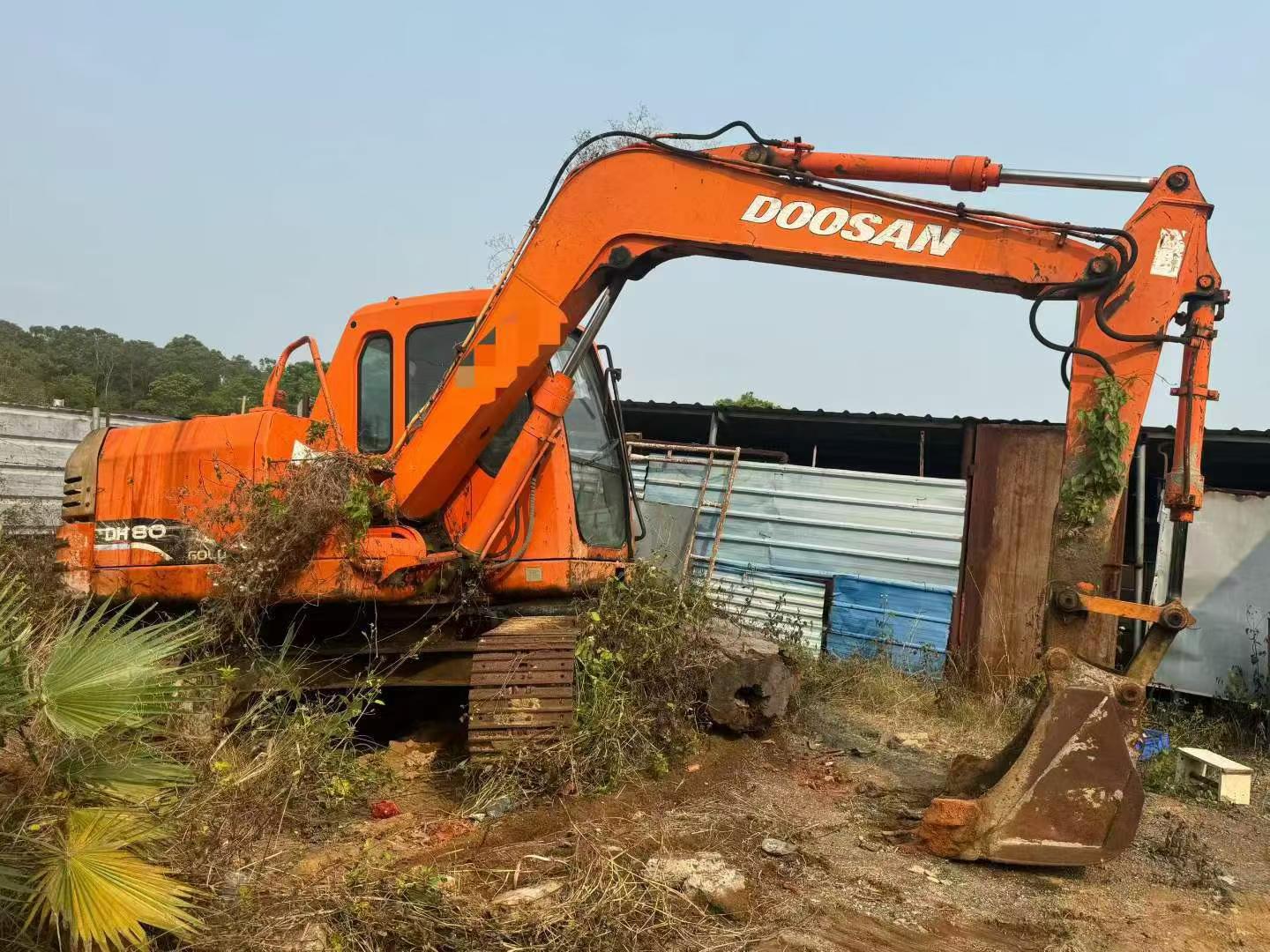

2016 Doosan DH80
