Product Description

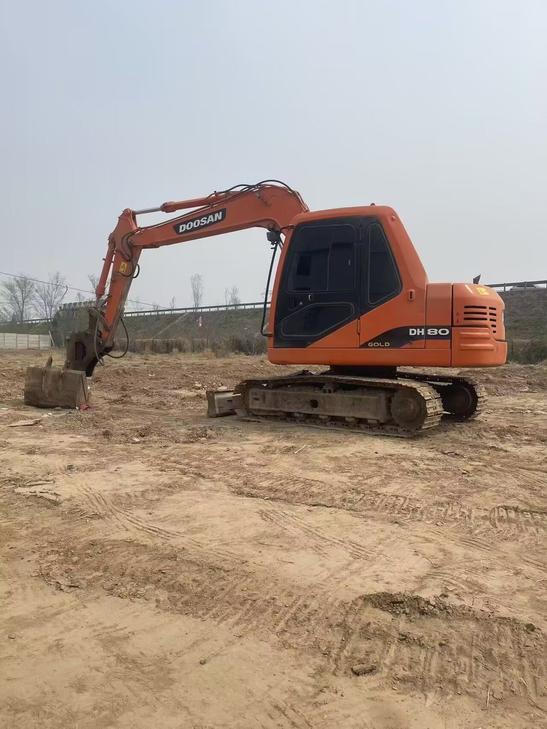

This 2018 Doosan DH80 excavator represents excellent value in the 8-ton class. Currently located in Hebei, China, this well-maintained unit demonstrates reliable performance across earthmoving and general construction applications.
The machine features stable major component operation with clean, leak-free hydraulic systems. Responsive controls and documented maintenance history indicate proper care throughout its service life. Suitable for excavation, trenching, and material handling tasks in civil engineering and construction projects.
- Year: 2018
- Model: Doosan DH80
- Operating Weight Class: 8 tons
- Condition: Well-maintained major components
- Hydraulics: Clean lines, no leaks detected
- Location: Hebei Province, China
- Includes: Hydraulic hammer attachment
This unit is ready for immediate deployment on earthworks and excavation projects. Inspection welcome.
| Specifications | Value |
|---|---|
| No. | 1138130 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7830 |
| Bucket capacity (m³) | 0.28-0.32 |
| Boom length (mm) | 3100 |
| Rod length (mm) | 1800 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota KubotaV3300-DI |
| Rated power (kw/rpm) | 45.8/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.318 |
| Working form | Fuel consumption is 163g/ps.hr |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Maximum flow of main pump (l/min) | 162.8 |
| Traveling Hydraulic Circuit (Mpa) | 250 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Hydraulic crushing pipeline is standard | is |
| Bucket cylinders - Number × diameter × stroke (mm) | 85*55*715 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95*60*850 |
| Boom cylinders - Number × diameter × stroke (mm) | 110*65*865 |
| Total transport length (mm) | 5920 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2585 |
| Full cab height (mm) | 2585 |
| Counterweight ground clearance (mm) | 764 |
| Back end turning radius (mm) | 1710 |
| Total track length (mm) | 2568 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2050 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6170 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 6918 |
| Maximum unloading height (mm) | 5032 |
