Product Description

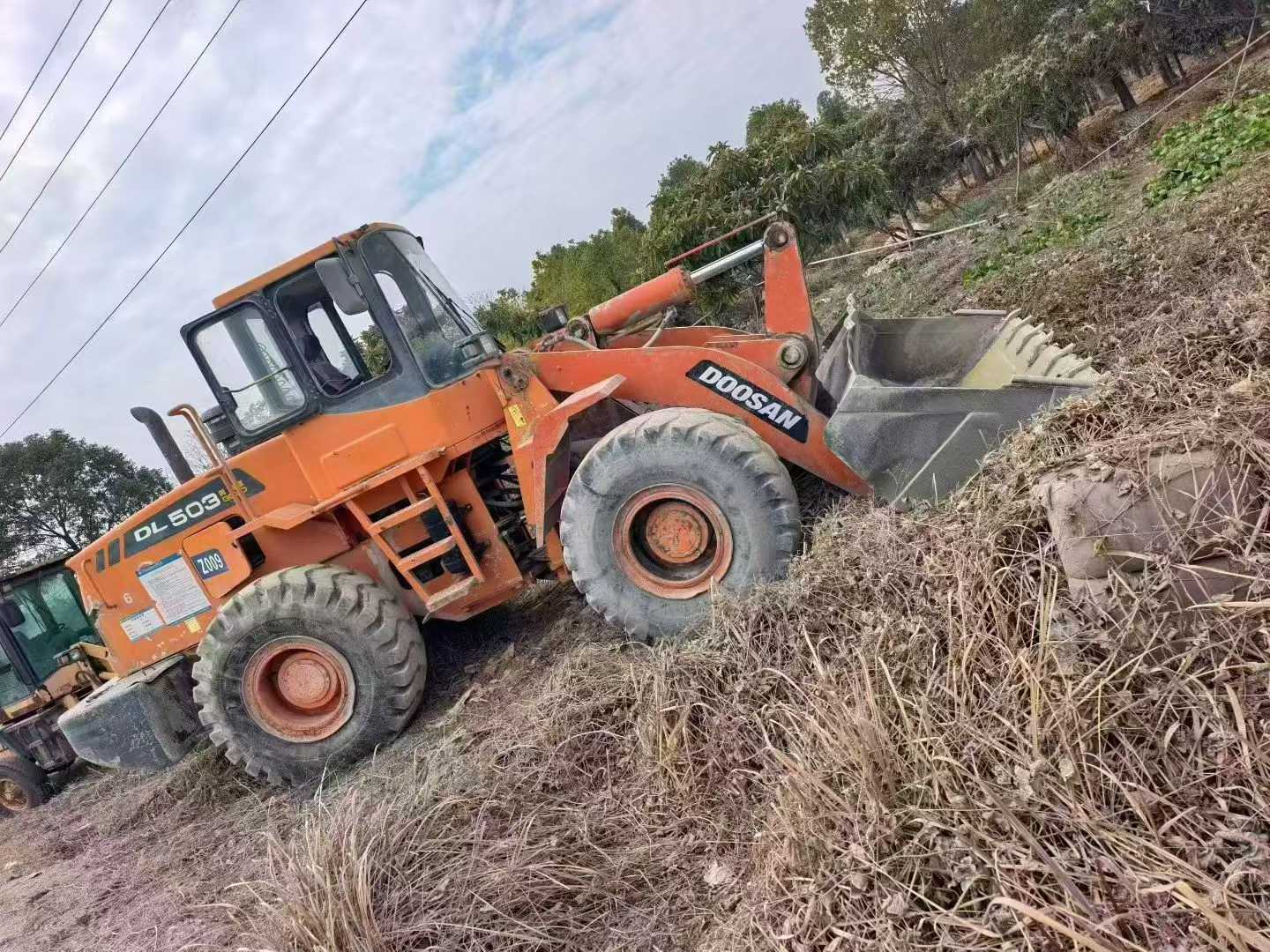

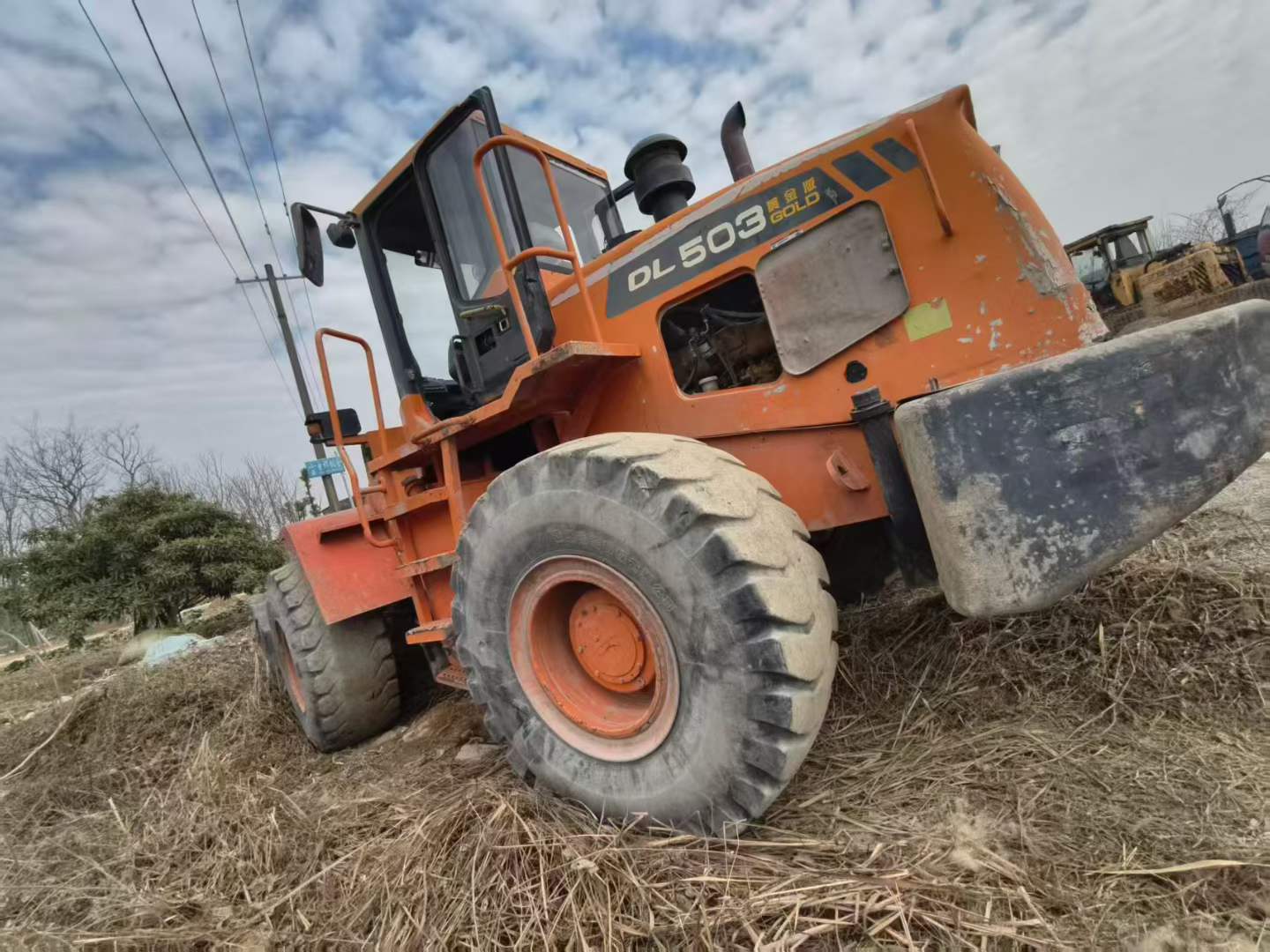

Featuring a powerful 162 kW engine, the 2012 Doosan DL503 is designed for demanding tasks such as digging, grading, and demolition. With a bucket capacity of 3 m³ and a rated load of 5000 kg, this loader handles heavy materials efficiently. Its robust 17.6-ton digging force and 14.9-ton maximum tractive force ensure it can tackle tough jobs with ease. Equipped with water-cooling and a 207/165 l/min flow rate, the DL503 maintains optimal performance under various conditions. The machine's 29° maximum climbing ability and 6710 mm minimum turning radius make it highly maneuverable in tight spaces. Site-ready and ready to work immediately, the DL503 offers a reliable solution for your construction needs.
- Machine operating weight: 16,900 kg
- Unloading height (45° angle): 3,180 mm
- Unloading distance (45° angle): 1,110 mm
- Maximum speed: 38/17 km/h
- Steering angle: 40°
| Specifications | Value |
|---|---|
| No. | 1002741 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Cooling mode | water-cooling |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 17.6Ton |
| Machine operating weight (kg) | 16900 |
| Unloading height - Unloading Angle 45°(mm) | 3180 |
| Unloading distance - Unloading Angle 45°(mm) | 1110 |
| Maximum tractive force (kN) | 14.9Ton |
| Maximum climbing ability (°) | 29 |
| Wheelbase (mm) | 3200 |
| Wheel base (mm) | 2150 |
| Minimum ground clearance (mm) | 450 |
| Machine length (mm) | 8080 |
| Machine width (mm) | 2990 |
| Machine height (mm) | 3450 |
| Steering Angle | 40 |
| Minimum turning radius of outer wheel center line | 6710 |
| Flow rated speed (l/min) | 207/165 |
| Rated working pressure (bars) | 170/140 |
| Lift (s) | 5.9 |
| Unloading (s) | 1.2 |
| Lower empty bucket (s) | 4.2 |
| Ternary sum (s) | 11.3 |
| Gearbox brand and model | |
| Speed 4 (km/h) | 38/17 |
