Product Description

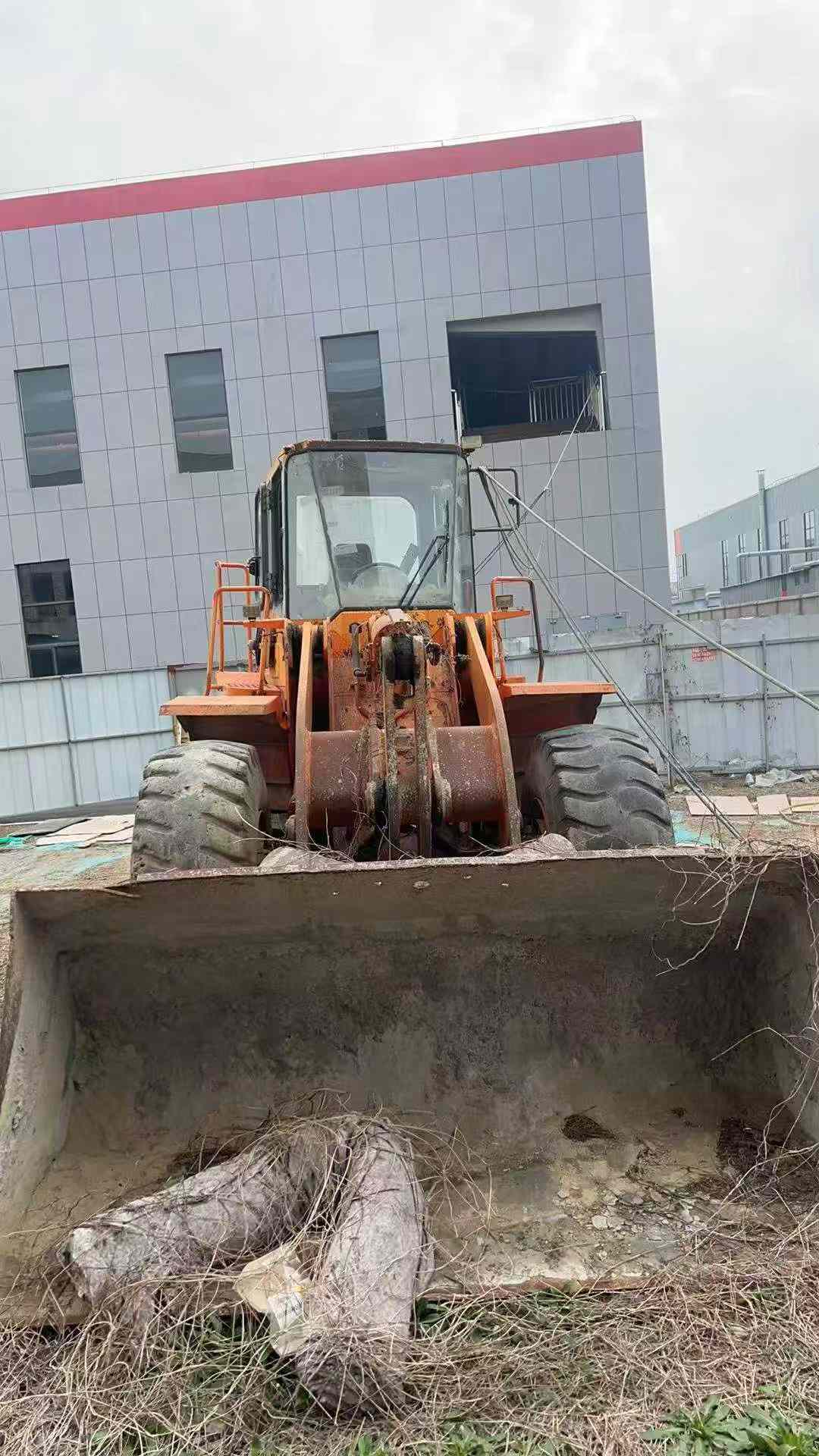

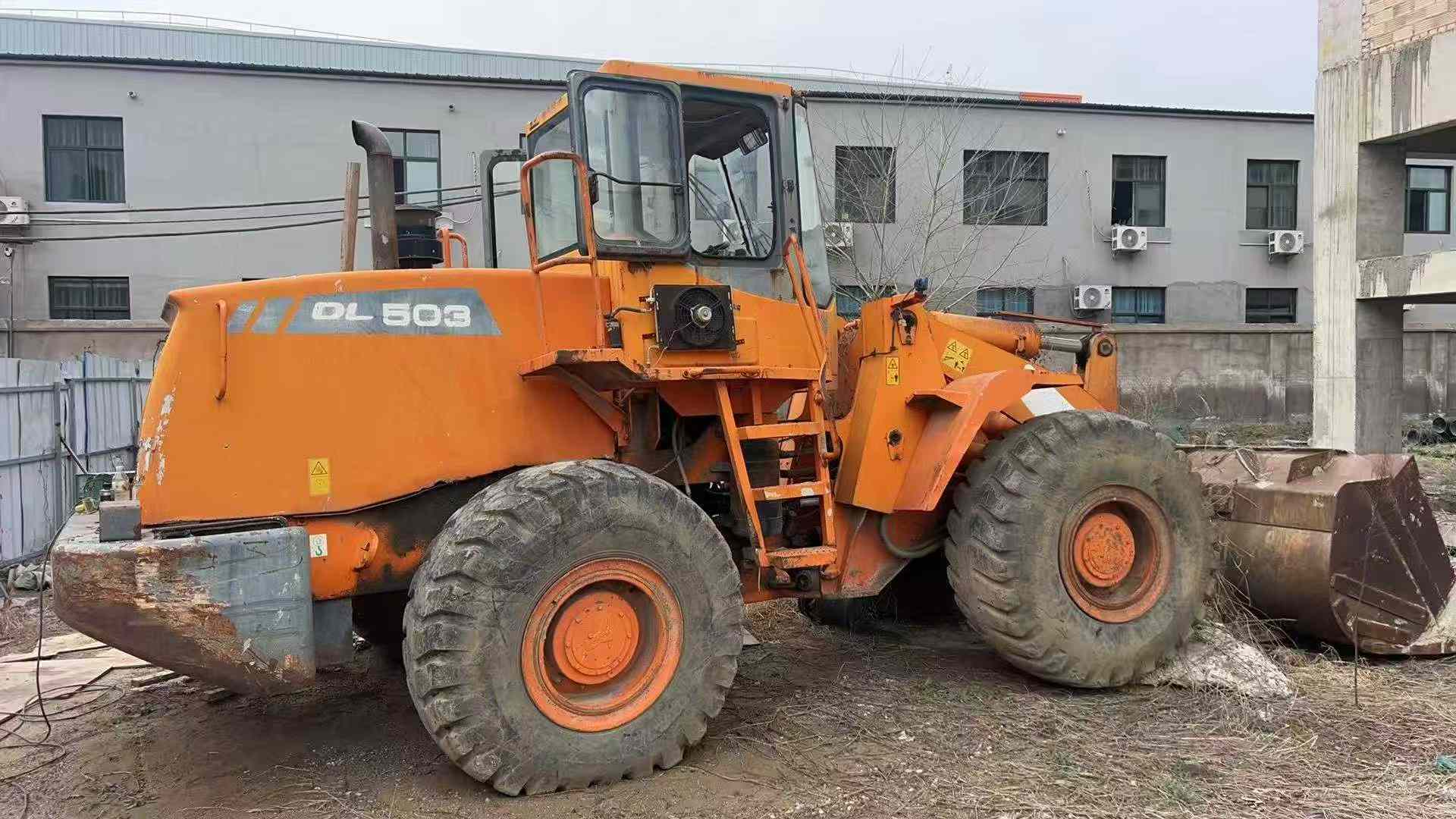

Maximize operational efficiency without the premium price tag with this 2016 Doosan DL503 wheel loader, currently available in Zhejiang Shaoxing. Powered by a robust 162kW water-cooled engine, this machine delivers reliable performance across demanding job sites. With a 5-ton rated load capacity and 3m³ bucket, it handles substantial material volumes while maintaining exceptional maneuverability.
Performance specifications include:
- Operating weight: 16,900kg for optimal stability
- Impressive 17.6-ton digging force and 14.9-ton maximum tractive force
- 3,180mm unloading height with 1,110mm reach at 45° angle
- 29° maximum climbing ability tackles challenging terrain
- Efficient 11.3-second cycle time (ternary sum) boosts productivity
- 6,710mm turning radius enables work in confined spaces
Acquiring pre-owned equipment represents a strategic financial decision. This DL503 offers proven Doosan engineering and durability at a fraction of new equipment costs, delivering immediate ROI while maintaining the performance standards your operations demand. Invest smart—secure high-capacity loading capability without compromising your capital budget.
| Specifications | Value |
|---|---|
| No. | 1005766 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Cooling mode | water-cooling |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 17.6Ton |
| Machine operating weight (kg) | 16900 |
| Unloading height - Unloading Angle 45°(mm) | 3180 |
| Unloading distance - Unloading Angle 45°(mm) | 1110 |
| Maximum tractive force (kN) | 14.9Ton |
| Maximum climbing ability (°) | 29 |
| Wheelbase (mm) | 3200 |
| Wheel base (mm) | 2150 |
| Minimum ground clearance (mm) | 450 |
| Machine length (mm) | 8080 |
| Machine width (mm) | 2990 |
| Machine height (mm) | 3450 |
| Steering Angle | 40 |
| Minimum turning radius of outer wheel center line | 6710 |
| Flow rated speed (l/min) | 207/165 |
| Rated working pressure (bars) | 170/140 |
| Lift (s) | 5.9 |
| Unloading (s) | 1.2 |
| Lower empty bucket (s) | 4.2 |
| Ternary sum (s) | 11.3 |
| Gearbox brand and model | |
| Speed 4 (km/h) | 38/17 |
