Product Description

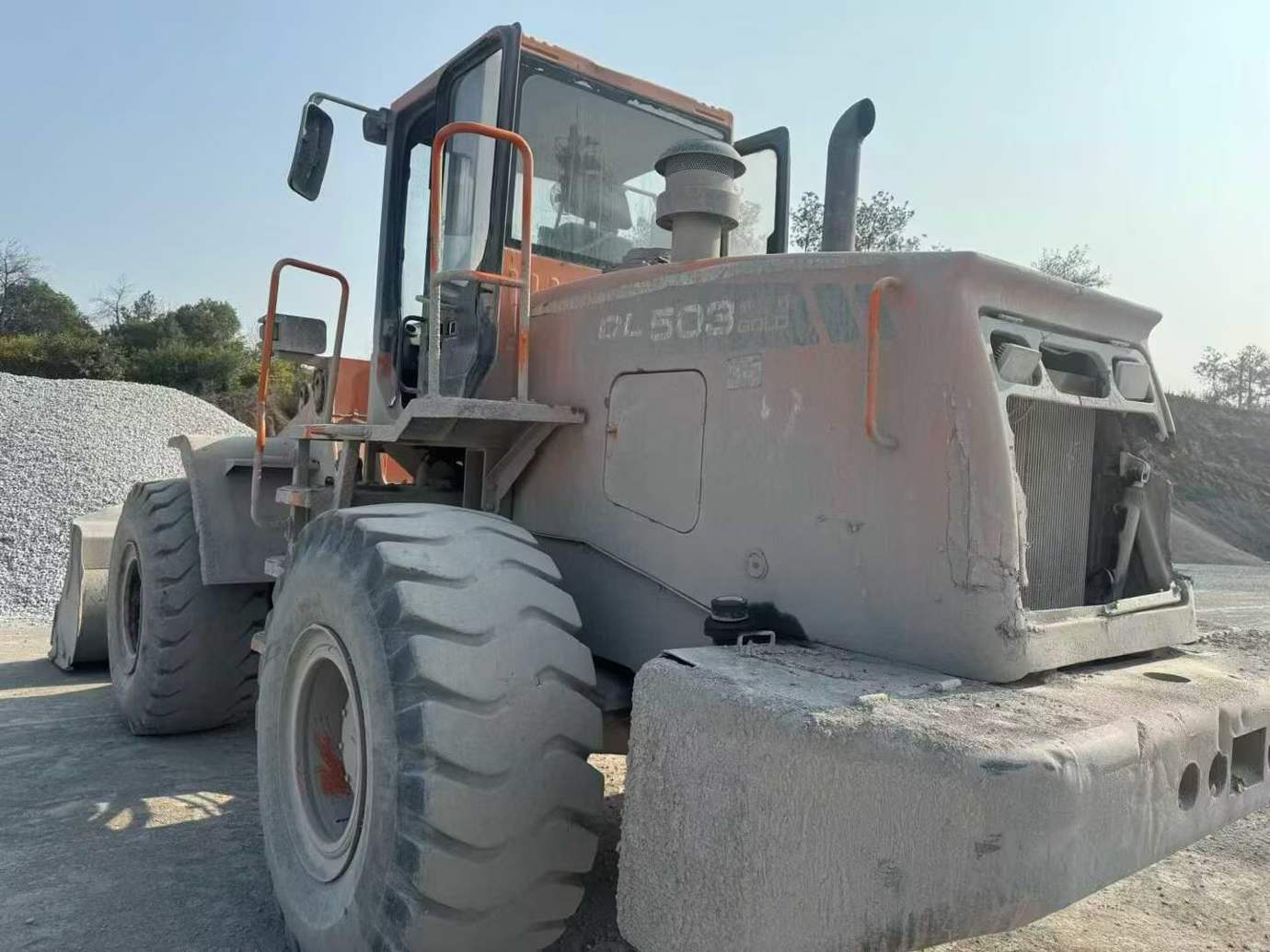

Built for demanding construction and material handling operations, this 2016 Doosan DL503 wheel loader delivers exceptional operator control and jobsite performance. With a robust 162kW engine and 5-ton rated capacity, operators benefit from precise handling characteristics that enhance productivity across diverse applications.

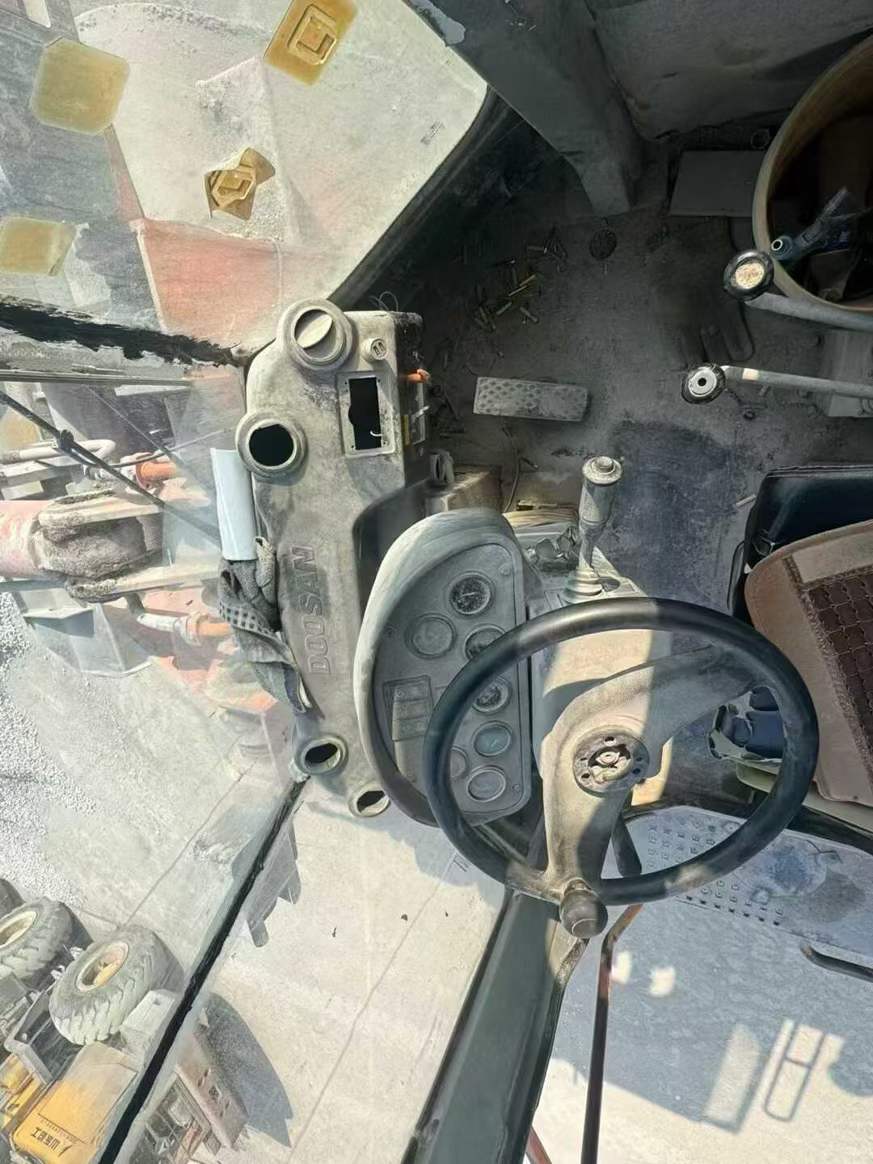

Superior visibility from the elevated cabin position provides comprehensive sight lines to the work area, while the machine's 29-degree maximum climbing ability and 6.7-meter turning radius ensure confident navigation in confined spaces. The 3.0m³ bucket capacity paired with 17.6-ton digging force enables efficient material movement, supported by a stable 16.9-ton operating weight that maintains balance during lifting operations.
- Water-cooled 162kW engine with dual-speed hydraulic system (207/165 l/min flow rates)
- Optimized wheelbase design (3200mm) for enhanced stability during material handling
- Fast cycle times: 5.9s lift, 1.2s unloading for maximum operational efficiency
- 40-degree steering angle with 450mm ground clearance for versatile terrain handling
Located in Hangzhou, Zhejiang, this reliable wheel loader represents proven Doosan engineer
| Specifications | Value |
|---|---|
| No. | 993217 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Cooling mode | water-cooling |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 17.6Ton |
| Machine operating weight (kg) | 16900 |
| Unloading height - Unloading Angle 45°(mm) | 3180 |
| Unloading distance - Unloading Angle 45°(mm) | 1110 |
| Maximum tractive force (kN) | 14.9Ton |
| Maximum climbing ability (°) | 29 |
| Wheelbase (mm) | 3200 |
| Wheel base (mm) | 2150 |
| Minimum ground clearance (mm) | 450 |
| Machine length (mm) | 8080 |
| Machine width (mm) | 2990 |
| Machine height (mm) | 3450 |
| Steering Angle | 40 |
| Minimum turning radius of outer wheel center line | 6710 |
| Flow rated speed (l/min) | 207/165 |
| Rated working pressure (bars) | 170/140 |
| Lift (s) | 5.9 |
| Unloading (s) | 1.2 |
| Lower empty bucket (s) | 4.2 |
| Ternary sum (s) | 11.3 |
| Gearbox brand and model | |
| Speed 4 (km/h) | 38/17 |
