Product Description
Built for demanding operations, this 2016 Doosan DL550 wheel loader delivers proven performance with a foundation of reliability that extends well beyond its initial purchase. Powered by a SCANIA DC13 Tier II engine producing substantial torque (2157 N.m at 1200 rpm) and backed by a 12.7L displacement, this machine handles heavy-duty applications with confidence. Currently located in Hunan, it features a 5.4-5.7 m³ bucket capacity and 10,000 kg rated load, making it ideal for high-volume material handling.
Doosan's reputation in the used equipment market stands on solid ground. Parts availability remains excellent across China, minimizing downtime and keeping operational costs predictable. Strong resale values reflect the brand's durability and market demand, protecting your investment over time. This DL550 showcases robust specifications including 260 kN digging force, 306 kN maximum tractive force, and a 31,125 kg operating weight—numbers that translate to real productivity on site.

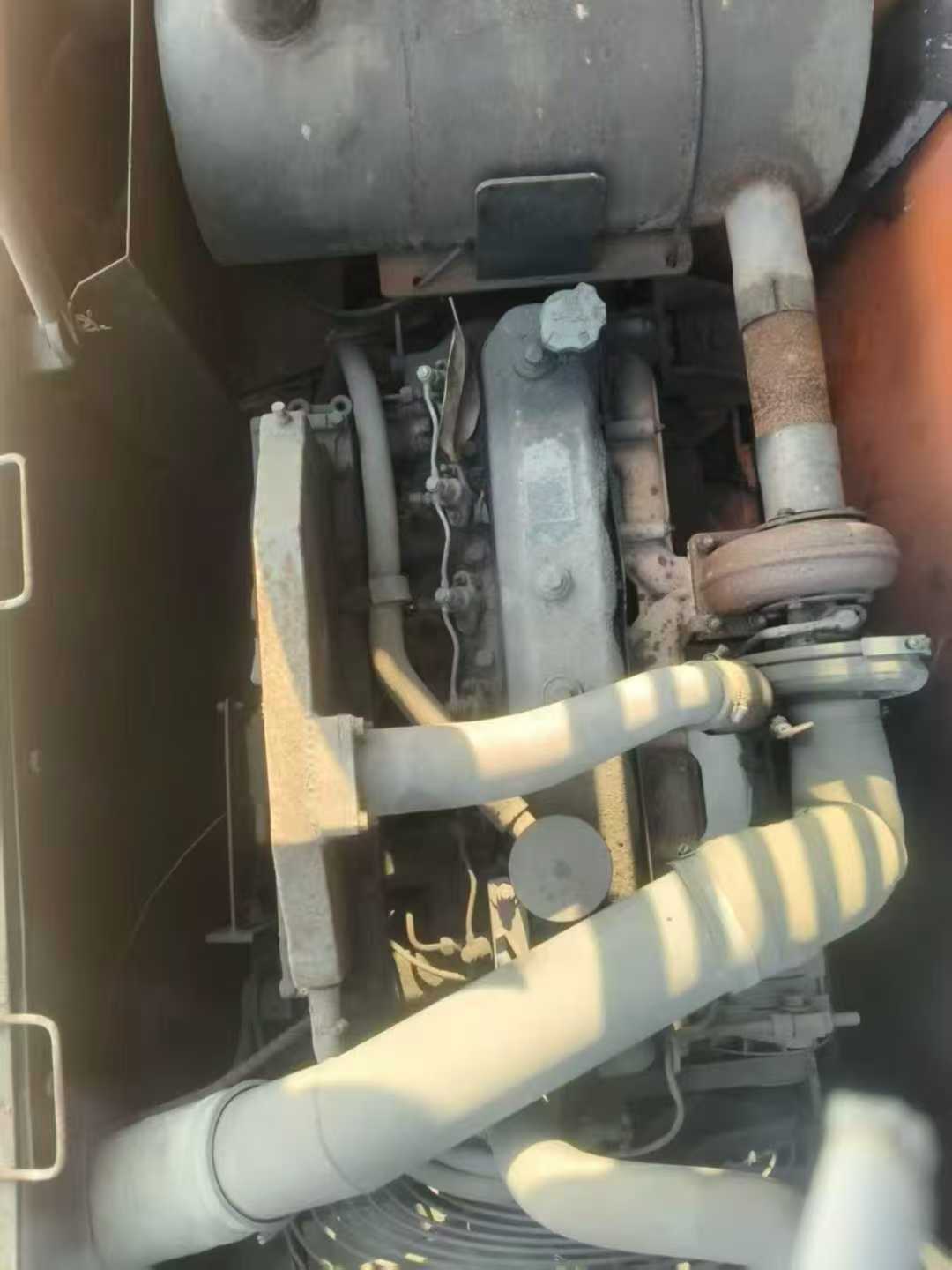

- SCANIA DC13 engine with water-cooling system
- Four-speed transmission with top speed of 36 km/h
- 564L fuel capacity for extended operation
- 7,565 mm turning radius for maneuverability
- Established p
| Specifications | Value |
|---|---|
| No. | 994571 |
| Engine type | SCANIA DC13,Tier II |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | |
| Maximum torque (N.m) | 2157/1200 |
| Working form | |
| Exhaust volume (L) | 12.7 |
| Rated power (kw/rpm) | 6 |
| Battery voltage (V) | |
| Battery capacity (kWh) | 15 Ah |
| Bucket capacity (m³) | 5.4~5.7 |
| Rated load (tons) | |
| Rated load (kg) | 10000 |
| Digging force (lifting force) (kN) | 260 |
| Machine operating weight (kg) | 31,125 |
| Max - Unloading height (mm) | 3,285 |
| Unloading distance (mm) | 1,535 |
| Maximum tractive force (kN) | 306 |
| Maximum climbing ability (°) | 58% / 30 ° |
| Tipping load (kg) | 24,680 |
| Fuel Tank (L) | 564 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 247 |
| Engine Oil (L) | 45 |
| Wheel base (mm) | 2,420 |
| Minimum ground clearance (mm) | 480-497 |
| Machine length (mm) | 9,870 |
| Machine width (mm) | 3,405 |
| Machine height (mm) | 3,785 |
| Bucket width (mm) | 3,405 |
| Transaxle swing Angle (°) | |
| Torque converter type number | |
| Steering Angle | |
| Minimum turning radius of outer wheel center line | 6,550 |
| Turning radius - Outside of bucket (mm) | 7,565 |
| Flow rated speed (l/min) | 546 |
| Rated working pressure (bars) | 275 |
| Lift (s) | |
| Unloading (s) | |
| Lower empty bucket (s) | |
| Speed 1 gear (km/h) | 6.5/6.5 |
| Speed 2 (km/h) | 12.4/12.1 |
| Speed 3 (km/h) | 19.7/19.0 |
| Speed 4 (km/h) | 36 |
| Starting motor Power (kw) | 6 |
