Product Description

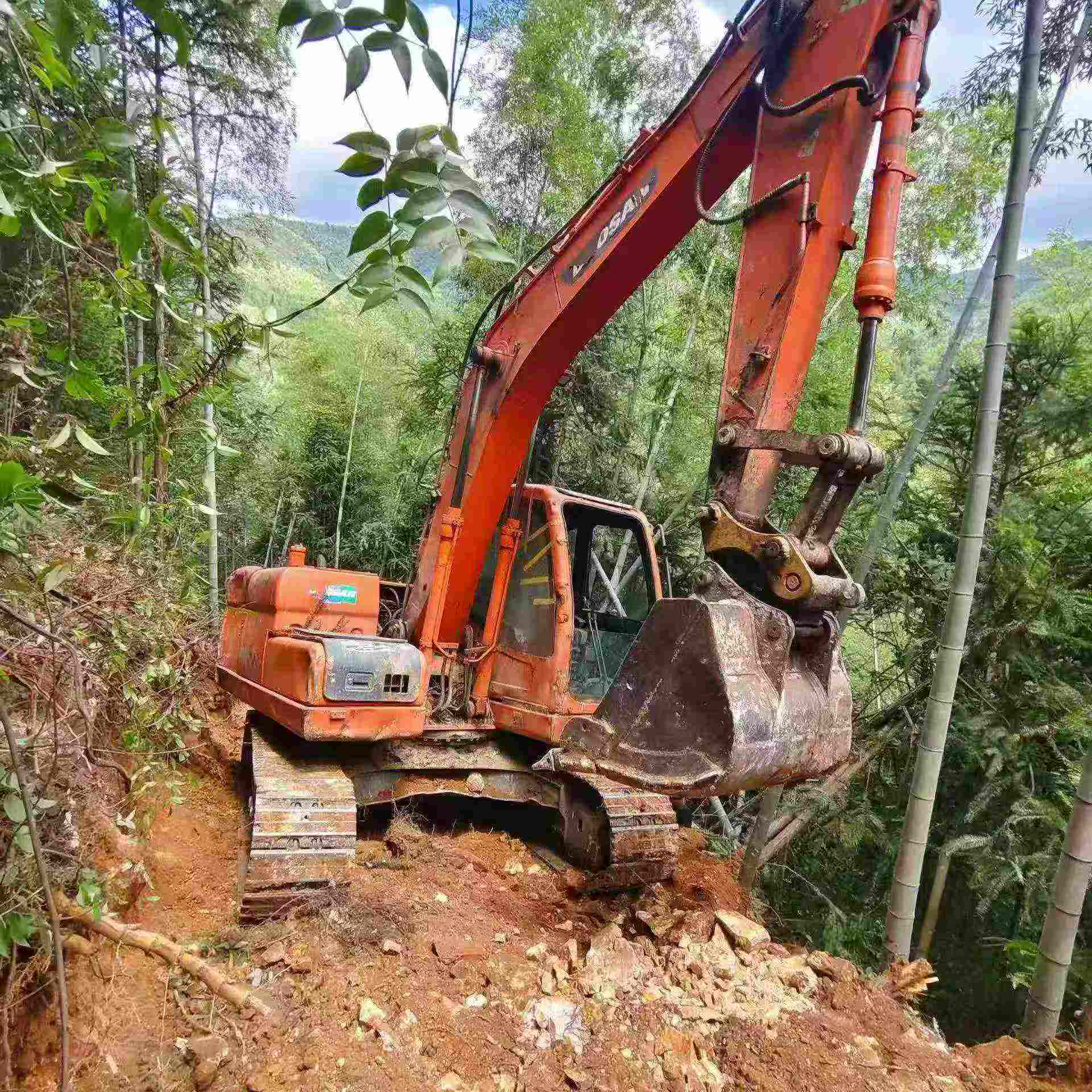

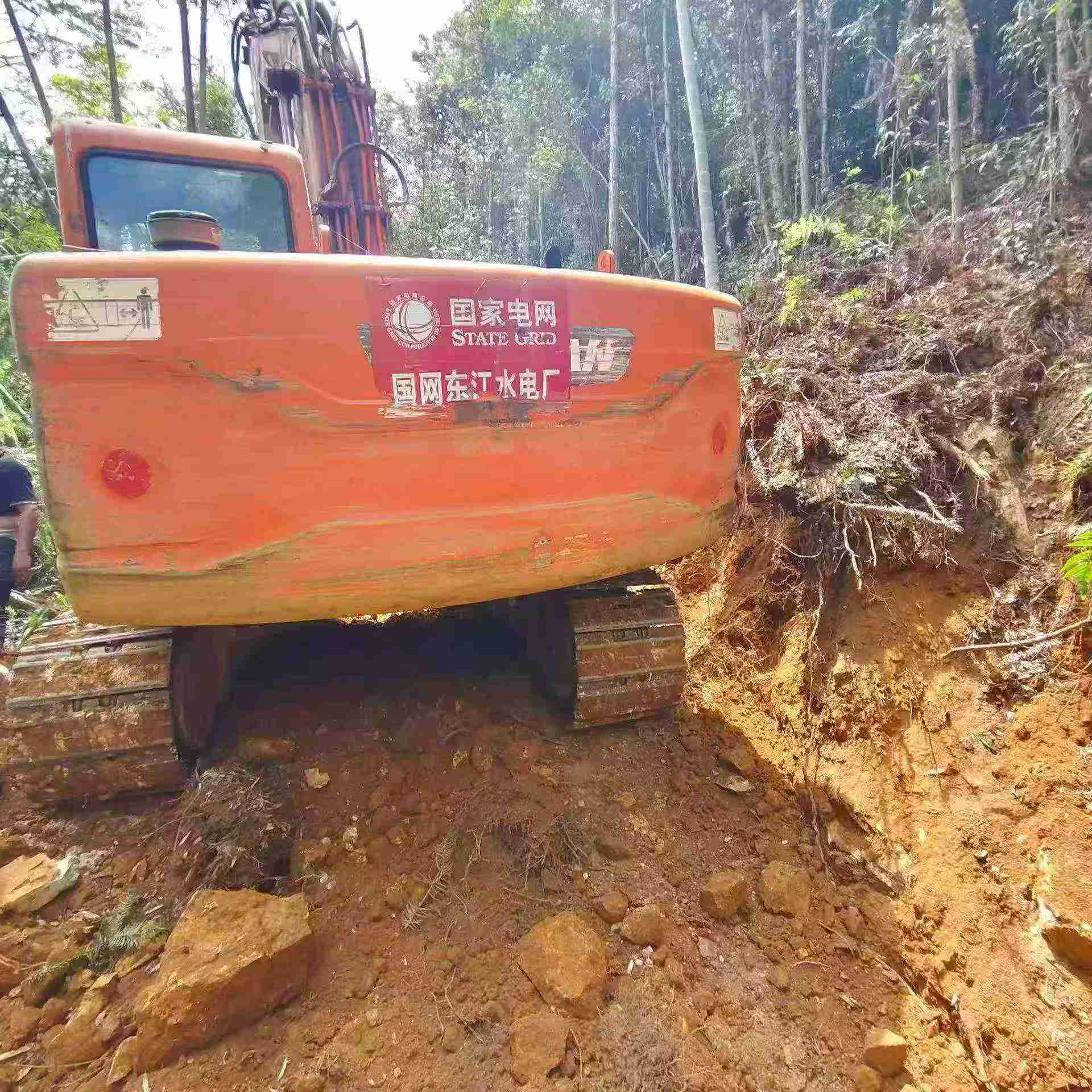

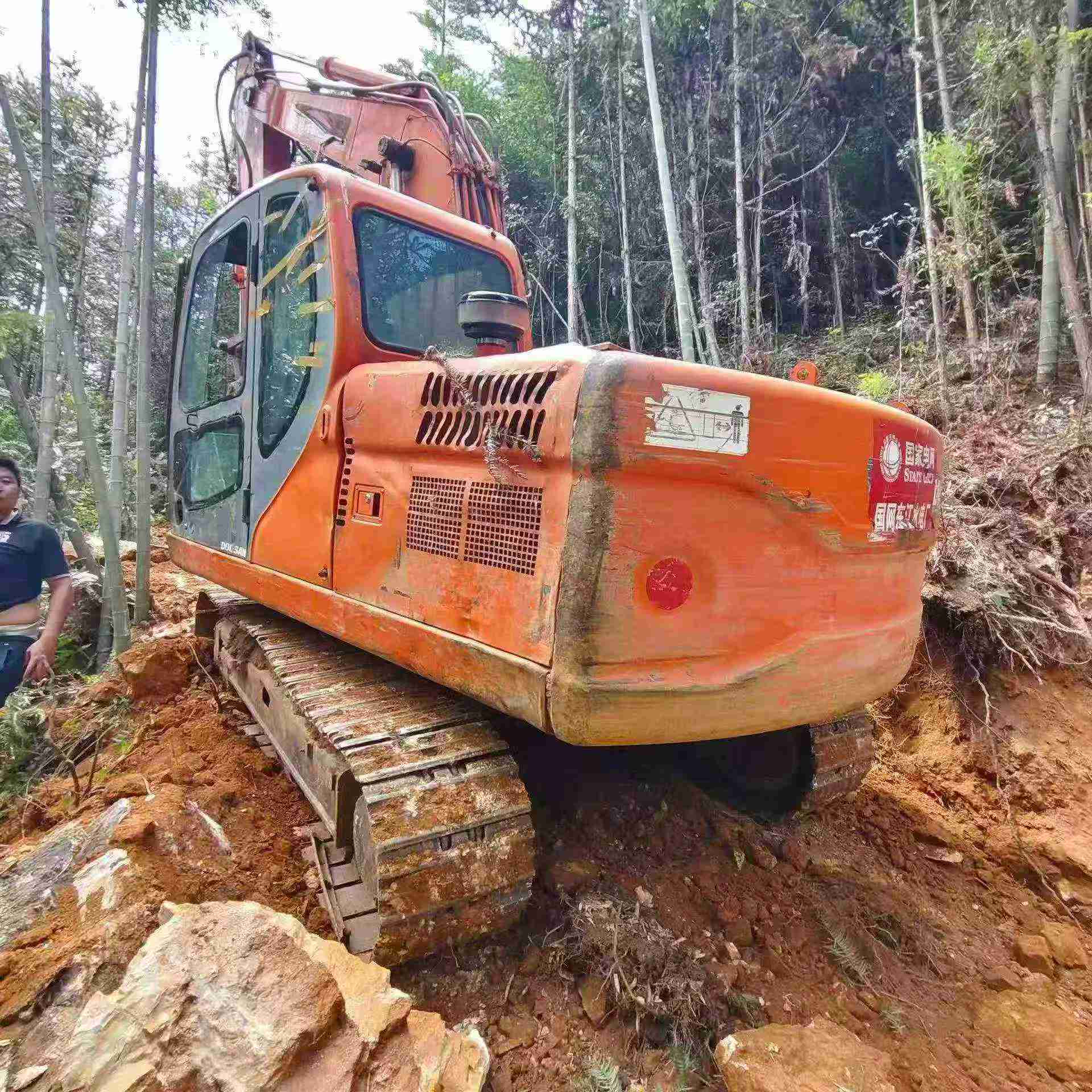

Discover the reliability and efficiency of the 2020 Doosan DX120 excavator, now available for immediate purchase in Hunan, China. This used machine is offered at a competitive price of 90,000 RMB, making it an excellent choice for businesses looking to enhance their fleet without compromising on quality or performance. The DX120 is known for its robust design and versatile capabilities, ideal for a wide range of construction and excavation tasks. Ensure your project stays on schedule and within budget with this well-maintained, single-owner unit.
- Year: 2020
- Brand: Doosan
- Model: DX120
- Location: Hunan, China
- Price: 90,000 RMB
| Specifications | Value |
|---|---|
| No. | 1115414 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.51 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

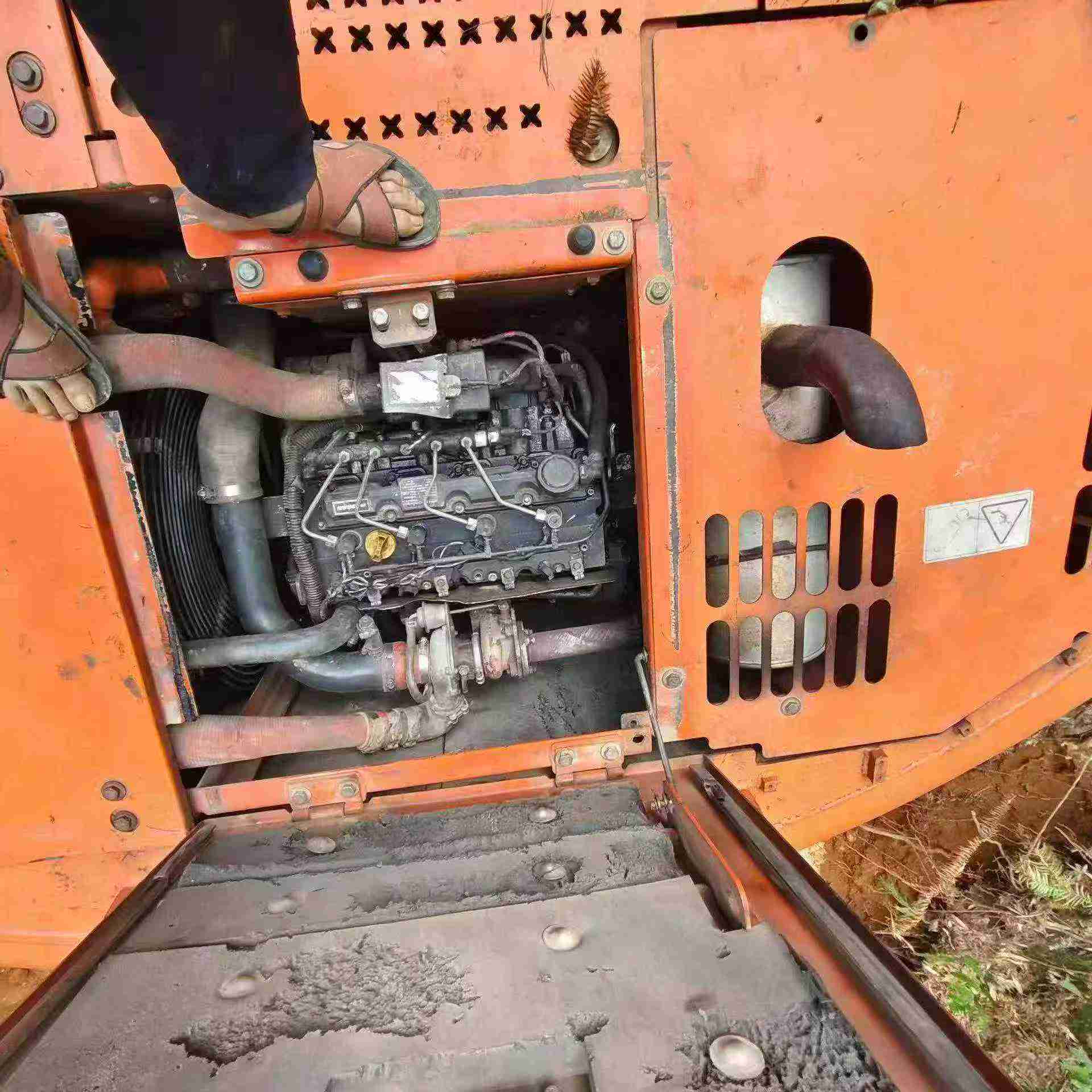

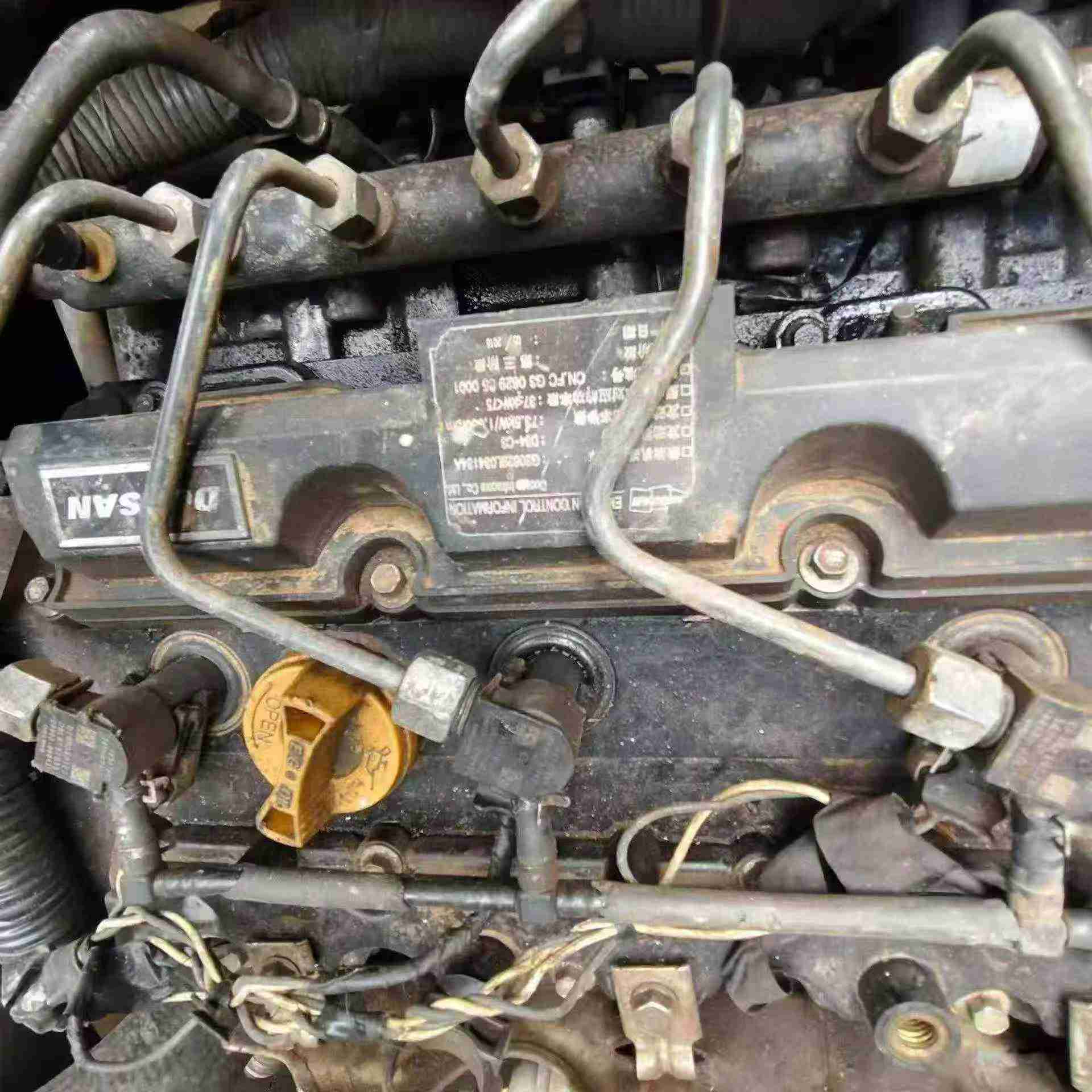

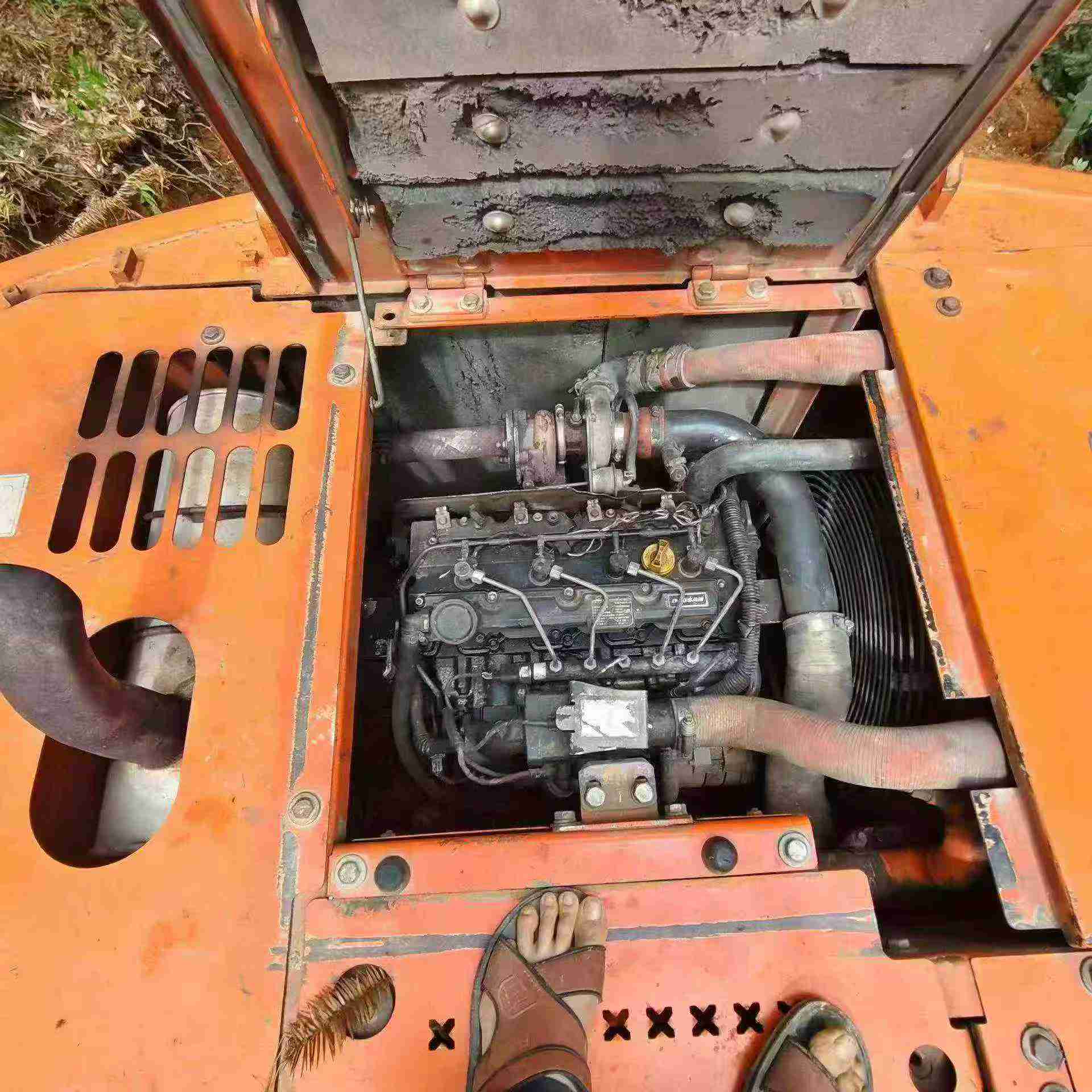

| Engine type | D34D |
| Rated power (kw/rpm) | 71 / 1850 |
| Cylinder diameter × stroke (mm) | 98 x 113 |
| Number of cylinders (PCS) | 4 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 99 / 105 |
| Rod digging force (kN) | 63.2 / 67 |
| Maximum tractive force (kN) | 11.9 |
| Travel speed (km/h) | 4.5 / 2.8 |
| Turning torque (Nm) | 40 |

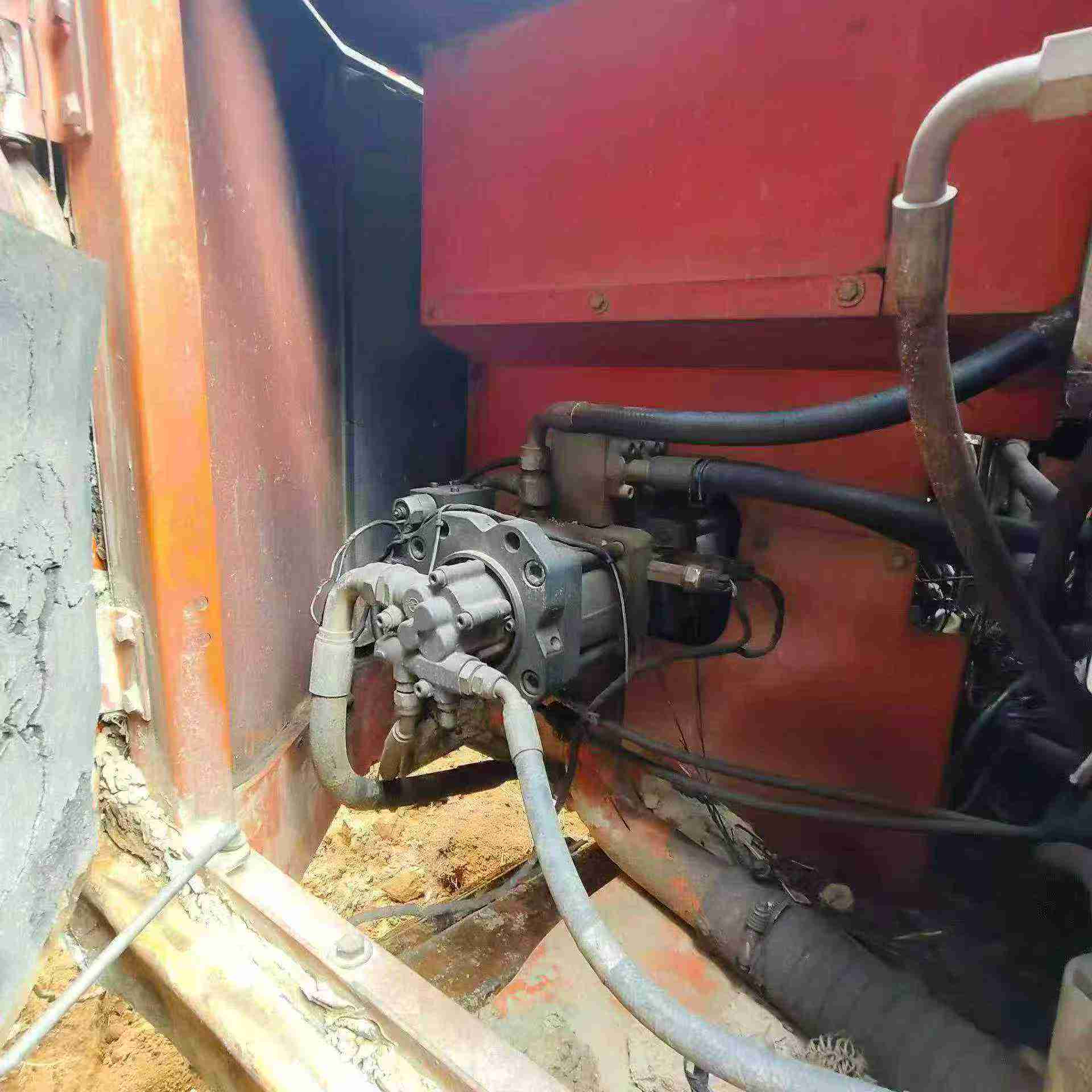

| Type of walking hydraulic motor | Axial piston hydraulic motor |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 152 |
| Total transport length (mm) | 7315 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2775 |
| Full cab height (mm) | 835 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3315 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7620 |
| Maximum digging depth (mm) | 5150 |
| Maximum excavation height (mm) | 7955 |
| Maximum unloading height (mm) | 5640 |
| Maximum vertical digging depth (mm) | 3605 |
| Maximum excavation radius of stop surface (mm) | 7465 |
| Maximum effective digging depth (mm) | 3605 |
