Product Description

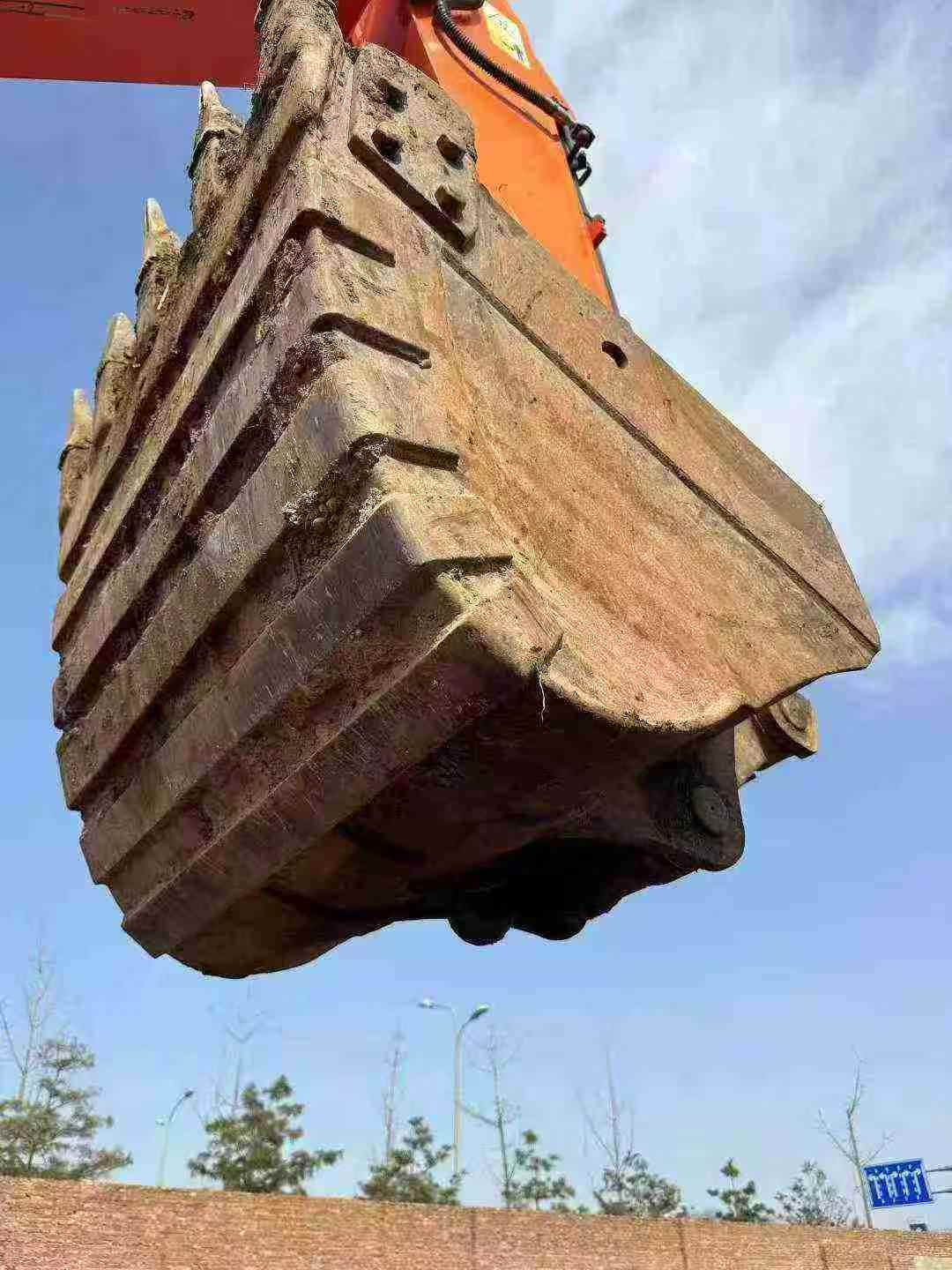

Designed for precision and daily productivity, this 2016 Doosan DX120-9C delivers exceptional operator control across demanding jobsites. Operating at 12 tons with a 71 kW D34D engine, this midsize excavator combines responsive hydraulics with a stable 12,200 kg working weight. Operators benefit from excellent sightlines and intuitive controls that reduce fatigue during extended shifts. The 0.51 m³ backhoe bucket generates 99 kN of digging force, while the compact 2,130 mm rear swing radius enables confident work in confined areas.

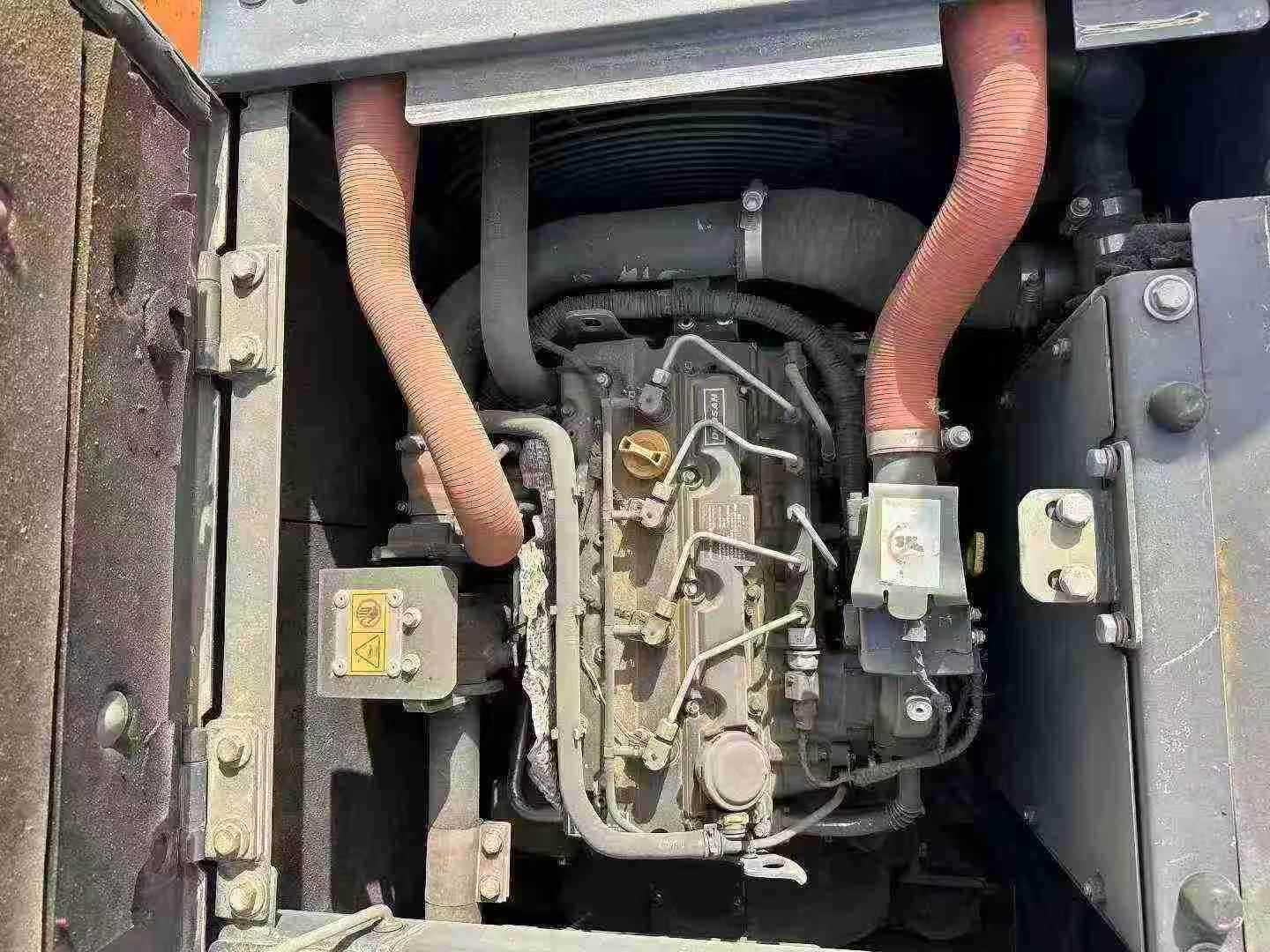

- Engine: D34D, 71 kW @ 1,850 rpm – reliable traditional power
- Digging Performance: 7,620 mm max reach, 5,150 mm depth capability

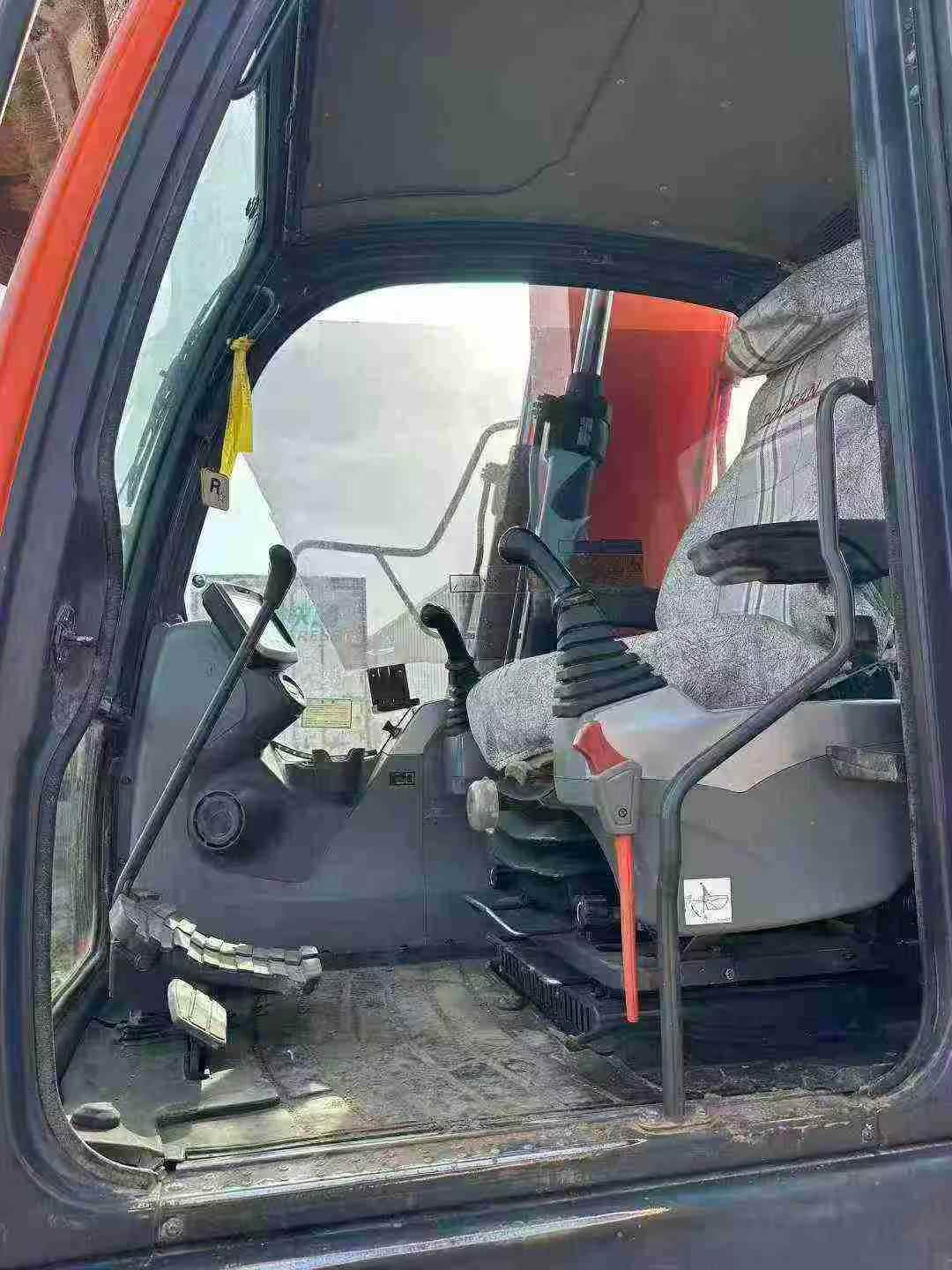

- Operator Comfort: Enhanced cabin visibility, ergonomic layout for all-day operation
- Stability: 2,495 Nm turning torque, balanced 3,315 mm track base
- Transport Dimensions: 7,315 × 2,540 × 2,745 mm
- Location: Hebei, China – joint venture quality construction
Built for operators who demand responsive handling and clear visibility, this DX120-9C remains a dependable choice for utility work, site prep, and materi
| Specifications | Value |
|---|---|
| No. | 1011020 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.51 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D34D |
| Rated power (kw/rpm) | 71 / 1850 |
| Bucket digging force (kN) | 99 / 105 |
| Rod digging force (kN) | 63.2 / 67 |
| Travel speed (km/h) | 4.5 / 2.8 |
| Turning torque (Nm) | 2495 |
| Total transport length (mm) | 7315 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2745 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3315 |
| Maximum digging radius (mm) | 7620 |
| Maximum digging depth (mm) | 5150 |
| Maximum excavation height (mm) | 7955 |
| Maximum unloading height (mm) | 5640 |
| Maximum vertical digging depth (mm) | 3605 |
