Product Description

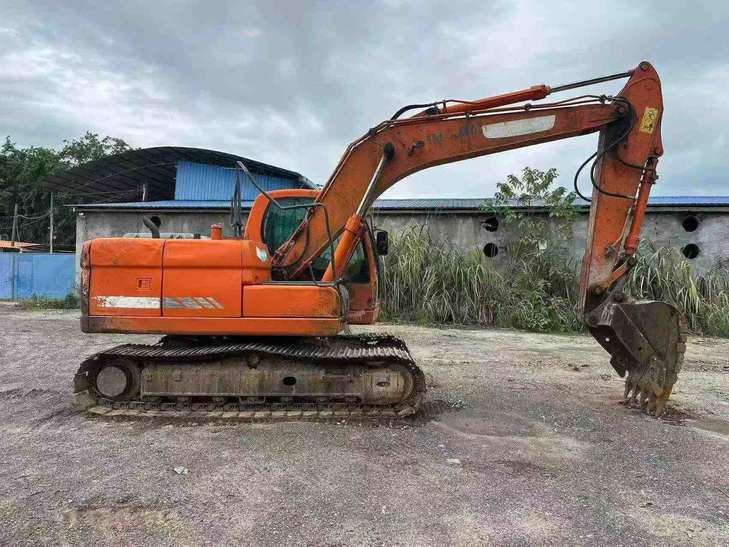

Available for sale: 2016 Doosan DX150LC hydraulic excavator, currently located in Hunan Province, China. This mid-size crawler excavator has been maintained since original purchase and is ready for immediate deployment in construction, earthmoving, or infrastructure projects.
Key specifications:
- Operating weight: approximately 15 tons
- Engine: Doosan diesel power unit
- Hydraulic system with responsive control
- Standard excavator bucket configuration
- Crawler undercarriage for stable operation
The DX150LC series is recognized for its balance of power and fuel efficiency in the 15-ton excavator class. This unit represents a cost-effective solution for contractors seeking reliable equipment with established service support. Pricing available upon inquiry. Serious buyers are encouraged to arrange inspection in Hunan.
| Specifications | Value |
|---|---|
| No. | 1082549 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14000 |
| Bucket capacity (m³) | 0.58 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 71 / 1850 |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.2 |
| Bucket digging force (kN) | 106 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 4.9 / 3.0 |
| Turning torque (Nm) | 40 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 114 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 900 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1180 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 75 x 1085 |
| Fuel Tank (L) | 267 |
| Hydraulic Tank (L) | 147 |
| Coolant (L) | 24 |
| Total transport length (mm) | 7680 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2755(to top of cab) |
| Full cab height (mm) | 2750 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2325 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2540 |
| Total track length (mm) | 3750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5655 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4450 |
| Maximum excavation radius of stop surface (mm) | 8160 |
| Maximum effective digging depth (mm) | 5430 |
