Product Description

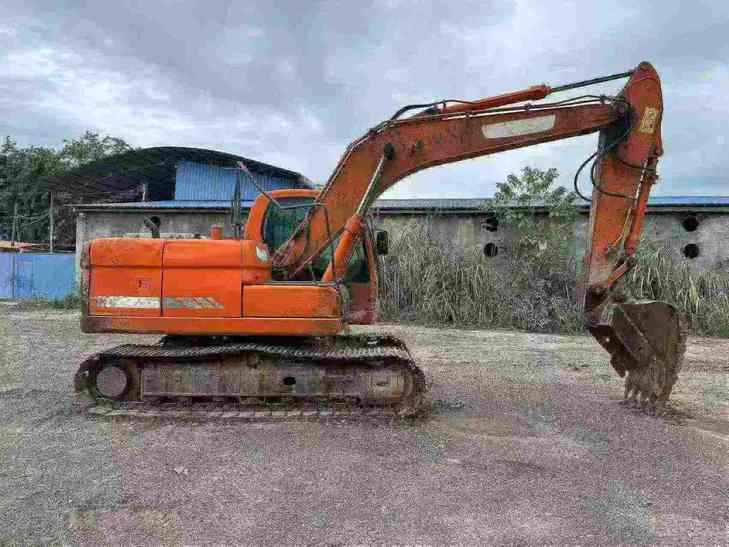

This 2016 Doosan DX150LC excavator represents a solid mid-size crawler option for contractors seeking proven performance and reliability. With approximately 10 years of operational history, this machine has been maintained in Hunan, China, and is now available for acquisition in the pre-owned equipment market.
The DX150LC series is recognized for its balanced combination of digging force, reach capabilities, and fuel efficiency in the 15-ton class. Doosan's engineering delivers dependable hydraulic systems and operator comfort suitable for general earthmoving, site development, and utility applications.
- Year of Manufacture: 2016
- Model: DX150LC crawler excavator
- Current Location: Hunan Province, China
- Pricing: Competitive market rate for inspection-based negotiation
Interested buyers are encouraged to conduct thorough on-site inspections and discuss specific operational requirements directly with the seller to ensure equipment suitability.
| Specifications | Value |
|---|---|
| No. | 1083805 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14000 |
| Bucket capacity (m³) | 0.58 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 71 / 1850 |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.2 |
| Bucket digging force (kN) | 106 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 4.9 / 3.0 |
| Turning torque (Nm) | 40 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 114 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 900 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1180 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 75 x 1085 |
| Fuel Tank (L) | 267 |
| Hydraulic Tank (L) | 147 |
| Coolant (L) | 24 |
| Total transport length (mm) | 7680 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2755(to top of cab) |
| Full cab height (mm) | 2750 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2325 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2540 |
| Total track length (mm) | 3750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5655 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4450 |
| Maximum excavation radius of stop surface (mm) | 8160 |
| Maximum effective digging depth (mm) | 5430 |
