2017 Doosan DX150LC-9C

1/7

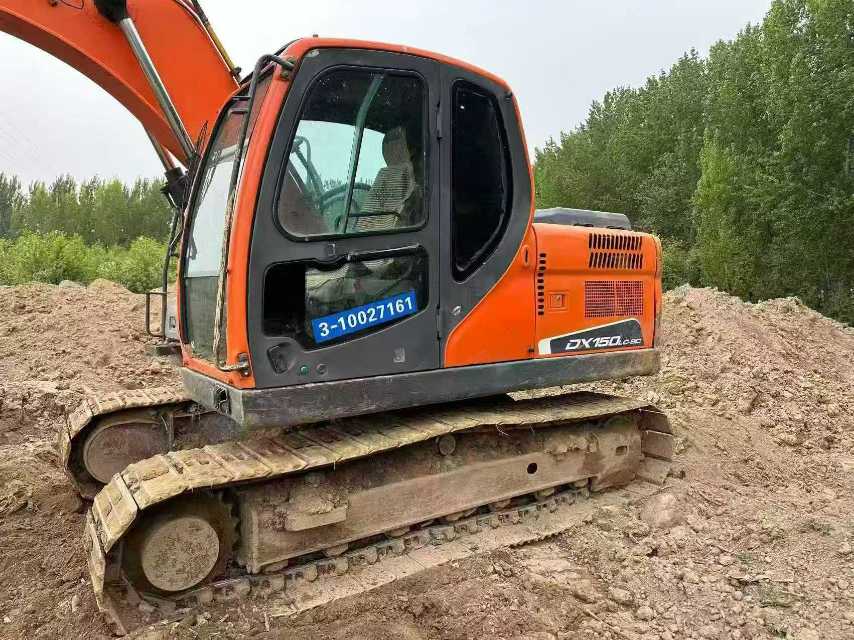

Buy Doosan DX150LC-9C Used Excavator / 1
Buy Doosan DX150LC-9C Used Excavator / 2
Buy Doosan DX150LC-9C Used Excavator / 3
Buy Doosan DX150LC-9C Used Excavator / 4

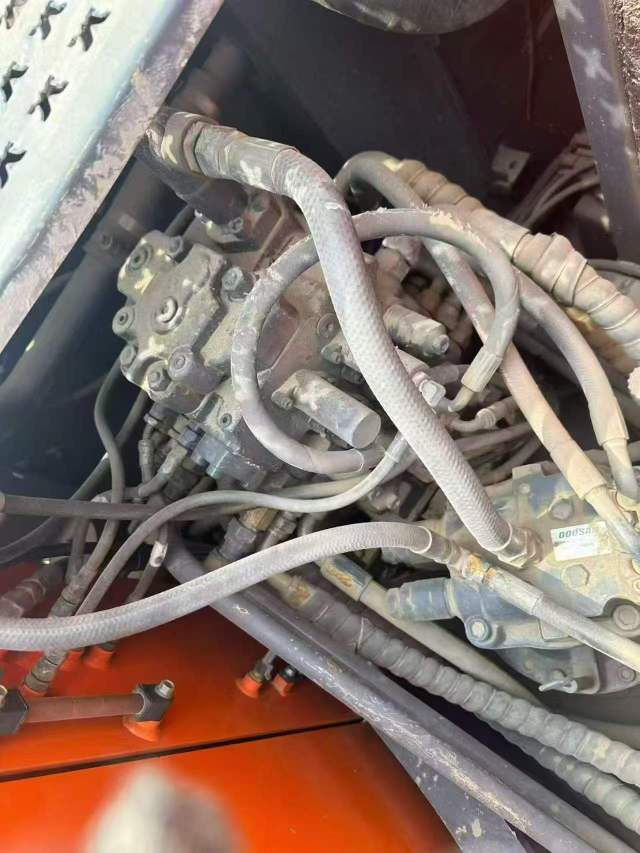

Buy Doosan DX150LC-9C Used Excavator / 5

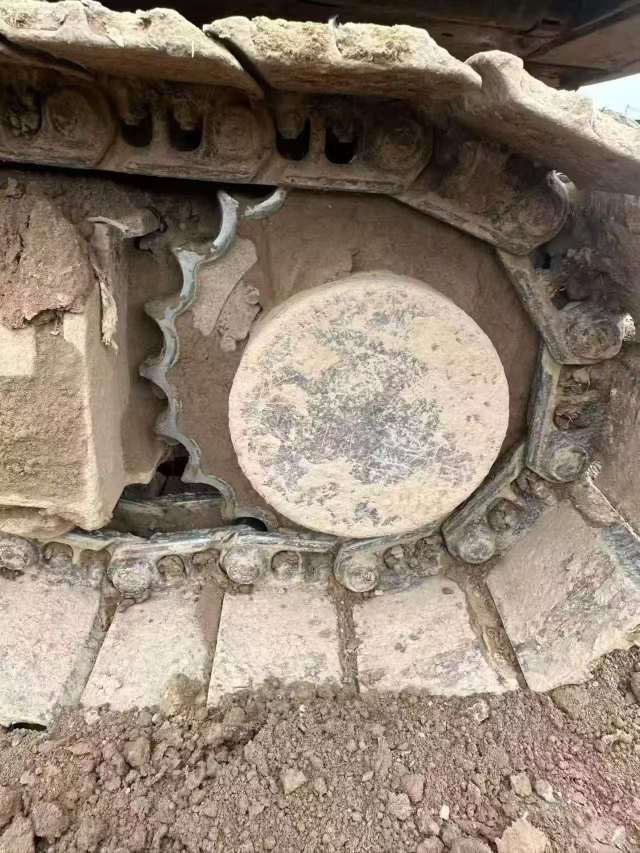

Buy Doosan DX150LC-9C Used Excavator / 6
Buy Doosan DX150LC-9C Used Excavator / 7

Product Description

Discover the reliability and efficiency of the 2017 Doosan DX150LC-9C, available now in Peking, China. This excavator is a proven workhorse, designed to meet the demands of various construction and excavation projects. Known for its robust performance and durability, this model ensures that you can focus on productivity without downtime. The DX150LC-9C is in excellent working condition, ready to be deployed immediately upon purchase. Trust in the quality and authenticity of this machine, which has been maintained to high standards, making it an ideal choice for your fleet.

  • Year: 2017
  • Brand: Doosan
  • Model: DX150LC-9C
  • Location: Peking, China
SpecificationsValue
No.1113809
Tonnage (tons)15
Working weight (kg)14100
Bucket capacity (m³)0.58
Boom length (mm)4600
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDL06
Rated power (kw/rpm)74/1900
Cylinder diameter × stroke (mm)100 x 125
Number of cylinders (PCS)6
Working formIn-line, turbocharged.
Ground specific pressure (Kpa)36
Rotation speed (rpm)10.1
Bucket digging force (kN)100.9
Rod digging force (kN)59.8
Travel speed (km/h)High: 5.04 / Low: 3.01
Type of walking hydraulic motorAxial piston hydraulic motor
Maximum flow of main pump (l/min)2*114
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)27.5
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)33
Fuel Tank (L)267
Hydraulic Tank (L)147
Engine Oil changes (L)27
Total transport length (mm)7662
Total transport width (mm)2530
Total transport height (mm)2476
Counterweight ground clearance (mm)894
Minimum ground clearance (mm)410
Back end turning radius (mm)2200
Total track length (mm)3750
Track plate width (mm)600
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)43
Maximum digging radius (mm)8305
Maximum digging depth (mm)5625
Maximum excavation height (mm)8750
Maximum unloading height (mm)6300
Maximum vertical digging depth (mm)4650
Maximum excavation radius of stop surface (mm)8160
see more

Overview

No.1113809

Brand Name:

Doosan

Model Number:

DX150LC-9C

Year:

2017

Location:

Peking China

Pub Date
