Product Description

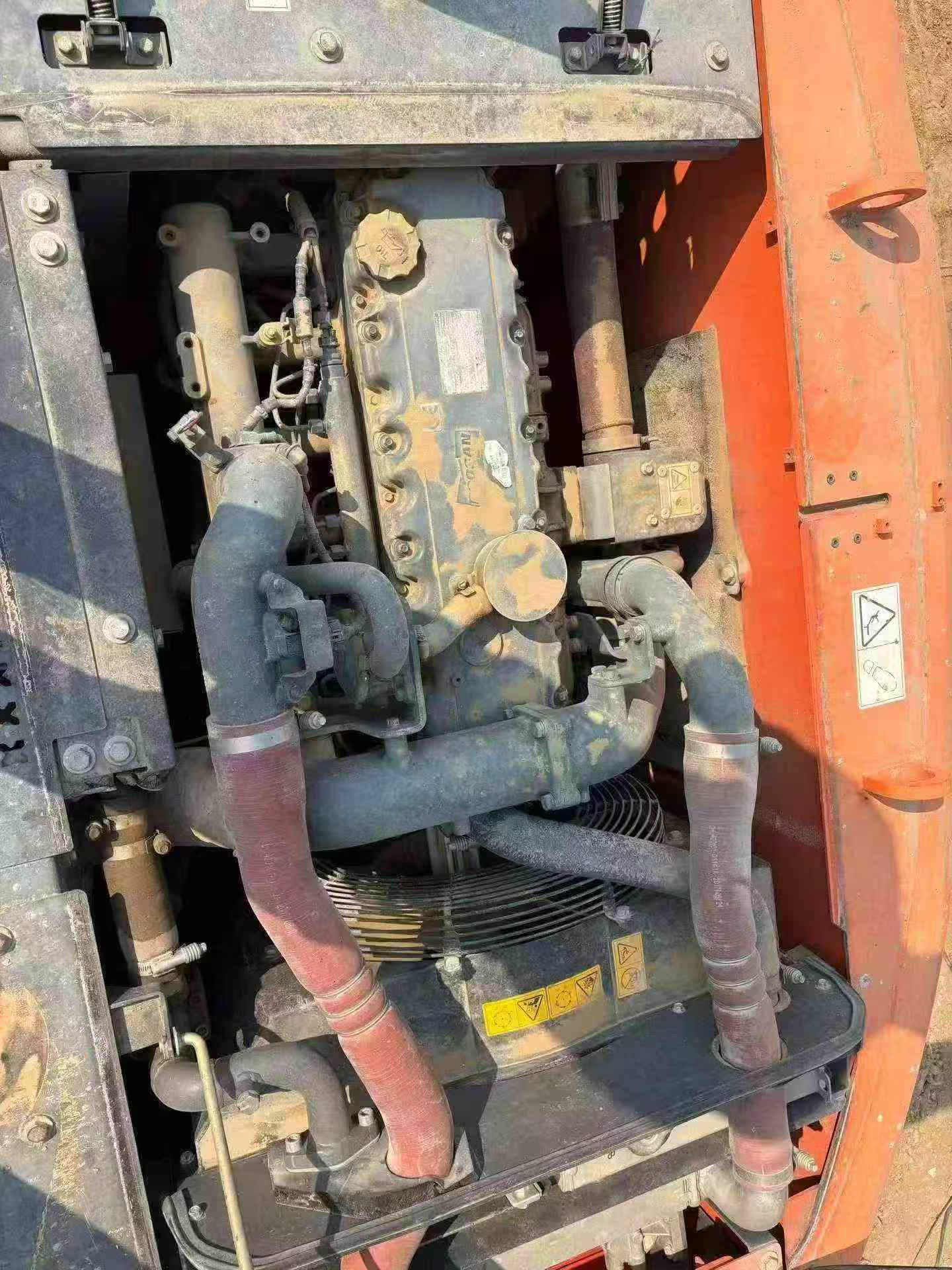

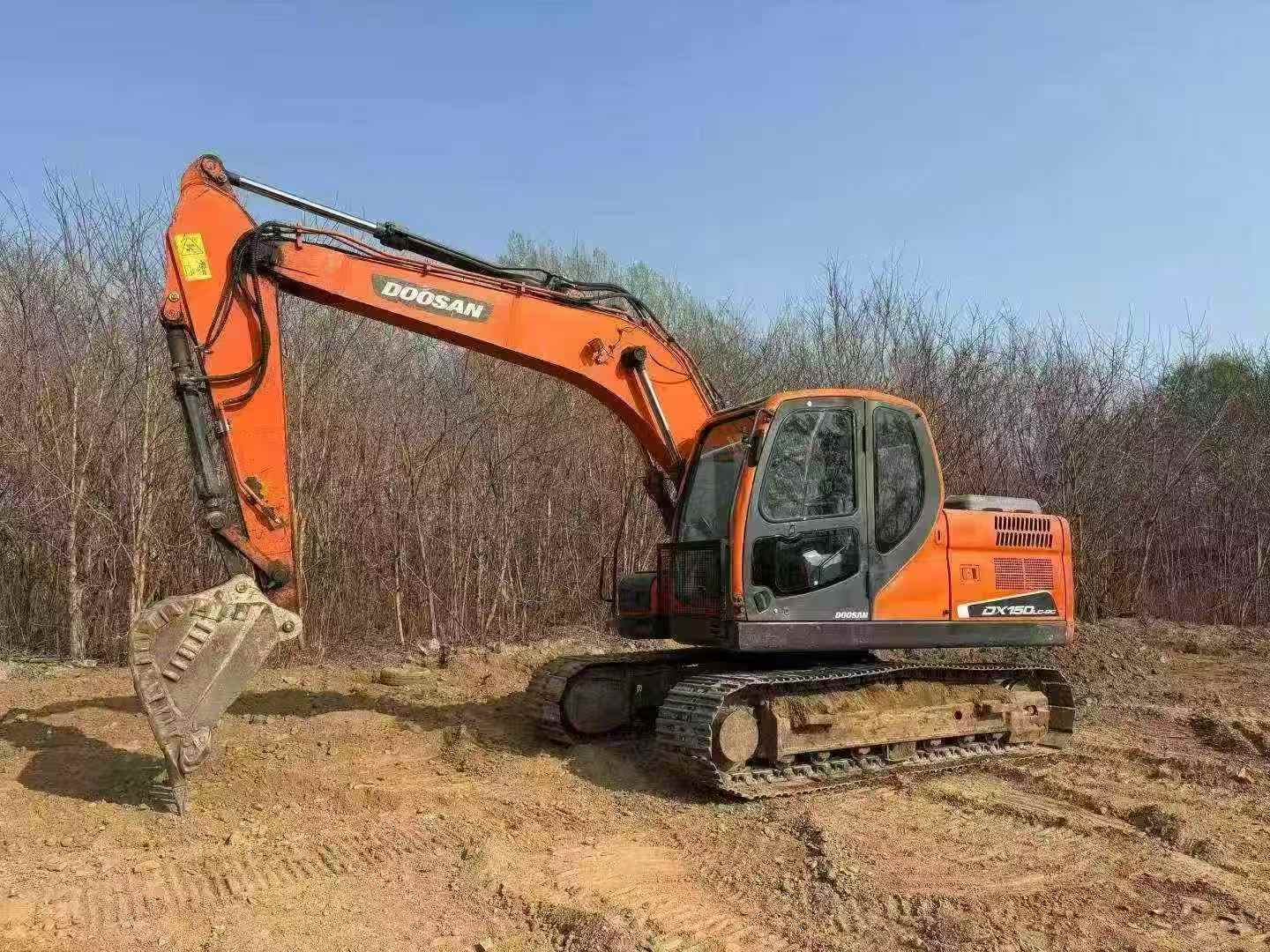

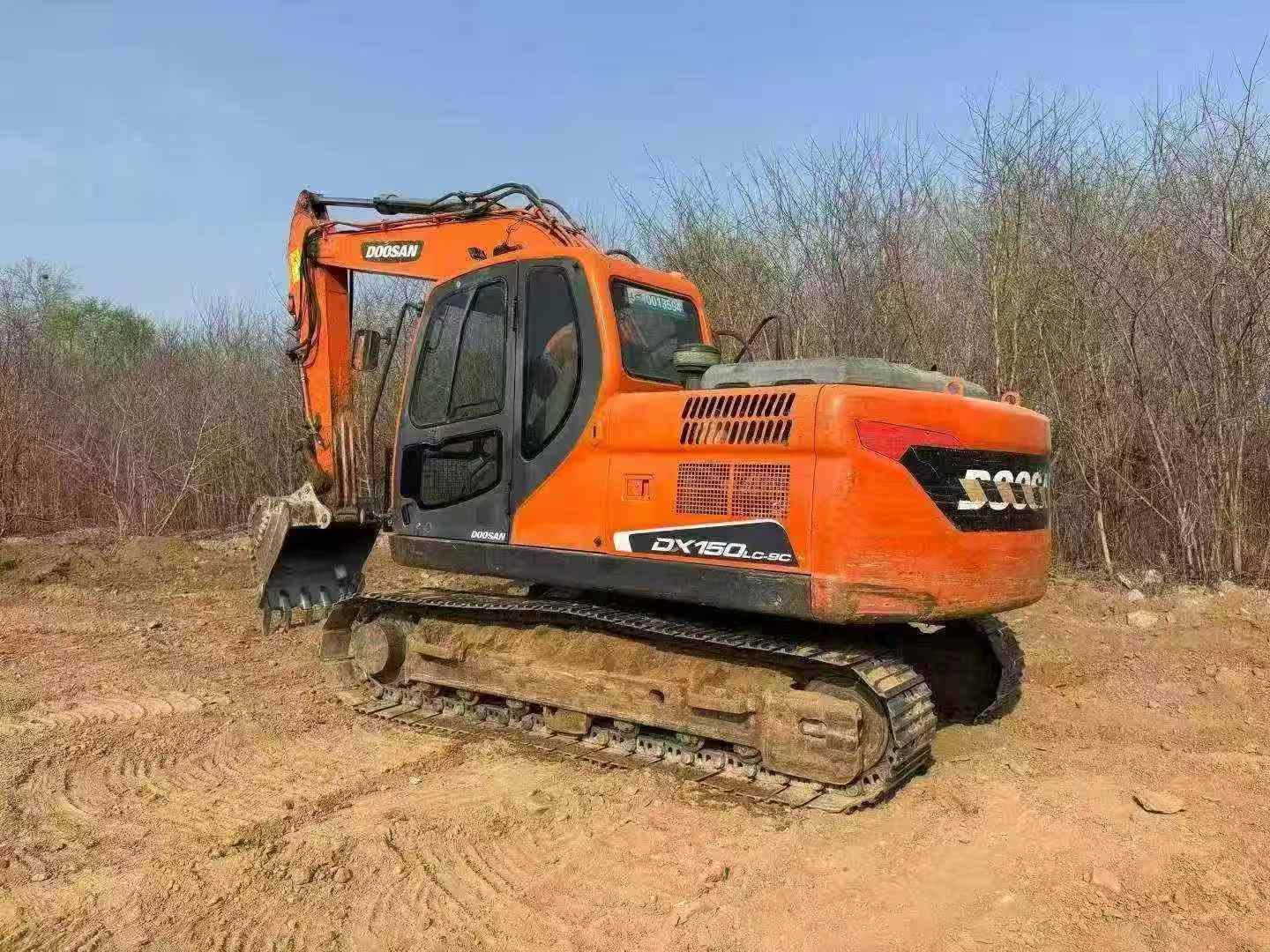

Built for the long haul, this 2018 Doosan DX150LC-9C excavator demonstrates exceptional durability through proven performance in demanding conditions. Operating at 15 tons with a robust 14,100 kg working weight, this machine delivers consistent productivity backed by a powerful DL06 engine generating 74 kW at 1900 rpm. Six in-line turbocharged cylinders ensure reliable power delivery across extended operational cycles.
Engineered as a workhorse, this crawler excavator features a 0.58 m³ backhoe bucket paired with impressive digging forces—100.9 kN bucket force and 59.8 kN rod force. The 4600 mm boom and 2500 mm rod provide an 8305 mm maximum digging radius and 5625 mm depth capability. Variable piston pumps delivering 2×114 L/min maintain hydraulic efficiency, while 267L fuel and 147L hydraulic tank capacities support extended work sessions.
- Maximum excavation height: 8750 mm
- Maximum unloading height: 6300 mm
- Travel speed: 5.04 km/h (high) / 3.01 km/h (low)
- Compact transport dimensions: 7662×2530×2476 mm
- Currently located in Hebei, China
Proven reliability meets joint-venture manufacturing quality in this dependable excavator ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1046463 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.58 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 74/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Working form | In-line, turbocharged. |
| Ground specific pressure (Kpa) | 36 |
| Rotation speed (rpm) | 10.1 |
| Bucket digging force (kN) | 100.9 |
| Rod digging force (kN) | 59.8 |
| Travel speed (km/h) | High: 5.04 / Low: 3.01 |
| Type of walking hydraulic motor | Axial piston hydraulic motor |
| Maximum flow of main pump (l/min) | 2*114 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |

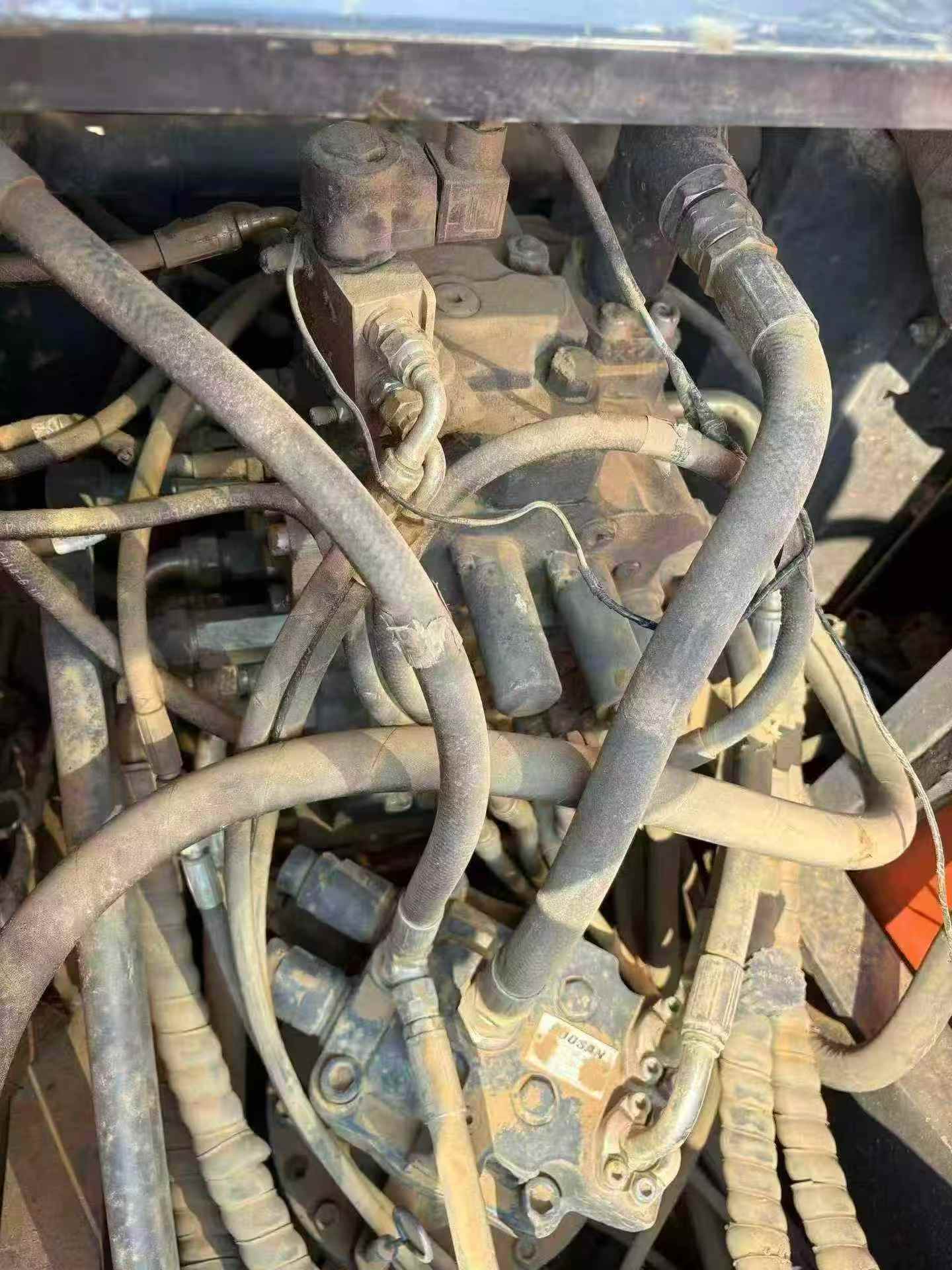

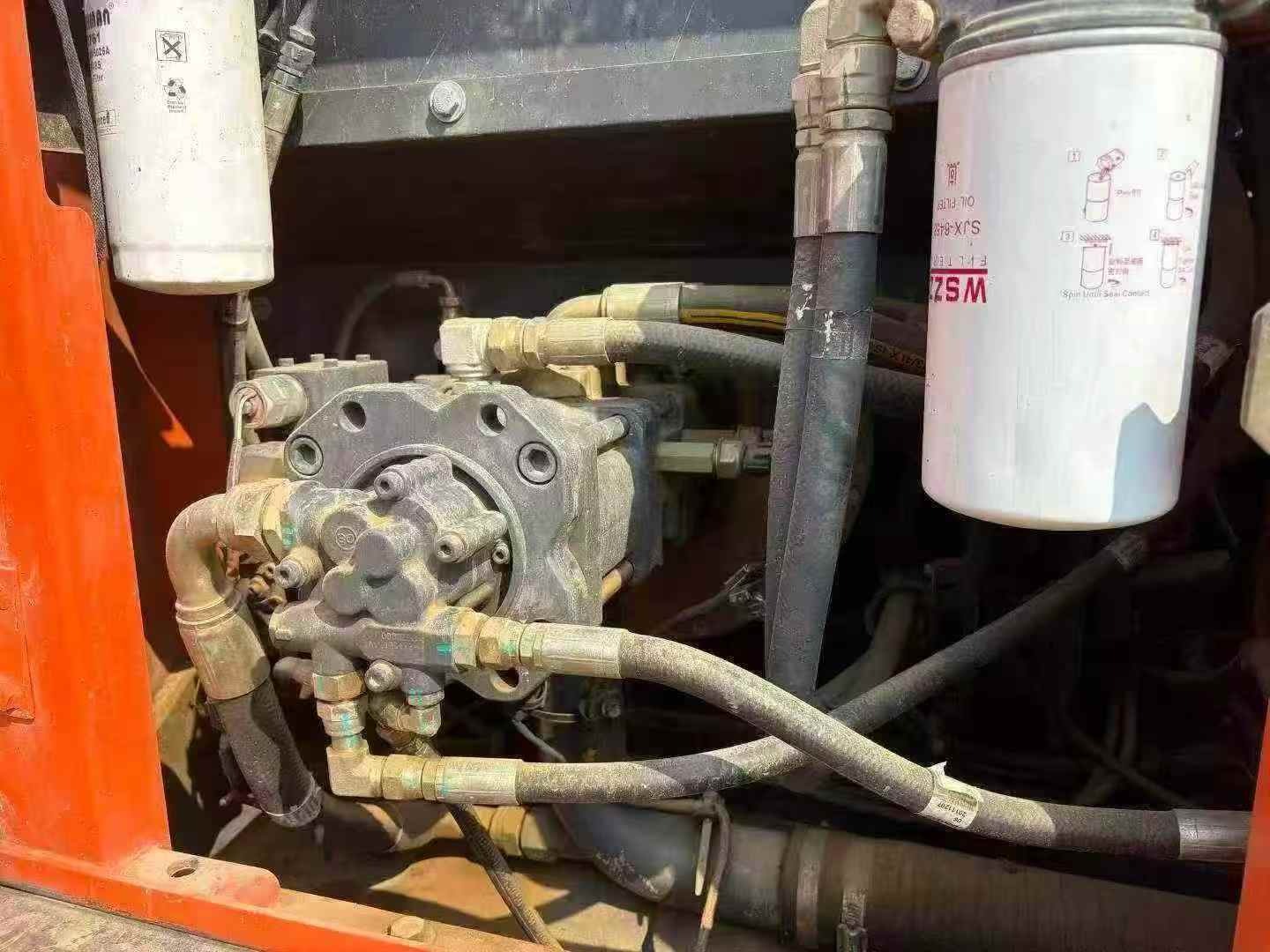

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Fuel Tank (L) | 267 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 7662 |
| Total transport width (mm) | 2530 |
| Total transport height (mm) | 2476 |
| Counterweight ground clearance (mm) | 894 |
| Minimum ground clearance (mm) | 410 |
| Back end turning radius (mm) | 2200 |

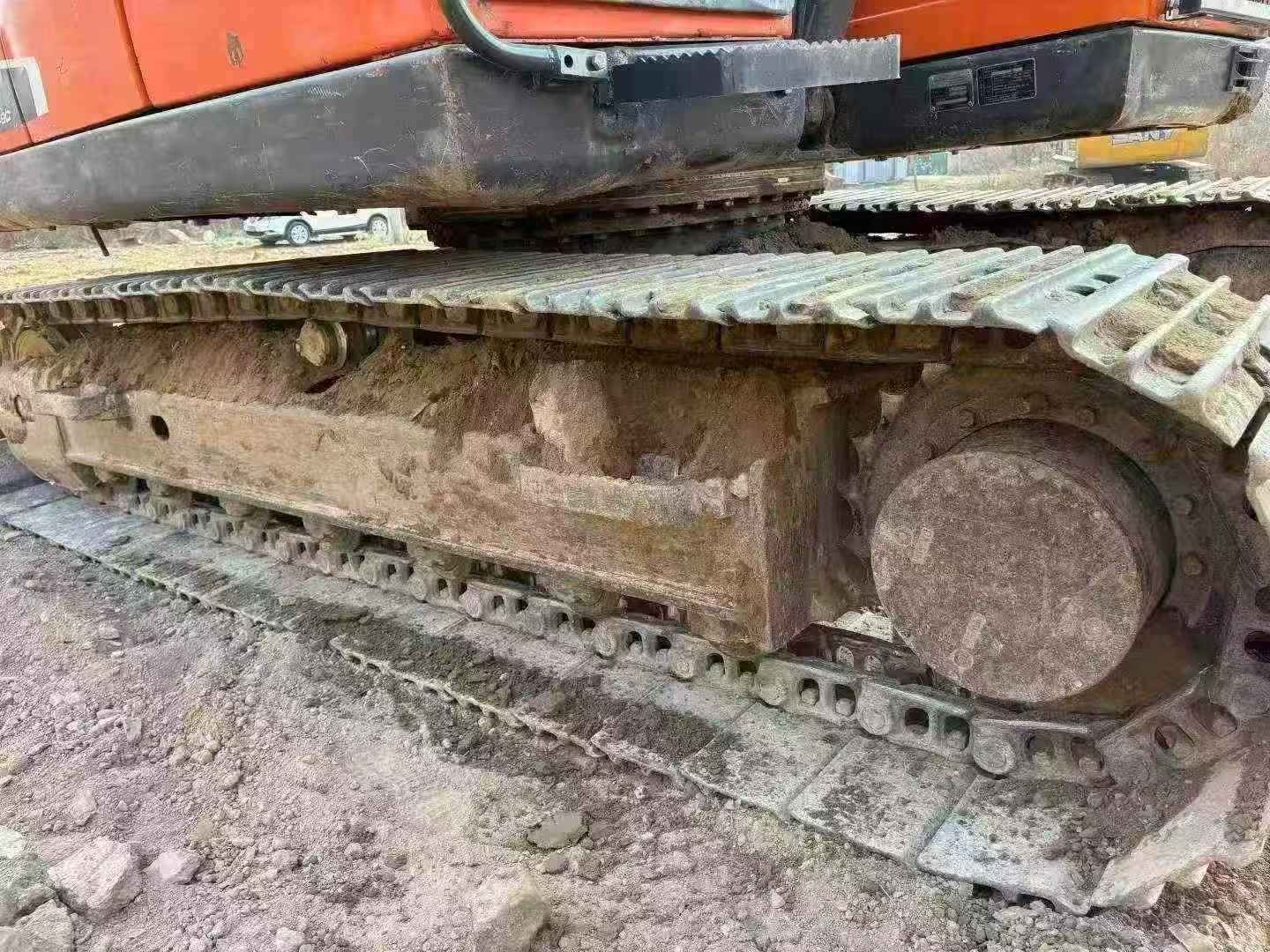

| Total track length (mm) | 3750 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 43 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5625 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4650 |
| Maximum excavation radius of stop surface (mm) | 8160 |
Overview
No.1046463
Brand Name：
DoosanModel Number：
DX150LC-9CYear：
2018
Location：
Hebei China
