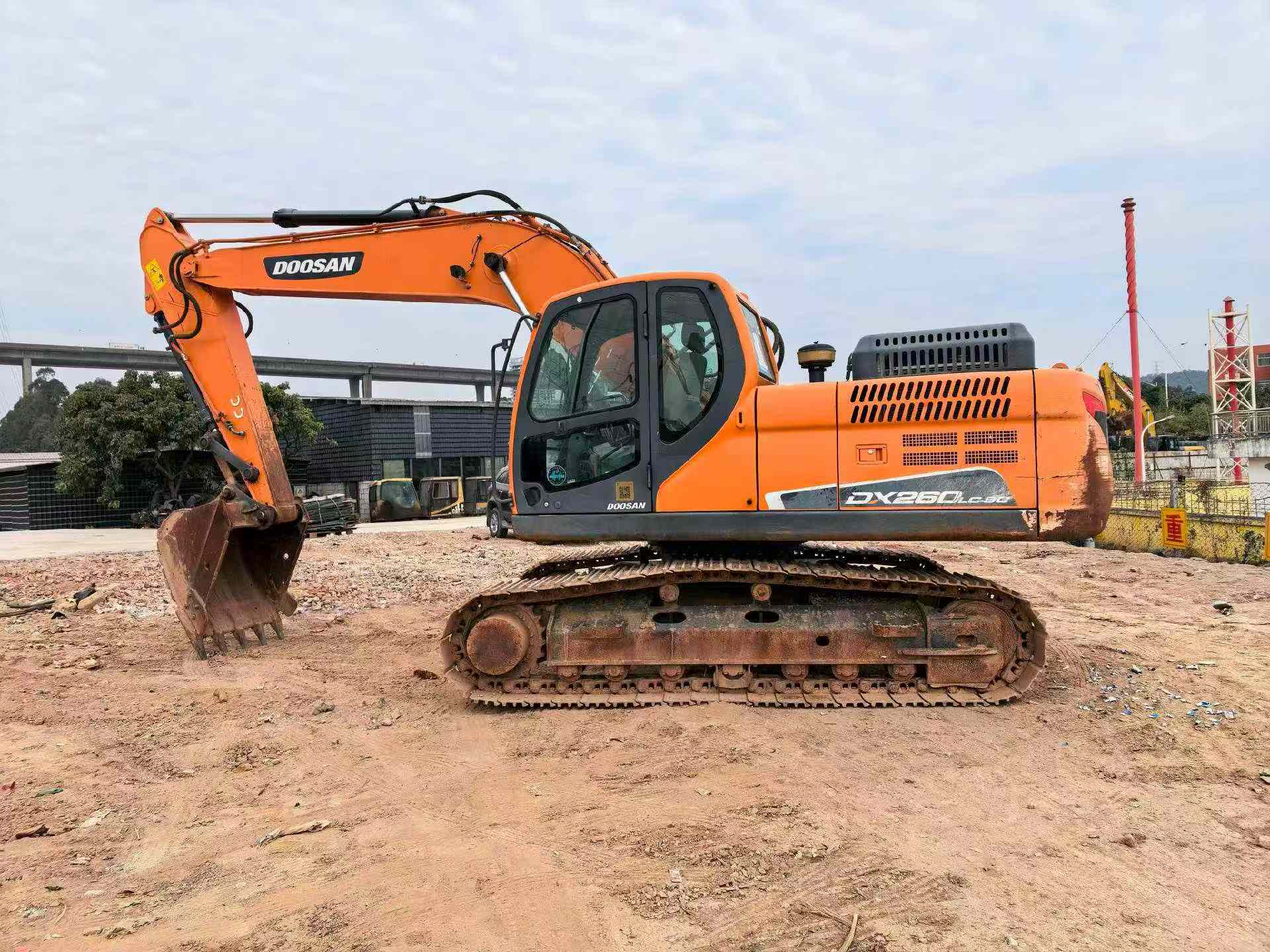

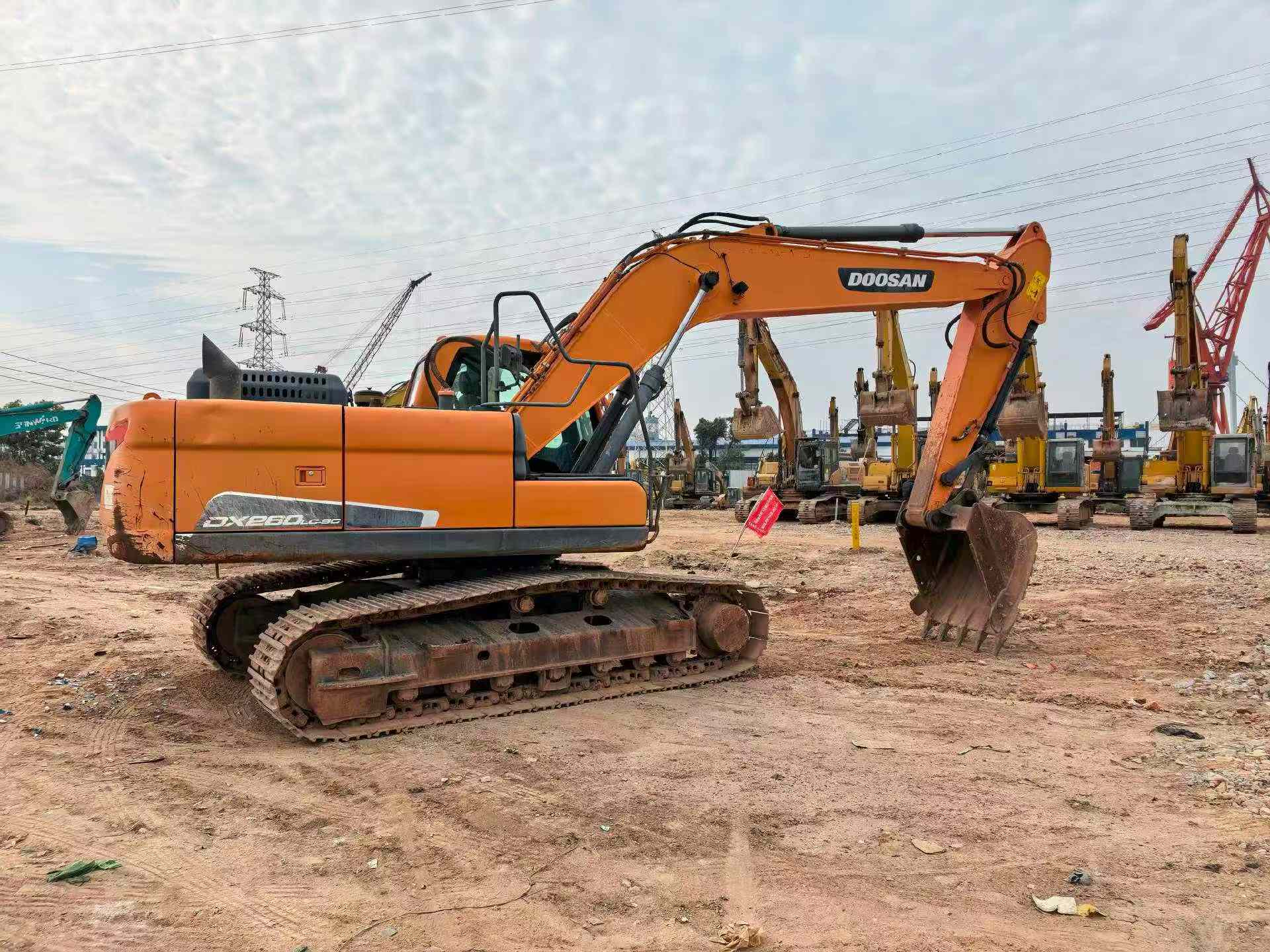

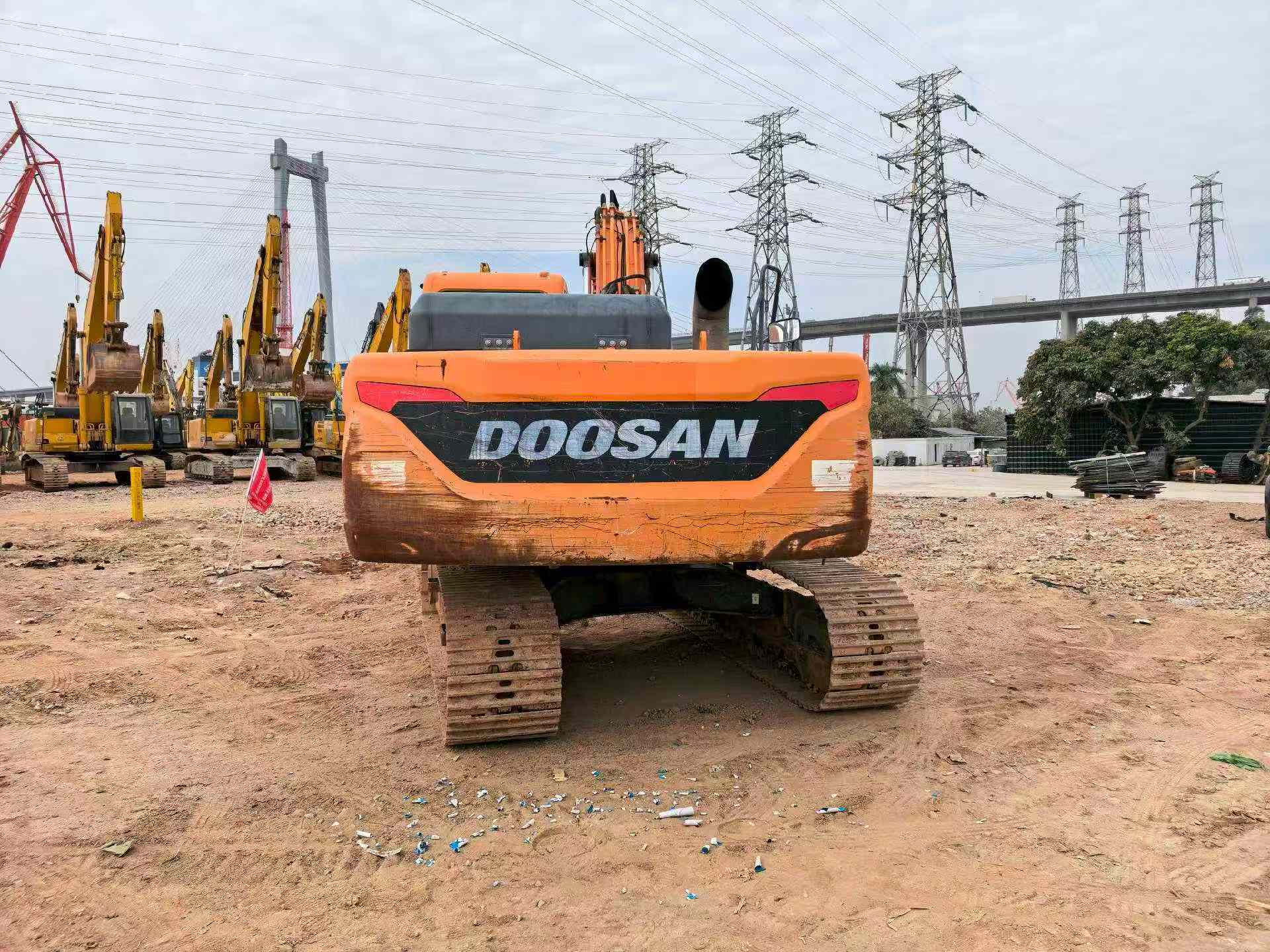

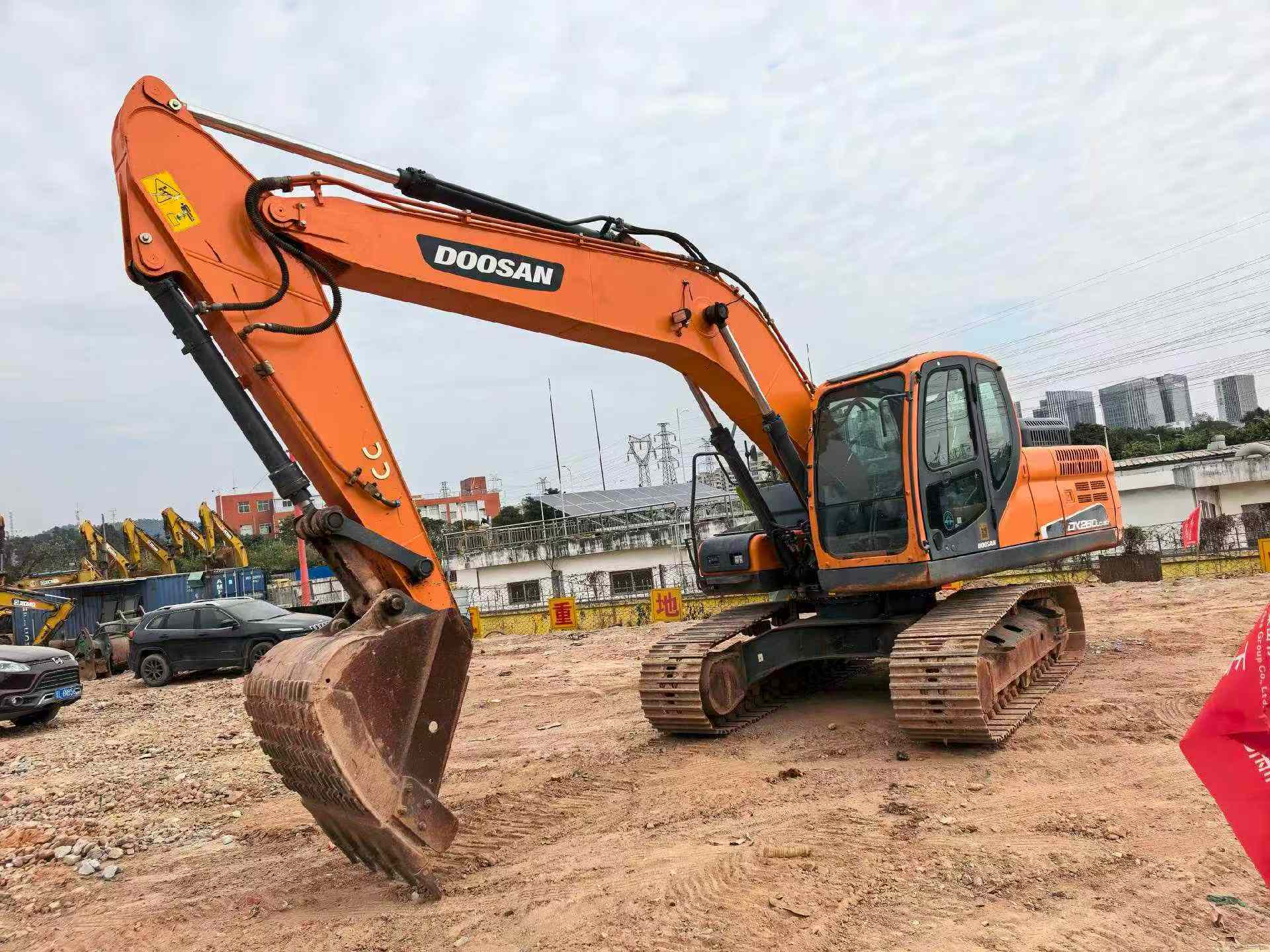

With a 20-ton capacity and powered by a reliable Perkins 1104D engine, this 2021 Doosan DX200-9C excavator offers robust performance and efficiency. Located in 广东珠海, it features a 0.45 m³ bucket and a maximum digging depth of 6210 mm, making it ideal for a variety of construction tasks. Doosan's reputation for durability and parts availability ensures that maintenance and repairs are straightforward, enhancing the machine's operational lifespan. The DX200-9C is equipped with a variable piston pump, providing precise control and reliability. Its strong resale value and global support network make it a prudent choice for those looking to invest in a dependable used excavator.

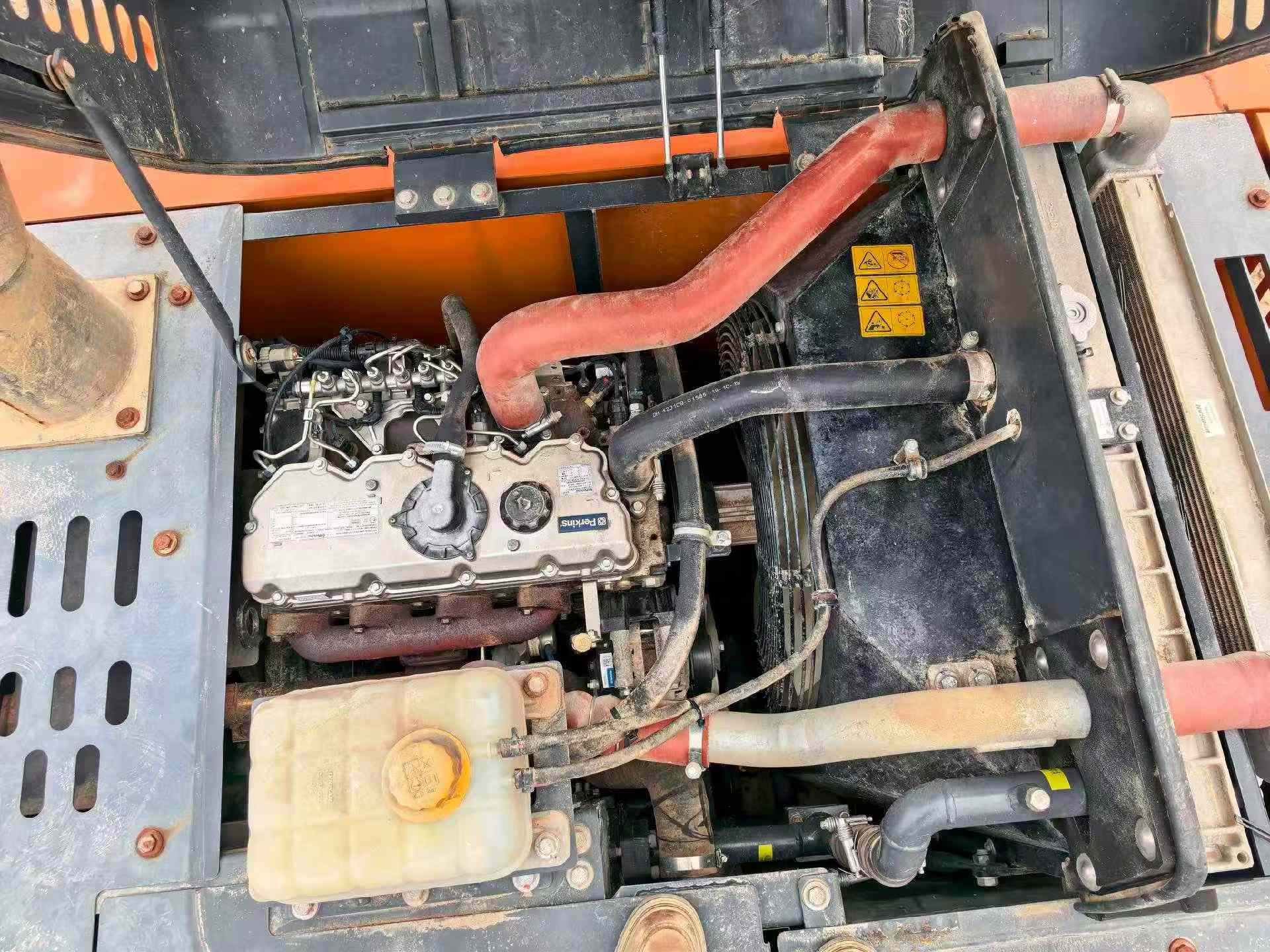

- Engine: Perkins 1104D, 102 kW at 2200 rpm
- Bucket Capacity: 0.45 m³
- Maximum Digging Depth: 6210 mm
- Fuel Tank: 400 L
- Hydraulic Tank: 141 L
- Total Transport Dimensions: 9425 mm (length) x 2800 mm (width) x 3173 mm (height)
| Specifications | Value |
|---|---|
| No. | 1023347 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | 5600 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Perkins 1104D |
| Rated power (kw/rpm) | 102/2200 |
| Cylinder diameter × stroke (mm) | 105*127 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 10.54 |
| Bucket digging force (kN) | 118.6 |
| Rod digging force (kN) | 86.3 |
| Travel speed (km/h) | 5.09/3.05 |

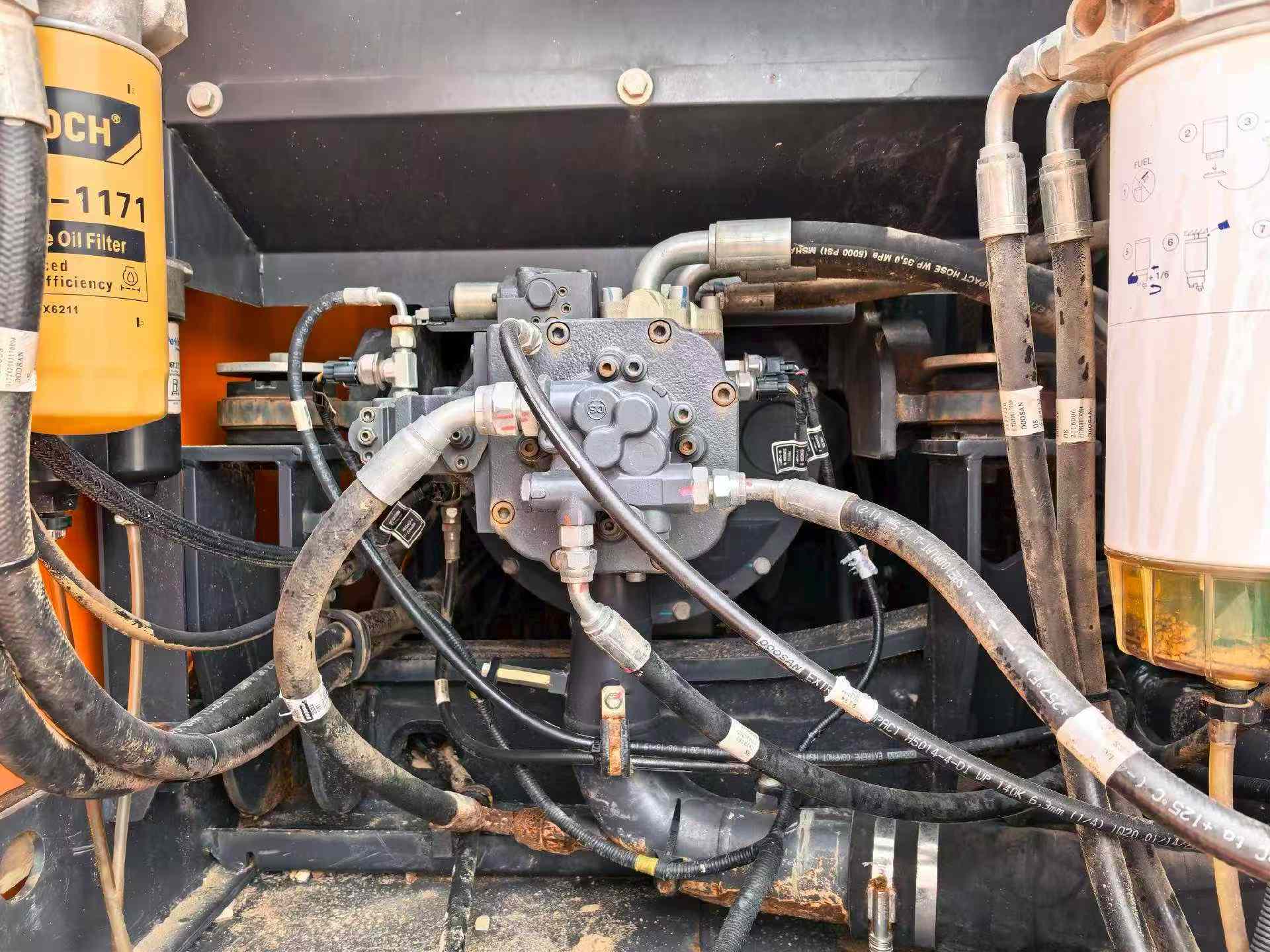

| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-110*70*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-125*90*1443 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-115*80*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 141 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3173 |
| Counterweight ground clearance (mm) | 1091 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2794 |
| Total track length (mm) | 4060 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9500 |
| Maximum digging depth (mm) | 6210 |
| Maximum excavation height (mm) | 9419 |
| Maximum unloading height (mm) | 6648 |
| Maximum excavation radius of stop surface (mm) | 9325 |
