Product Description

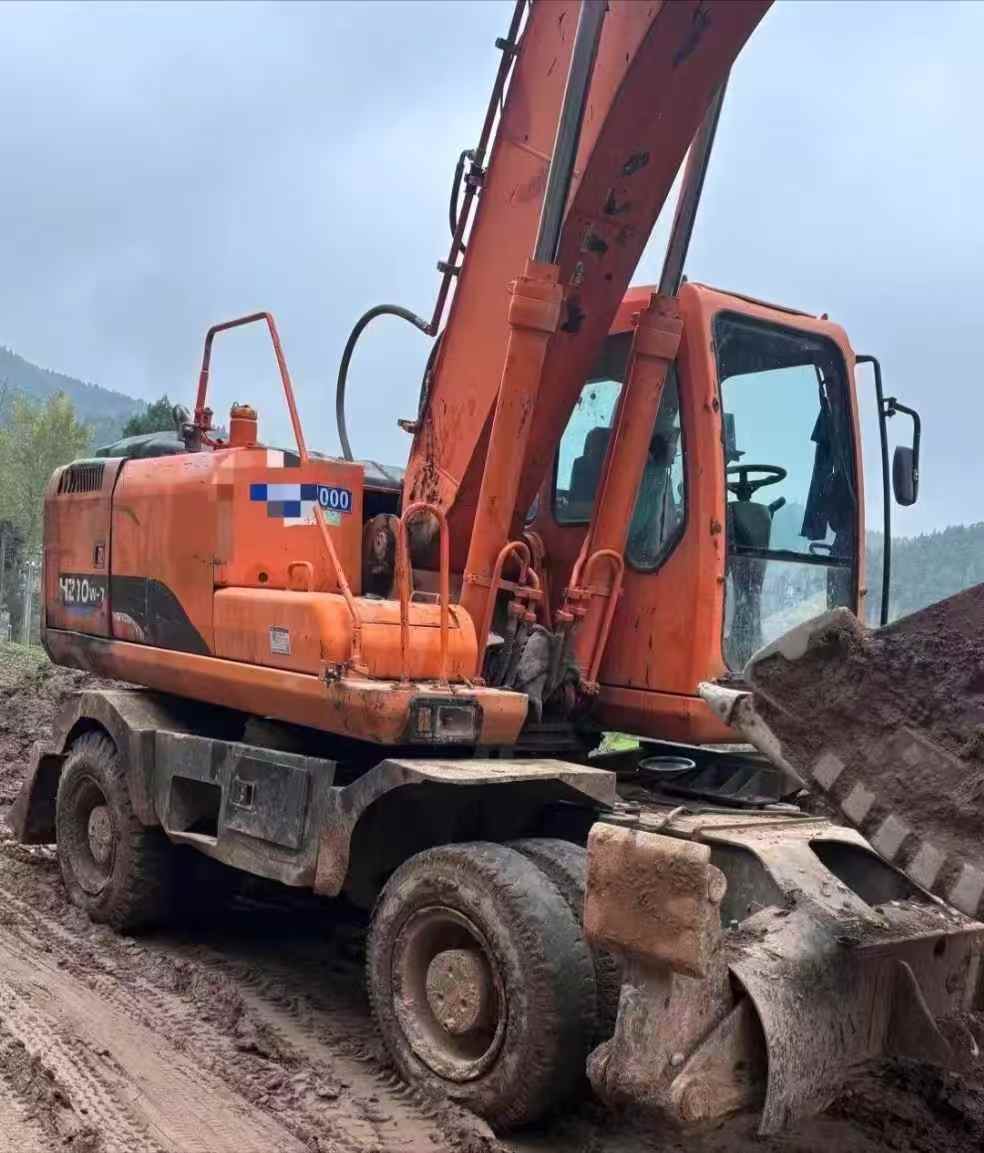

Proven reliability meets versatile mobility in this 2016 Doosan DX210W wheeled excavator from Guizhou. Built on Doosan's joint-venture manufacturing standards, this 20-ton machine delivers consistent performance backed by widespread parts availability across global markets. The Doosan DL06 engine produces 120.8 kW at 2000 rpm, while the 32.4 MPa hydraulic system ensures responsive control for demanding job sites.
Wheeled excavators command strong resale value due to their road mobility and reduced transport costs. This unit travels at 36 km/h between work zones, eliminating trailer expenses for short-distance moves. With a maximum digging depth of 5,255 mm and reach height of 9,435 mm, it handles utility work, urban construction, and material handling with equal capability.
- Operating weight: 19,900 kg with three bucket options (0.47/0.72/1.1 m³)
- Compact transport dimensions: 9,520 mm length × 2,500 mm width
- 350 L fuel capacity supports extended operation cycles
- Doosan's established dealer network ensures parts continuity
Investing in used Doosan equipment means buying into an established support infrastructure. Parts remain available long after production ends, protecti
| Specifications | Value |
|---|---|
| No. | 1014300 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.72/0.47/1.1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DL06 |
| Rated power (kw/rpm) | 120.8/2000 |
| Total displacement (L) | 5.9 |
| Forward speed (Km/h) | 36 |
| Rotation speed (rpm) | 11 |
| Main overflow set pressure (Mpa) | 32.4 |
| Fuel Tank (L) | 350 |
| Engine Oil changes (L) | 27 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 9520 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 3250 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1259 |
| Wheelbase (mm) | 2850 |
| Total tire outside width (mm) | 2500 |
| Minimum ground clearance (mm) | 350 |
| Maximum digging depth (mm) | 5255 |
| Maximum excavation height (mm) | 9435 |
| Maximum unloading height (mm) | 6650 |
