Product Description
Available now in Hangzhou, Zhejiang, this 2016 Doosan DX215-9C excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Operating at 21 tons with a robust 115kW DL06 engine, this machine combines proven joint venture engineering with field-ready performance. Skip the lead times—this unit is positioned for fast deployment across Zhejiang province and surrounding regions.
- Working weight: 20,600 kg with 0.92 m³ bucket capacity
- Maximum digging reach: 9,873 mm; digging depth: 6,592 mm

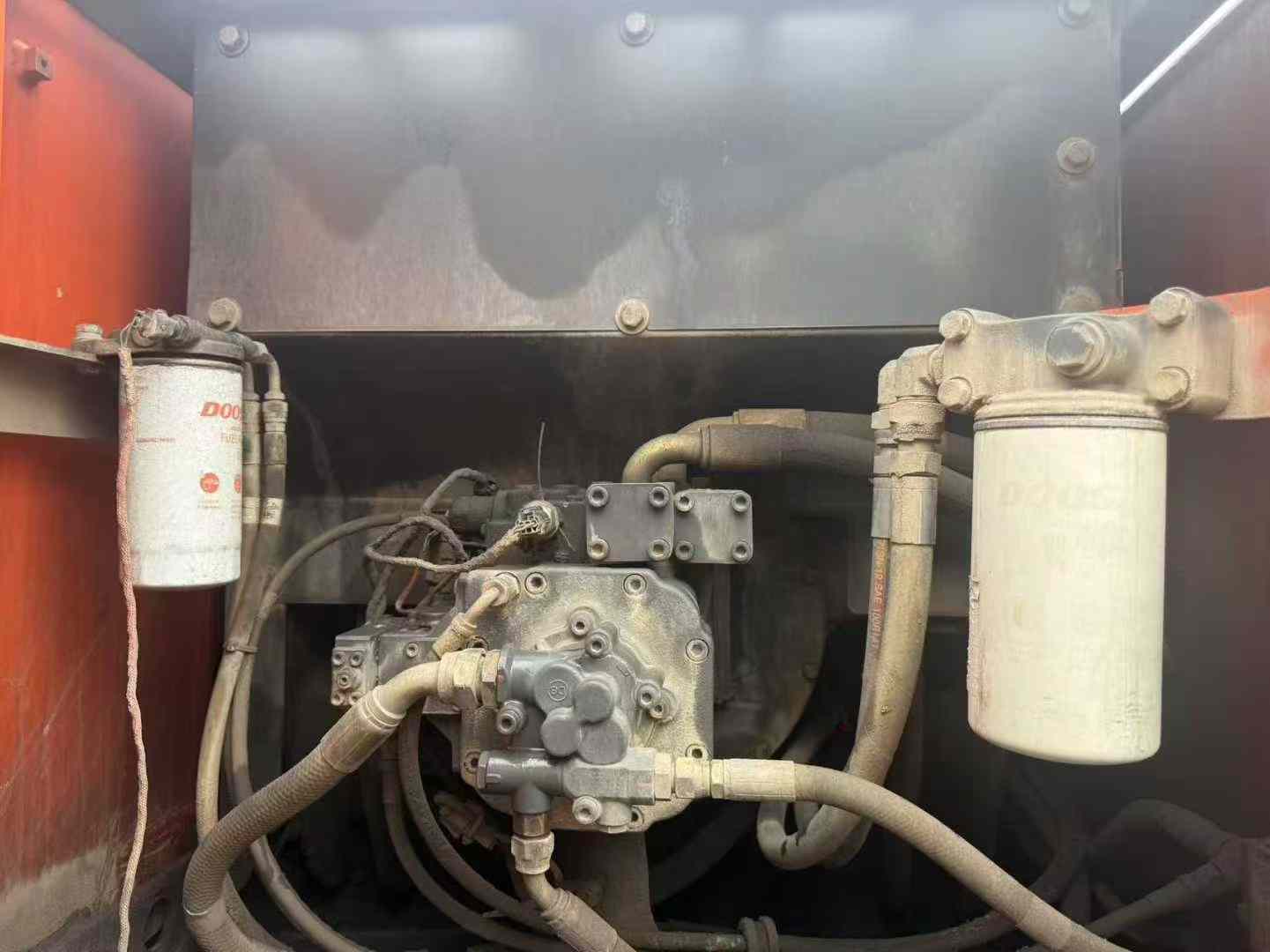

- Dual variable piston pumps: 2 × 191 L/min flow rate
- Powerful digging forces: 136.2 kN bucket, 98 kN arm
- 5,700 mm boom and 2,900 mm arm configuration
- Travel speeds: 5.3/2.9 km/h for efficient site mobility
Positioned in Hangzhou's strategic logistics hub, this excavator offers immediate access without customs delays or extended shipping schedules. Backed by Doosan's reputation for durability and the DL06 engine's proven reliability, this machine is ready for infrastructure, earthmoving, and heavy construction applications. Secure this unit today and put it to work tomorrow.
| Specifications | Value |
|---|---|
| No. | 1008928 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
