Product Description

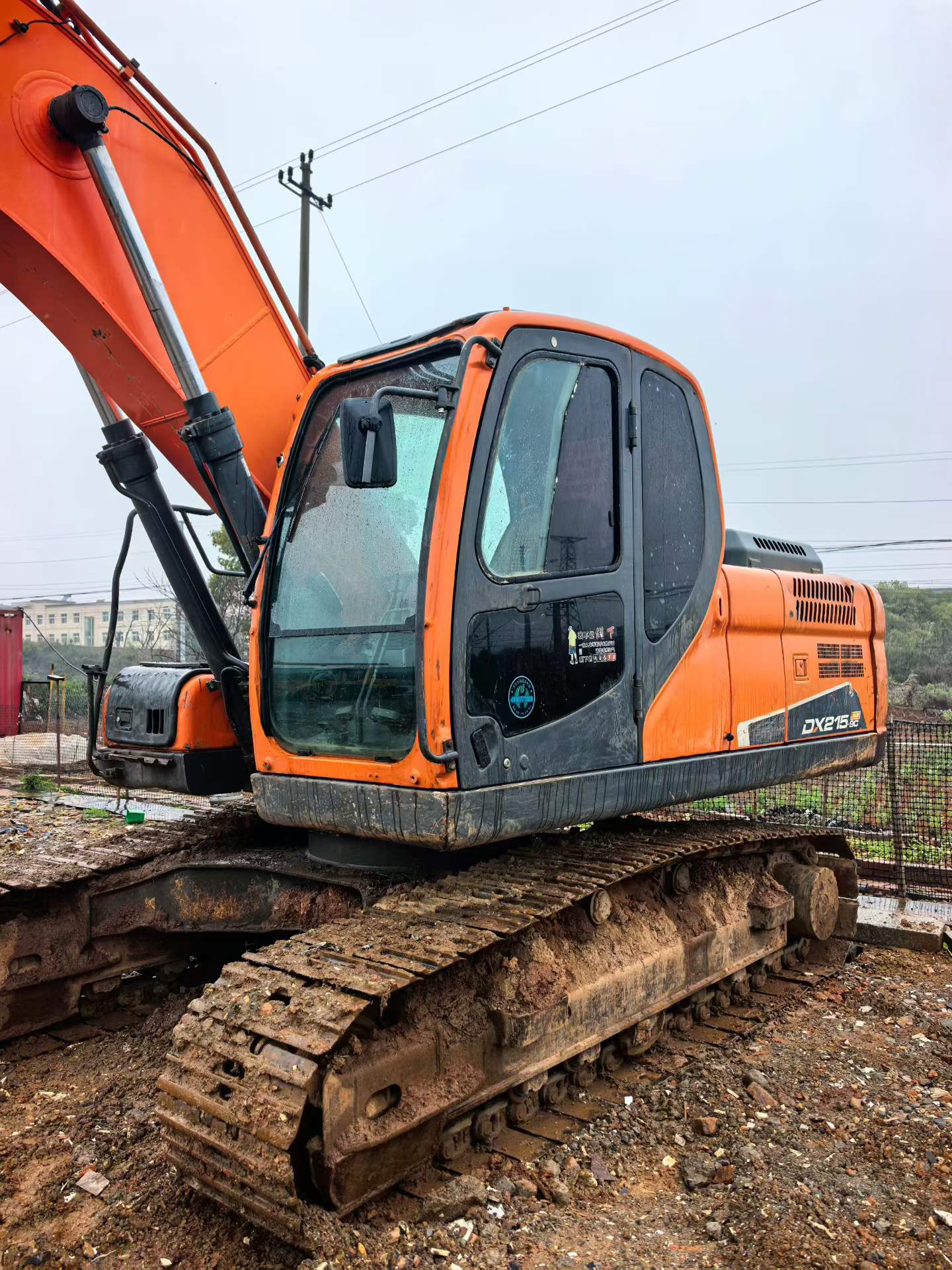

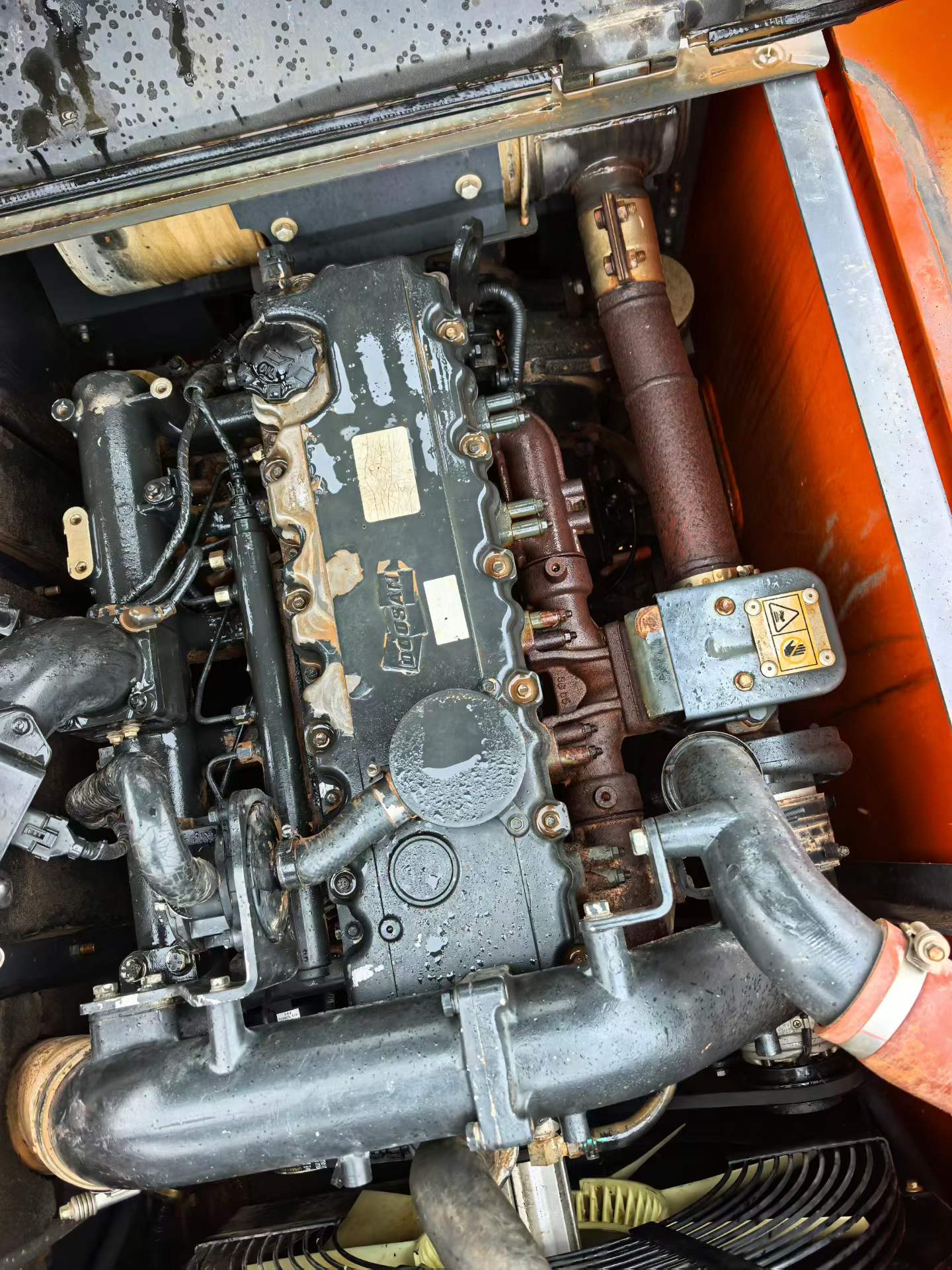

Expand your operational capacity with this 2016 Doosan DX215-9C crawler excavator, a proven 21-ton workhorse engineered for contractors managing multiple job sites. Powered by a reliable DL06 engine delivering 115 kW at 1900 rpm, this machine offers the performance consistency busy fleets demand. Currently located in Yichun, Jiangxi, it's ready to integrate seamlessly into demanding construction schedules.

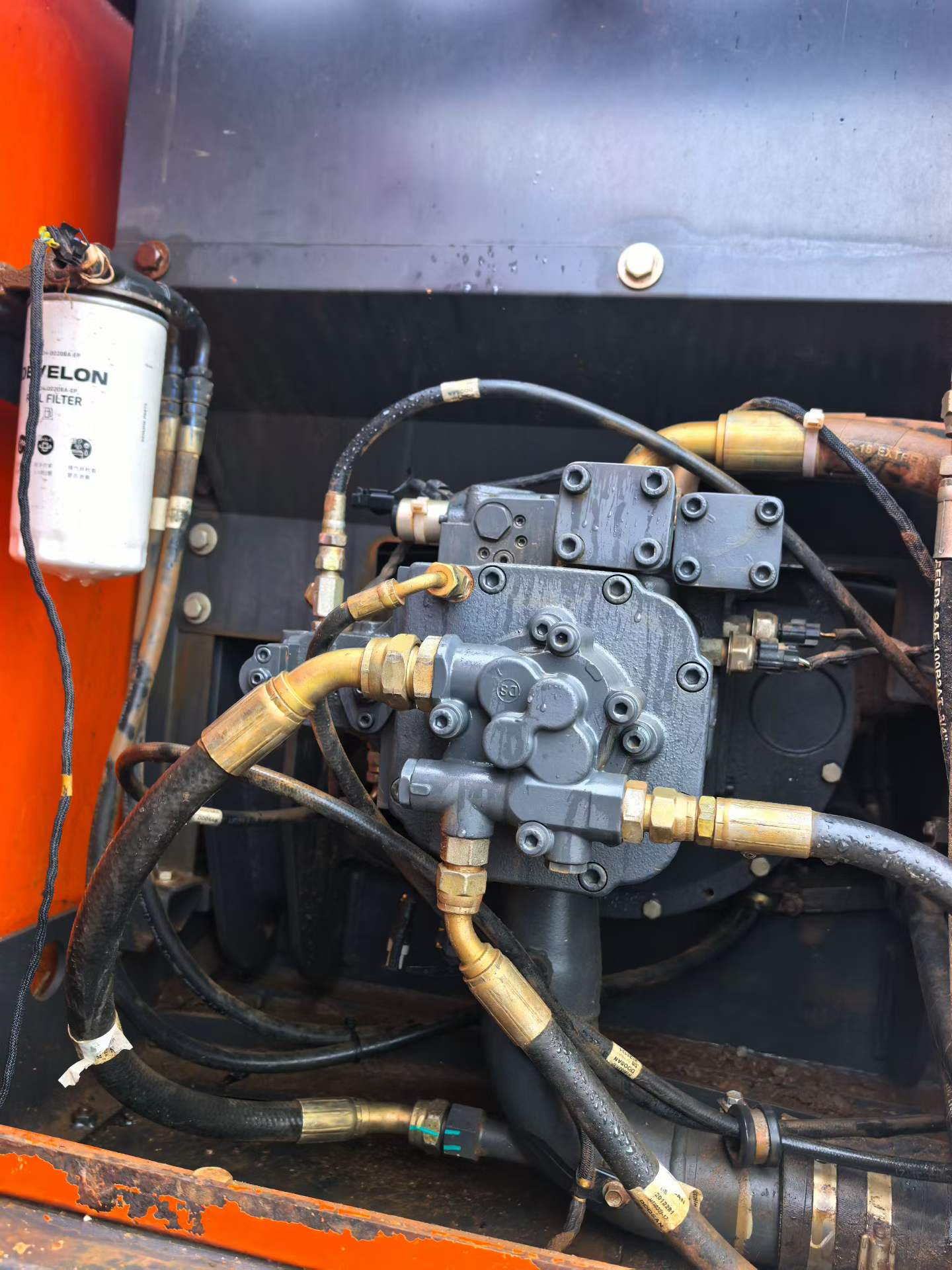

Built for versatility, this mid-size excavator combines a 5,700mm boom and 2,900mm arm with a 0.92m³ backhoe bucket, providing a maximum digging reach of 9,873mm and depth of 6,592mm. The dual variable piston pumps supply 2 × 191 L/min flow, ensuring responsive hydraulics across all functions. With 136.2 kN bucket digging force and 98 kN arm digging force, it handles everything from trenching to loading operations without hesitation.
- Operating weight: 20,600 kg with optimal stability
- Travel speeds: 5.3 km/h (high) / 2.9 km/h (low)
- 400L fuel capacity for extended shifts
- 600mm track shoes balancing flotation and traction
- Compact transport dimensions: 9,506mm × 2,800mm × 2,891mm
Whether covering equipment downtime or supporting peak-season demands, this DX215-9C
| Specifications | Value |
|---|---|
| No. | 1037600 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
