Product Description

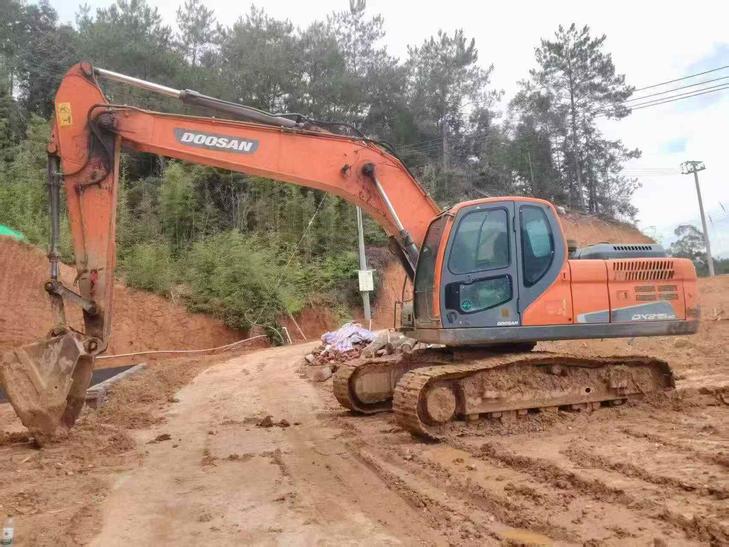

This 2018 Doosan DX215-9C excavator represents a well-maintained single-owner machine with documented low hours. Located in Hunan, China, this 21-ton class hydraulic excavator features Doosan's proven 9C series reliability and fuel efficiency.
- Year: 2018
- Model: DX215-9C
- Hours: Approximately 6,000 (verified meter reading)
- Ownership: Single owner since new
- Condition: Well-maintained, ready for immediate deployment
- Location: Hunan Province, China
The DX215-9C offers excellent digging force, operator comfort, and serviceability for construction, excavation, and earthmoving applications. This unit has been regularly serviced and shows consistent operational history. Suitable for contractors seeking reliable mid-size excavation equipment with transparent ownership records.
| Specifications | Value |
|---|---|
| No. | 1105256 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
