Product Description

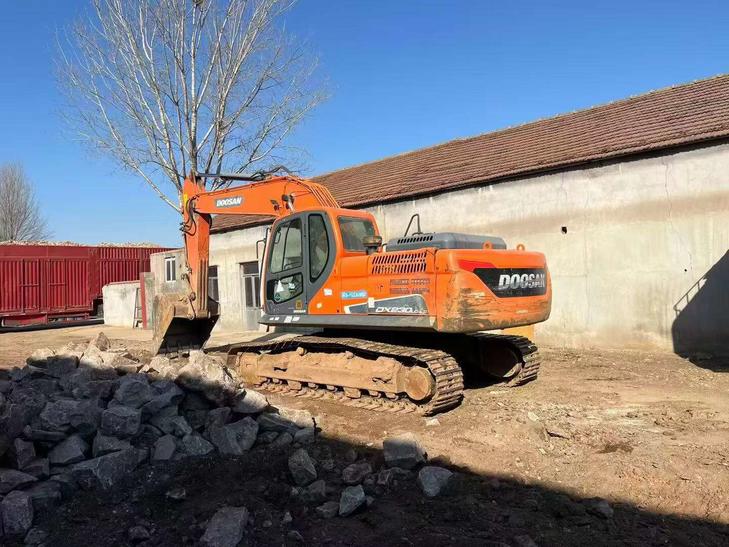

With a robust 23-ton working weight and a powerful Doosan DL06 engine, this 2019 Doosan DX230LC excavator is primed for immediate deployment in your next project. Equipped with a 1.05 m³ bucket, it excels in digging, grading, and demolition tasks. The machine features a 5700 mm boom and a 2900 mm rod (with 2400 mm and 3500 mm options), ensuring versatility and precision. Its 116 kW of power at 1900 rpm and 330 Mpa main overflow set pressure guarantee reliable performance. Designed for efficiency, the DX230LC boasts a 400 L fuel tank, facilitating long hours of operation without refueling. Ready to tackle tough jobs, it offers a 35-degree climbing ability and a 152 kN bucket digging force. Located in 山东临沂, this excavator is site-ready, ensuring you can start work immediately.
| Specifications | Value |
|---|---|
| No. | 1020204 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900(2400,3500 optional) |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DL06 |
| Rated power (kw/rpm) | 116/1900 |
| Ground specific pressure (Kpa) | 0.45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 degrees |
| Bucket digging force (kN) | 152/143 |
| Rod digging force (kN) | 108/102 |
| Travel speed (km/h) | 3.0/5.5 |
| Main overflow set pressure (Mpa) | 330 |
| Fuel Tank (L) | 400 |
| Total transport length (mm) | 9485 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2975 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3650 |
| Maximum digging radius (mm) | 9900(9480/10340) |
| Maximum digging depth (mm) | 6620(6110/7220) |
| Maximum excavation height (mm) | 9750(9630/9870) |
| Maximum unloading height (mm) | 6990(6830/7150) |
| Bulldozer lift or depth (mm) | No dodging plate |
