Product Description

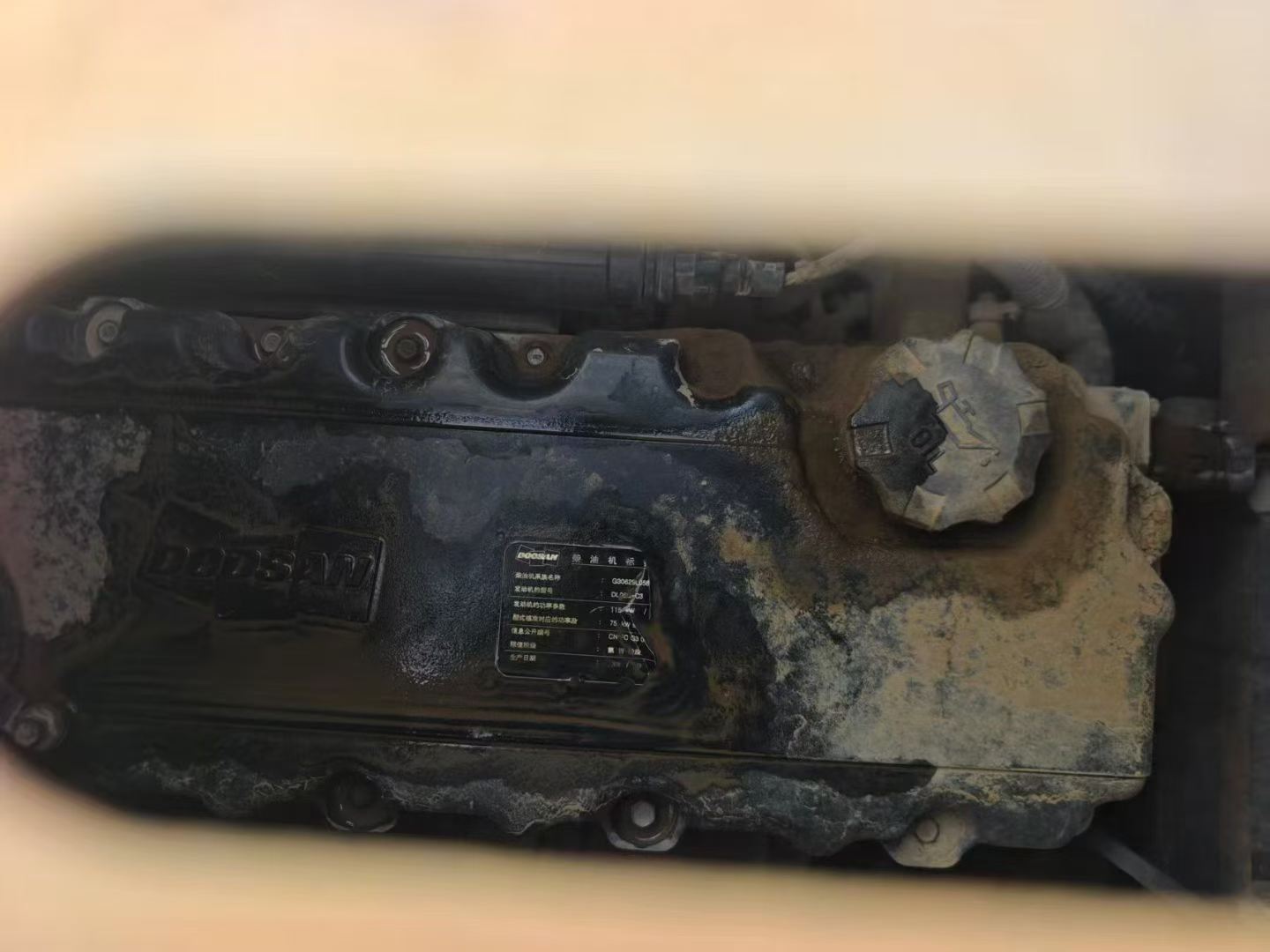

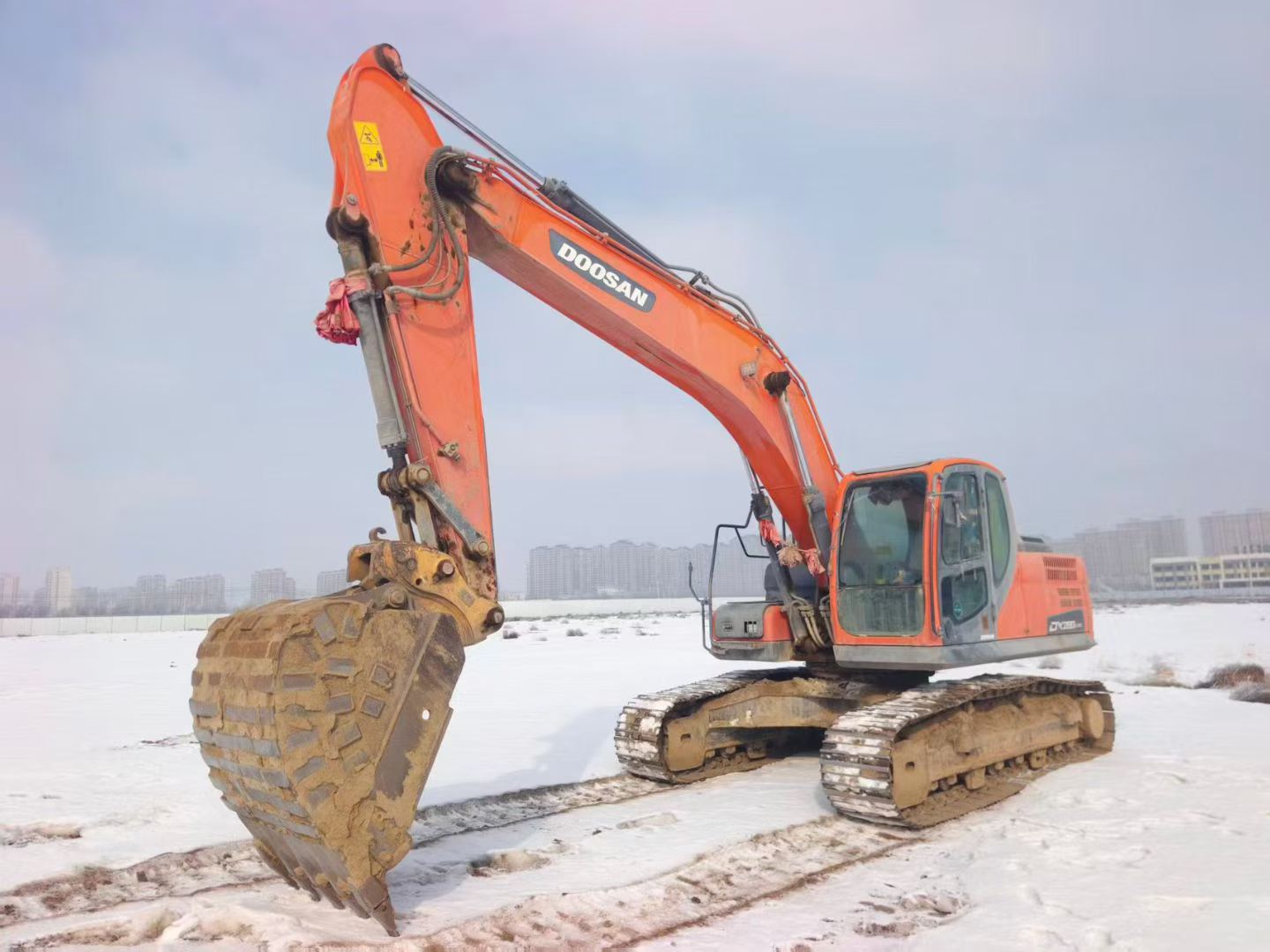

Available now from our Hunan facility, this 2019 Doosan DX230LC excavator eliminates months of factory wait times and gets your operation running immediately. Powered by a robust Doosan DL06 engine delivering 116kW at 1900 rpm, this 23-ton workhorse combines Korean engineering precision with proven reliability across demanding job sites.
Specifications built for productivity:
- Operating weight: 21,500 kg with 1.05 m³ bucket capacity
- Maximum digging reach: 9,900 mm; depth: 6,620 mm
- Bucket digging force: 152 kN for tough material penetration
- 5,700 mm boom with multiple rod length configurations (2,400/2,900/3,500 mm)
- 400L fuel tank for extended operating shifts
- Compact transport dimensions: 9,485 × 2,990 × 3,005 mm
Fast deployment directly from Hunan means reduced logistics complexity and shorter delivery windows to your site. Skip the procurement delays—this machine is inspection-ready and prepared for immediate shipment. Contact Fair Trade Machinery today to secure this unit before it moves.
| Specifications | Value |
|---|---|
| No. | 1029864 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900(2400,3500 optional) |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DL06 |
| Rated power (kw/rpm) | 116/1900 |
| Ground specific pressure (Kpa) | 0.45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 degrees |
| Bucket digging force (kN) | 152/143 |
| Rod digging force (kN) | 108/102 |
| Travel speed (km/h) | 3.0/5.5 |
| Main overflow set pressure (Mpa) | 330 |
| Fuel Tank (L) | 400 |
| Total transport length (mm) | 9485 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2975 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3650 |
| Maximum digging radius (mm) | 9900(9480/10340) |
| Maximum digging depth (mm) | 6620(6110/7220) |
| Maximum excavation height (mm) | 9750(9630/9870) |
| Maximum unloading height (mm) | 6990(6830/7150) |
| Bulldozer lift or depth (mm) | No dodging plate |
