Product Description

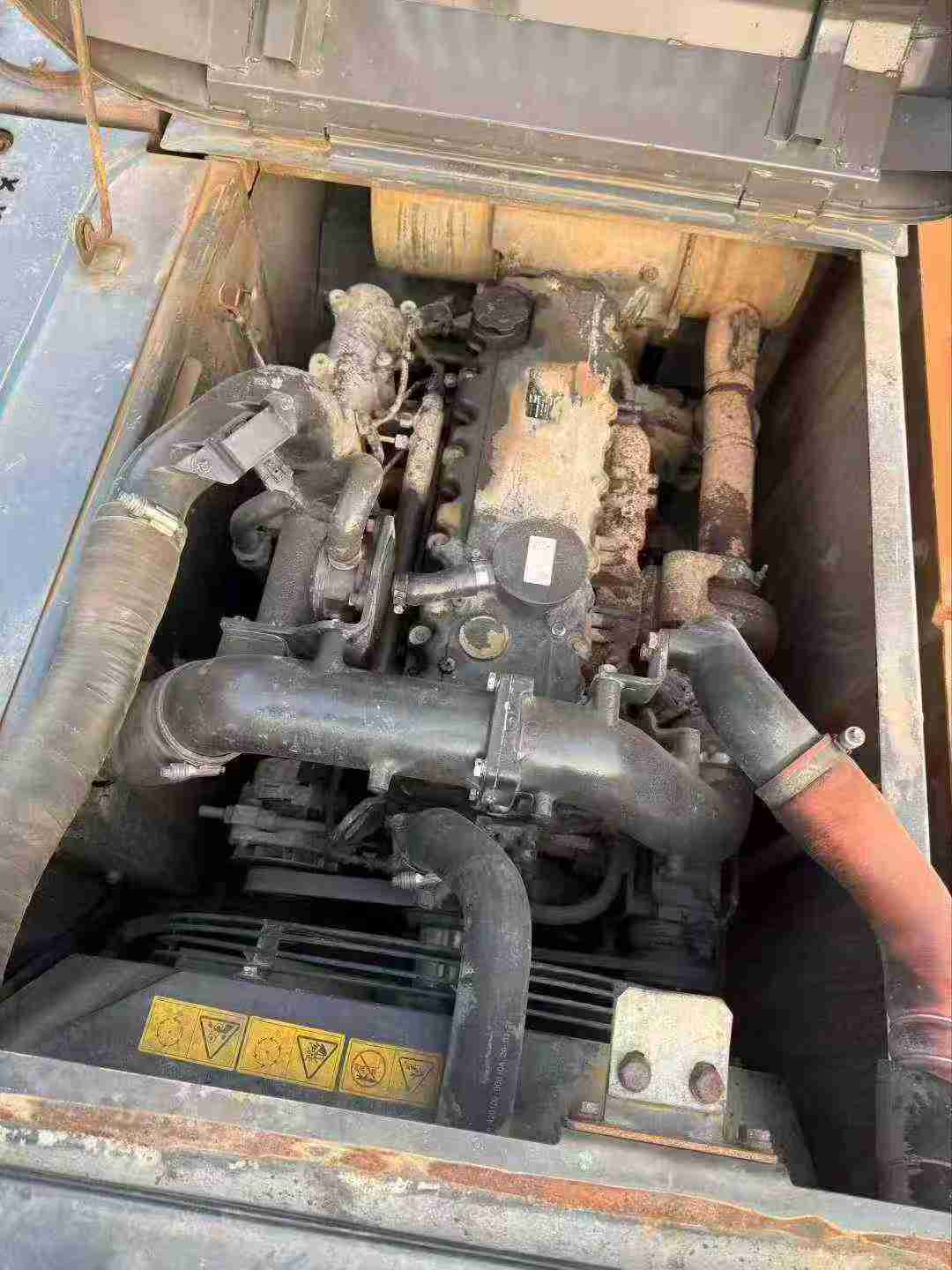

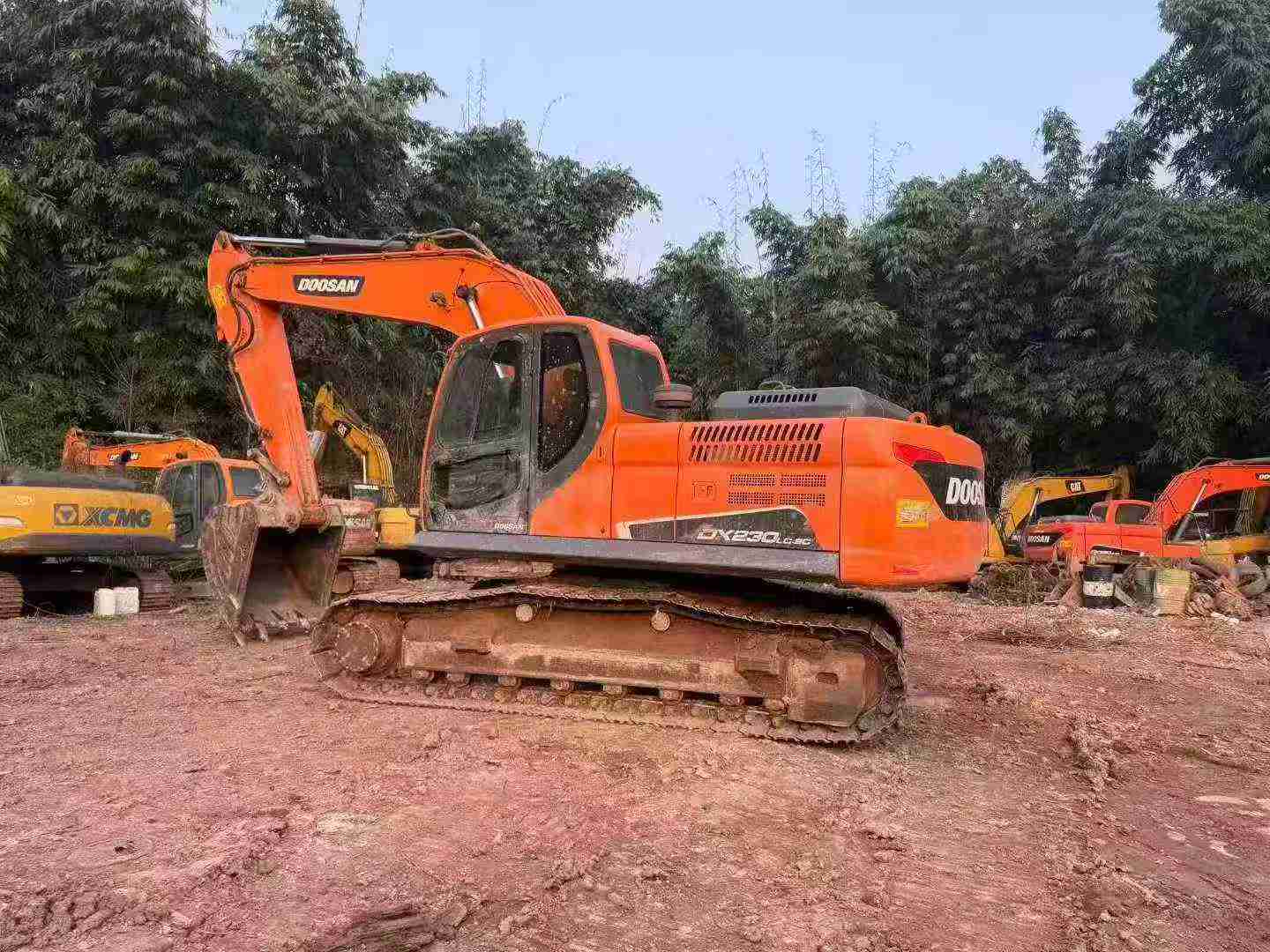

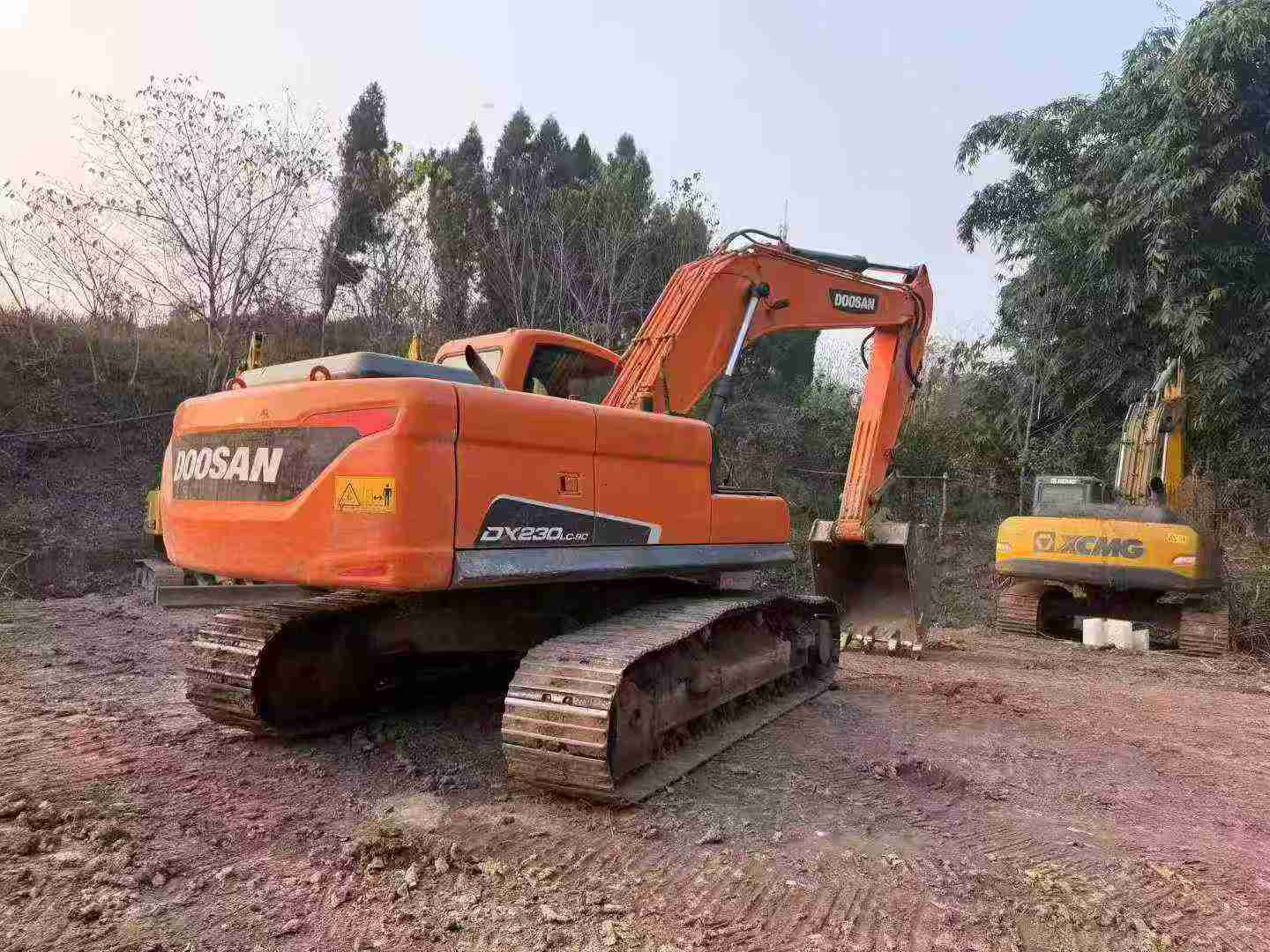

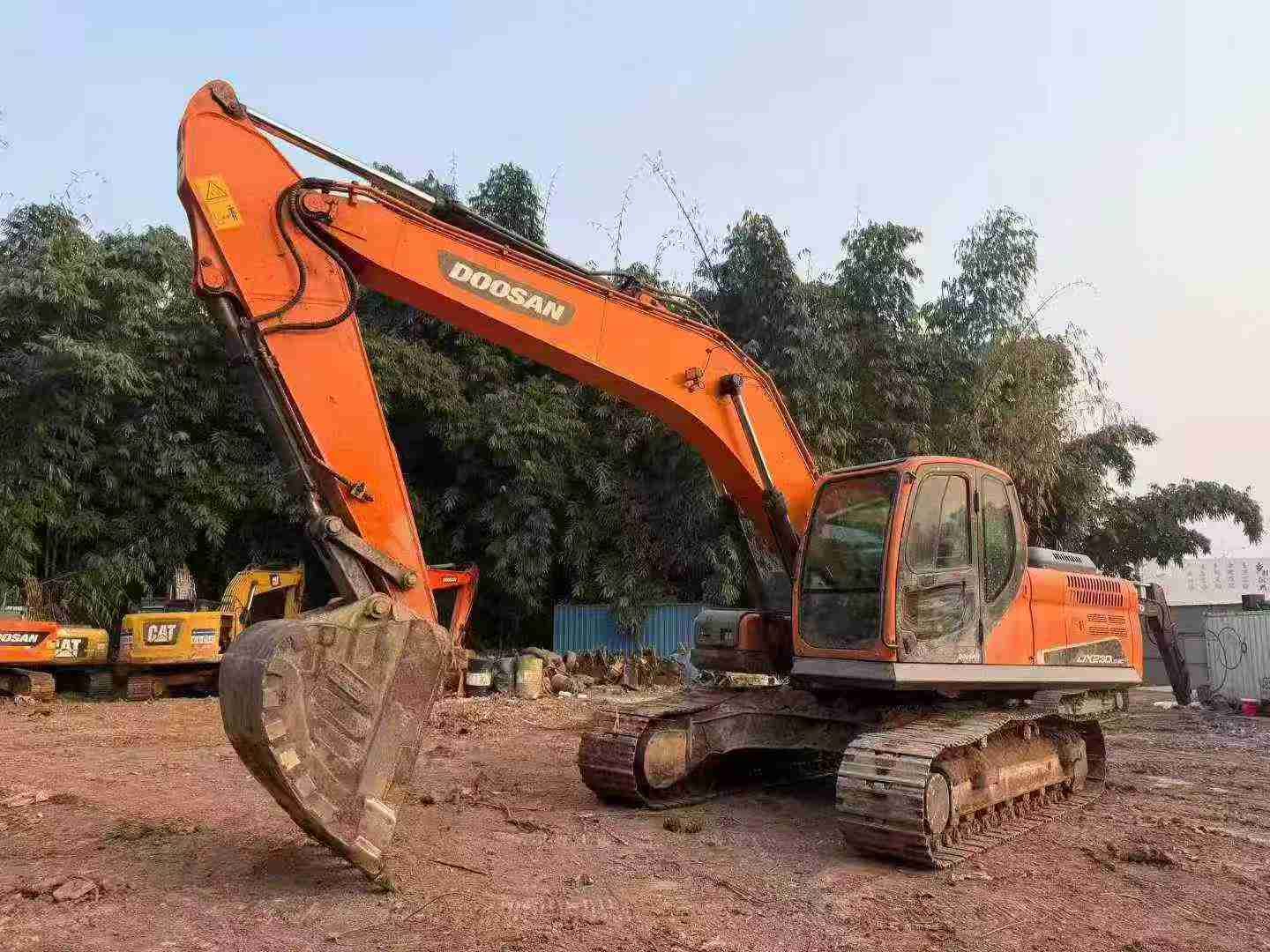

Engineered for endurance, this 2020 Doosan DX230LC stands as a proven workhorse in the 23-ton excavator class. With a robust working weight of 21,500 kg and powered by the reliable Doosan DL06 engine delivering 116 kW at 1900 rpm, this Korean-built machine combines precision with raw power. Its 1.05 m³ bucket capacity and impressive digging depth of 6,620 mm make quick work of demanding excavation tasks, while the 9,900 mm maximum digging radius ensures exceptional reach across job sites.
Built to last through rigorous applications, this excavator features bucket digging force of 152 kN and rod digging force of 108 kN—specifications that demonstrate its capability to handle tough materials day after day. Currently located in Luzhou, Sichuan, this DX230LC represents joint venture manufacturing quality with a proven track record. Key operational advantages include:
- 400L fuel tank for extended runtime between refills
- 35-degree climbing ability for challenging terrain
- Dual travel speeds (3.0/5.5 km/h) for optimal maneuverability
- Compact 2,750 mm rear turning radius for confined spaces
| Specifications | Value |
|---|---|
| No. | 1027312 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900(2400,3500 optional) |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DL06 |
| Rated power (kw/rpm) | 116/1900 |
| Ground specific pressure (Kpa) | 0.45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 degrees |
| Bucket digging force (kN) | 152/143 |
| Rod digging force (kN) | 108/102 |
| Travel speed (km/h) | 3.0/5.5 |
| Main overflow set pressure (Mpa) | 330 |
| Fuel Tank (L) | 400 |
| Total transport length (mm) | 9485 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2975 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3650 |
| Maximum digging radius (mm) | 9900(9480/10340) |
| Maximum digging depth (mm) | 6620(6110/7220) |
| Maximum excavation height (mm) | 9750(9630/9870) |
| Maximum unloading height (mm) | 6990(6830/7150) |
| Bulldozer lift or depth (mm) | No dodging plate |
