Product Description

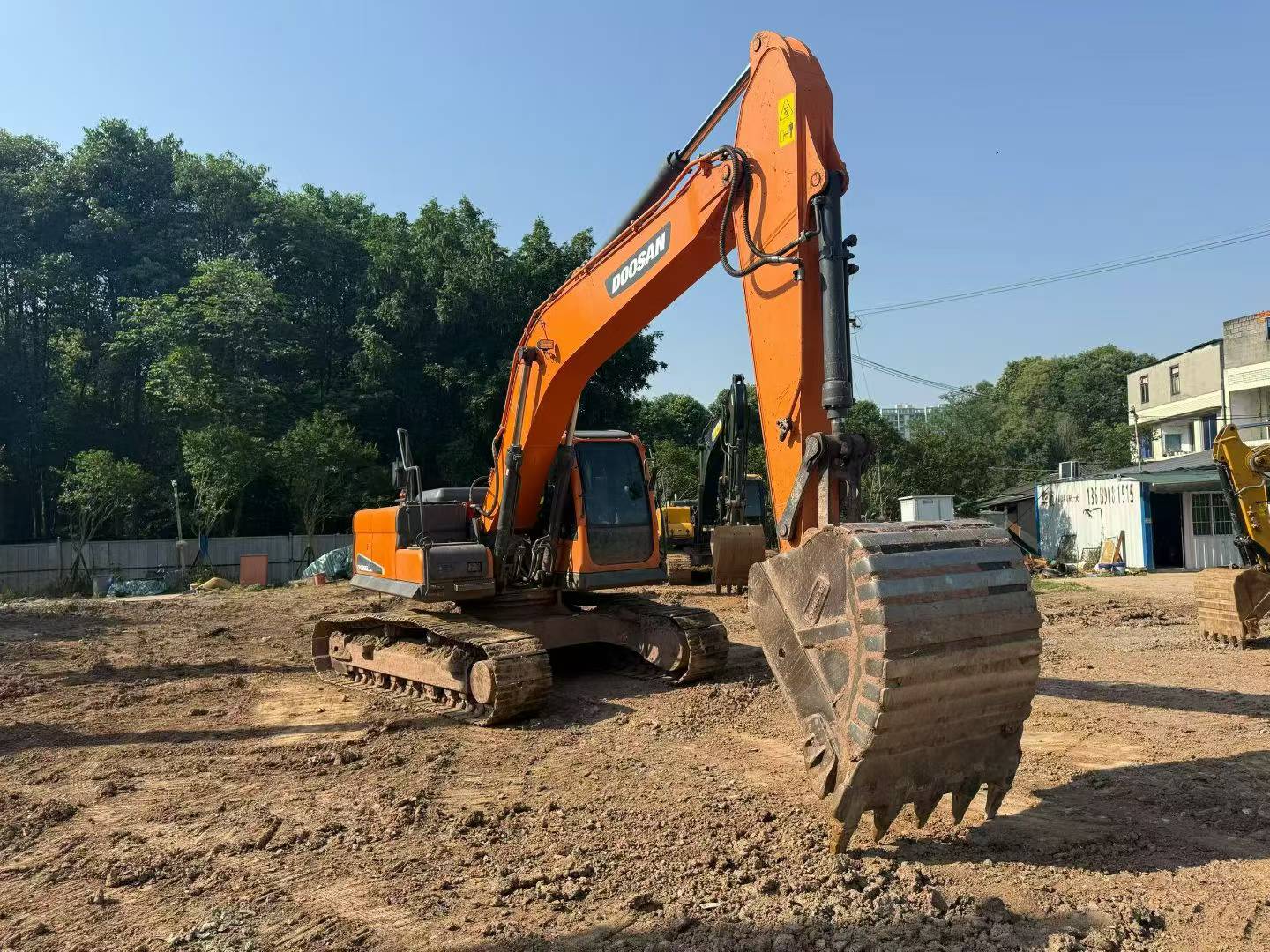

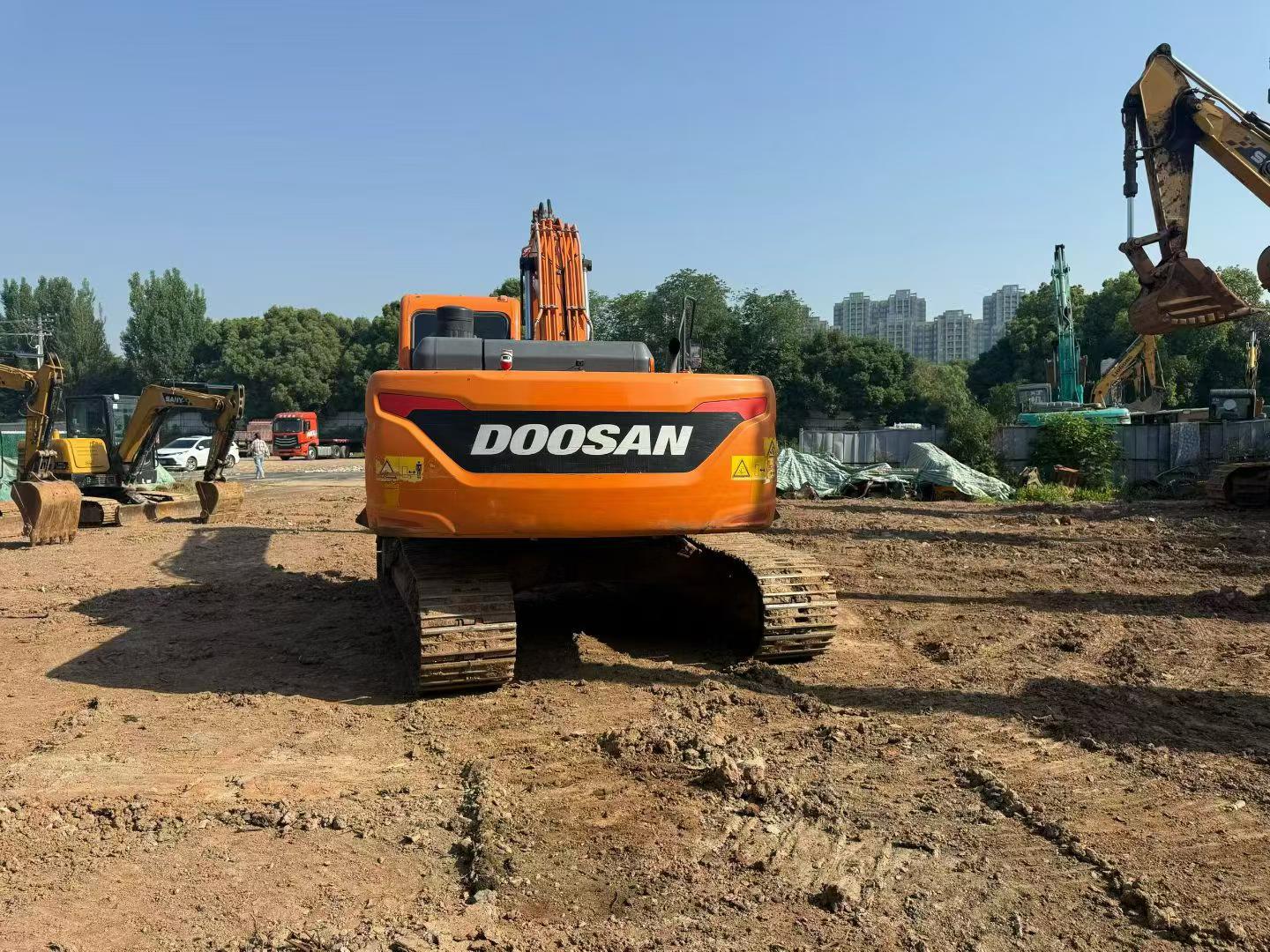

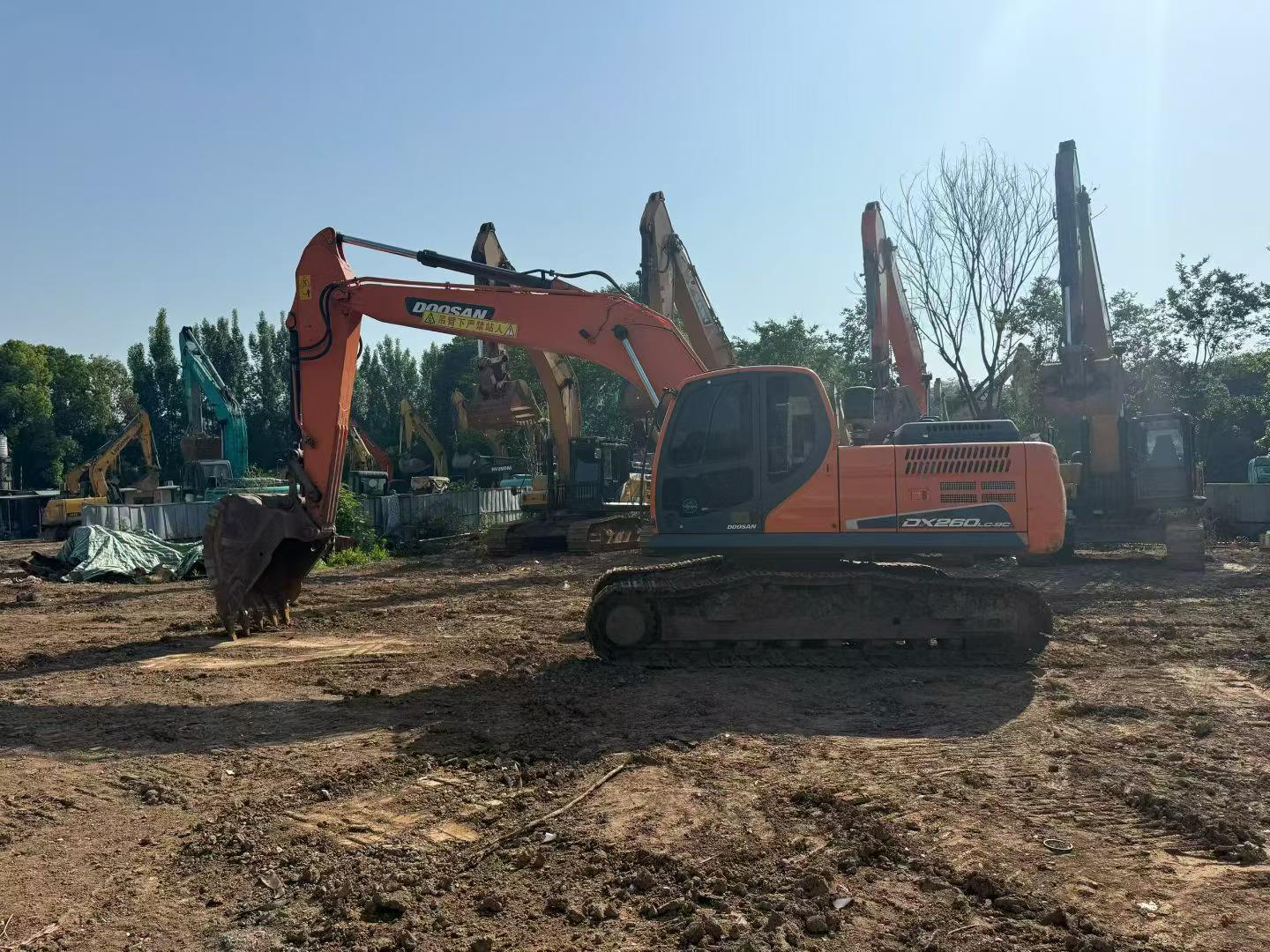

Discover the 2021 Doosan DX230LC, a premium excavator available for purchase in Sichuan, China. This machine is in excellent condition, with all original parts and features intact, ensuring you receive a reliable and robust piece of equipment. The DX230LC is known for its durability and efficiency, making it a top choice for various construction and excavation projects. Priced reasonably, this used excavator offers a cost-effective solution without compromising on quality or performance.
- Year: 2021
- Brand: Doosan
- Model: DX230LC
- Condition: Excellent, all original parts
- Location: Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1057265 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900(2400,3500 optional) |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

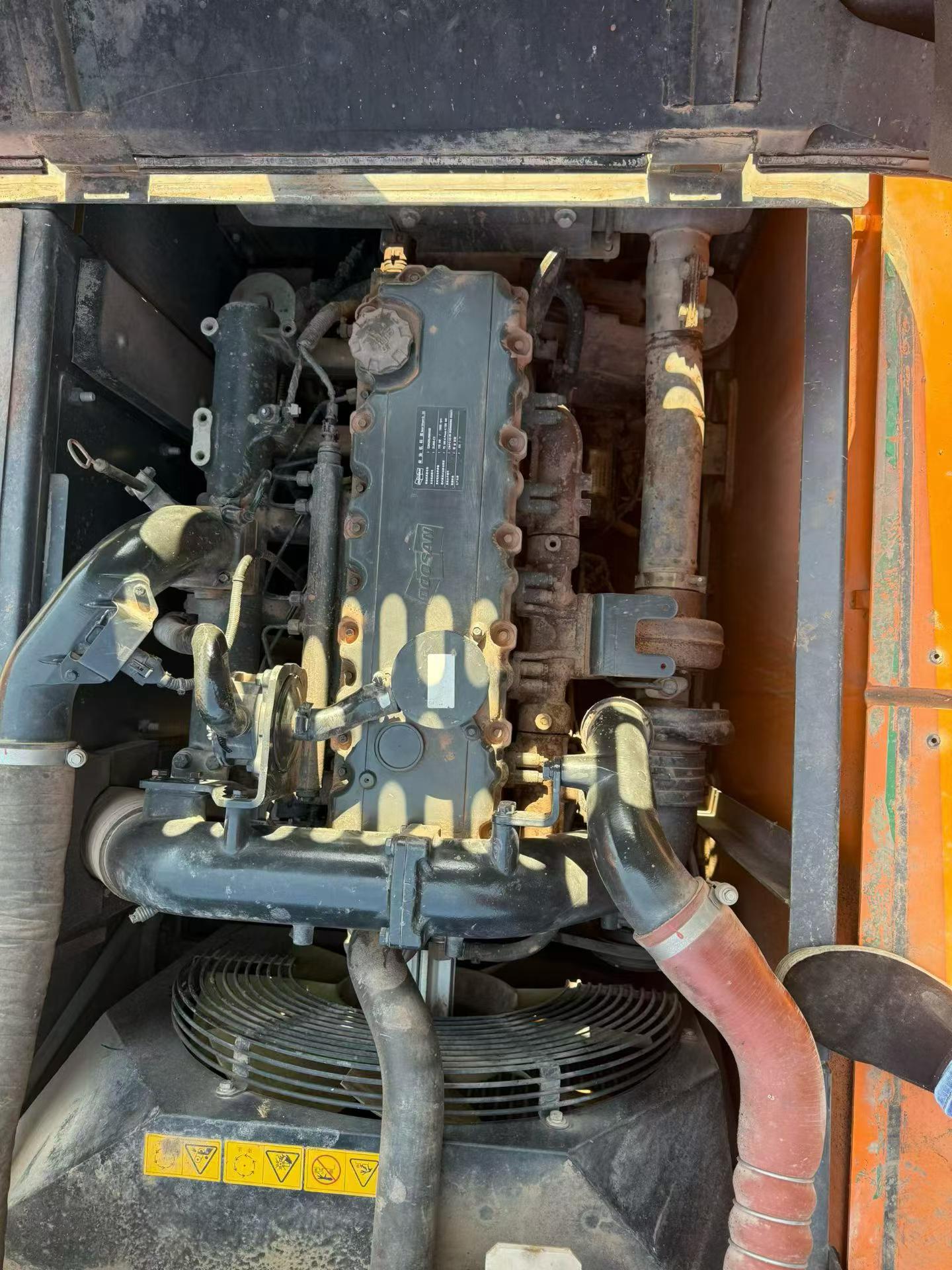

| Engine type | Doosan Doosan DL06 |
| Rated power (kw/rpm) | 116/1900 |
| Ground specific pressure (Kpa) | 0.45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 degrees |
| Bucket digging force (kN) | 152/143 |
| Rod digging force (kN) | 108/102 |
| Travel speed (km/h) | 3.0/5.5 |
| Main overflow set pressure (Mpa) | 330 |
| Fuel Tank (L) | 400 |
| Total transport length (mm) | 9485 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2975 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3650 |
| Maximum digging radius (mm) | 9900(9480/10340) |
| Maximum digging depth (mm) | 6620(6110/7220) |
| Maximum excavation height (mm) | 9750(9630/9870) |
| Maximum unloading height (mm) | 6990(6830/7150) |
| Bulldozer lift or depth (mm) | No dodging plate |
