Product Description

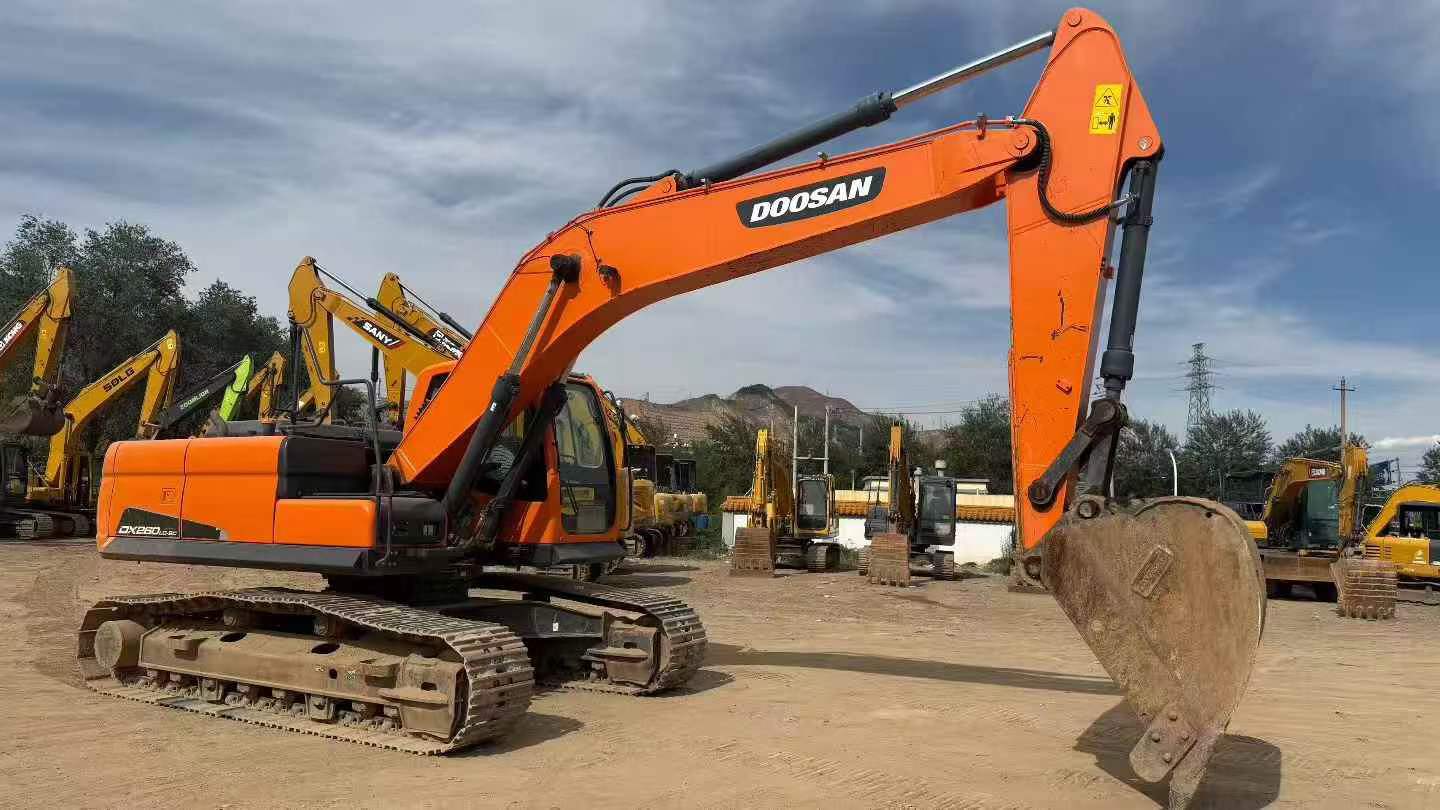

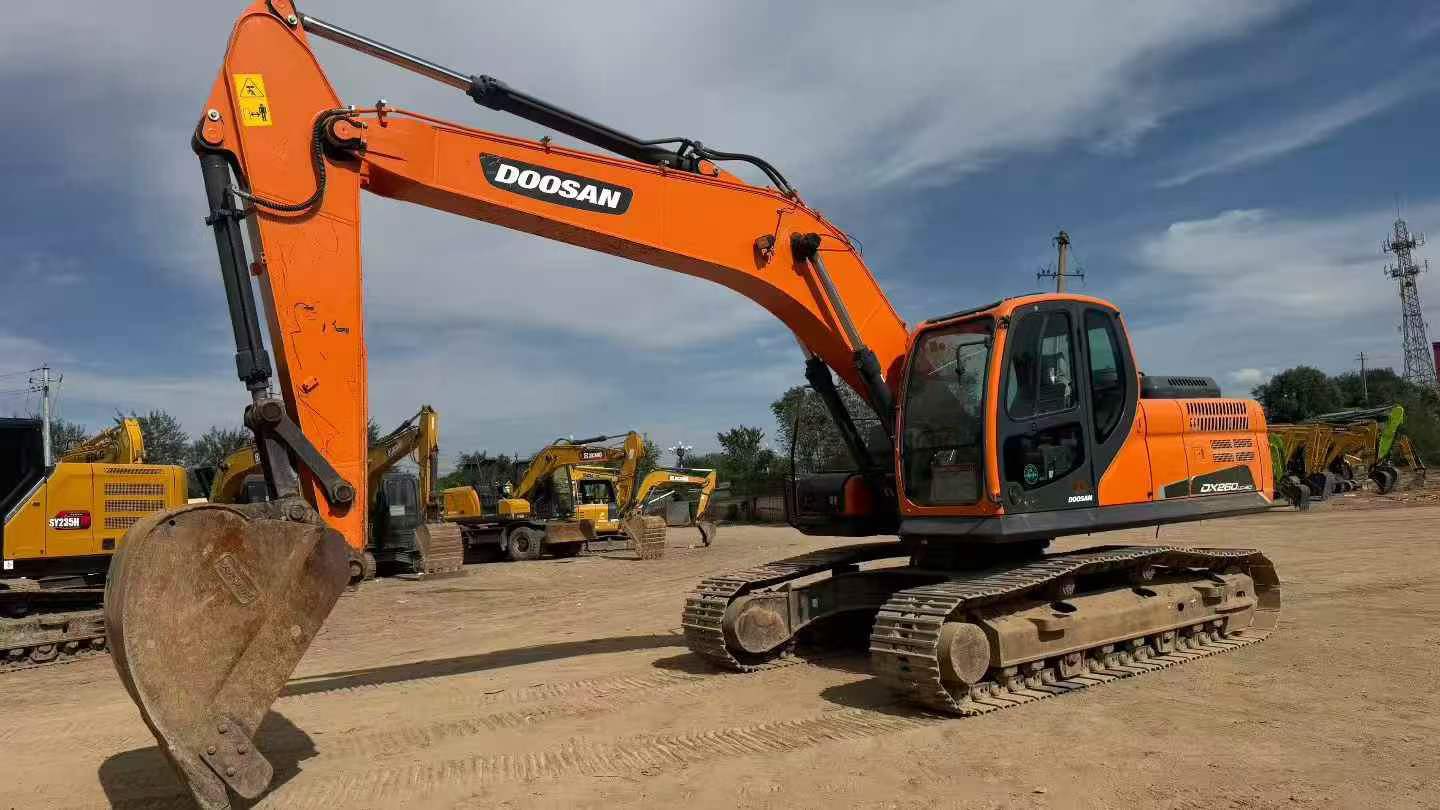

Available for immediate purchase, this 2021 Doosan DX230LC excavator is located in Gansu, China. This machine was manufactured in April 2021 and has been meticulously maintained, ensuring it operates at peak performance. Ideal for a variety of construction and excavation tasks, the DX230LC is known for its robust build and reliable operation. It's ready to be integrated into your project, offering the efficiency and power you need. The price is competitive, making it an excellent choice for businesses looking to acquire high-quality equipment without the premium cost of a new model.
- Year: 2021
- Brand: Doosan
- Model: DX230LC
- Location: Gansu, China
| Specifications | Value |
|---|---|
| No. | 1087036 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900(2400,3500 optional) |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

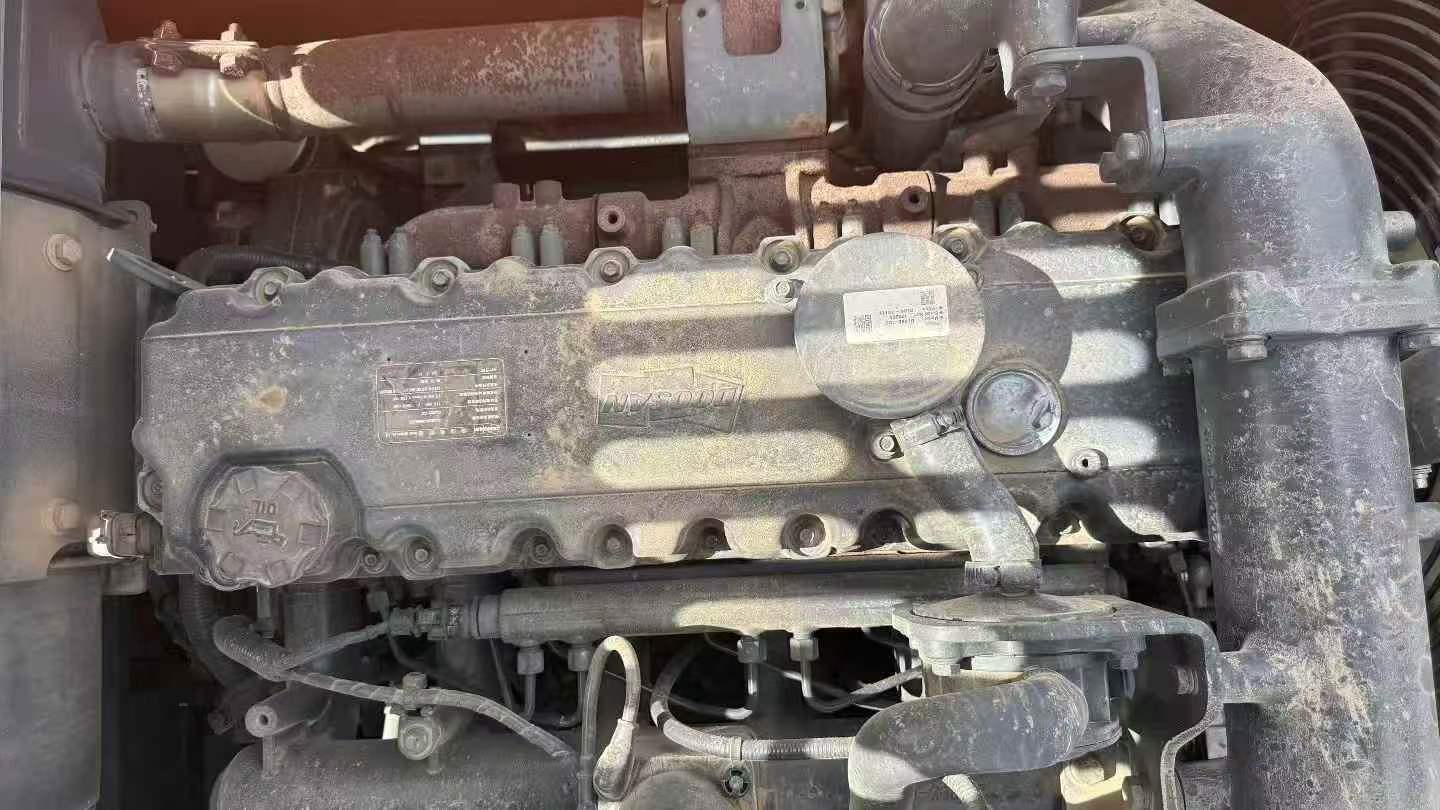

| Engine type | Doosan Doosan DL06 |
| Rated power (kw/rpm) | 116/1900 |
| Ground specific pressure (Kpa) | 0.45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 degrees |
| Bucket digging force (kN) | 152/143 |
| Rod digging force (kN) | 108/102 |
| Travel speed (km/h) | 3.0/5.5 |
| Main overflow set pressure (Mpa) | 330 |
| Fuel Tank (L) | 400 |
| Total transport length (mm) | 9485 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2975 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3650 |
| Maximum digging radius (mm) | 9900(9480/10340) |
| Maximum digging depth (mm) | 6620(6110/7220) |
| Maximum excavation height (mm) | 9750(9630/9870) |
| Maximum unloading height (mm) | 6990(6830/7150) |
| Bulldozer lift or depth (mm) | No dodging plate |
