Product Description

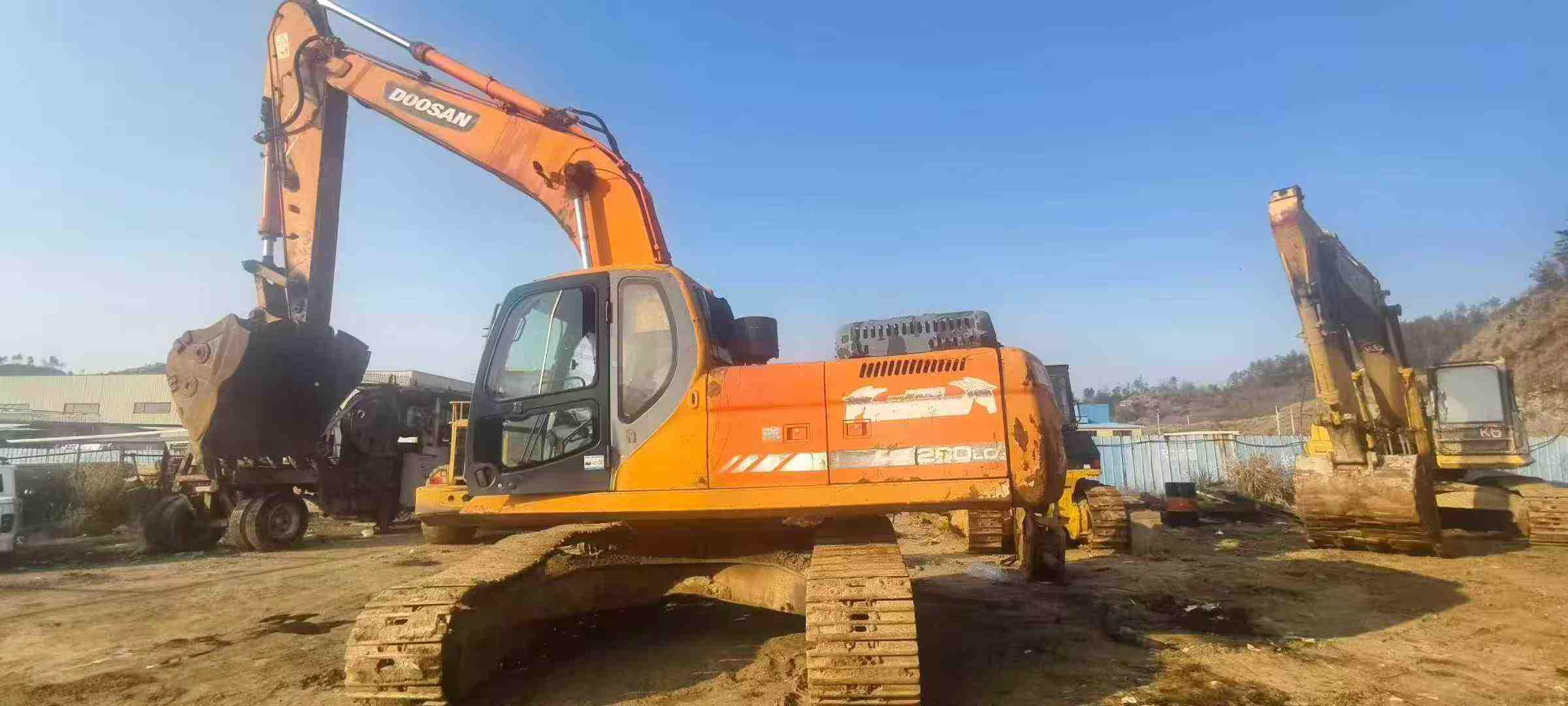

Ready to deploy from 四川泸州, this 2012 Doosan DX260LC excavator eliminates factory wait times and ships directly to your project site. Powered by a robust Doosan DE08TIS engine delivering 180 kW at 1900 rpm, this 25-ton workhorse combines proven hydraulics with immediate availability—critical advantages when timelines matter.
- Immediate Availability: Inspected and ready for fast deployment from Sichuan
- Performance: 10,207 mm max reach, 6,826 mm digging depth, 1.2 m³ bucket capacity
- Power: 180 kW Doosan DE08TIS engine with 172.6 kN bucket digging force
- Hydraulics: Dual variable piston pumps (2 × 219 L/min) operating at 32.4 MPa
- Dimensions: 10,055 mm transport length, 3,200 mm width, 24,800 kg operating weight
- Mobility: 5.2 km/h travel speed, 35% grading ability, 2,995 mm rear swing radius
Skip months of lead time. This machine is positioned in 四川泸州 for rapid logistics coordination across domestic and international routes. Verified specifications, transparent documentation, and immediate transaction capability ensure your equipment arrives when you need it.
| Specifications | Value |
|---|---|
| No. | 1028169 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
