Product Description

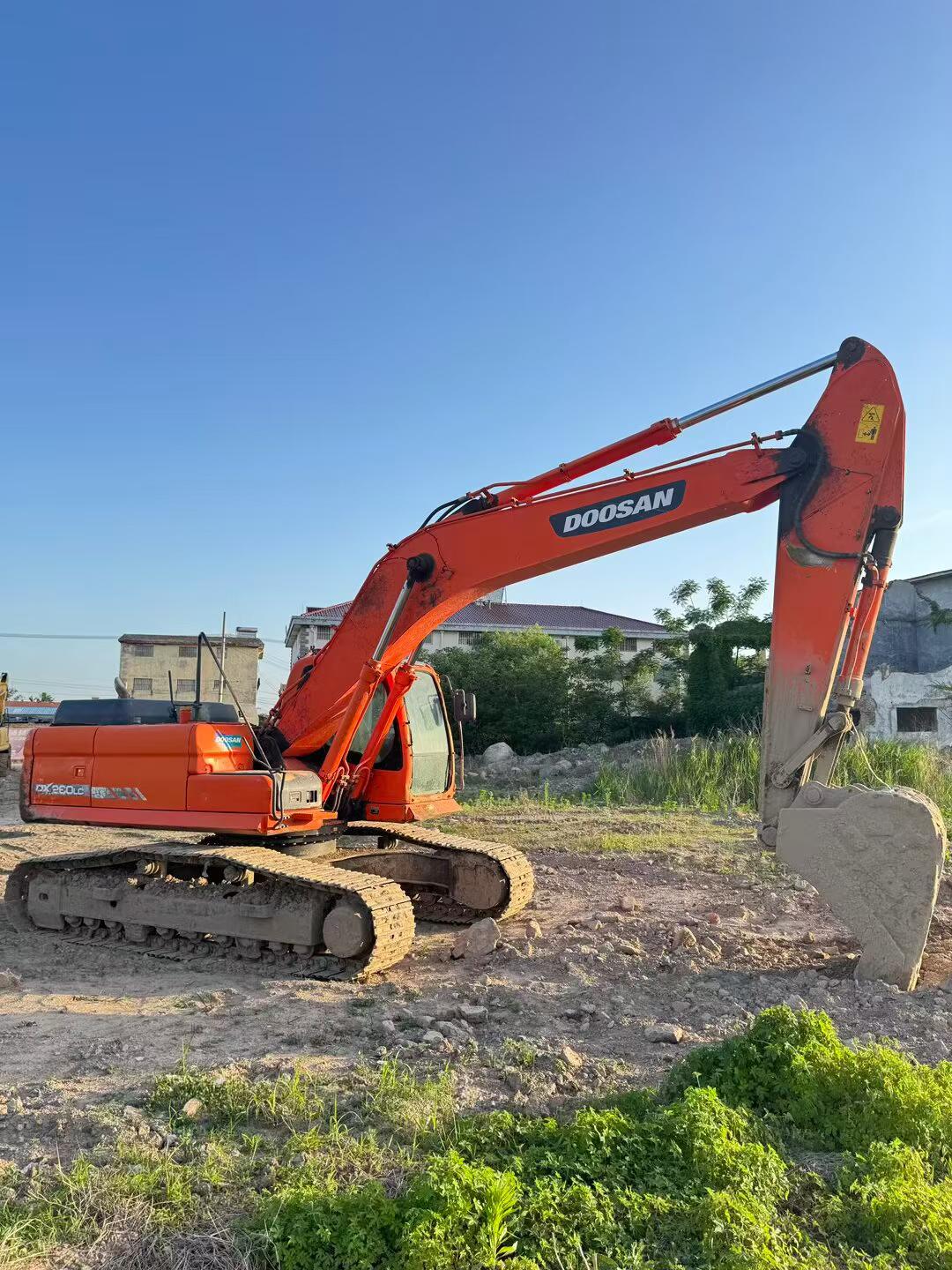

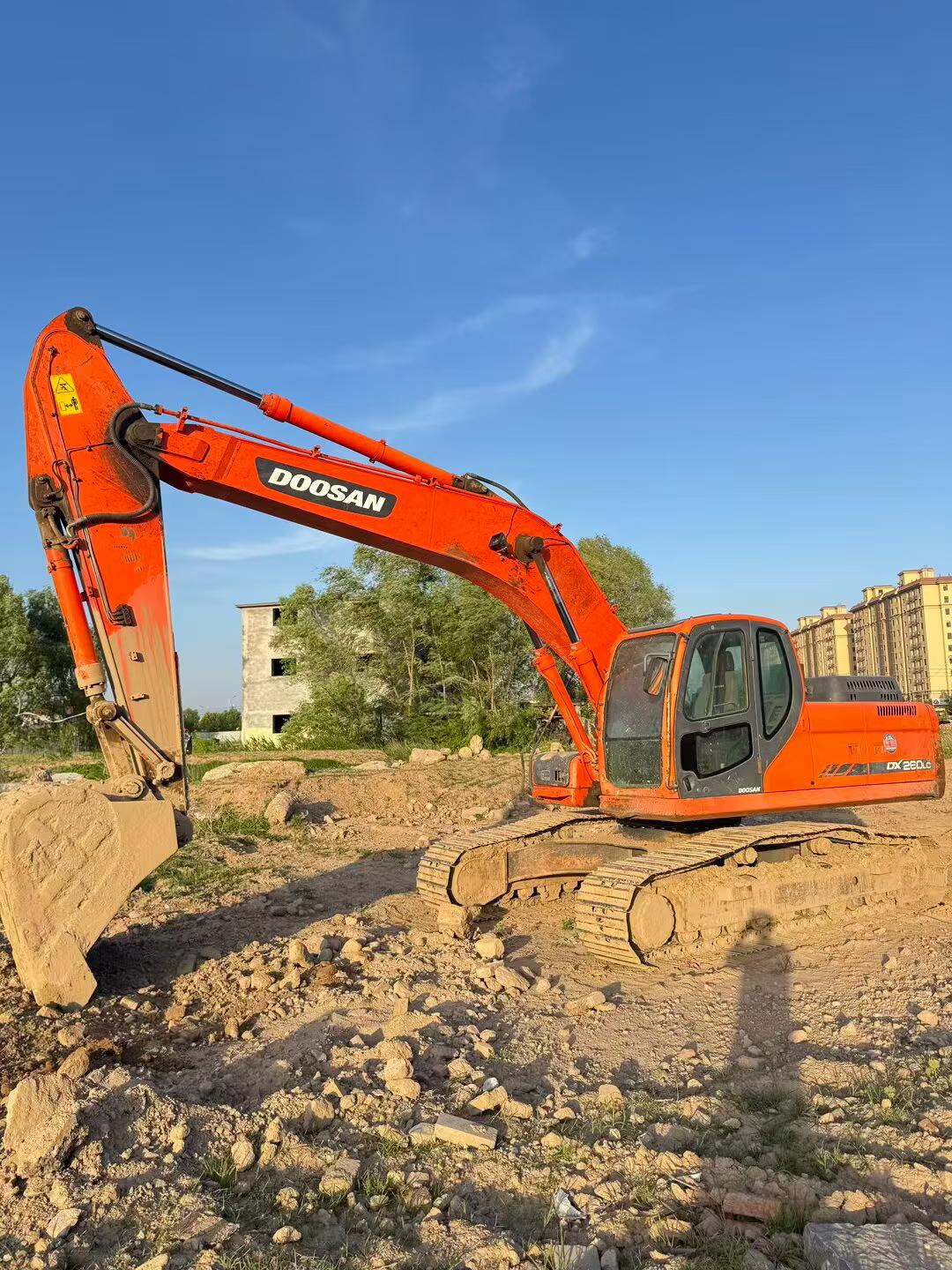

With a working weight of 24,800 kg and a bucket capacity of 1.2 m³, the 2015 Doosan DX260LC is a robust choice for demanding construction projects. Powered by a Doosan DE08TIS engine, this excavator delivers 180 kW at 1900 rpm, ensuring reliable performance. Located in Shandong, China, this machine boasts a maximum digging depth of 6826 mm and a maximum digging radius of 10207 mm, making it versatile for various applications.
- Highly regarded for its parts availability and strong resale value, Doosan machinery is a trusted name in the used market.

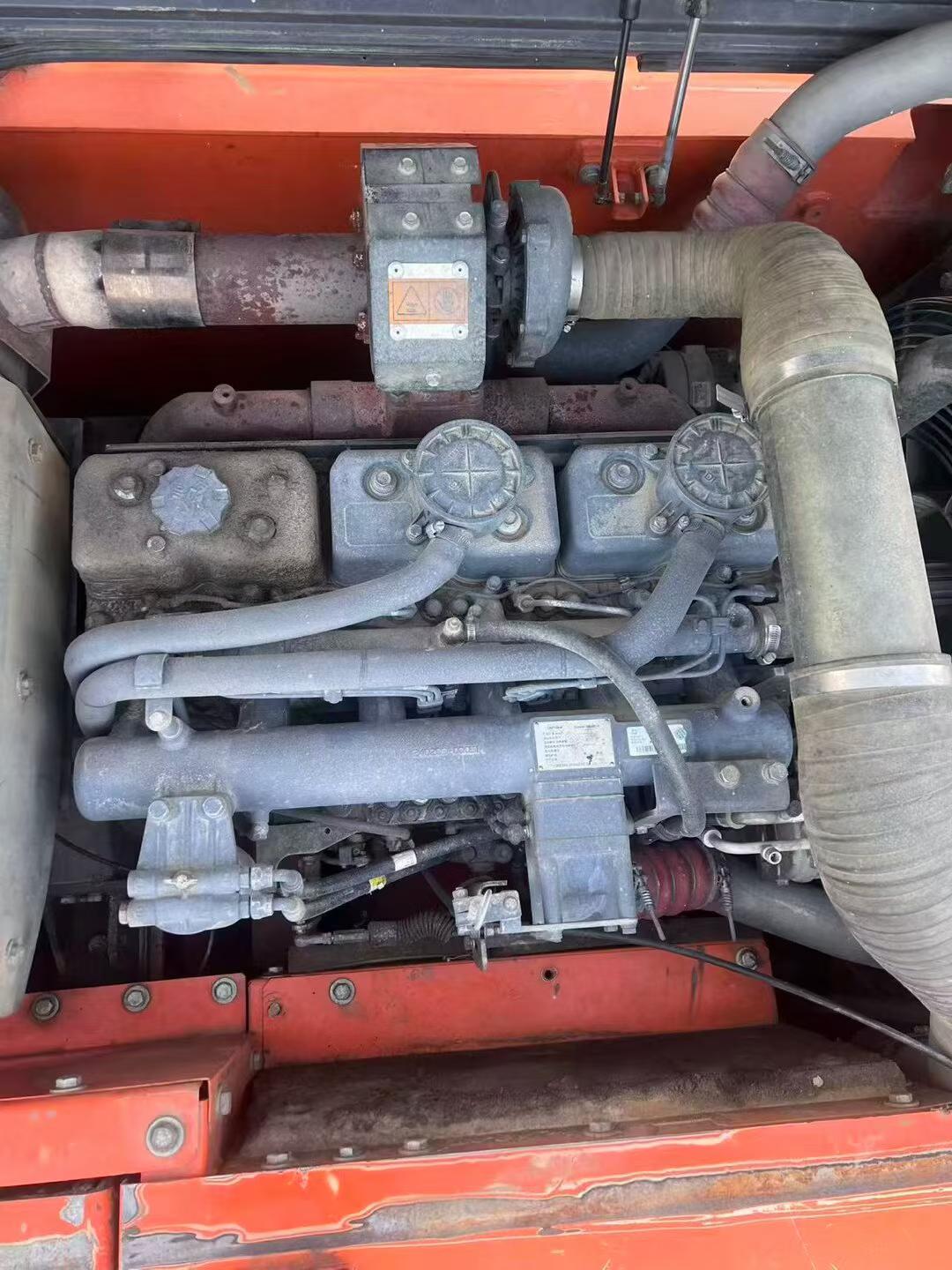

- Equipped with a 4-stroke, water-cooled, direct spray engine, the DX260LC offers efficient and dependable operation.

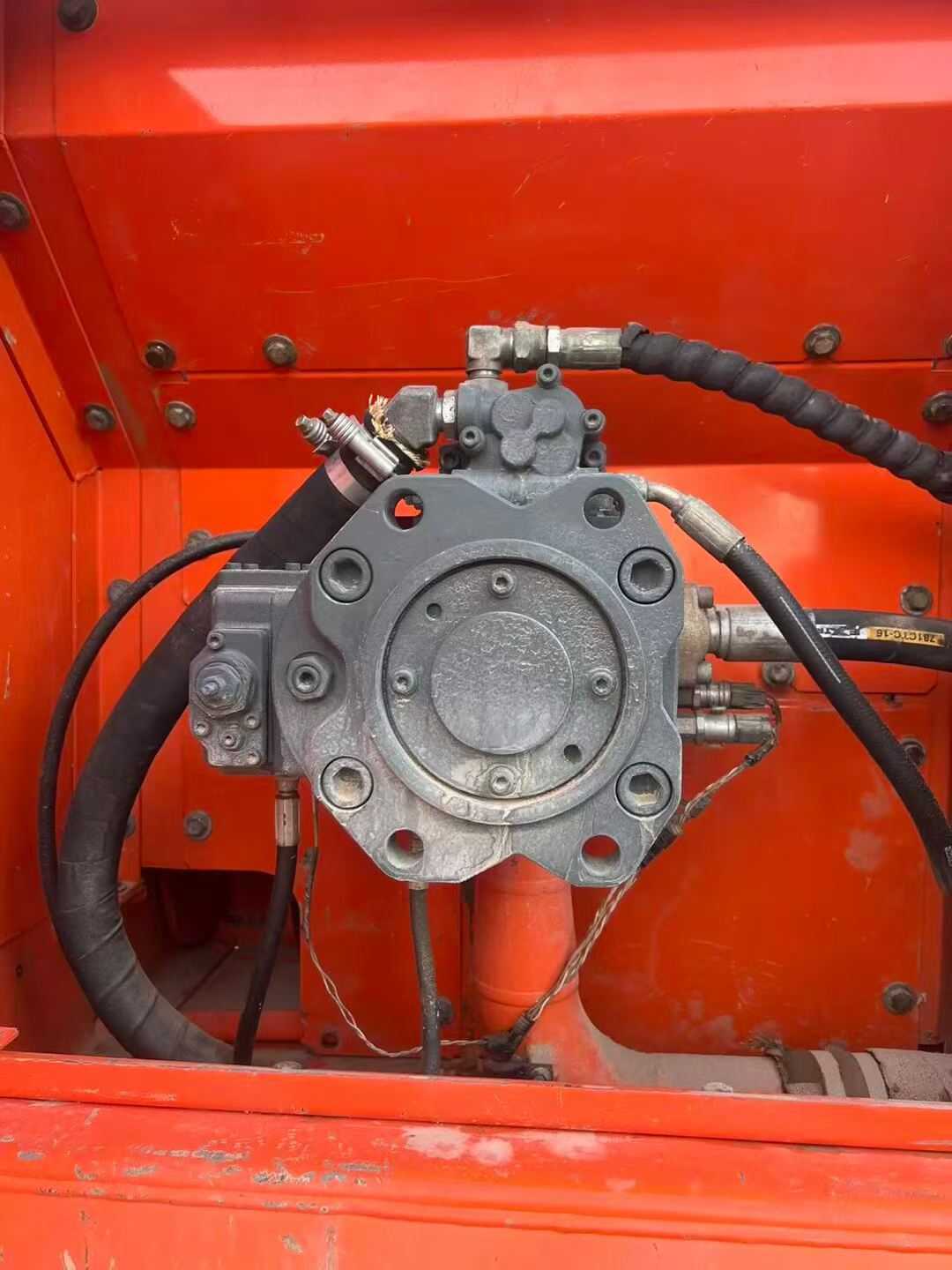

- Featuring a variable piston pump and a hydraulic system with a maximum flow of 2 x 219 l/min, this excavator ensures smooth and powerful performance.
- Designed with a full cab height of 2970 mm and a counterweight ground clearance of 1110 mm, the DX260LC provides excellent visibility and stability on the job site.
| Specifications | Value |
|---|---|
| No. | 1058181 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
