Product Description

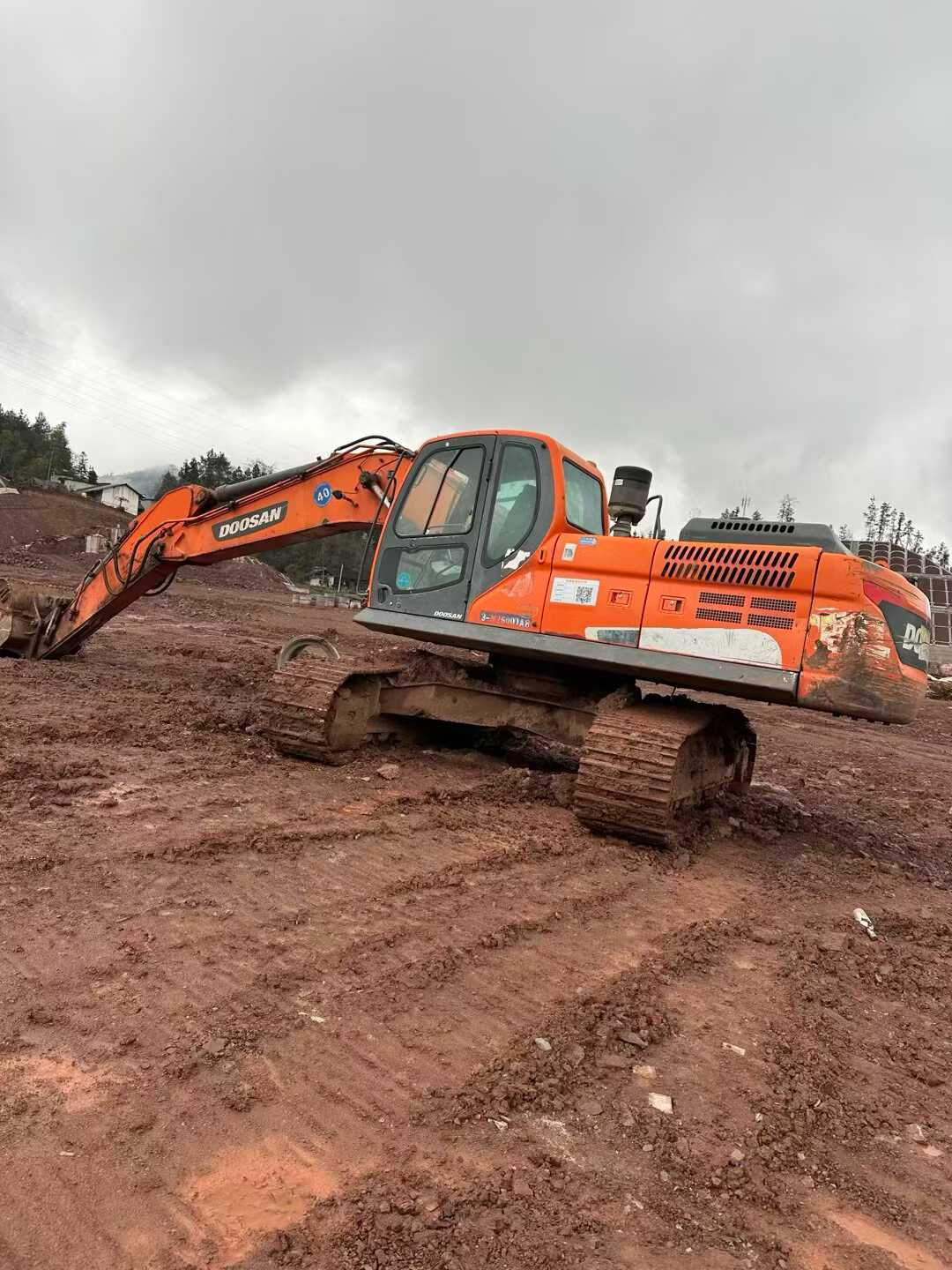

Built in Yantai, China, this 25-ton crawler excavator delivers proven performance for demanding excavation and loading tasks. Powered by a Doosan DE08TIS 6-cylinder engine producing 180 kW at 1900 rpm, the DX260LC combines substantial digging force with responsive hydraulic control. Dual variable piston pumps supply 2 x 219 L/min flow to support smooth, simultaneous multi-function operation.
Operators benefit from enhanced stability during swing and reach operations, supported by a 2600 mm track gauge and 46.1 kPa ground pressure distribution. The spacious cab provides clear sightlines to the work area, with visibility optimized for bucket positioning and trench work. Hydraulic circuits maintain 32.4 MPa pressure across both travel and working systems, ensuring consistent response under load.
- Maximum digging reach: 10,207 mm
- Maximum digging depth: 6,826 mm
- Bucket digging force: 172.6 kN (standard) / 182.4 kN (boost)
- Working weight: 24,800 kg
- Standard 1.2 m³ backhoe bucket capacity
- Currently located in Kunming, Yunnan
| Specifications | Value |
|---|---|
| No. | 1026470 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

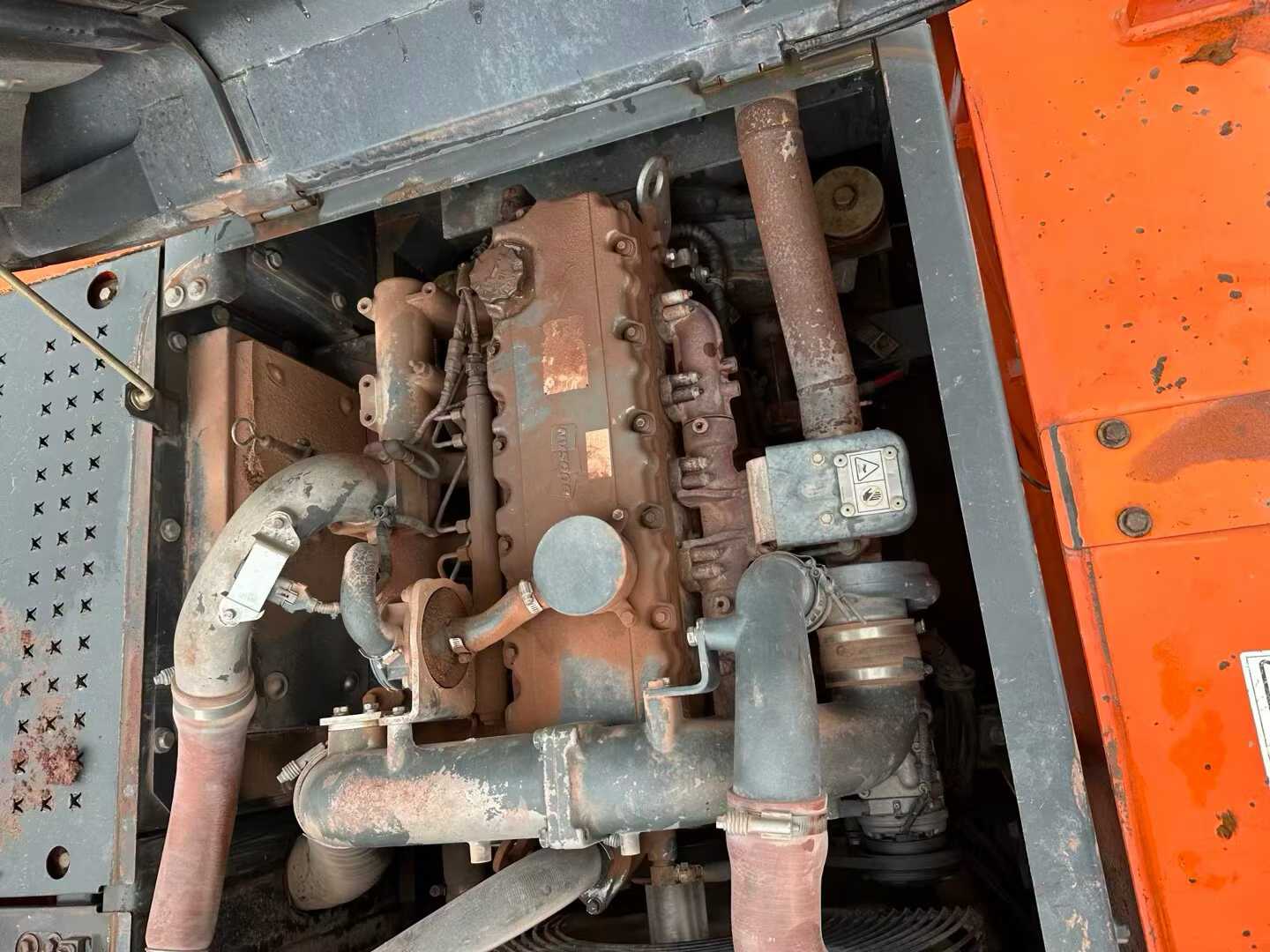

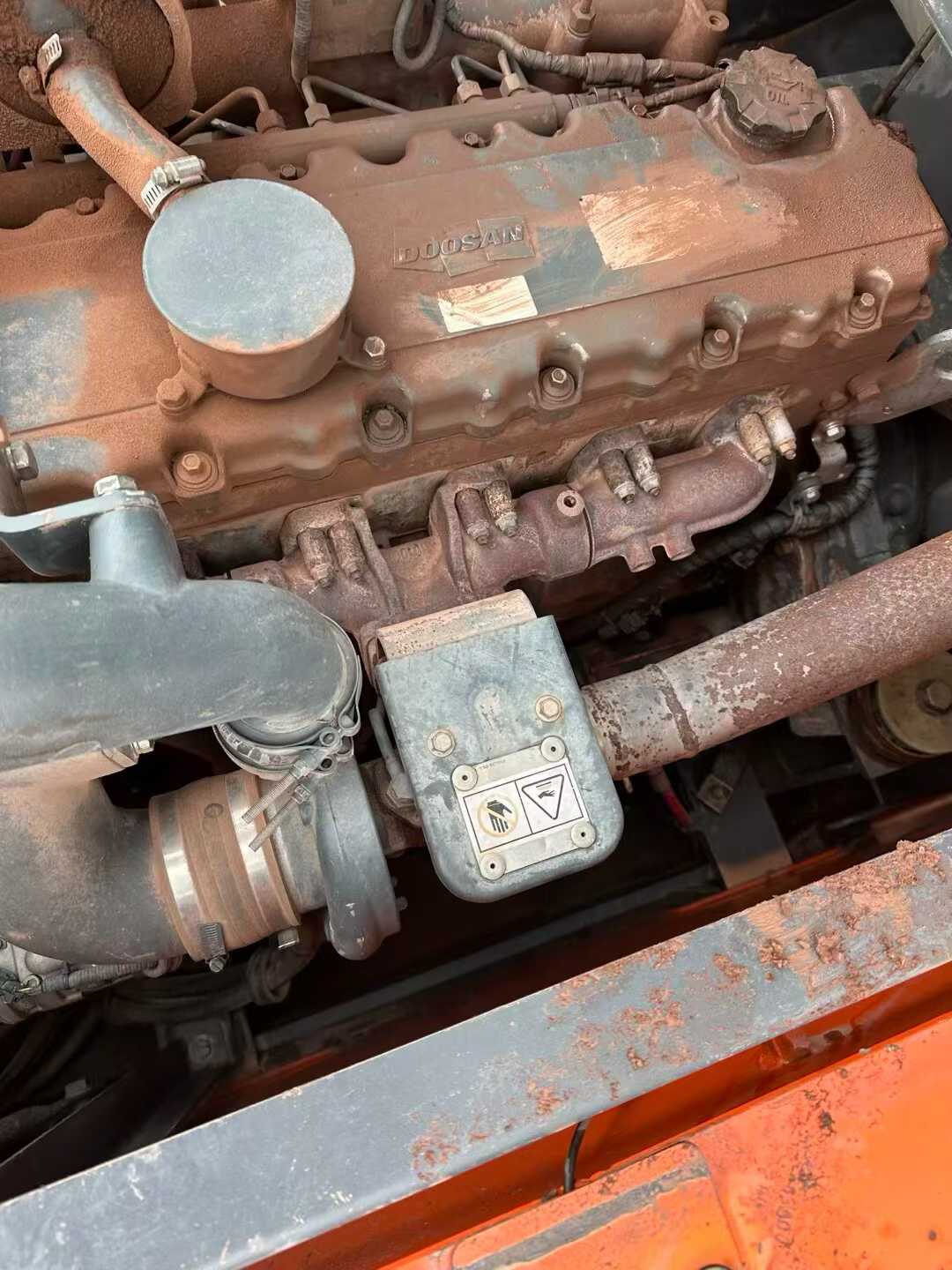

| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

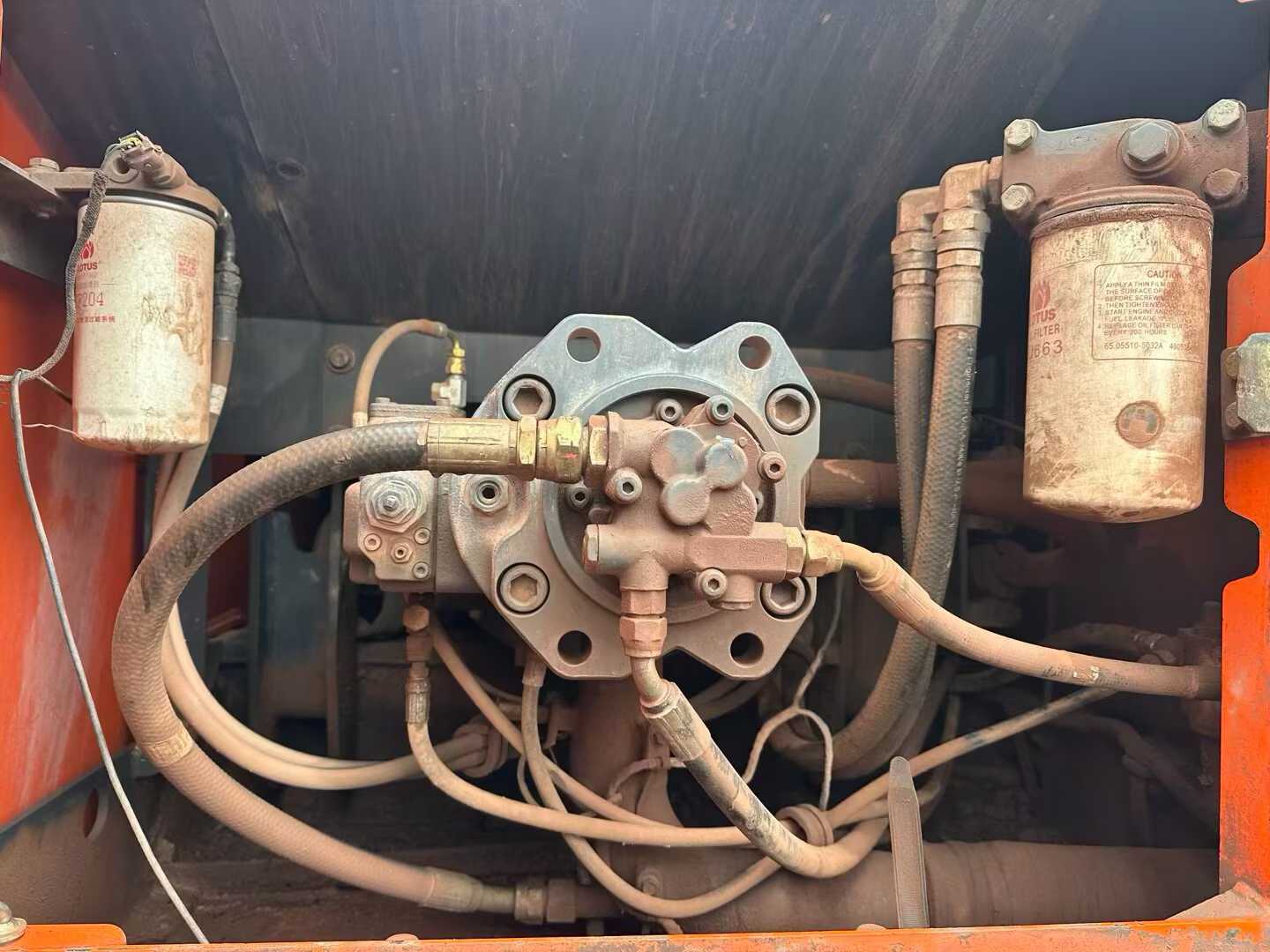

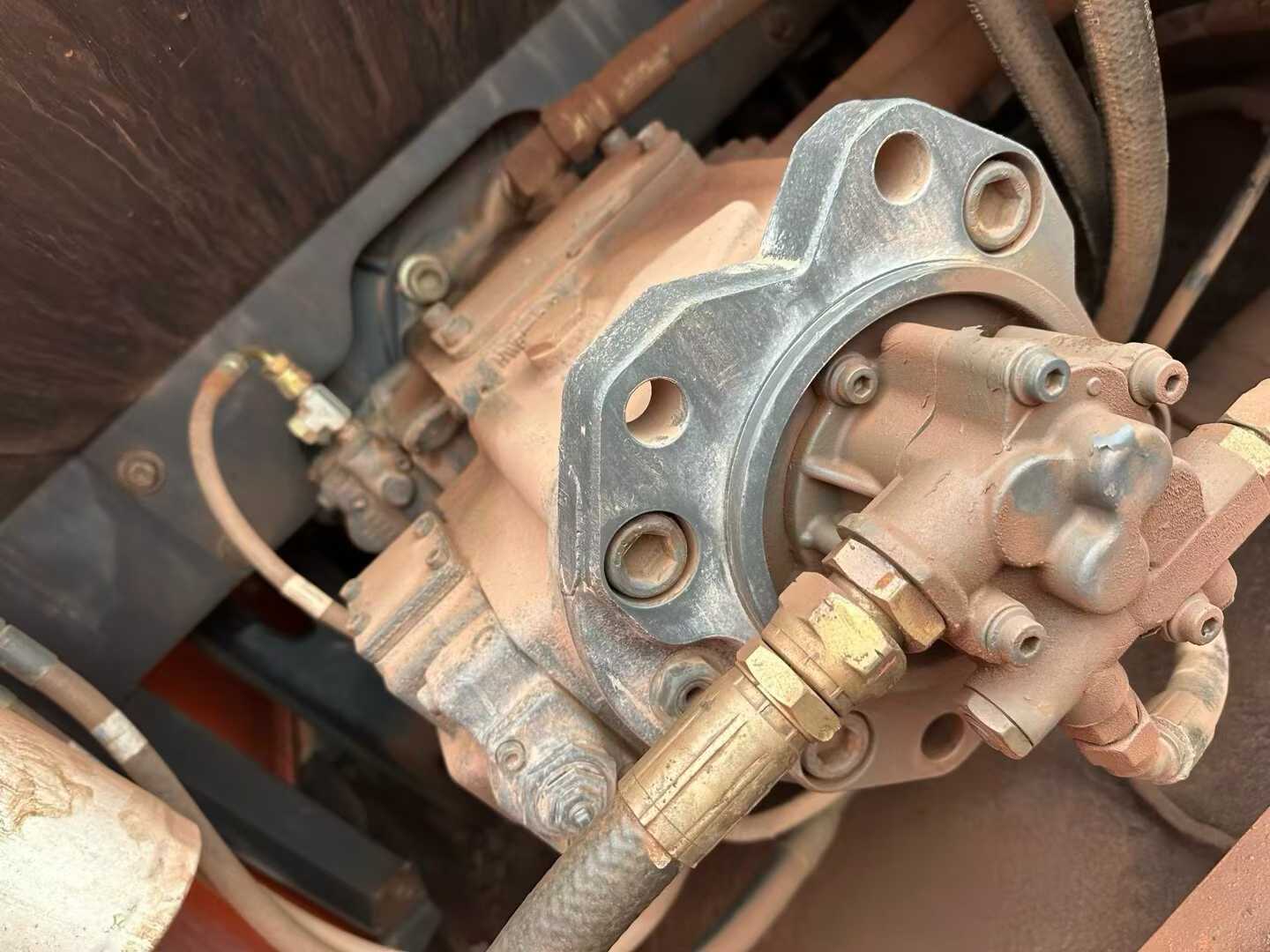

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |

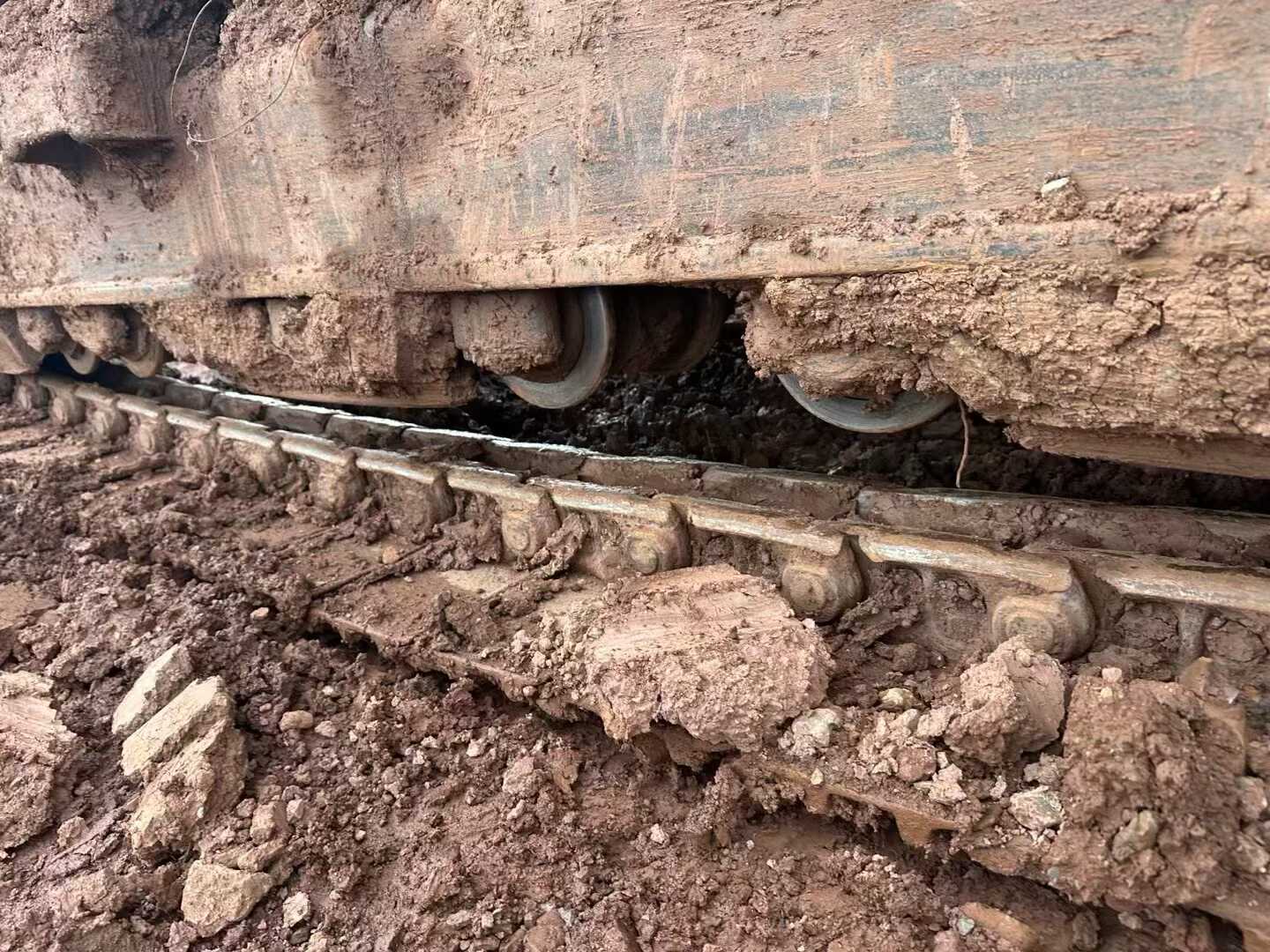

| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
