Product Description

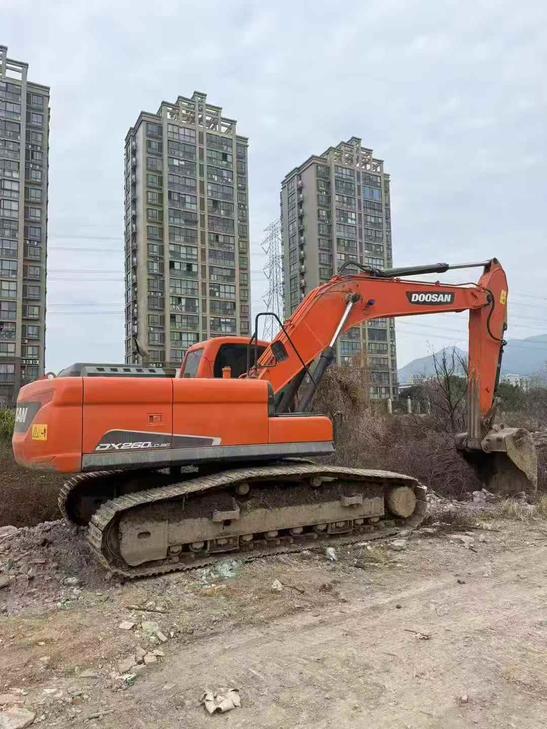

Built in Yantai and proven in the field, this 2018 Doosan DX260LC delivers 25 tons of reliable excavation power. With nearly seven years of operation behind it, this machine demonstrates the durability that keeps projects moving. The Doosan DE08TIS engine generates 180kW at 1900rpm, paired with dual variable piston pumps flowing 2x219 L/min for consistent hydraulic performance across demanding applications.
Key specifications include:
- Maximum digging reach: 10,207mm with 6,826mm depth capability
- Bucket capacity: 1.2m³ with 172.6kN digging force
- Operating weight: 24,800kg on 600mm track plates
- Boom/arm configurations: 5,900mm boom with 3,000/2,500/3,500mm arm options
- Fuel capacity: 450L for extended runtime
Currently located in Guizhou, this workhorse combines joint-venture manufacturing quality with field-tested reliability. The 35% climbing ability and 46.1kPa ground pressure make it adaptable to varied terrain conditions. A proven performer ready for your next project.
| Specifications | Value |
|---|---|
| No. | 1021078 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
