Product Description
Ready to deploy from 贵州, this 2019 Doosan DX260LC excavator eliminates factory wait times and gets your project moving immediately. Powered by a Doosan DE08TIS engine delivering 180 kW at 1900 rpm, this 25-ton machine combines proven reliability with the performance specs demanded on heavy earthmoving sites. The 1.2 m³ bucket capacity and impressive 172.6 kN digging force handle high-volume excavation with efficiency, while the 10,207 mm maximum digging radius expands your working envelope across large-scale operations.
Key Specifications:
- Operating weight: 24,800 kg with optimal 46.1 kPa ground pressure
- Hydraulic system: Dual variable piston pumps (2 × 219 L/min) at 32.4 MPa
- Digging depth: 6,826 mm / Maximum reach: 10,207 mm
- Fuel capacity: 450 L for extended shift operation
- Transport dimensions: 10,055 × 3,200 × 3,100 mm
- Travel speed: 5.2 km/h high / 3.1 km/h low range
Available now for immediate shipment. Skip months-long lead times and mobilize this field-proven excavator to your site without delay. Contact Fair Trade Machinery today for logistics coordination and competitive export terms.
| Specifications | Value |
|---|---|
| No. | 1024239 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

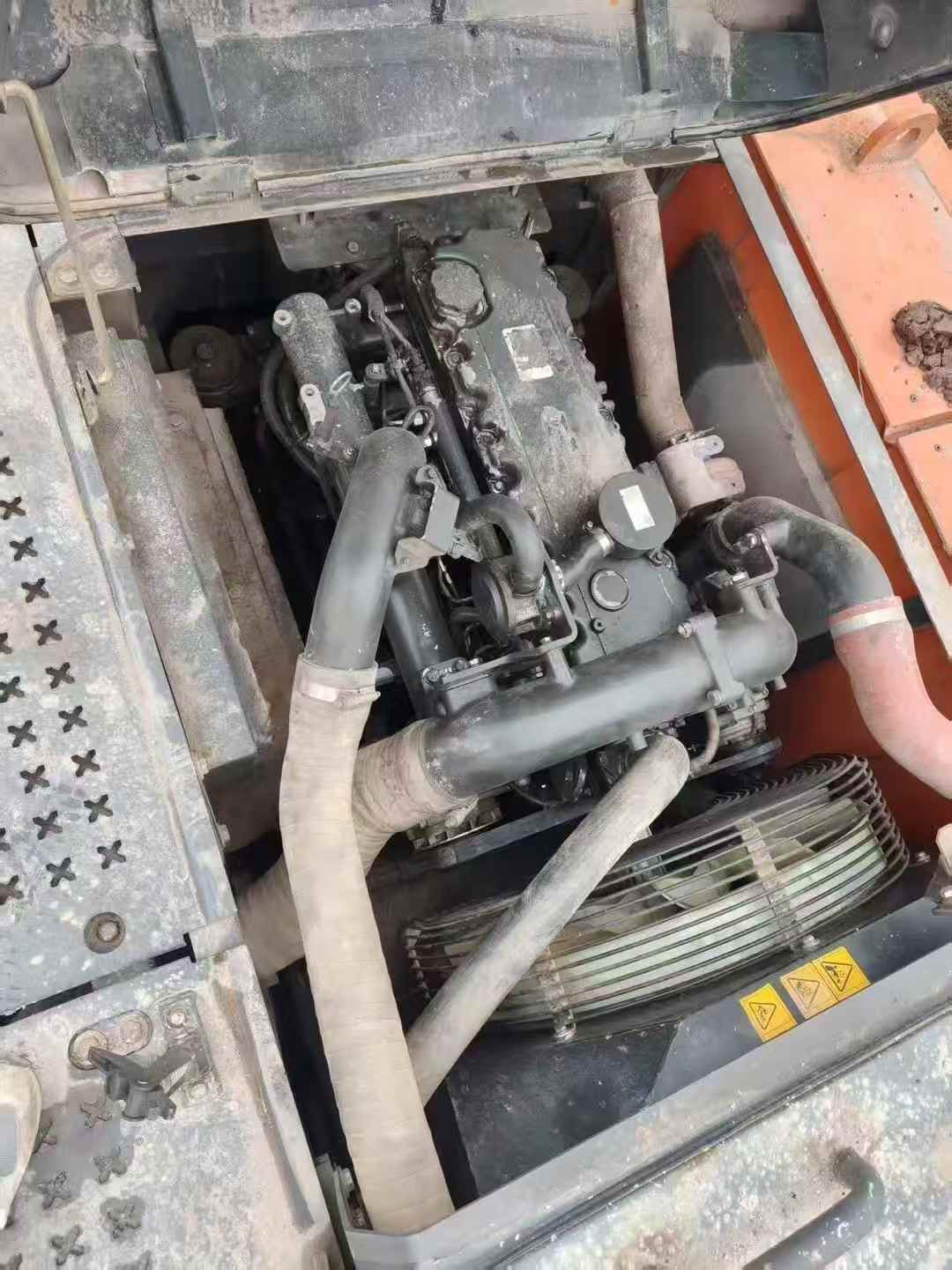

| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

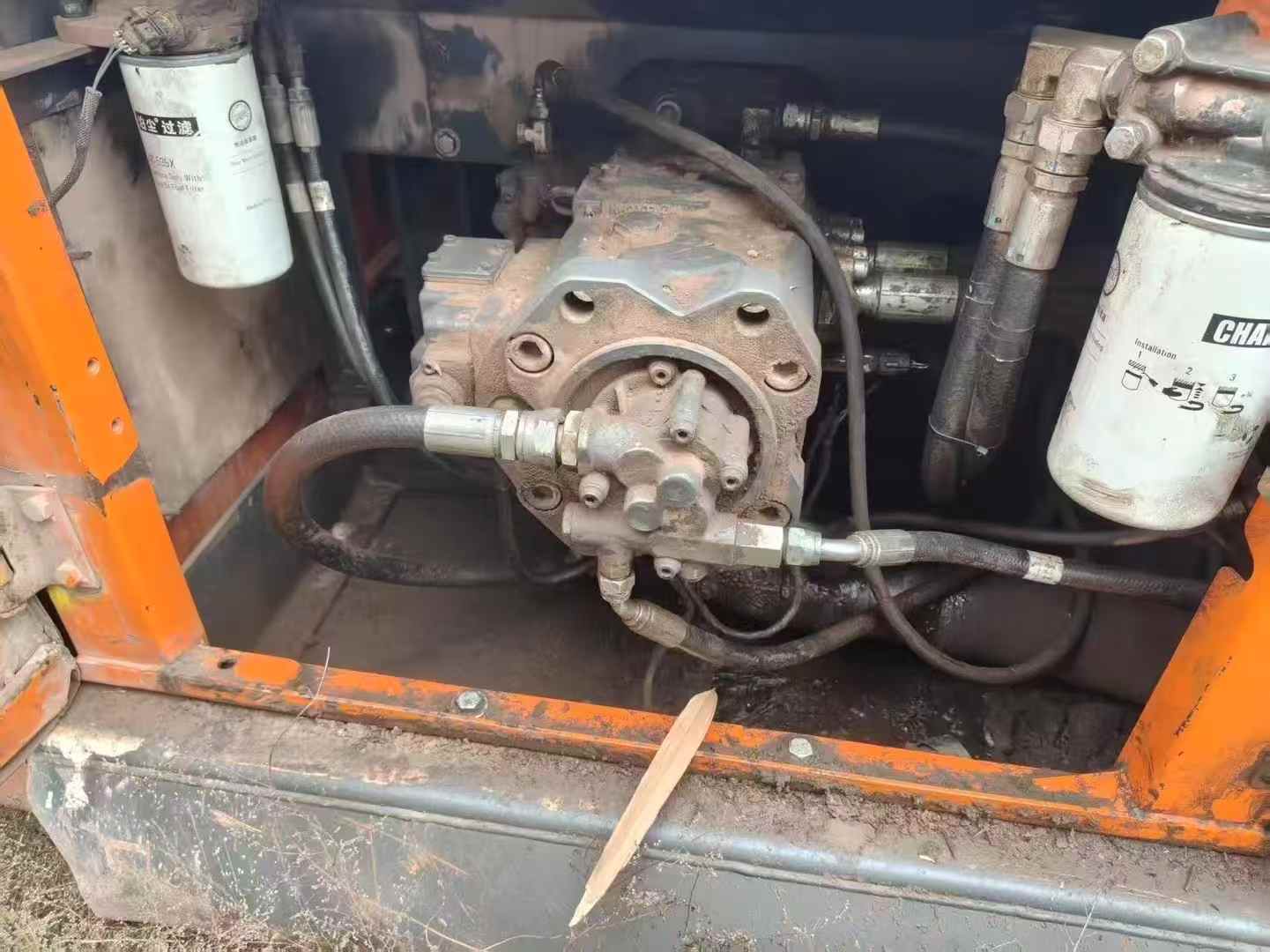

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
