2021 Doosan DX260LC

1/9
Buy Doosan DX260LC Used Excavator / 1
Buy Doosan DX260LC Used Excavator / 2
Buy Doosan DX260LC Used Excavator / 3
Buy Doosan DX260LC Used Excavator / 4
Buy Doosan DX260LC Used Excavator / 5
Buy Doosan DX260LC Used Excavator / 6
Buy Doosan DX260LC Used Excavator / 7
Buy Doosan DX260LC Used Excavator / 8
Buy Doosan DX260LC Used Excavator / 9

Product Description

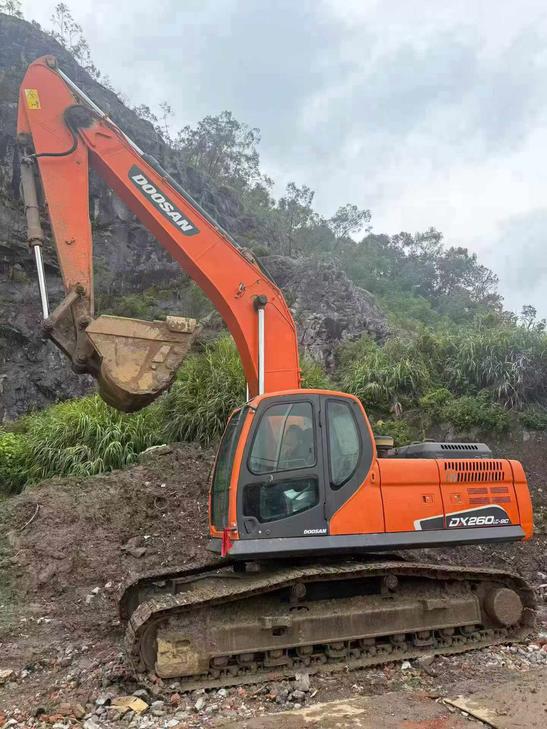

This 2021 Doosan DX260LC hydraulic excavator represents a well-maintained earthmoving machine currently located in Zhejiang, China. With approximately five years of operational history, this crawler excavator has been primarily utilized for earthwork applications, demonstrating consistent performance in soil excavation and material handling operations.

Key highlights include:

  • Original undercarriage components including tracks, rollers, and idlers in authentic condition
  • Chassis maintains substantial original paint coverage
  • Major components remain unmodified with original factory assembly
  • Hydraulic system performs all functions efficiently at idle speed
  • Demonstrated capability for rapid loading cycle times

This DX260LC is well-suited for contractors seeking a mid-size excavator with verified earthwork experience. The machine's maintained condition and operational readiness make it appropriate for immediate deployment in construction, quarrying, or site development projects.

SpecificationsValue
No.1084110
Tonnage (tons)25
Working weight (kg)24800
Bucket capacity (m³)1.2
Boom length (mm)5900
Rod length (mm)3000/2500/3500
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DE08TIS
Rated power (kw/rpm)180 / 1900
Maximum torque (N.m)78/1400
Number of cylinders (PCS)6
Working form4-stroke, water-cooled, direct spray
Ground specific pressure (Kpa)46.1
Rotation speed (rpm)10
Climbing ability (%)35
Bucket digging force (kN)172.6 / 182.4
Rod digging force (kN)114.7 / 121.6
Travel speed (km/h)5.2 / 3.1
Turning torque (Nm)78
Maximum flow of main pump (l/min)2 x 219
Traveling Hydraulic Circuit (Mpa)32.4
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)32.4
Fuel Tank (L)450
Hydraulic Tank (L)240
Total transport length (mm)10055
Total transport width (mm)3200
Total transport height (mm)3100
Full cab height (mm)2970(to top of cab)
Counterweight ground clearance (mm)1110
Minimum ground clearance (mm)450
Back end turning radius (mm)2995
Total track length (mm)4625
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Track ground length (mm)3835
Maximum digging radius (mm)10207
Maximum digging depth (mm)6826
Maximum excavation height (mm)9820
Maximum unloading height (mm)6925
Maximum vertical digging depth (mm)6258
Bulldozer lift or depth (mm)There is no
