Product Description

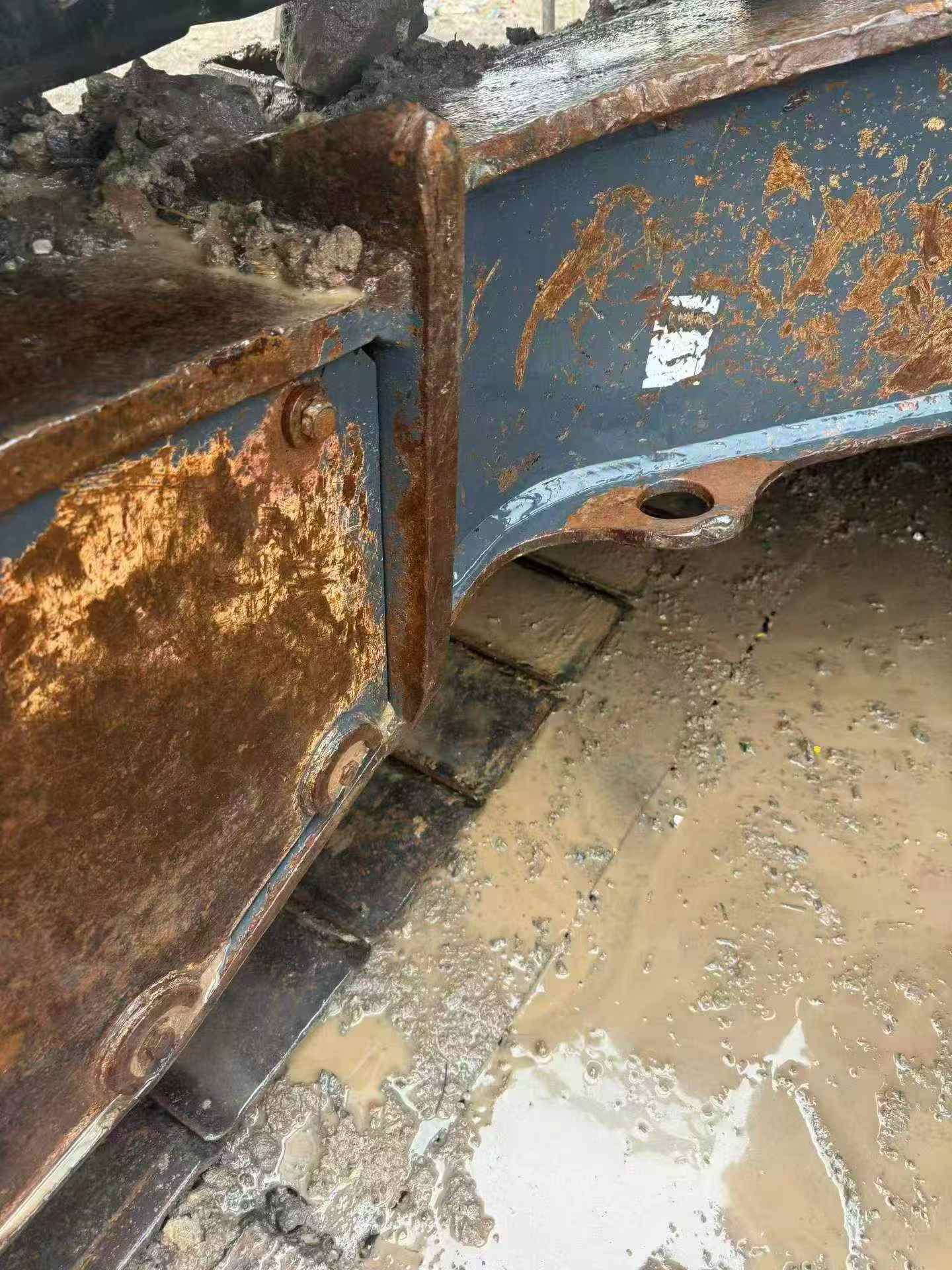

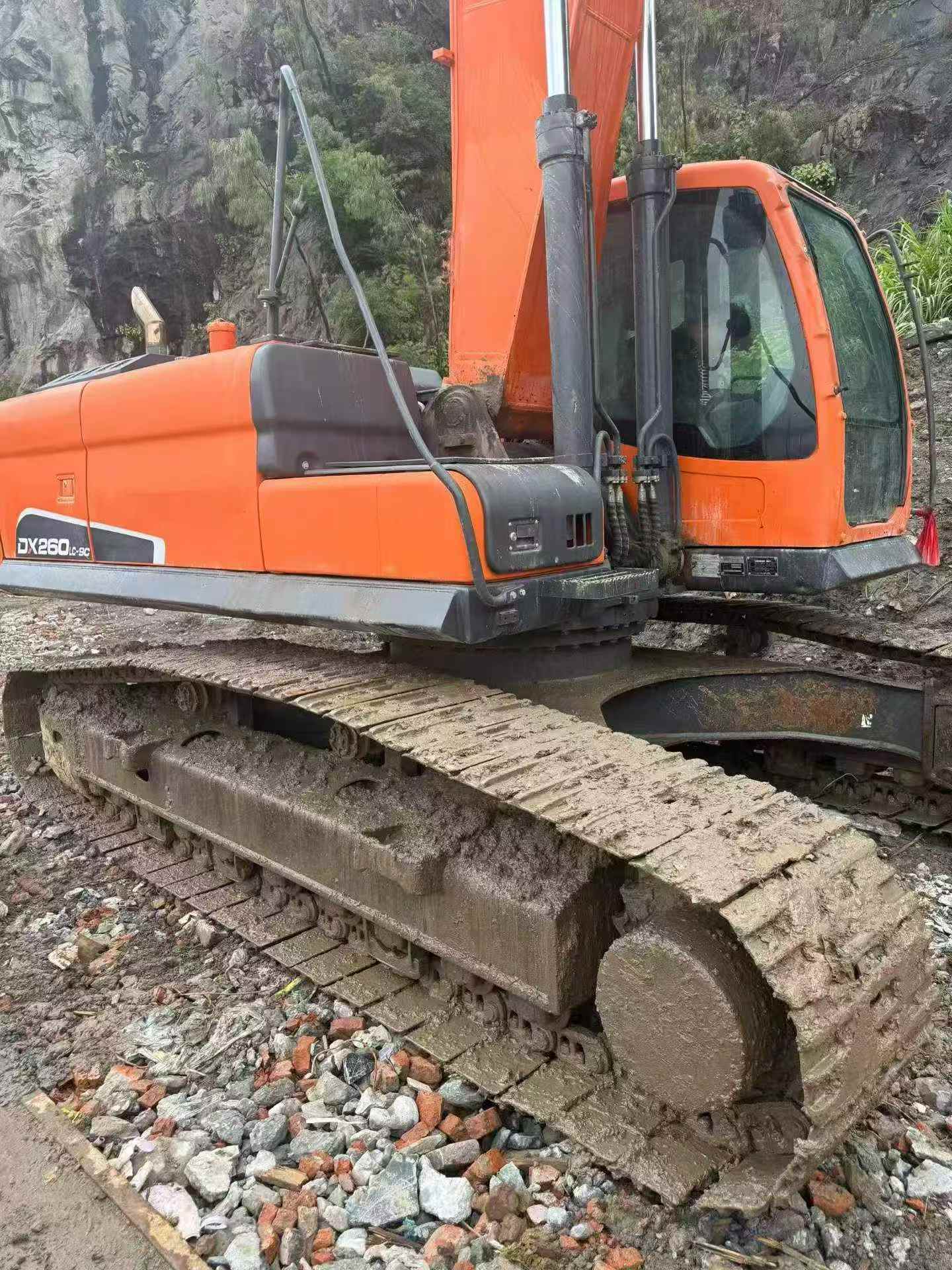

This 2021 Doosan DX260LC excavator is currently located in Zhejiang, China. The machine features original undercarriage components including sprockets, rollers, and track shoes in good condition. The chassis retains most of its original paint, indicating careful operation primarily in earthmoving applications.
Key highlights include:
- All major components remain unmodified with original factory assembly

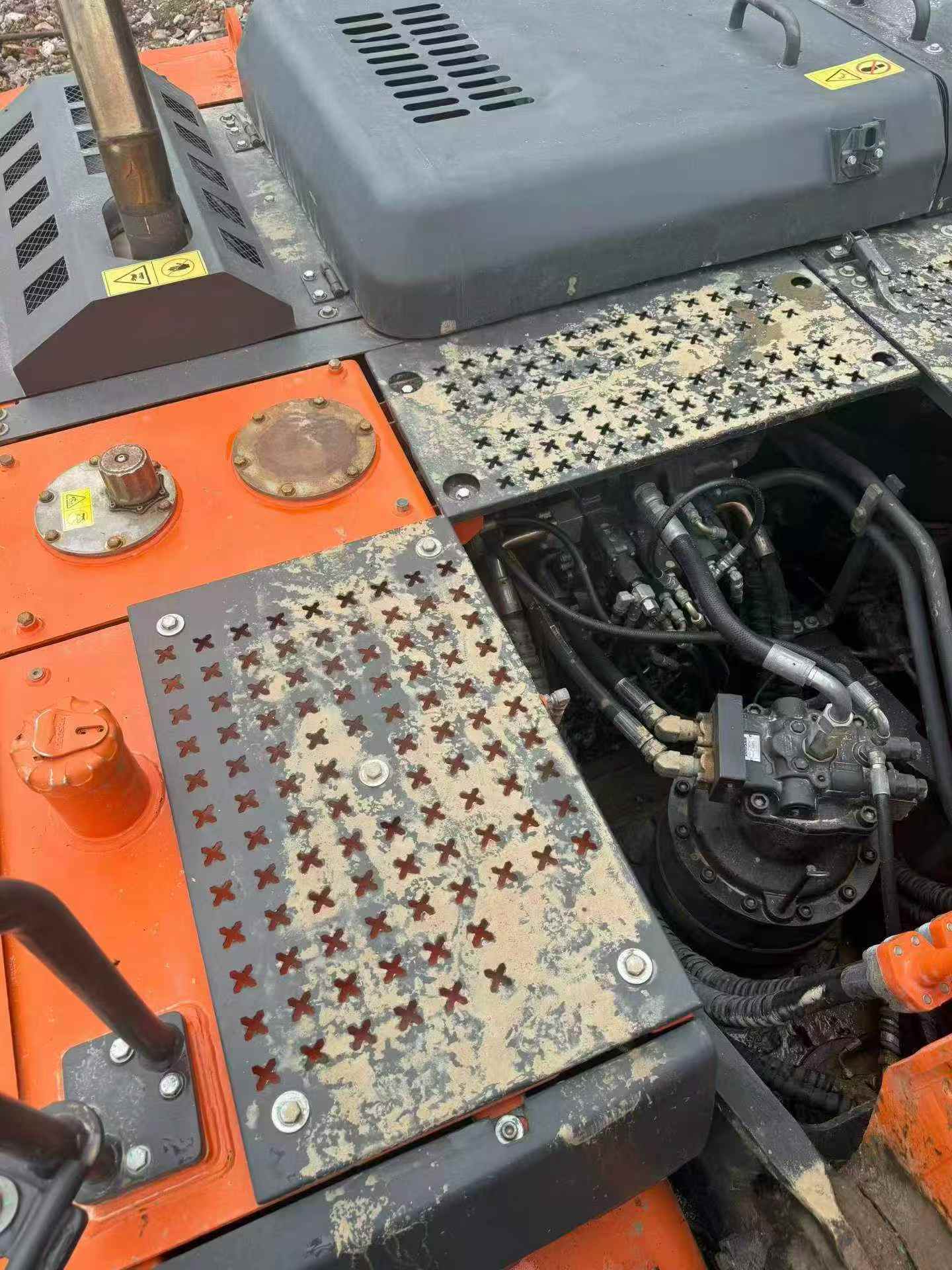

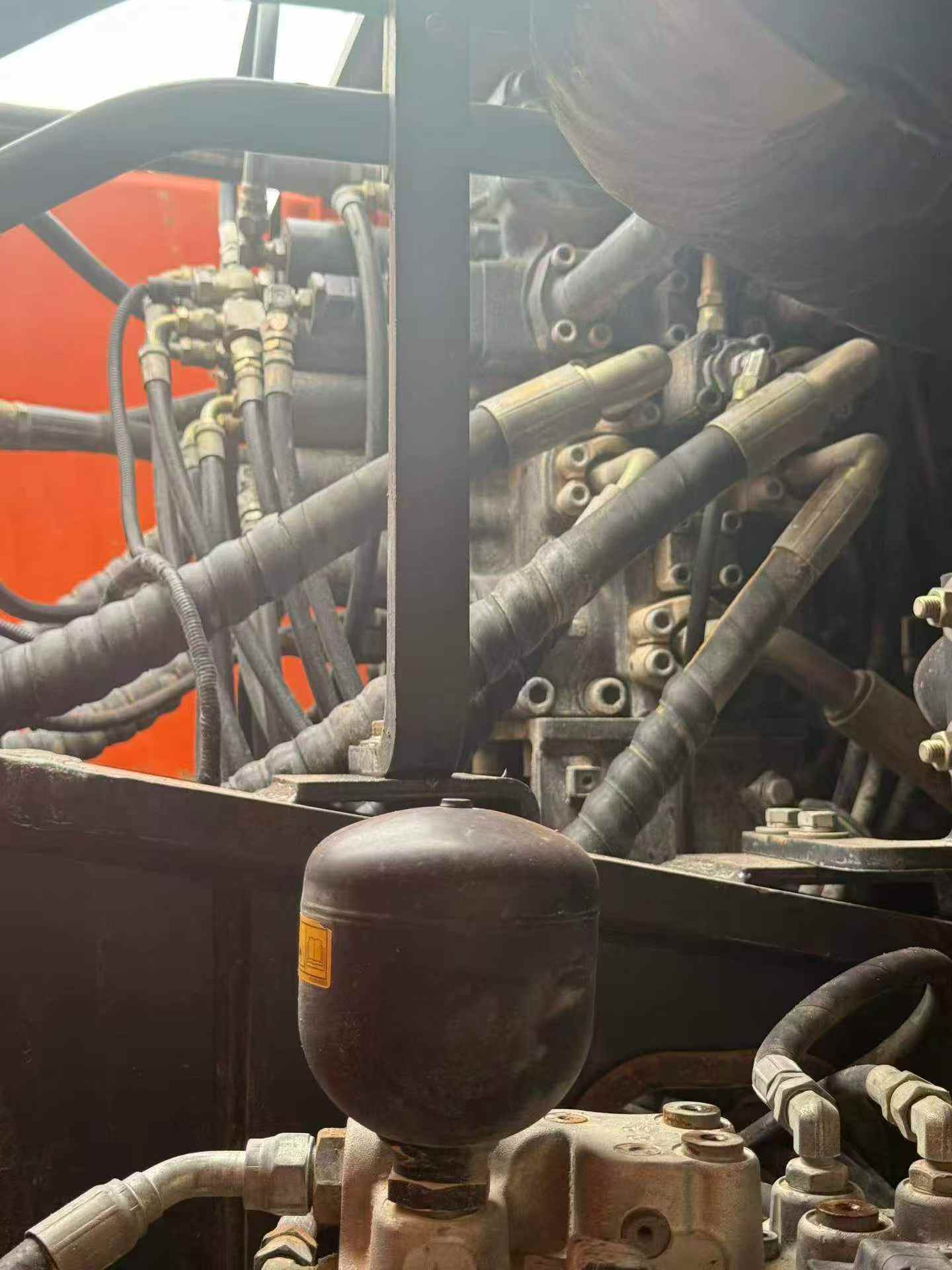

- Hydraulic system performs full range of operations at idle speed
- Fast cycle times suitable for loading operations
- Well-maintained condition appropriate for excavation and earthwork projects
The DX260LC is a reliable 26-ton class hydraulic excavator designed for general construction and earthmoving work. This unit has been utilized in soil excavation applications and shows consistent performance characteristics expected from the Doosan product line.
| Specifications | Value |
|---|---|
| No. | 1101448 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24800 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000/2500/3500 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DE08TIS |
| Rated power (kw/rpm) | 180 / 1900 |
| Maximum torque (N.m) | 78/1400 |
| Number of cylinders (PCS) | 6 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 172.6 / 182.4 |
| Rod digging force (kN) | 114.7 / 121.6 |
| Travel speed (km/h) | 5.2 / 3.1 |
| Turning torque (Nm) | 78 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10055 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 2970(to top of cab) |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2995 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 3835 |
| Maximum digging radius (mm) | 10207 |
| Maximum digging depth (mm) | 6826 |
| Maximum excavation height (mm) | 9820 |
| Maximum unloading height (mm) | 6925 |
| Maximum vertical digging depth (mm) | 6258 |
| Bulldozer lift or depth (mm) | There is no |
