Product Description

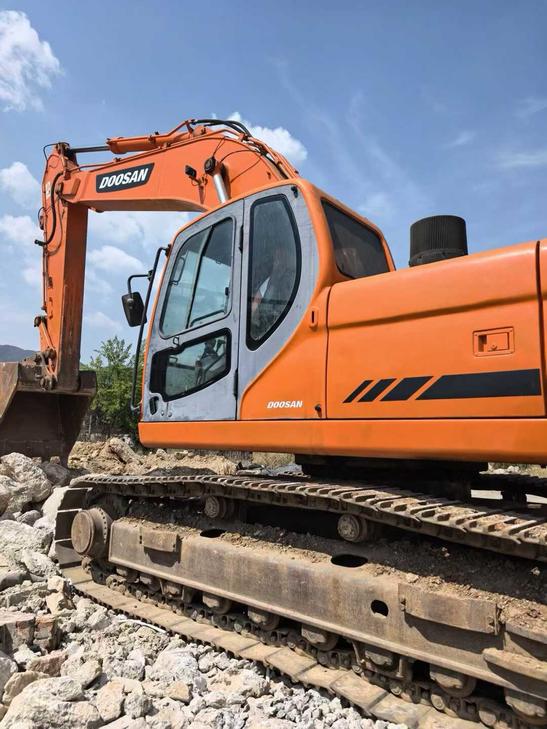

FairTradeMachinery presents a 2020 Doosan DX350LC hydraulic excavator, currently located in Yunnan, China. This 35-ton class crawler excavator represents Doosan's proven engineering in mid-to-large scale earthmoving applications. With approximately 3-4 years of operational history, this machine offers buyers a cost-effective alternative to new equipment while maintaining substantial service life.
The DX350LC features Doosan's reliable diesel engine, robust hydraulic system, and comfortable operator cabin designed for extended duty cycles. This model is well-suited for mining, quarrying, large-scale excavation, and heavy construction projects requiring significant digging force and reach.
- Operating Weight: Approximately 35,000 kg
- Engine: Doosan diesel power unit
- Hydraulic System: Advanced flow control
- Undercarriage: Standard crawler configuration
- Current Location: Yunnan Province, China
- Availability: Ready for inspection
Contact FairTradeMachinery for detailed specifications, current condition assessment, and international shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1087609 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34100.2 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DL08 |
| Rated power (kw/rpm) | 184.2/1750 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.6 |
| Ground specific pressure (Kpa) | 63.4 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 226.4-240.1 |
| Rod digging force (kN) | 165.6-175.4 |
| Travel speed (km/h) | 2.8/4.8 |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 460 |
| Engine Oil changes (L) | 36 |
| Coolant (L) | 34 |
| Total transport length (mm) | 11380 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3592 |
| Full cab height (mm) | 3125 |
| Back end turning radius (mm) | 3500 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3280 |
| Maximum digging radius (mm) | 11230 |
| Maximum digging depth (mm) | 6931 |
| Maximum excavation height (mm) | 9994 |
| Maximum unloading height (mm) | 6882 |
| Maximum vertical digging depth (mm) | 5121 |
| Maximum excavation radius of stop surface (mm) | 10382 |
