Product Description
Positioned in Guangdong Huizhou and ready for immediate deployment, this 2016 Doosan DX380LC eliminates factory wait times and accelerates your project timeline. Operating at 38 tons with a robust DE12TIA engine delivering 202kW at 1800 rpm, this excavator combines proven joint-venture manufacturing quality with the logistical advantage of local availability. Maximum digging reach extends to 10,850mm while digging depth capabilities reach 7,120mm, supported by a substantial 1.4-1.9m³ bucket capacity for high-volume earthmoving operations.
- Working Weight: 38,100 kg with 6,500mm boom and 2,900mm arm configuration
- Hydraulic Performance: Dual variable piston pumps flowing 2×279 L/min at 34.3 MPa
- Digging Force: 249kN bucket force, 199kN arm force for demanding excavation
- Fuel Capacity: 610L tank supports extended operational shifts
- Transport Dimensions: 11,380mm × 3,350mm × 3,740mm
Available now from Guangdong Huizhou. Fast deployment to your site means reduced downtime and immediate productivity gains. Contact us today to secure this machine and bypass lengthy procurement delays.
| Specifications | Value |
|---|---|
| No. | 1004793 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38100 |
| Bucket capacity (m³) | 1.4 ~ 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

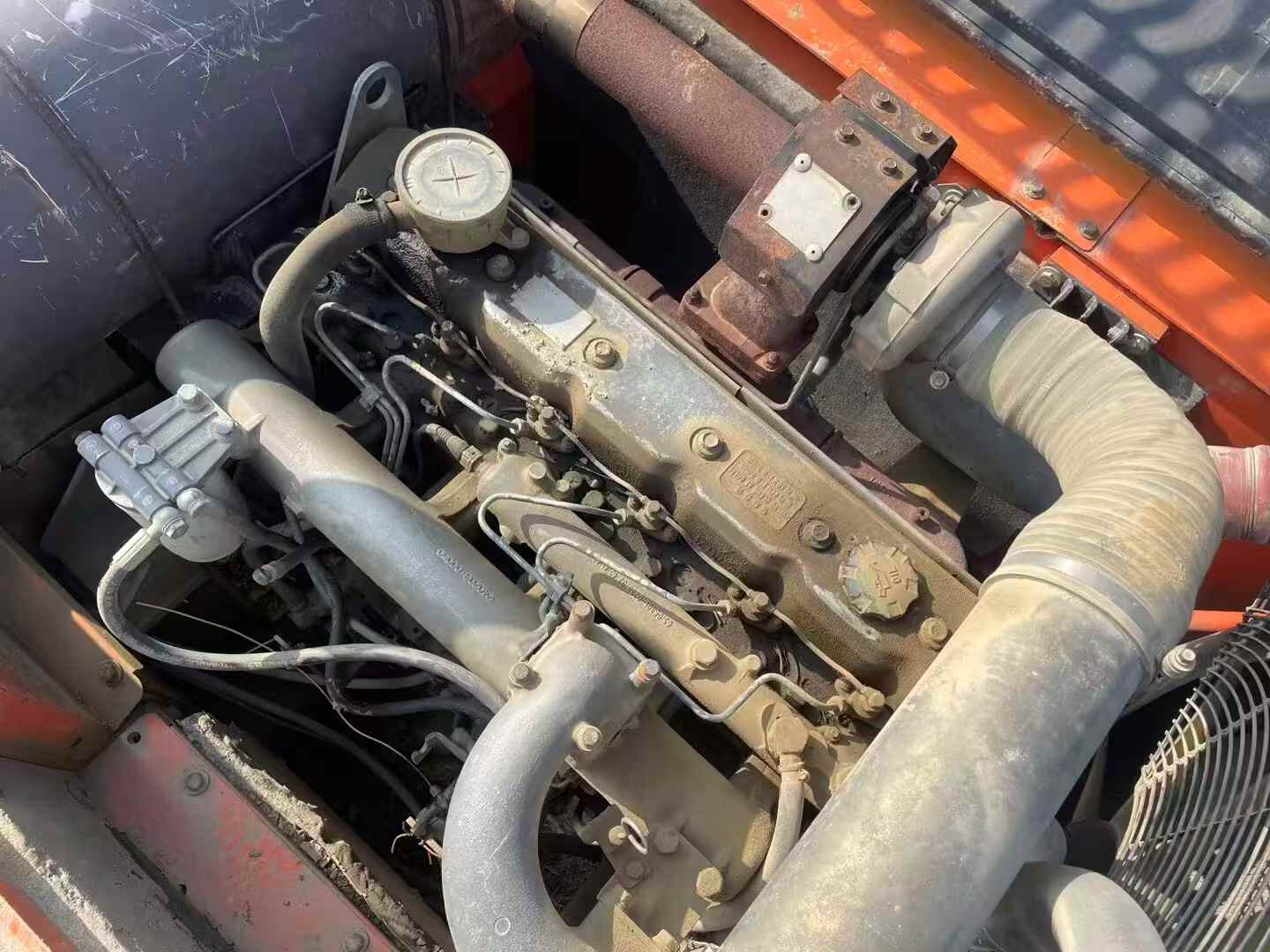

| Engine type | DE12TIA C2A |
| Rated power (kw/rpm) | 202(274) / 1800 |
| Cylinder diameter × stroke (mm) | 123 x 155 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.05 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 71.59 |
| Bucket digging force (kN) | 249 |
| Rod digging force (kN) | 199 |
| Travel speed (km/h) | 5.1 / 3.0 |
| Turning torque (Nm) | 120 |

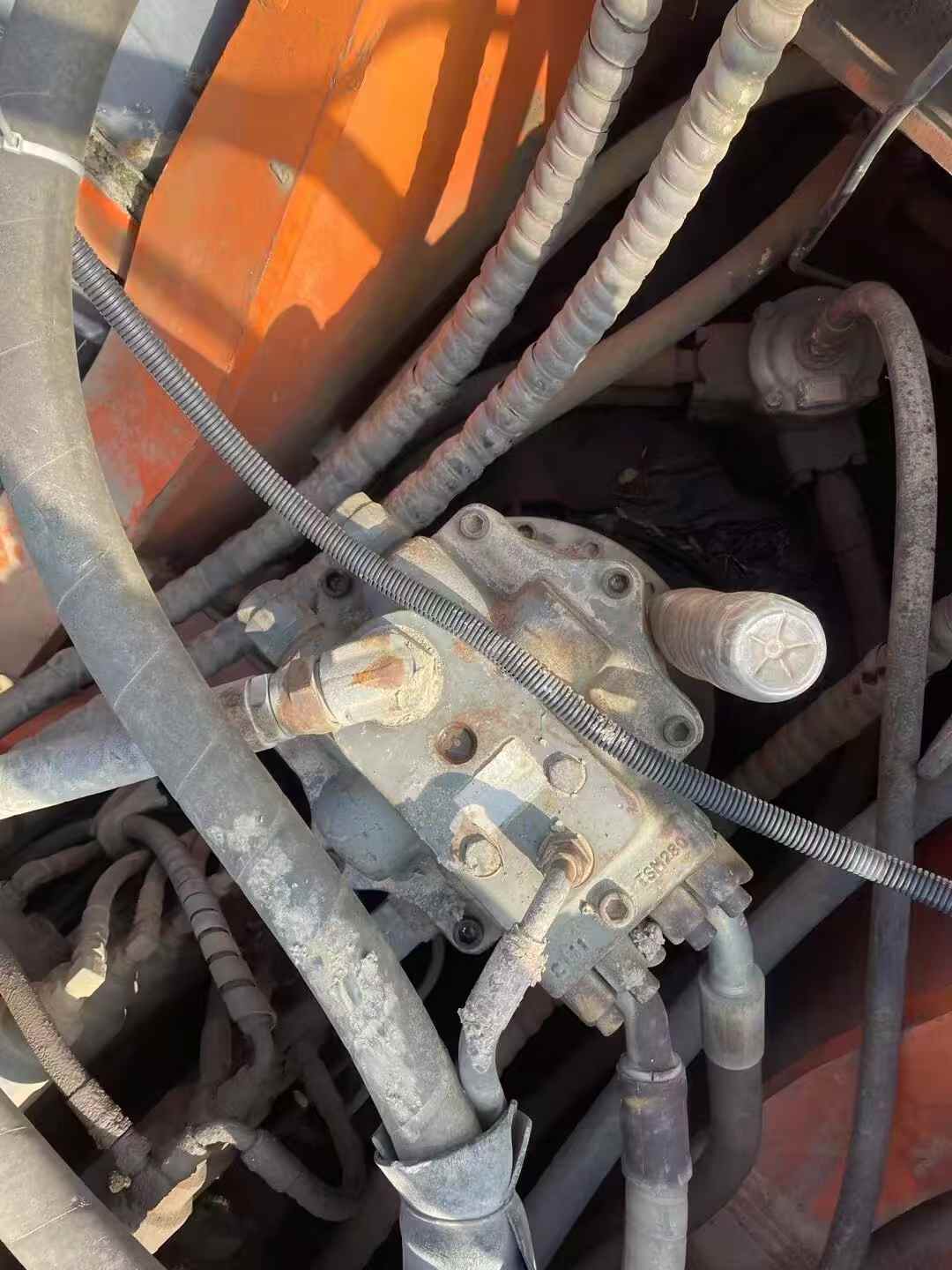

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 279 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |

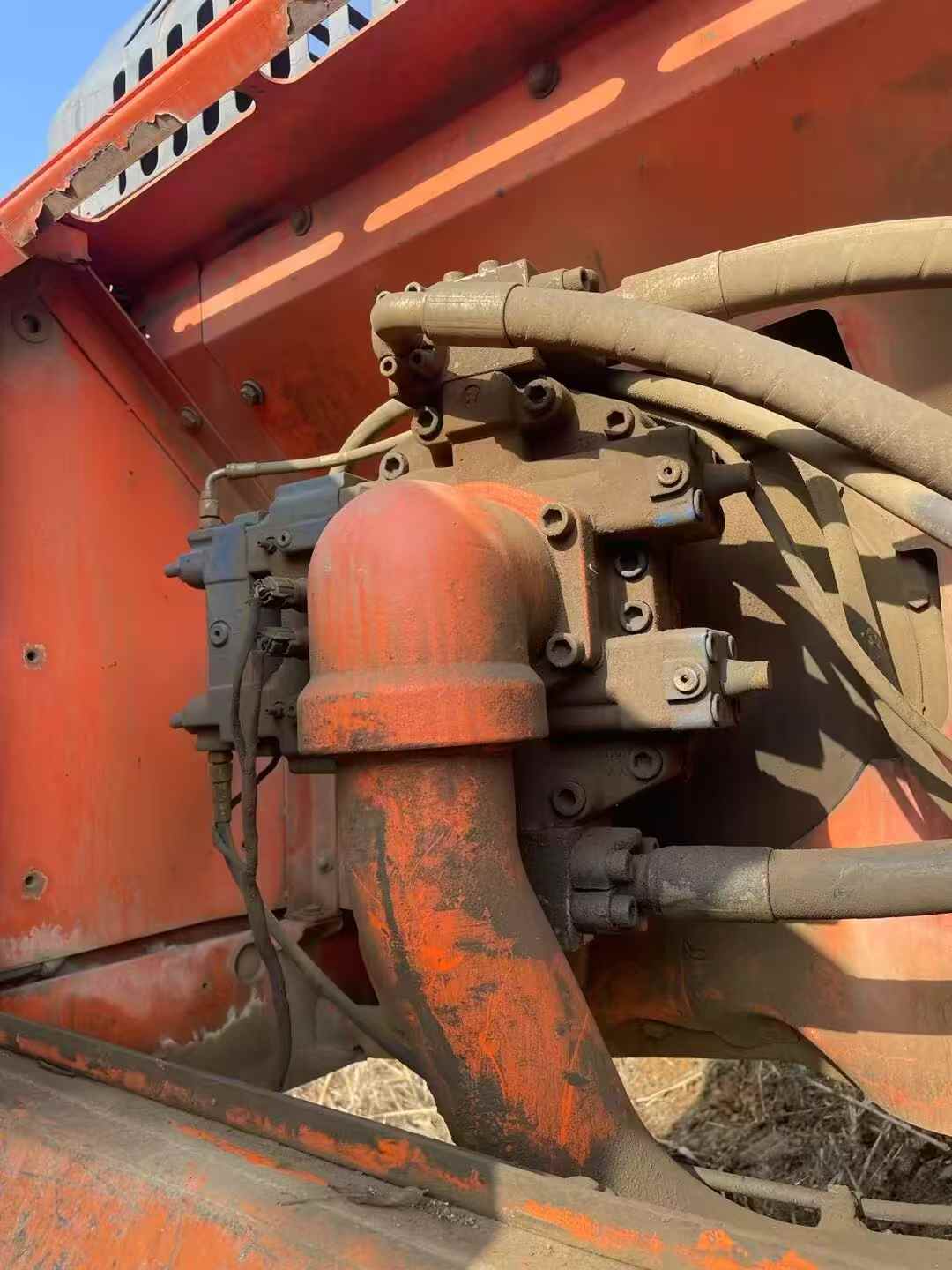

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1290 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1812 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1430 |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 206 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11380 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3740(to top of arm) |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1265 |
| Minimum ground clearance (mm) | 545 |
| Minimum turning radius of front working device (mm) | 4485 |
| Back end turning radius (mm) | 3530 |

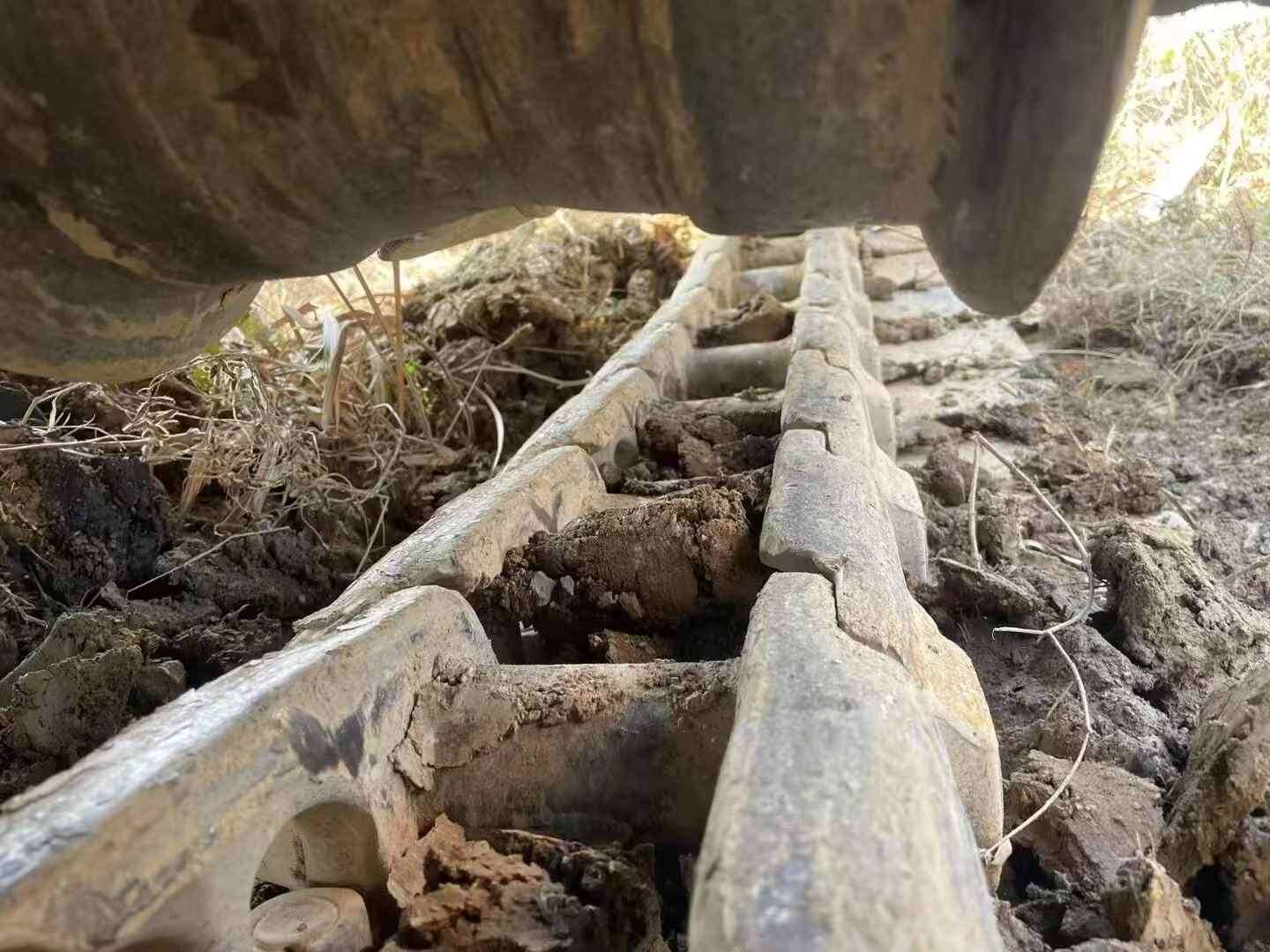

| Total track length (mm) | 4975 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10850 |
| Maximum digging depth (mm) | 7120 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7195 |
| Maximum vertical digging depth (mm) | 3755 |
| Maximum excavation radius of stop surface (mm) | 10635 |
| Maximum effective digging depth (mm) | 6925 |
