2021 Doosan DX380LC

1/9

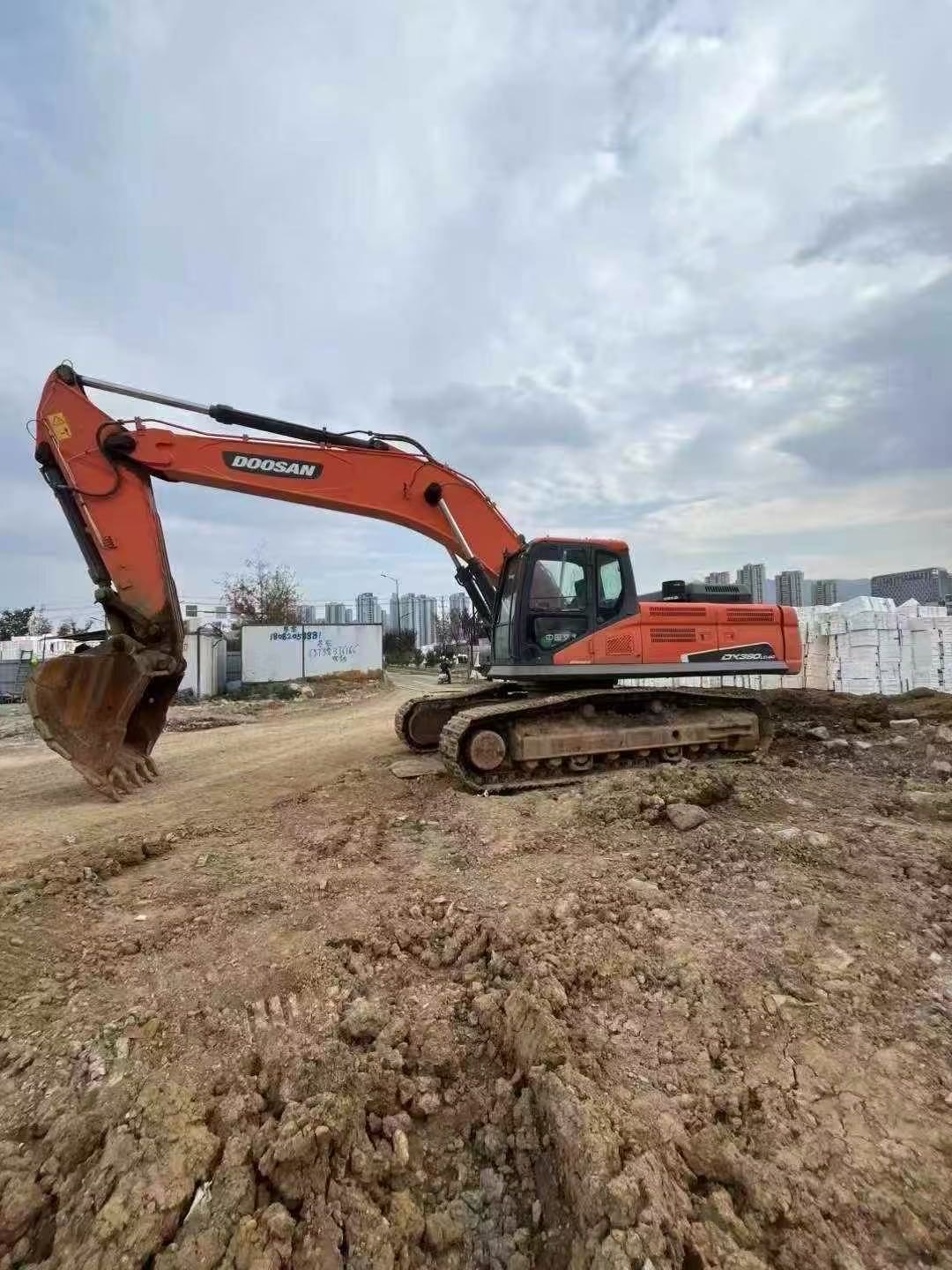

Buy Doosan DX380LC Used Excavator / 1

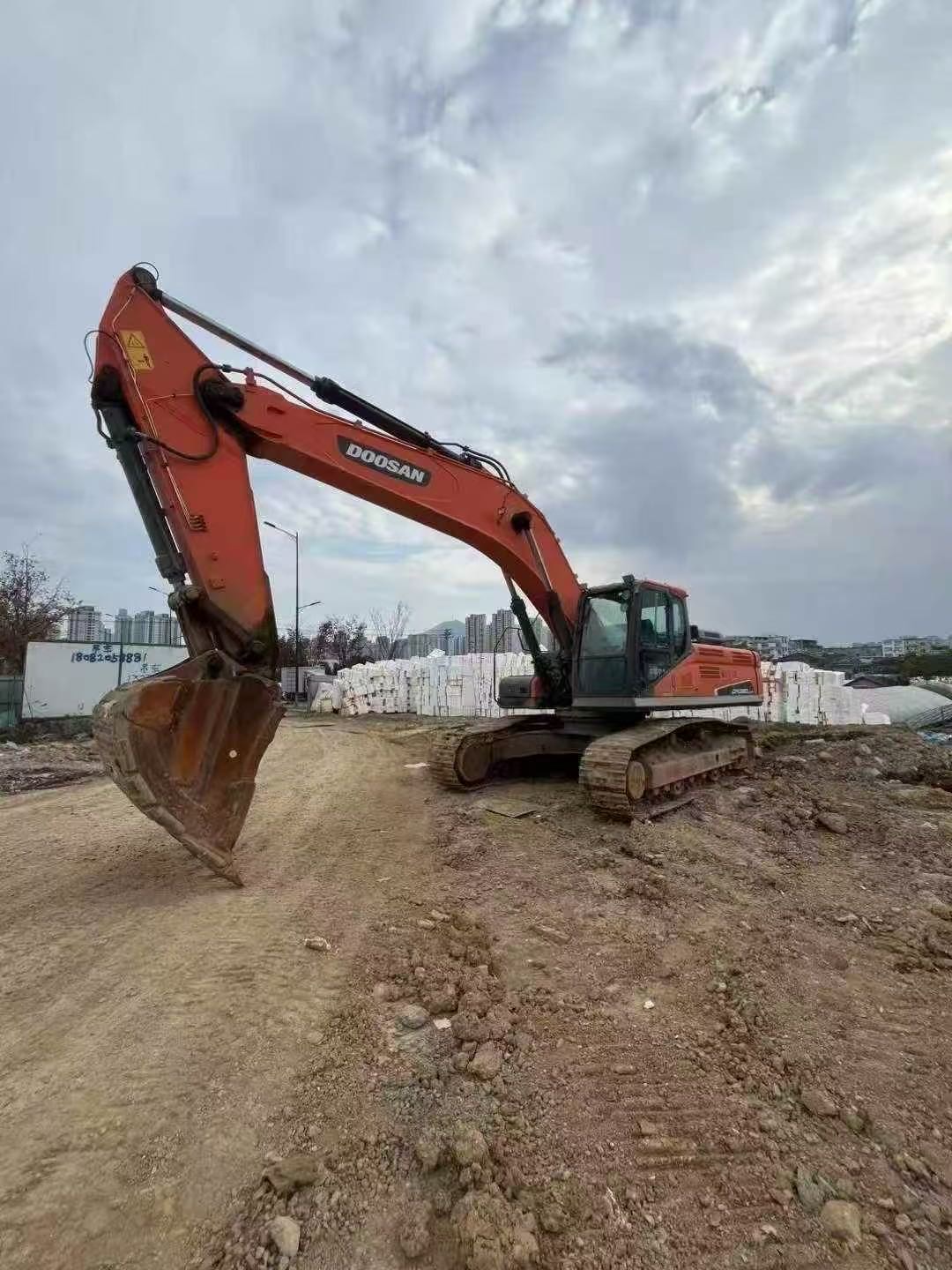

Buy Doosan DX380LC Used Excavator / 2

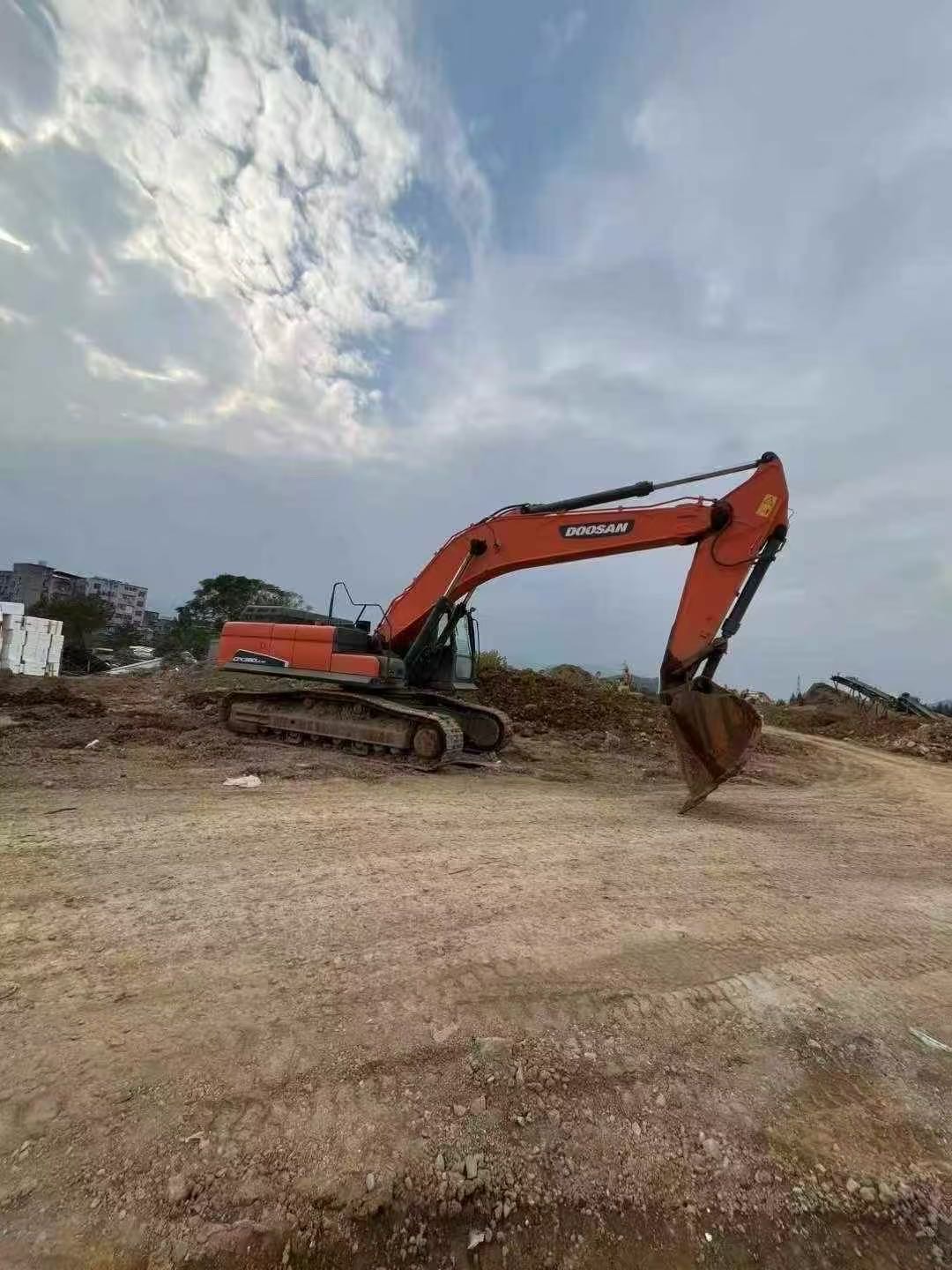

Buy Doosan DX380LC Used Excavator / 3

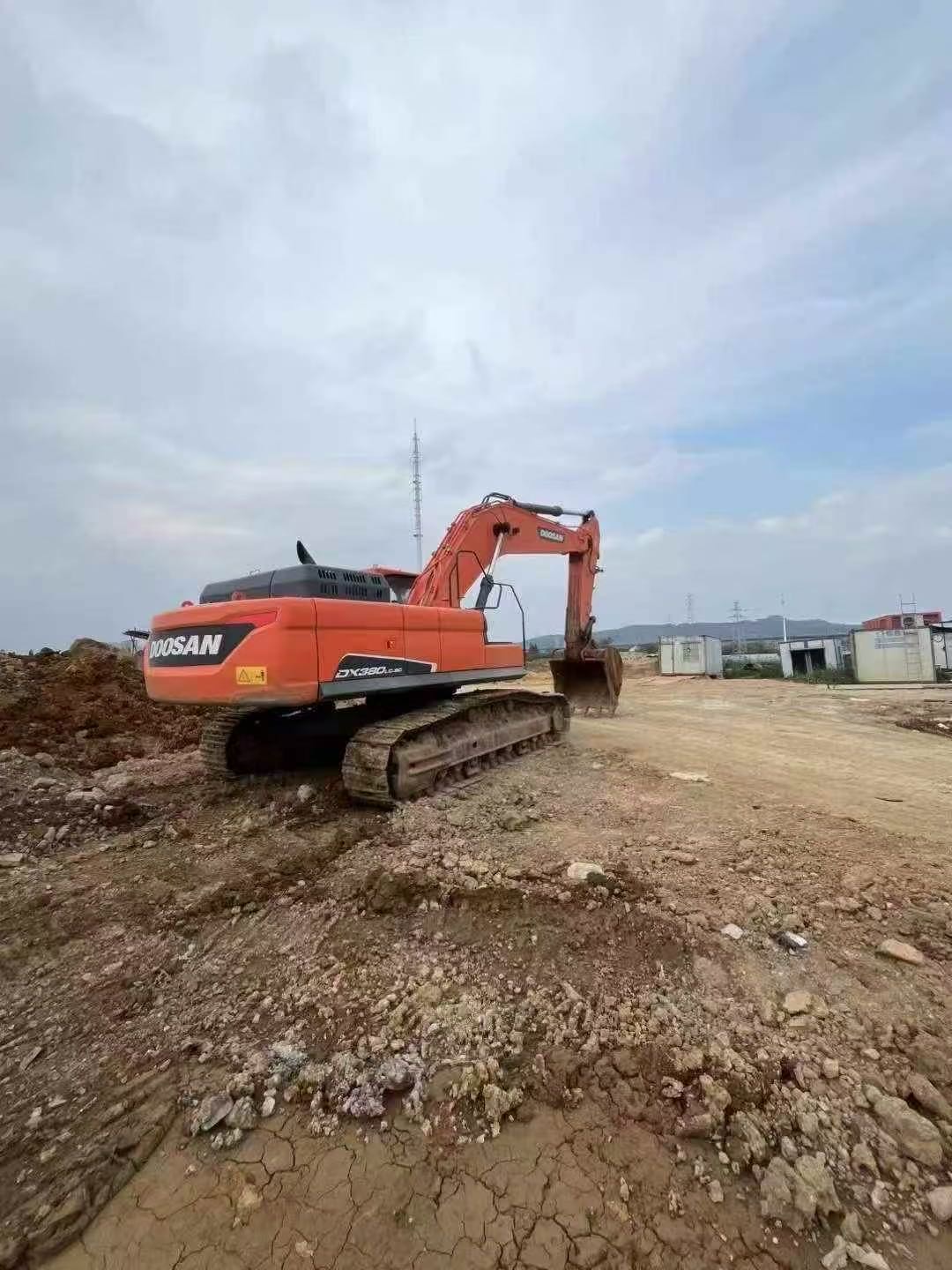

Buy Doosan DX380LC Used Excavator / 4

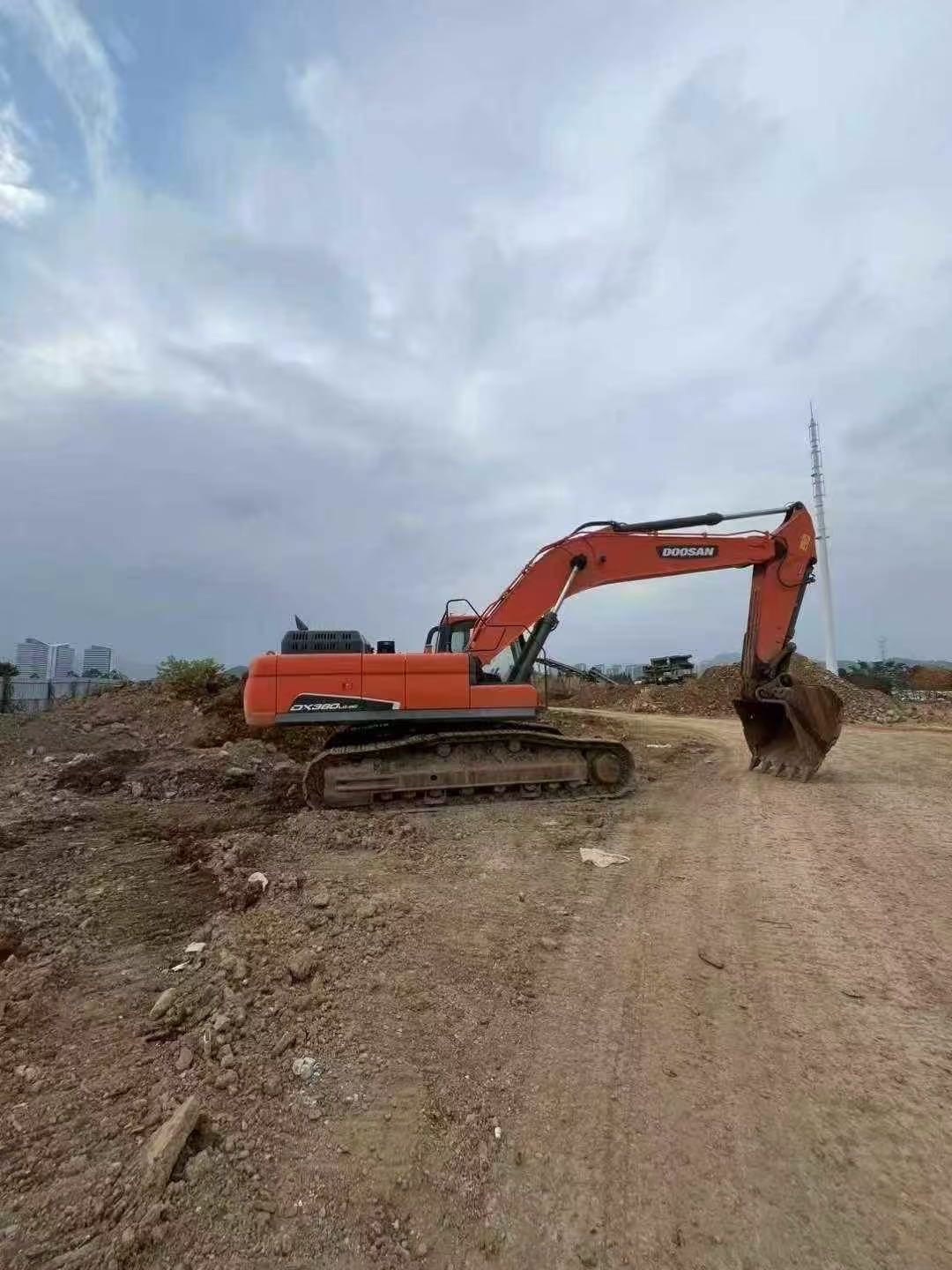

Buy Doosan DX380LC Used Excavator / 5

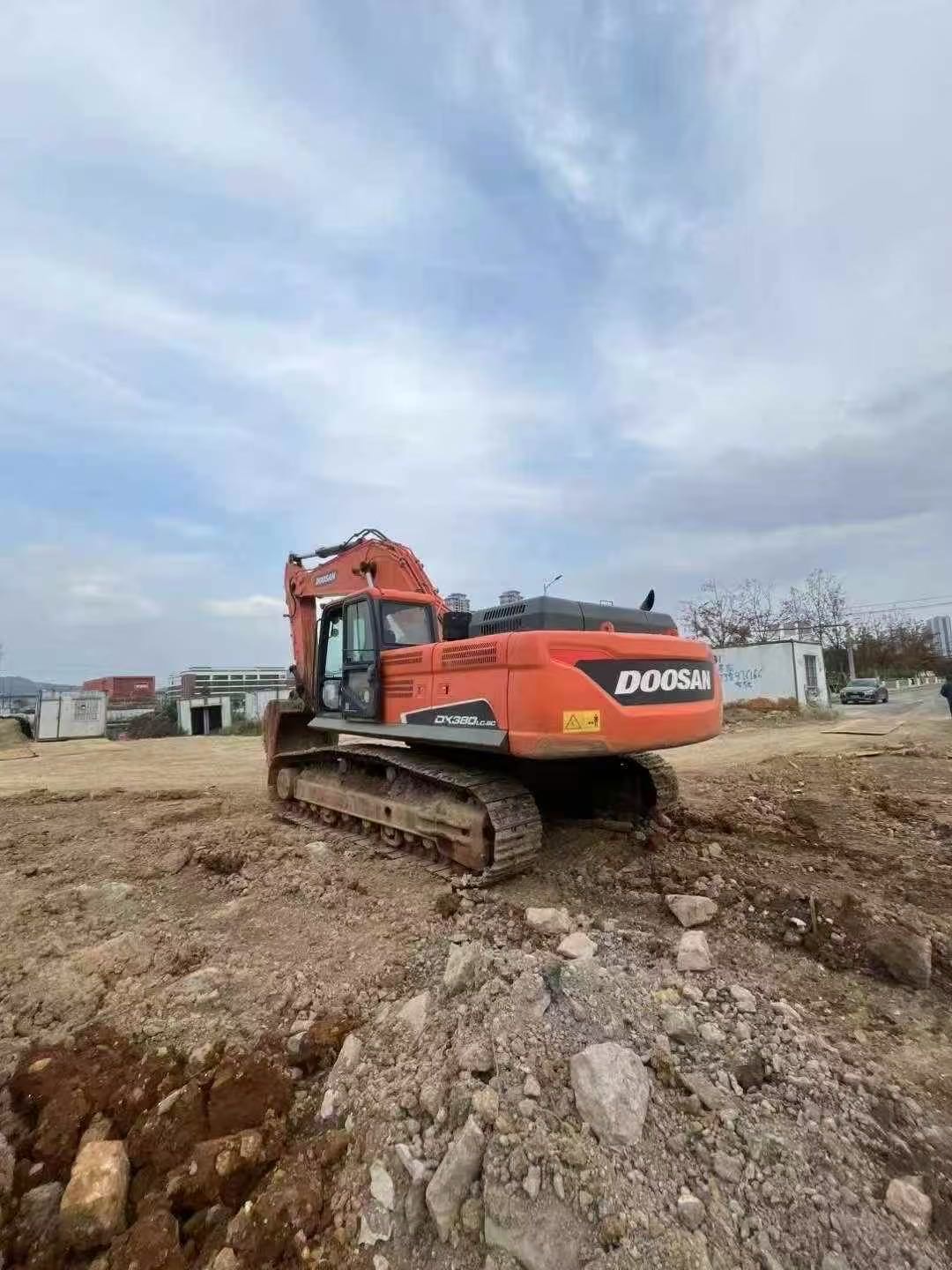

Buy Doosan DX380LC Used Excavator / 6

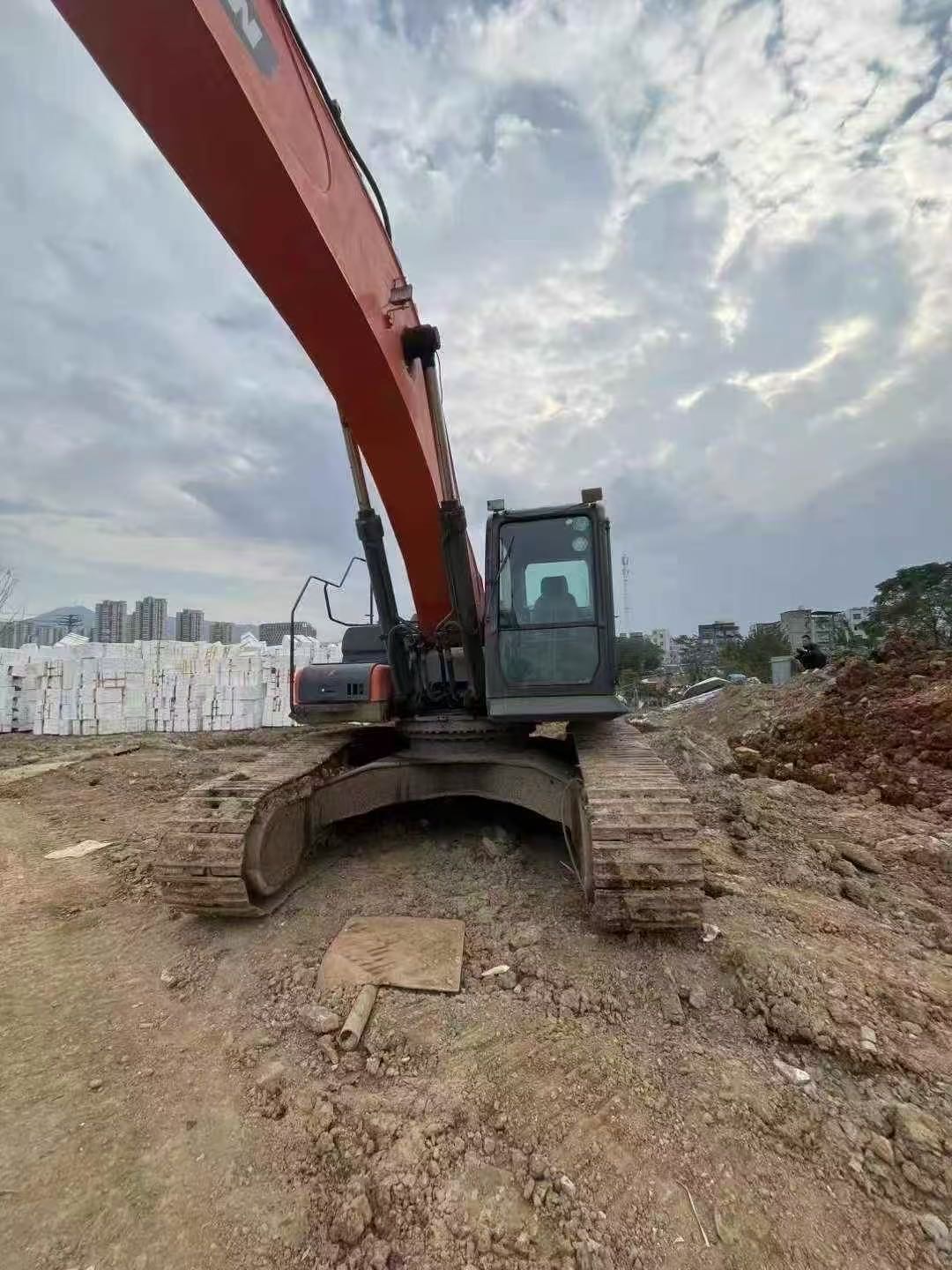

Buy Doosan DX380LC Used Excavator / 7

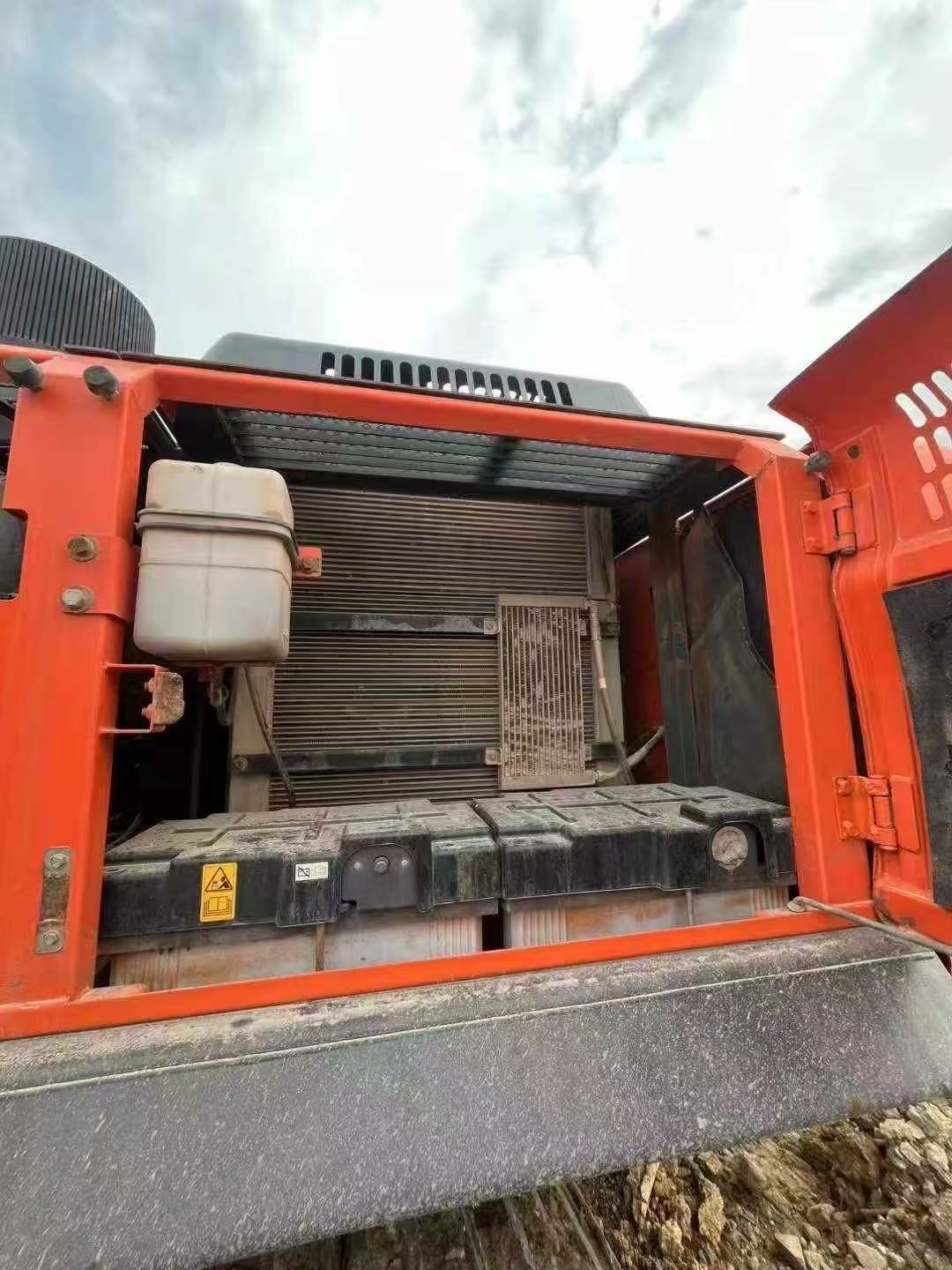

Buy Doosan DX380LC Used Excavator / 8

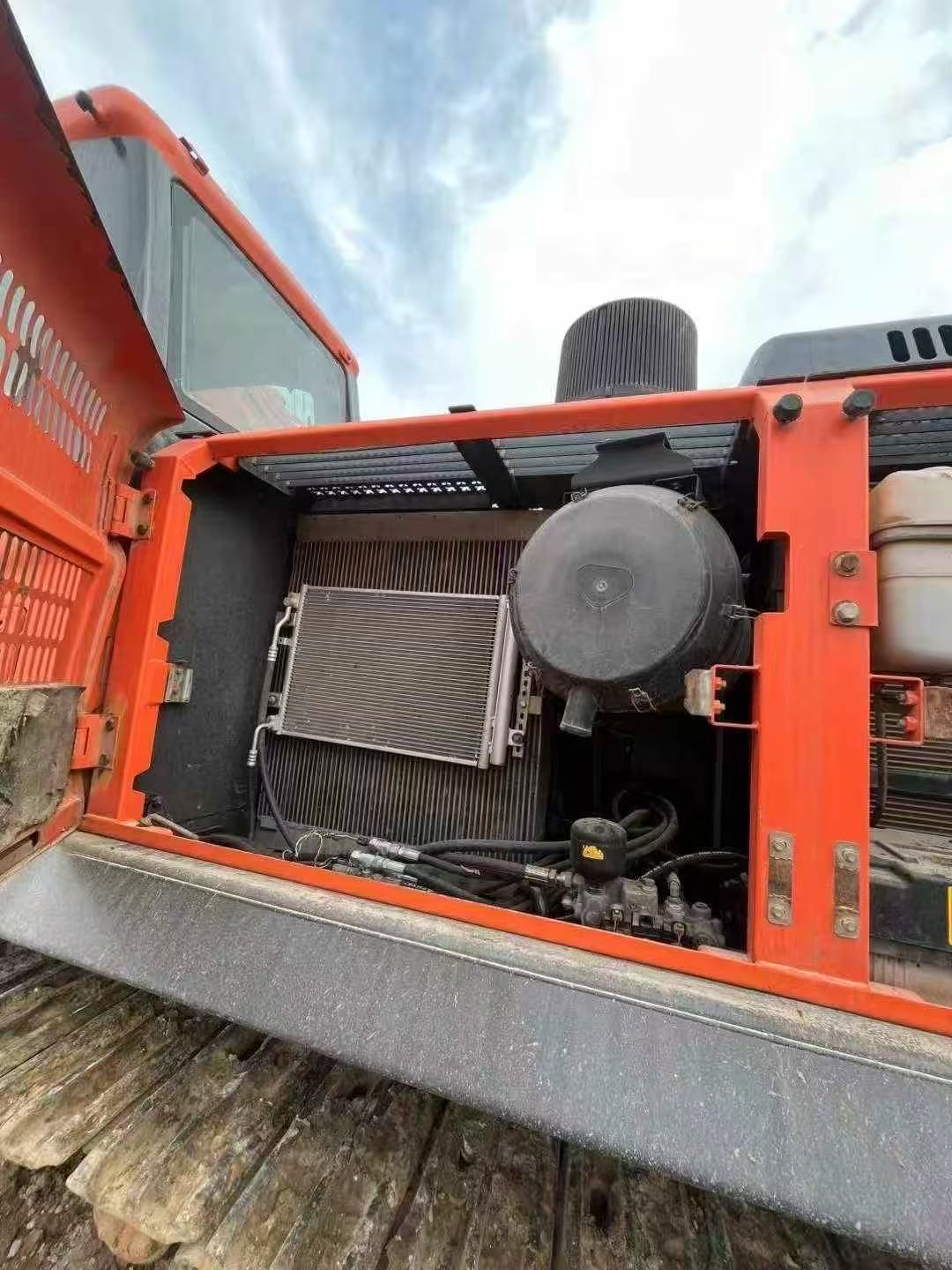

Buy Doosan DX380LC Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2021 Doosan DX380LC, available for purchase in Zhejiang, China. This used excavator is renowned for its robust performance and excellent condition, making it a top choice for demanding construction and excavation projects. The DX380LC is known for its powerful engine and durable design, ensuring that it can handle tough environments with ease. With a reputation for being maintenance-friendly and cost-effective, this machine is an ideal investment for businesses looking to enhance their operational capabilities without compromising on quality or budget.

  • Year: 2021
  • Brand: Doosan
  • Model: DX380LC
  • Location: Zhejiang, China
  • Condition: Excellent, performance guaranteed
SpecificationsValue
No.1056144
Tonnage (tons)38
Working weight (kg)38100
Bucket capacity (m³)1.4 ~ 1.9
Boom length (mm)6500
Rod length (mm)2900
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDE12TIA C2A
Rated power (kw/rpm)202(274) / 1800
Cylinder diameter × stroke (mm)123 x 155
Number of cylinders (PCS)6
Displacement (L)11.05
Working formDirect injection; Turbocharged, air-cooled
Ground specific pressure (Kpa)71.59
Bucket digging force (kN)249
Rod digging force (kN)199
Travel speed (km/h)5.1 / 3.0
Turning torque (Nm)120
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)2 x 279
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1290
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 170 x 1812
Boom cylinders - Number × diameter × stroke (mm)2 x 150 x 1430
Fuel Tank (L)610
Hydraulic Tank (L)206
Engine Oil changes (L)28
Total transport length (mm)11380
Total transport width (mm)3350
Total transport height (mm)3740(to top of arm)
Full cab height (mm)3150
Counterweight ground clearance (mm)1265
Minimum ground clearance (mm)545
Minimum turning radius of front working device (mm)4485
Back end turning radius (mm)3530
Total track length (mm)4975
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10850
Maximum digging depth (mm)7120
Maximum excavation height (mm)10150
Maximum unloading height (mm)7195
Maximum vertical digging depth (mm)3755
Maximum excavation radius of stop surface (mm)10635
Maximum effective digging depth (mm)6925
see more

Overview

No.1056144

Brand Name:

Doosan

Model Number:

DX380LC

Year:

2021

Hour:

5000h

Location:

Zhejiang China

Pub Date
