Product Description

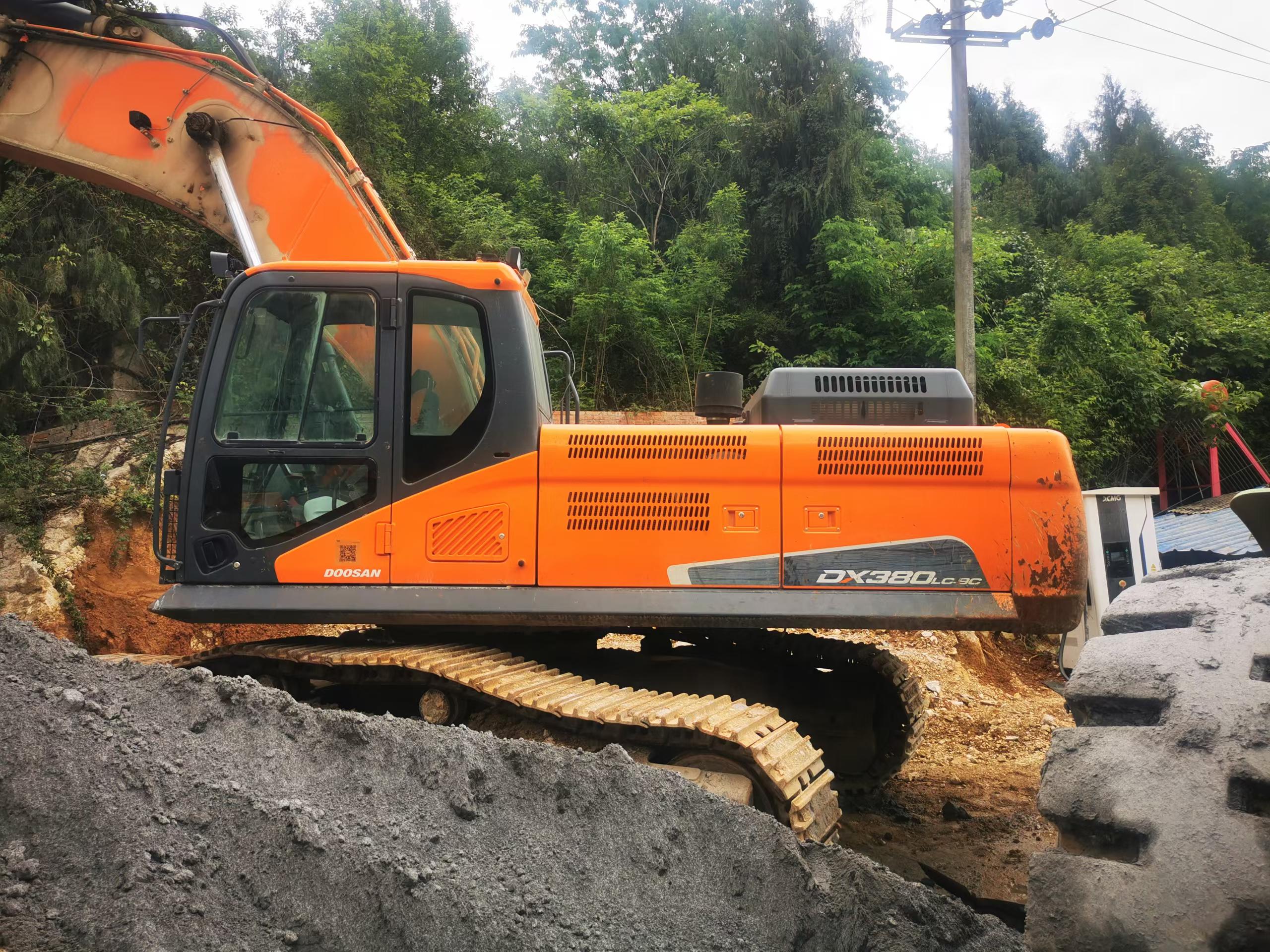

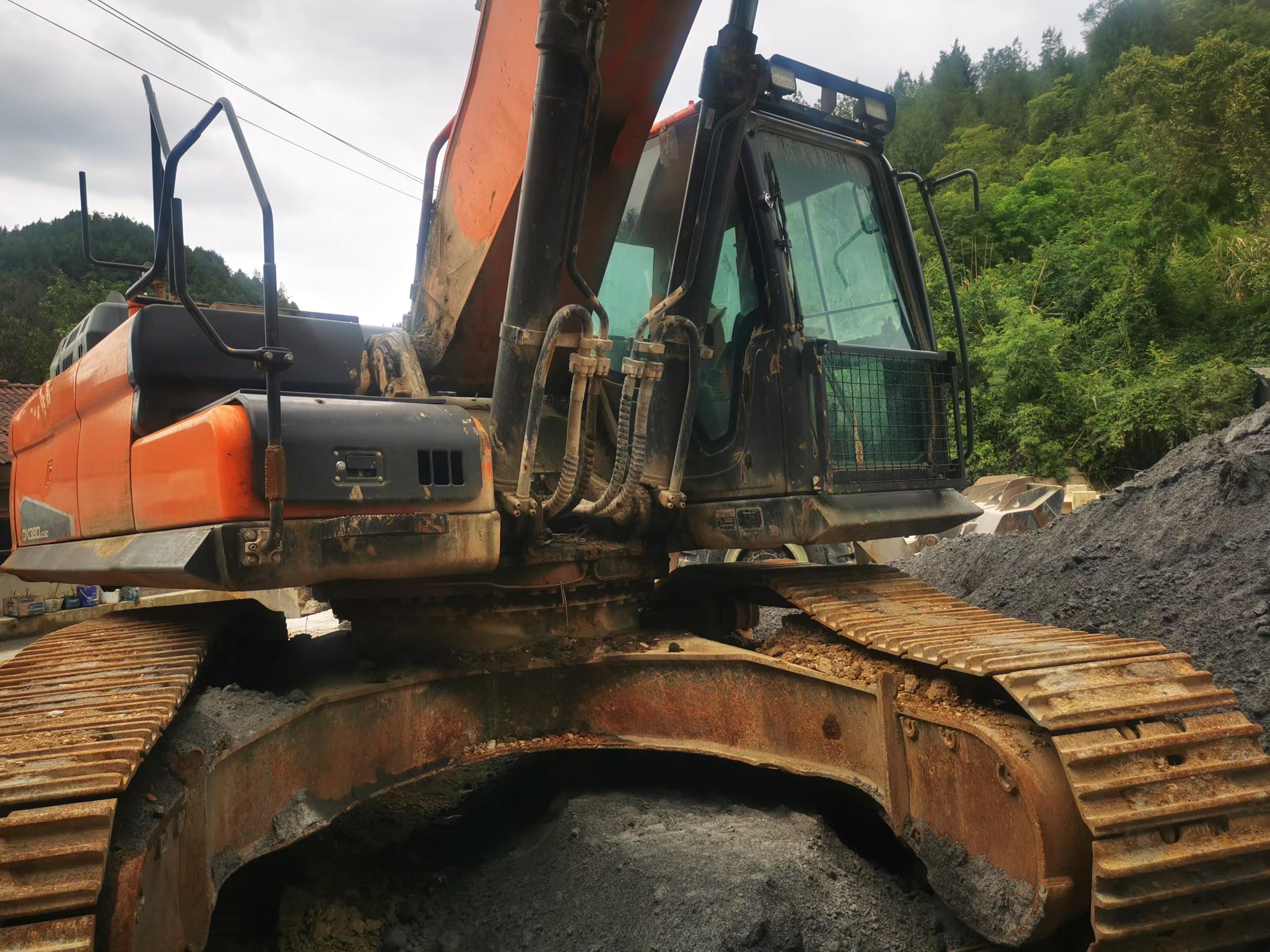

This 2020 Doosan DX380LC-5 excavator from Shandong, China offers reliable performance for earthmoving operations. With approximately four years of field use in pure earthwork applications, this machine demonstrates the proven durability of Doosan's large excavator platform.
The DX380LC-5 features a long-reach configuration suited for deep excavation, trenching, and material handling. Its operating weight and hydraulic system deliver the power needed for demanding site work, while the spacious cab provides operator comfort during extended shifts.
Key attributes include:
- 2020 model year with documented earthwork history
- Doosan DX380LC-5 long-reach specification
- Located in Shandong, China for inspection
- Suitable for construction, mining, and infrastructure projects
This excavator represents a cost-effective solution for contractors seeking proven heavy equipment with remaining service life.
| Specifications | Value |
|---|---|
| No. | 1074967 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 40200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

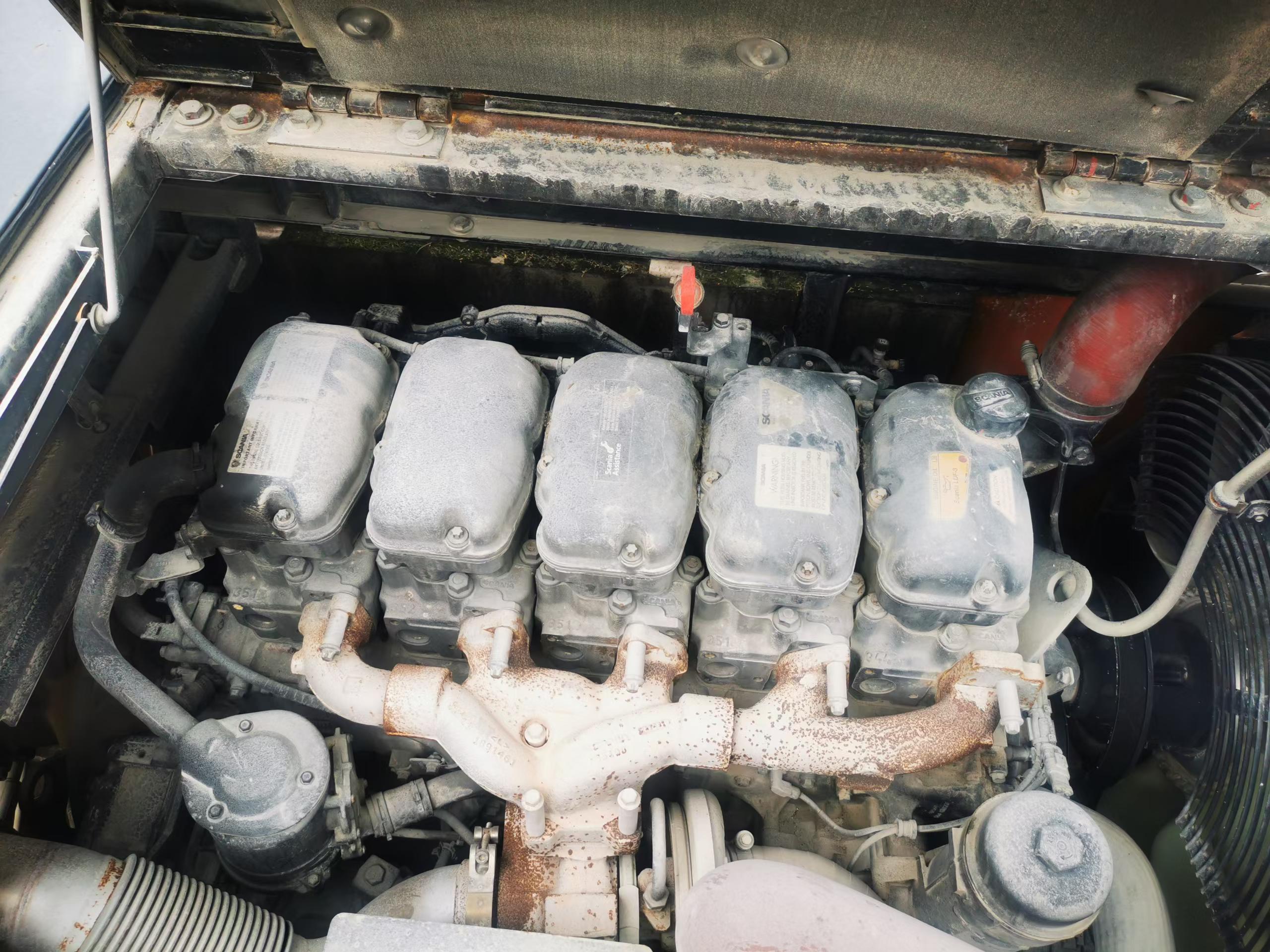

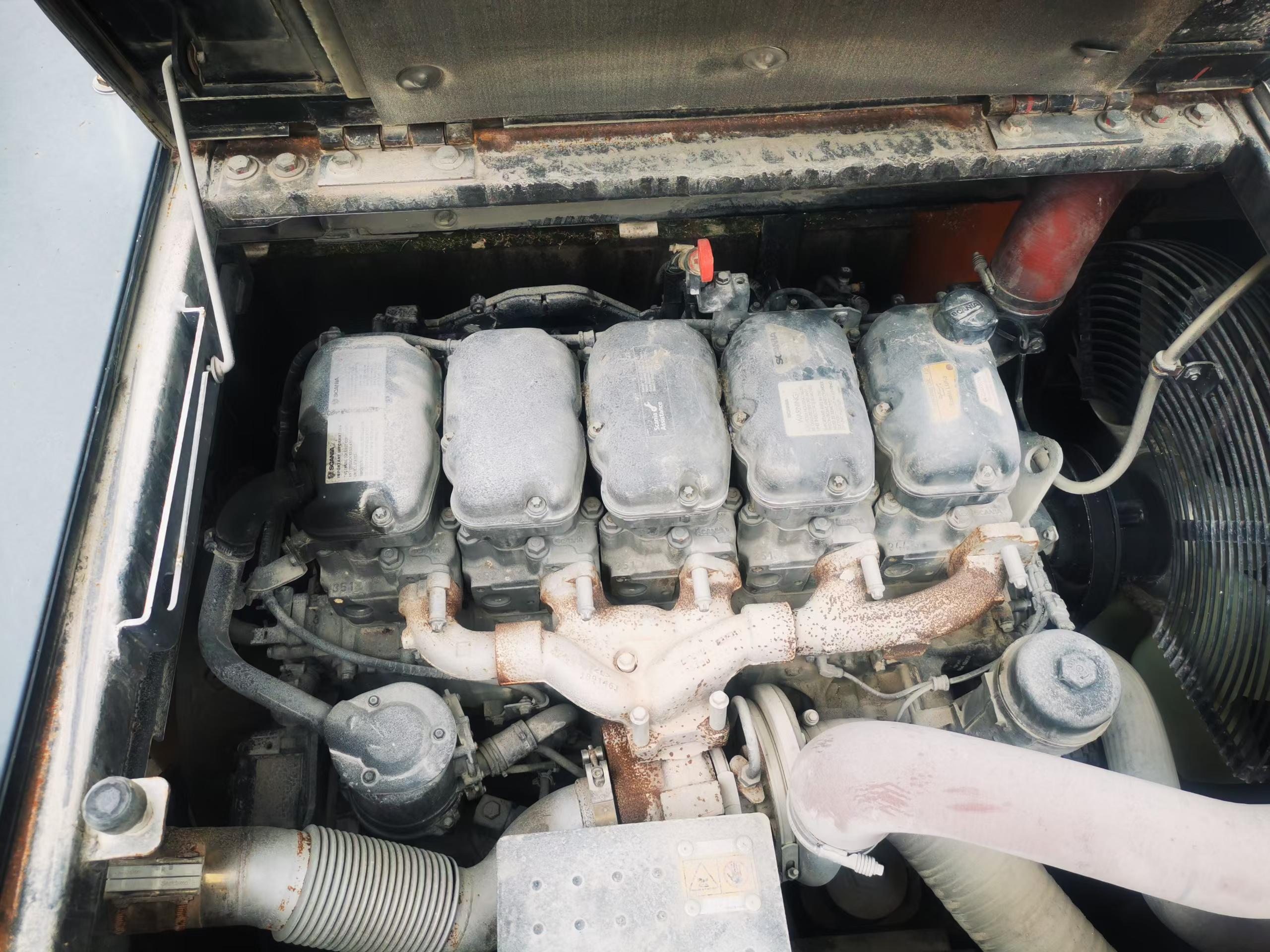

| Engine type | Scania DC09 |
| Number of cylinders (PCS) | 5 |
| Bucket digging force (kN) | 259 |
| Rod digging force (kN) | 189 |
| Maximum tractive force (kN) | 397 |

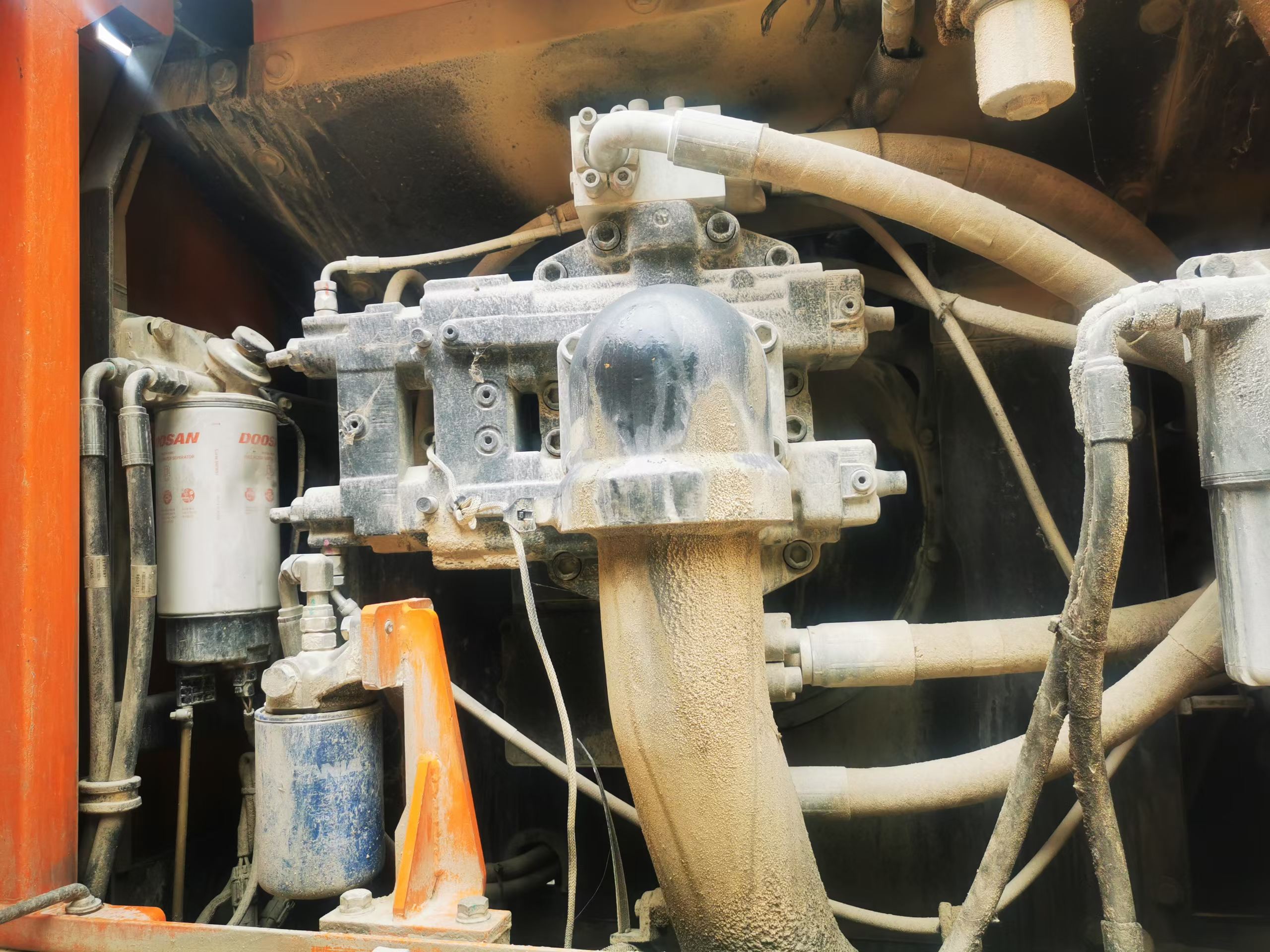

| Maximum flow of main pump (l/min) | 2 x 350 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3350/3000 |
| Total transport height (mm) | 3390 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7460 |
| Maximum excavation height (mm) | 10390 |
