Product Description

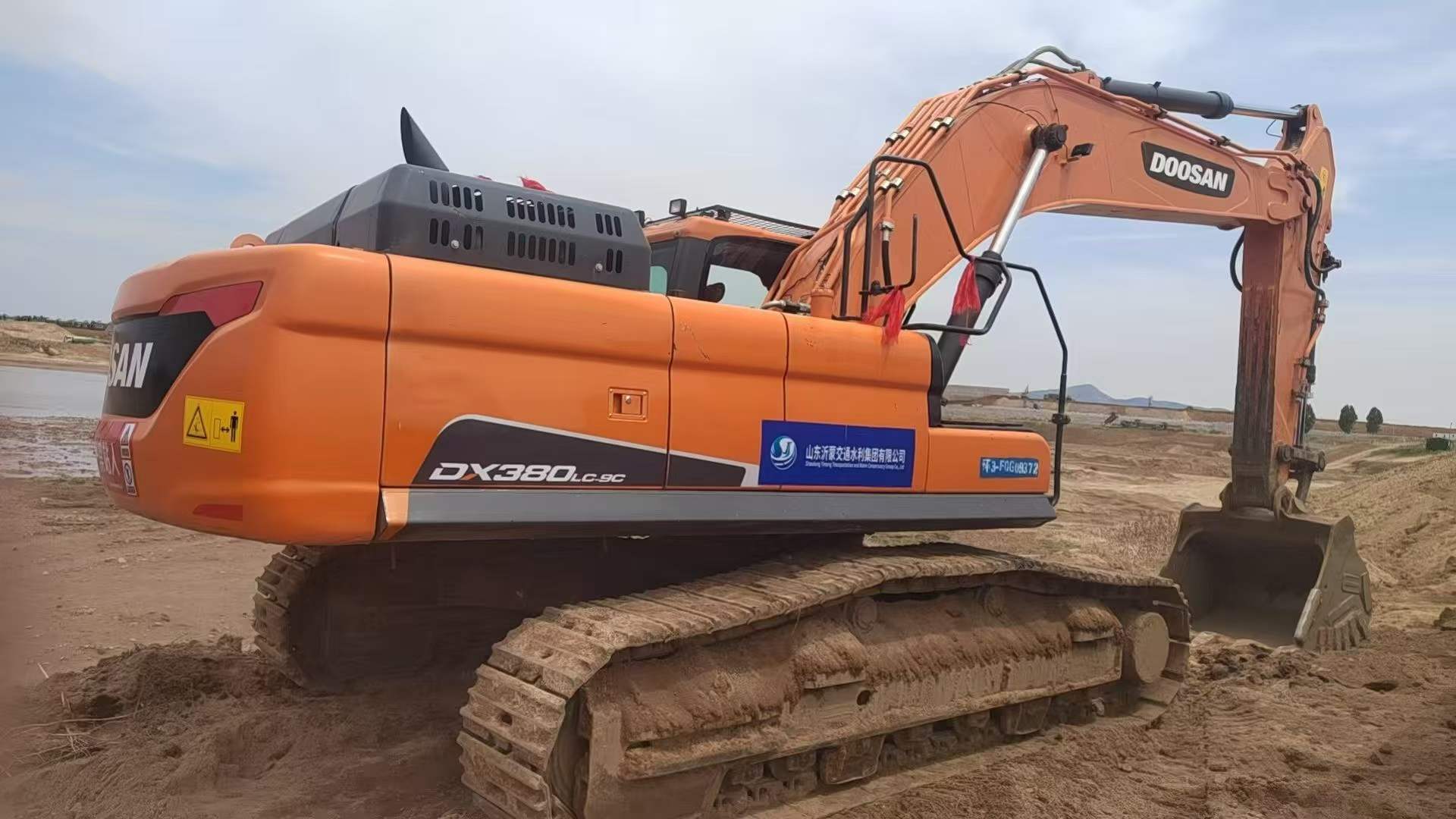

With a working weight of 40,200 kg and powered by a Scania DC09 engine, the Doosan DX380LC-5 offers robust performance for your construction needs. Located in Shandong, China, this 2022 model is a smart investment, providing high efficiency at a fraction of the cost of new machinery. Featuring a backhoe bucket with a digging force of 259 kN and a rod digging force of 189 kN, it ensures powerful and precise excavation. The machine's maximum tractive force of 397 kN and a maximum flow of 2 x 350 l/min from its main pump enhance its operational capabilities. Ideal for large-scale projects, it boasts a maximum digging radius of 11,170 mm and a digging depth of 7,460 mm. Choose the DX380LC-5 for reliable, cost-effective performance.
| Specifications | Value |
|---|---|
| No. | 1056837 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 40200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |

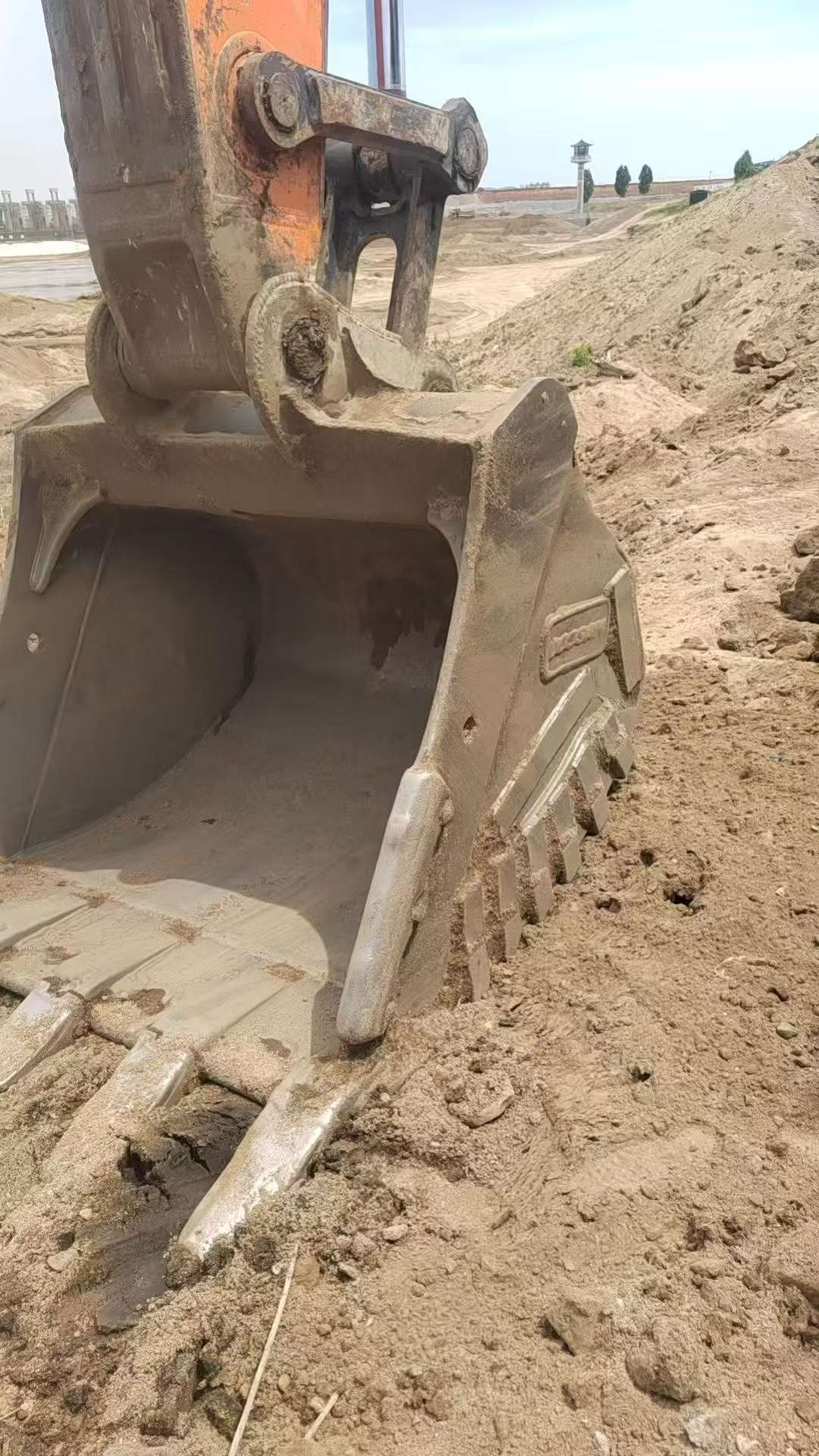

| bucket | backhoe |

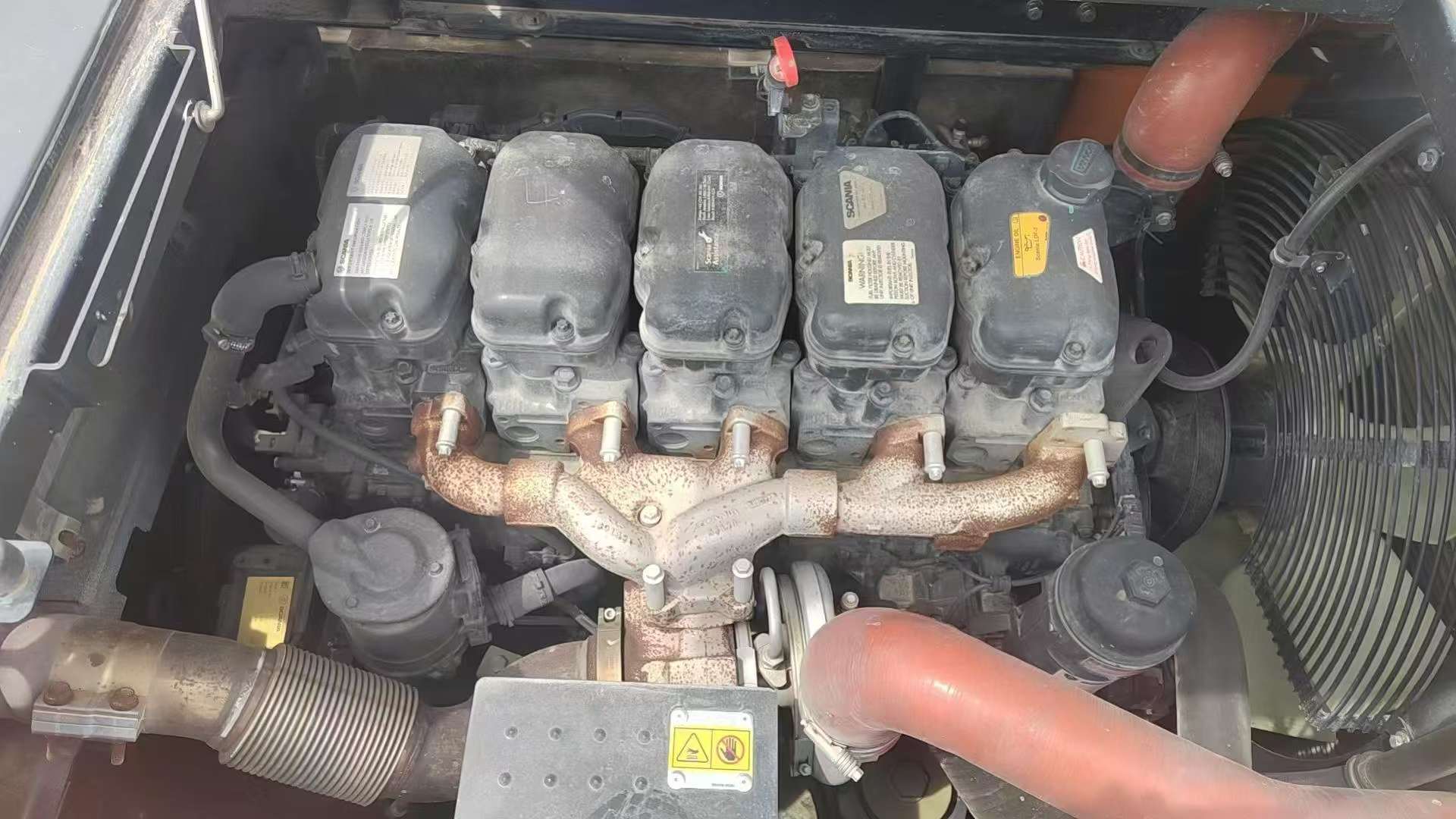

| Engine type | Scania DC09 |
| Number of cylinders (PCS) | 5 |
| Bucket digging force (kN) | 259 |
| Rod digging force (kN) | 189 |
| Maximum tractive force (kN) | 397 |
| Maximum flow of main pump (l/min) | 2 x 350 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3350/3000 |
| Total transport height (mm) | 3390 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7460 |
| Maximum excavation height (mm) | 10390 |
