Name: Used Excavators 2016 Doosan DX520LC-9C
Brand: Doosan
SKU: USED-1034894
Availability: InStock
Rating: 4.9 (48 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Built to withstand the most demanding job sites, this 2016 Doosan DX520LC-9C excavator represents proven engineering excellence with years of reliable service already behind it. Operating at 52 tons with a robust working weight of 50,800 kg, this heavy-duty machine demonstrates the durability that has made Doosan a trusted name in construction equipment worldwide. Powered by a DC13 engine delivering 257 kW at 1800 rpm, it combines exceptional digging force—266.6 kN bucket force and 233.2 kN arm force—with the precision control needed for large-scale earthmoving operations.

Key specifications include:
<ul>
<li>Bucket capacity: 2.72-3.2 m³ for maximum productivity</li>
<li>Maximum digging reach: 10,765 mm with 6,765 mm depth capability</li>
<li>Dual variable axial piston pumps: 2×355 L/min flow rate</li>
<li>Generous fluid capacities: 626L fuel tank, 390L hydraulic reservoir</li>
<li>Heavy-duty undercarriage: 600 mm track plates with triple sprockets</li>
</ul>

Currently located in Beijing, this proven workhorse continues to deliver the performance and reliability that operators demand from professional-grade excavation equipment.

Maximize your construction budget with this proven 2010 Caterpillar 320D excavator from Xuzhou. Delivering 20-ton performance at a fraction of new equipment costs, this machine combines Caterpillar's legendary reliability with smart financial sense.

Powered by the robust C6.4 ACERT engine producing 103kW, this 320D handles demanding jobsites with authority. Key specifications include:

<ul>
<li>1.0 m³ bucket capacity for optimal material handling</li>
<li>6,710mm maximum digging depth reaches challenging excavation zones</li>
<li>140.1kN bucket digging force tackles tough materials efficiently</li>
<li>9,850mm maximum excavation radius covers extensive work areas</li>
<li>20,930kg operating weight provides excellent stability</li>
</ul>

Built for productivity, this excavator features water-cooled operation, 410L fuel capacity for extended runtime, and Caterpillar's proven hydraulic system delivering 205 L/min flow. With proper maintenance history and competitive pricing versus new alternatives, this 320D represents exceptional value for contractors seeking reliable performance without premium costs.

Contact us today to secure this smart investment for your fleet.

Caterpillar 320D

Built for demanding jobsites, this 2018 Caterpillar CT20 compact excavator delivers exceptional operator control and productivity. Advanced hydraulic systems provide precise digging force while maintaining smooth operation across varied terrain conditions. The spacious ROPS/FOPS certified cabin features panoramic glass panels that maximize visibility to attachment points and surrounding work areas.

Key operator advantages include:
<ul>
<li>Enhanced stability through optimized counterweight distribution</li>
<li>Intuitive joystick controls with customizable response settings</li>
<li>Low-vibration design reduces operator fatigue during extended shifts</li>
<li>Wide-opening engine compartment for simplified maintenance access</li>
</ul>

Currently located in Xuzhou, Jiangsu Province, this machine represents proven Caterpillar engineering with documented service history. Compact dimensions enable operation in confined spaces while maintaining full-size excavator capabilities for trenching, loading, and material handling applications.

Caterpillar CT20

Strengthen your fleet operations with this robust 2022 Hitachi ZX490LCH-5A excavator, engineered for demanding construction environments. Operating at 49 tons with a powerful 257kW Isuzu engine, this machine delivers consistent performance across multiple job sites simultaneously.

Key operational advantages include:
<ul>
<li>Maximum digging reach of 12.06m and depth capacity of 7.85m for versatile applications</li>
<li>Dual variable axial piston pumps providing 2 x 400 L/min flow for responsive hydraulics</li>
<li>725L fuel capacity minimizing downtime during extended operations</li>
<li>Proven ZX490LCH-5A platform with established parts availability and service support</li>
</ul>

Currently positioned in Wenzhou, Zhejiang, this unit serves as an ideal backup machine or fleet expansion solution for contractors managing multiple projects. With 296kN bucket digging force and 70% climbing capability, it maintains productivity standards while providing operational flexibility. The machine's transport dimensions (12.04m x 3.55m x 3.45m) ensure efficient mobilization between sites, making it a strategic asset for growing operations requiring reliable secondary equipment.

Hitachi ZX490LCH-5A

Built to endure the toughest jobsite conditions, this 2021 Komatsu PC60-8 represents proven engineering excellence from one of the industry's most trusted manufacturers. Operating at 6 tons with a working weight of 6,180 kg, this compact excavator delivers reliable performance through its Komatsu SAA4D95LE-5 engine, generating 40.7 kW of power at 1,950 rpm. Currently located in Zhejiang, this machine demonstrates the durability that has made Komatsu a benchmark in construction equipment.

<ul>
 <li>Powerful digging force: 54.8 kN bucket force and 39.8 kN arm force for demanding excavation tasks</li>
 <li>Efficient hydraulics: Variable piston pump delivering 172 l/min maximum flow for responsive operation</li>
 <li>Versatile reach: 6,190 mm maximum digging radius with 3,900 mm maximum depth capability</li>
 <li>Proven powertrain: Water-cooled turbocharged 4-cylinder engine with 3.26L displacement</li>
 <li>Stable platform: 28.4 kPa ground pressure ensures minimal surface disturbance</li>
 <li>Compact dimensions: 6,035 mm transport length fits restricted access sites</li>
</ul>

This workhorse combines Japanese engineering precision with practical field-tested reliability, making it an asset for contractors demanding cons

Komatsu PC60-8

Designed for precision work in confined spaces, this 2023 Caterpillar CT20 compact track loader delivers exceptional maneuverability without compromising operator comfort. Equipped with intuitive joystick controls and responsive hydraulics, the machine provides smooth, predictable handling across varied terrain conditions. Operators benefit from a pressurized ROPS/FOPS cabin featuring wide-angle visibility through reinforced glass panels, reducing blind spots during loading and material handling operations.

<ul>
<li>Year: 2023</li>
<li>Brand: Caterpillar</li>
<li>Model: CT20</li>
<li>Current Location: Xuzhou, Jiangsu, China</li>
</ul>

Stability remains consistent even with extended boom reach, thanks to the low center of gravity and wide track stance. The suspended undercarriage absorbs ground irregularities, minimizing operator fatigue during extended shifts. Climate control systems maintain cabin temperature, while sound-dampening materials reduce ambient noise levels. Serviceability access points allow quick daily inspections, keeping downtime minimal on active job sites.

Built in 2014, this Caterpillar 323DL excavator delivers proven performance in the 23-ton class with Caterpillar's legendary reliability behind every component. Powered by the robust C6.4 ACERT engine producing 110kW at 2000rpm, this machine combines exceptional digging force—140kN bucket and 106kN arm—with a maximum dig depth of 6,710mm and reach of 9,850mm. Currently located in Xuzhou, Jiangsu, this joint-venture manufactured unit represents solid value in the used equipment market.

Why Caterpillar remains the industry standard for used machinery buyers:
<ul>
<li>Global parts network ensures minimal downtime and cost-effective maintenance</li>
<li>Superior resale value protects your investment compared to lesser brands</li>
<li>Water-cooled 6-cylinder engine proven across thousands of jobsites worldwide</li>
<li>Comprehensive hydraulic system with 205 L/min main pump flow for consistent productivity</li>
<li>Track-type undercarriage with 600mm shoes provides stability on varied terrain</li>
</ul>

With a 1.2m³ bucket capacity and 410L fuel tank for extended operation, this 323DL offers the performance contractors demand with the Caterpillar name they trust.

Caterpillar 323DL

Get straight to work with this 2017 Caterpillar 305.5 mini excavator, built for immediate deployment on confined jobsites. Powered by a reliable Mitsubishi M4M0 engine delivering 56 horsepower, this 5-ton machine handles trenching, grading, and light demolition with proven efficiency. Operating weight of 5,480 kg provides optimal stability without sacrificing maneuverability in tight urban environments.

<ul>
<li>Bucket digging force: 38.7 kN for breaking through compacted soil and clay</li>
<li>Stick digging force: 26 kN ensures precise material handling</li>
<li>0.18 m³ backhoe bucket moves material quickly on residential and utility projects</li>
<li>Compact footprint navigates narrow access points and crowded construction zones</li>
<li>Joint venture/Import manufacturing guarantees Caterpillar quality standards</li>
</ul>

Currently located in Xuzhou, Jiangsu, this machine arrives ready for foundation work, landscaping, and utility installation. No break-in period required—mount your operator and start digging today. Ideal for contractors demanding reliability without downtime.

Caterpillar 305.5

Expand your operational capacity with this 2020 Caterpillar 336E hydraulic excavator, currently available in Xuzhou, Jiangsu. Built for contractors managing multiple job sites simultaneously, this 36-ton machine delivers reliable performance when your primary fleet is stretched thin. The CAT C9 ACERT engine generates 236 kW at 1,800 rpm, providing consistent power for demanding excavation, trenching, and material handling tasks.

<ul>
 <li>Working Weight: 35,500 kg</li>
 <li>Maximum Digging Radius: 11,040 mm</li>
 <li>Engine: Caterpillar C9 ACERT, water-cooled</li>
 <li>Emissions Compliance: European Stage IIIB / Tier 4 standards</li>
 <li>Configuration: Backhoe bucket</li>
</ul>

Joint venture manufacturing ensures quality construction and parts availability across international markets. With its proven hydraulic system and operator-focused cab design, this 336E integrates seamlessly into existing Caterpillar fleets while maintaining standardized maintenance protocols. Perfect for contractors requiring additional capacity during peak seasons or simultaneous project execution without compromising productivity standards.

Caterpillar 336E

Acquire proven performance without the premium price tag. This 2019 Caterpillar 336E delivers 36-ton excavating power with the reliability of Caterpillar's CAT C9ACERT engine, generating 236kW at 1800rpm. Currently located in Wenzhou, Zhejiang, this joint venture/import model represents a strategic alternative to new equipment purchases—offering identical operational capabilities at significantly reduced capital outlay.

<ul>
<li>Working weight: 35,500kg with 11,040mm maximum digging radius</li>
<li>First-generation compliance with European Stage IIIB and Tier 4 emission standards</li>
<li>Water-cooled traditional power system for consistent jobsite performance</li>
<li>Backhoe configuration suited for excavation, trenching, and material handling</li>
</ul>

Smart contractors recognize value beyond the sticker price. With minimal depreciation already absorbed and Cat's engineered durability, this 336E provides decades of remaining service life. Invest in operational capacity, not showroom status. Secure heavy-duty performance while preserving working capital for fleet expansion or project materials.

Built for demanding jobsites, this 8-ton excavator delivers proven performance through its Cummins B3.3 engine, generating 60kW at 2200 rpm with water-cooled turbocharged efficiency. Operators benefit from precise hydraulic control via Toshiba variable pump technology, enabling smooth manipulation of the 3710mm boom and 1650mm arm across a maximum digging radius of 6375mm and depth reaching 4140mm.

Stability remains paramount with a 7425kg working weight distributed across 2119mm track ground contact, maintaining 34.2 kPa ground pressure while achieving 35° climbing capability. The plunger hydraulic motors for both rotation (12 rpm) and travel functions ensure responsive handling during complex excavation tasks. Dual travel speeds of 4.2/2.7 km/h provide flexibility between transit and precision work.

<ul>
<li>Bucket digging force: 53.6 kN with 0.14-0.34 m³ capacity range</li>
<li>Compact dimensions: 6155mm length, 2220mm width for confined spaces</li>
<li>786mm counterweight clearance supports obstacle navigation</li>
<li>Located in Ganzhou, Jiangxi for regional inspection</li>
</ul>

XCMG XE80

Proven performance meets industrial-grade engineering in this 2022 XCMG XE75C, now available in Kunming, Yunnan. Built on decades of manufacturing expertise, this 7-ton excavator delivers 43kW of reliable power through its robust V2607 engine, backed by XCMG's extensive dealer network across China and beyond. With a 0.30m³ bucket capacity, 6,260mm maximum digging radius, and 4,020mm digging depth, this machine handles demanding jobsite requirements with consistent productivity.

XCMG's market dominance translates to tangible ownership advantages: readily available OEM parts, competitive maintenance costs, and strong resale value retention. The XE75C's 7,450kg working weight and 33.5kPa ground pressure provide stability without sacrificing maneuverability, while the 160L/min hydraulic flow ensures responsive operation. This unit represents a strategic investment—XCMG's reputation for durability means lower downtime and predictable operating costs.

<ul>
<li>Bucket digging force: 57kN</li>
<li>Maximum excavation height: 7,085mm</li>
<li>Fuel capacity: 130L for extended runtime</li>
<li>Comprehensive parts network across Asia-Pacific</li>
</ul>

XCMG XE75C

Engineered for heavy-duty excavation, this 2020 Sany SY750H delivers exceptional performance through proven mechanical design. Powered by a robust 377 kW engine at 1800 rpm, this 75-ton hydraulic excavator combines substantial digging force with precise control systems. The backhoe configuration generates 402 kN bucket digging force and 345 kN rod digging force, enabling efficient material removal across demanding jobsites.

Built in China with a 76,200 kg working weight, this model demonstrates superior reach capabilities with a maximum digging radius of 12,050 mm and excavation depth extending to 7,620 mm. The 4.6-5.6 m³ bucket capacity optimizes load cycles, while the 7.3 rpm rotation speed ensures productive positioning. Ground-specific pressure remains controlled at 110 kPa across 650 mm track plates, distributing weight effectively on varied terrain.

<ul>
<li>Rated Power: 377 kW @ 1800 rpm</li>
<li>Maximum Digging Height: 11,200 mm</li>
<li>Travel Speed: 4.5/2.9 km/h</li>
<li>Climbing Ability: 70%</li>
<li>Location: Beijing, China</li>
</ul>

Sany SY750H

Available now in Xuzhou, Jiangsu, this 2020 Caterpillar 330B excavator eliminates factory lead times and accelerates your project timeline. Powered by a robust Caterpillar 3306TA engine delivering 165.5 kW at 1800 rpm, this 30-ton workhorse combines proven hydraulic performance with immediate deployment capability. Water-cooled turbocharged technology with aftercooling ensures consistent output across demanding applications.

Operating specifications include a 1.5 m³ backhoe bucket, 8,080 mm maximum digging depth, and 11,620 mm excavation radius at ground level. The 6,500 mm boom and 3,900 mm arm configuration provide versatile reach for earthmoving, trenching, and material handling operations. Hydraulic flow reaches 480 l/min at 34.3 MPa, supporting fast cycle times and productive daily performance.

Strategic Xuzhou location enables rapid logistics throughout China and international markets. Skip extended manufacturing delays—this joint venture/import unit offers proven Caterpillar reliability with fast deployment to your site. Complete with 560 L fuel capacity and 400 L hydraulic system for extended operation between services.

Caterpillar 330B

Engineered for demanding excavation operations, this 2019 Sany SY245H delivers exceptional performance through advanced hydraulic architecture and proven powertrain technology. Built around a robust D06FRC six-cylinder engine generating 147 kW at 2100 rpm with 750 N·m maximum torque, this 24-ton crawler excavator combines power density with fuel efficiency across a 475-liter tank capacity. Hydraulic force specifications demonstrate technical superiority: 175 kN bucket digging force and 120 kN arm digging force enable aggressive material handling in challenging ground conditions.

<ul>
<li>Operating weight: 25,500 kg with 1.3-1.5 m³ bucket capacity</li>
<li>Maximum reach: 10,225 mm digging radius, 6,705 mm depth capability</li>
<li>Water-cooled 6.373L displacement engine with 6-cylinder configuration</li>
<li>10.6 rpm rotation speed with 70% grading ability</li>
<li>600 mm track plates across 3,640 mm ground contact length</li>
<li>Compact transport dimensions: 10,290 × 3,190 × 3,190 mm</li>
<li>Located in Shaoxing, Zhejiang—ready for international deployment</li>
</ul>

Sany's SY245H series represents Chinese manufacturing excellence in the mid-size excavator segment, offering reliable performance for contractors requiring pr

Sany SY245H

Strengthen your excavation fleet with this 2016 Kobelco SK270D, a proven 27-ton workhorse built for demanding job sites. Powered by a reliable Hino J05E engine delivering 137 kW at 2100 rpm, this machine combines robust performance with fuel-efficient operation. Its 1.3 m³ bucket capacity and 10,310 mm maximum digging radius handle medium to heavy-duty applications with confidence, while dual variable axial piston pumps ensure responsive hydraulic power when cycling between tasks.

Currently located in Wenzhou, Zhejiang, this SK270D serves as an ideal backup unit or fleet expansion asset for contractors managing multiple projects simultaneously. Key operational advantages include:

<ul>
 <li>170 kN bucket digging force (187 kN supercharged) for challenging ground conditions</li>
 <li>6,990 mm maximum digging depth with standard 2,980 mm arm configuration</li>
 <li>Water-cooled turbocharged engine with intercooling for sustained performance</li>
 <li>Two-speed hydraulic travel motors providing 6.2 km/h high-speed transport</li>
 <li>460-liter fuel capacity minimizing refueling downtime during extended shifts</li>
</ul>

Reduce equipment bottlenecks and maintain project momentum with this dependable mid-size excavat

Kobelco SK270D

Commanding a 20-ton operating weight, this 2019 Caterpillar 320A delivers precision control and proven reliability for demanding excavation projects. Built with traditional power systems and joint venture manufacturing standards, this machine combines robust performance with exceptional operator comfort. Positioned in Nanning, Guangxi, it offers immediate deployment capability for regional infrastructure and construction applications.

Operator-centric design defines this model's competitive edge. Enhanced cabin visibility ensures comprehensive site awareness across all working angles, while ergonomic controls reduce fatigue during extended shifts. Stability remains consistent throughout the operational envelope, allowing confident material handling on variable terrain. Responsive hydraulics provide smooth bucket movements for backhoe operations, enabling accurate trenching and loading cycles.

<ul>
<li>20-ton operating class with traditional power configuration</li>
<li>Superior cabin sightlines for enhanced jobsite safety</li>
<li>Stable platform for precise excavation and material placement</li>
<li>Backhoe-equipped for versatile digging applications</li>
<li>Joint venture/import manufacturing quality</li>
<li>Currentl

Specifications	Value
No.	1034894
Tonnage (tons)	52
Working weight (kg)	50800
Bucket capacity (m³)	2.72~3.2
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	DC13
Rated power (kw/rpm)	257/1800
Cylinder diameter × stroke (mm)	130*160
Number of cylinders (PCS)	6
Rotation speed (rpm)	8.3
Bucket digging force (kN)	266.6/282.2
Rod digging force (kN)	233.2/247.0
Travel speed (km/h)	5.3/3.1
Turning torque (Nm)	16304
Maximum flow of main pump (l/min)	2*355
Traveling Hydraulic Circuit (Mpa)	33
Rotary Hydraulic Circuit (Mpa)	30
Control Hydraulic Circuit (Mpa)	35
Main pump type	Variable axial piston pump
Working Hydraulic Circuit (Mpa)	33
Bucket cylinders - Number × diameter × stroke (mm)	1-1701151341
Bucket rod cylinders - Number × diameter × stroke (mm)	1-1901301980
Boom cylinders - Number × diameter × stroke (mm)	2-1701151650
Fuel Tank (L)	626
Hydraulic Tank (L)	390
Engine Oil changes (L)	45
Coolant (L)	51
Total transport length (mm)	11530
Total transport width (mm)	3340
Total transport height (mm)	4125
Counterweight ground clearance (mm)	1460
Minimum ground clearance (mm)	770
Minimum turning radius of front working device (mm)	5120
Back end turning radius (mm)	3800
Total track length (mm)	5455
Track plate width (mm)	600
Number of sprockets (single side) (each)	3
Number of wheels (single side) (each)	9
Number of track plates (single side) (PCS)	53
Maximum digging radius (mm)	10765
Maximum digging depth (mm)	6765
Maximum excavation height (mm)	9705
Maximum unloading height (mm)	6750
Maximum excavation radius of stop surface (mm)	10475
Maximum effective digging depth (mm)	10475

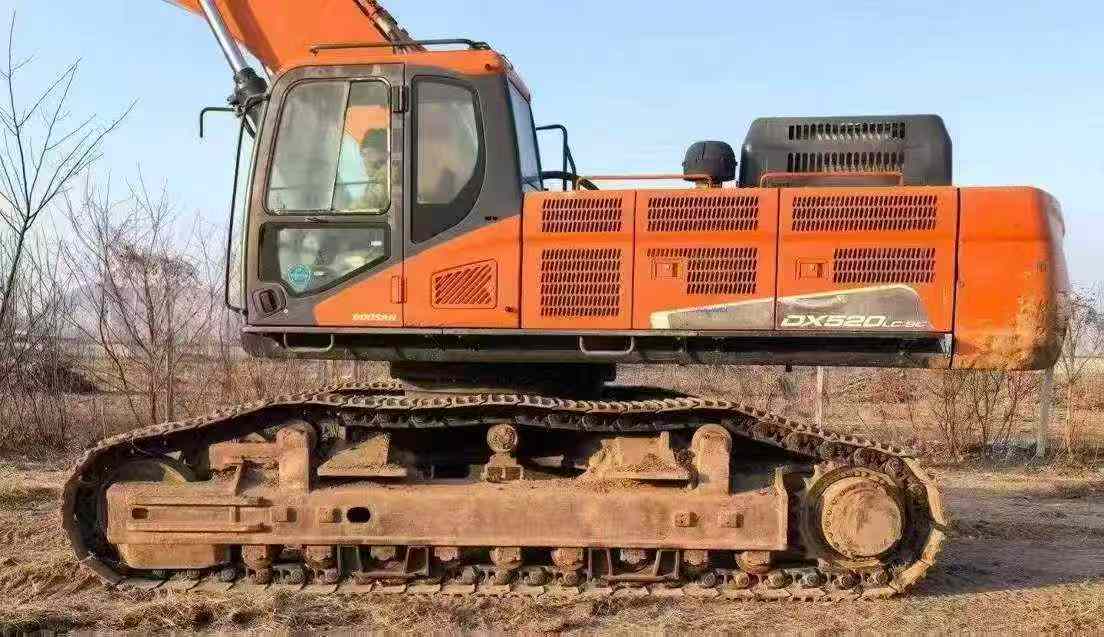

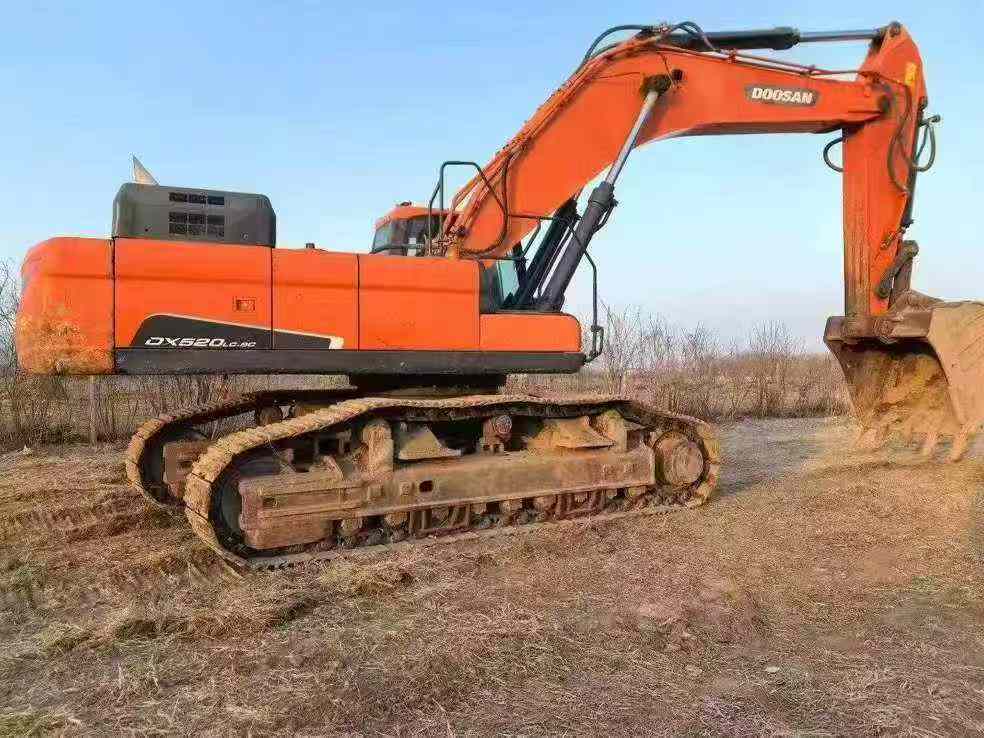

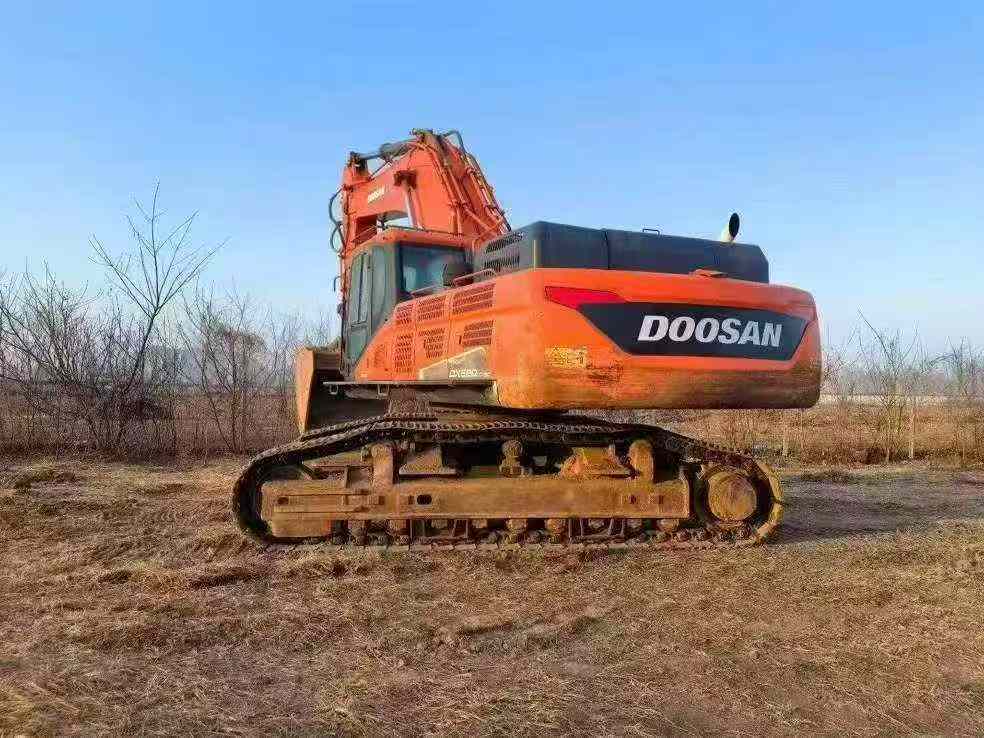

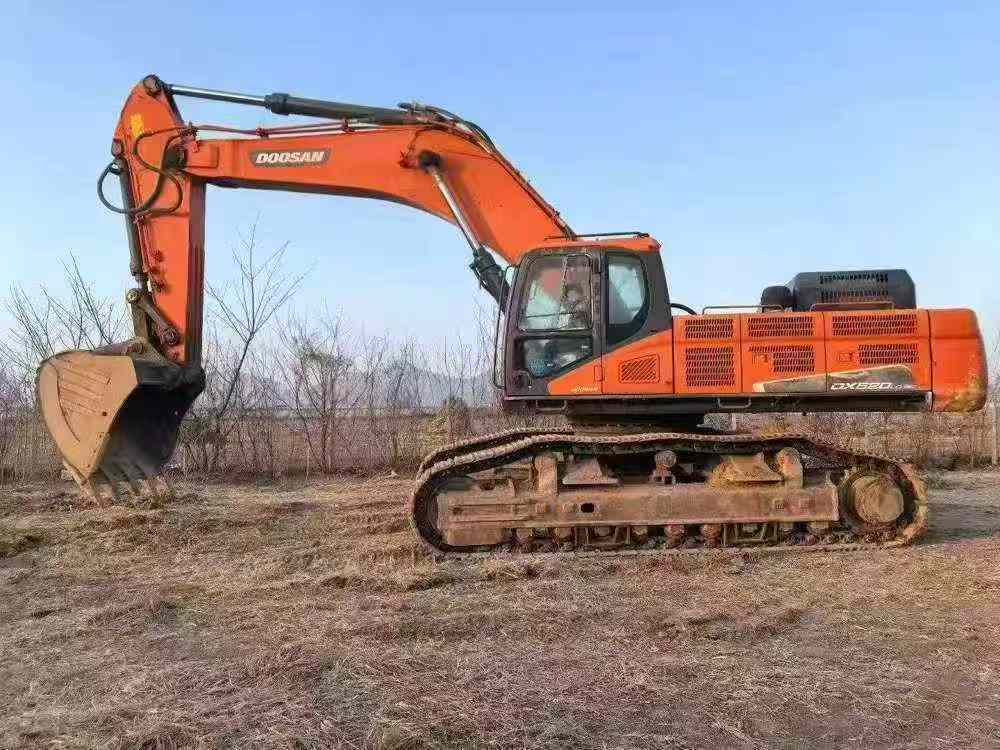

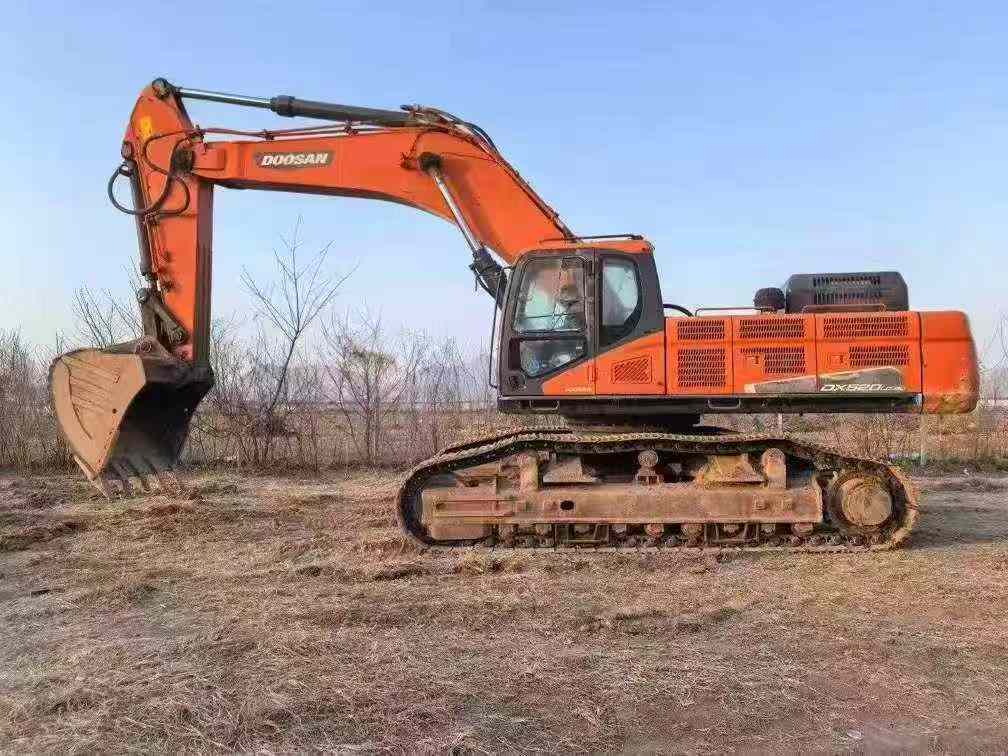

2016 Doosan DX520LC-9C
