Product Description

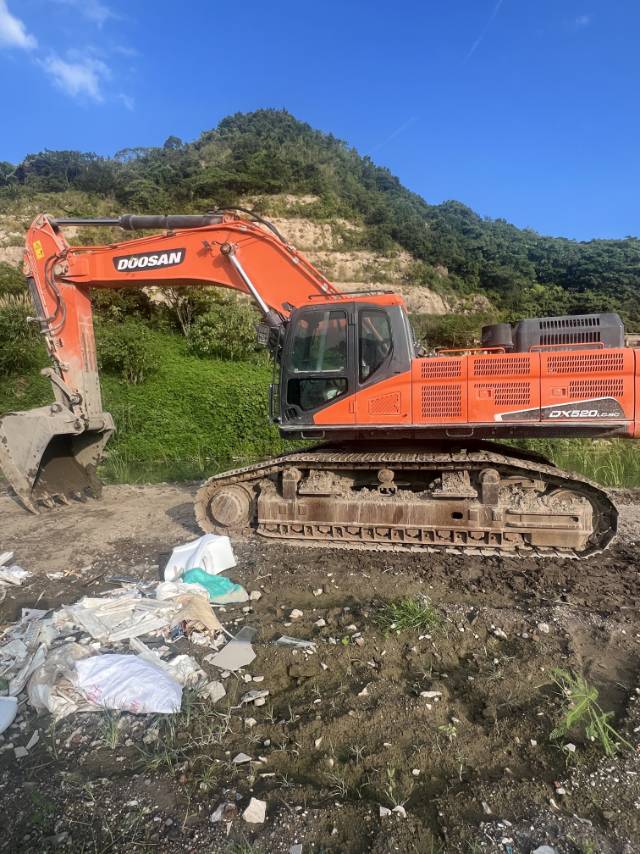

This 2020 Doosan DX520LC-9C hydraulic excavator is available for inspection and testing at our facility in Zhejiang, China. The DX520LC-9C is a reliable 52-ton class machine built for heavy-duty earthmoving, quarrying, and large-scale construction applications.
Key features include:
- Robust Doosan engine delivering efficient power and fuel economy
- Long crawler base for enhanced stability during operation

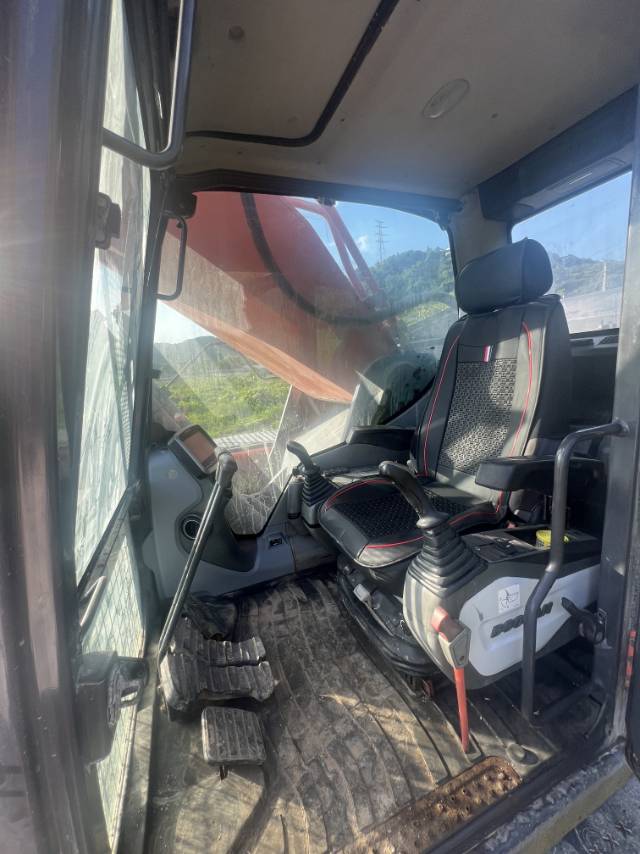

- Spacious cab with ergonomic controls and improved visibility
- Heavy-duty undercarriage designed for extended service life
- Available for on-site demonstration and performance verification
This unit has been maintained in working condition and is ready for immediate deployment. Pricing is negotiable based on inspection results and buyer requirements. Contact us to arrange a site visit and operational test in Zhejiang.
| Specifications | Value |
|---|---|
| No. | 1110967 |
| Tonnage (tons) | 52 |
| Working weight (kg) | 50800 |
| Bucket capacity (m³) | 2.72~3.2 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

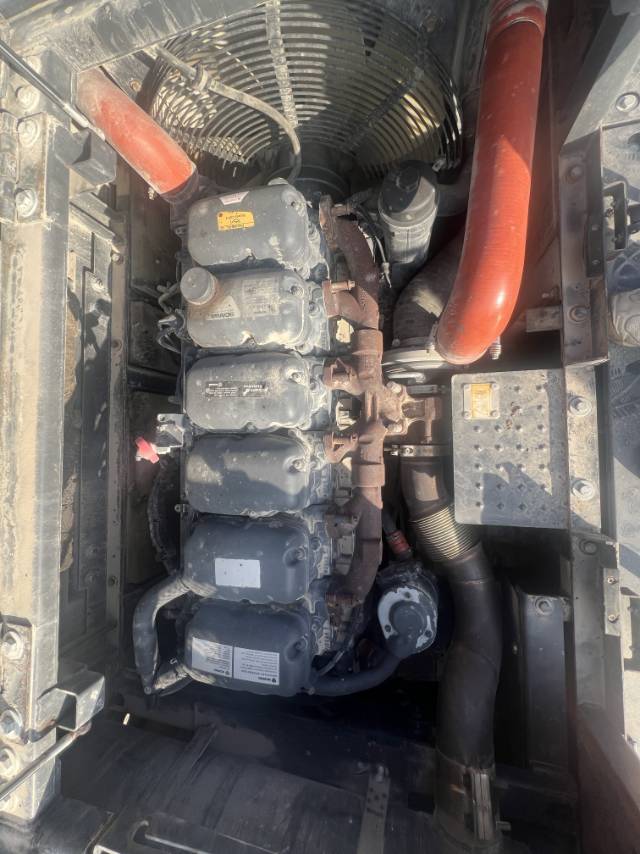

| Engine type | DC13 |
| Rated power (kw/rpm) | 257/1800 |
| Cylinder diameter × stroke (mm) | 130*160 |
| Number of cylinders (PCS) | 6 |
| Rotation speed (rpm) | 8.3 |
| Bucket digging force (kN) | 266.6/282.2 |
| Rod digging force (kN) | 233.2/247.0 |
| Travel speed (km/h) | 5.3/3.1 |
| Turning torque (Nm) | 16304 |
| Maximum flow of main pump (l/min) | 2*355 |
| Traveling Hydraulic Circuit (Mpa) | 33 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Control Hydraulic Circuit (Mpa) | 35 |

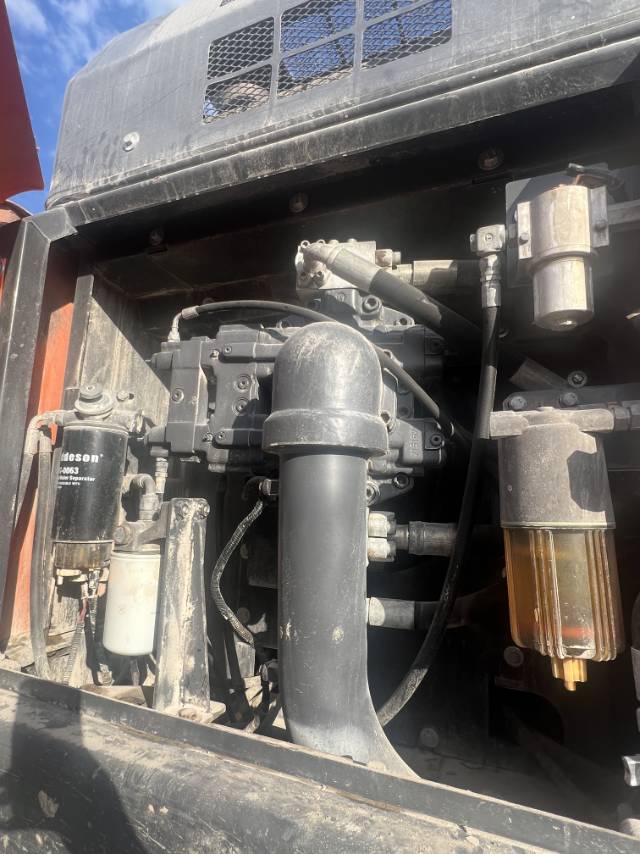

| Main pump type | Variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-170*115*1341 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-190*130*1980 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-170*115*1650 |
| Fuel Tank (L) | 626 |
| Hydraulic Tank (L) | 390 |
| Engine Oil changes (L) | 45 |
| Coolant (L) | 51 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 4125 |
| Counterweight ground clearance (mm) | 1460 |
| Minimum ground clearance (mm) | 770 |
| Minimum turning radius of front working device (mm) | 5120 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5455 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 10765 |
| Maximum digging depth (mm) | 6765 |
| Maximum excavation height (mm) | 9705 |
| Maximum unloading height (mm) | 6750 |
| Maximum excavation radius of stop surface (mm) | 10475 |
| Maximum effective digging depth (mm) | 10475 |
