Product Description

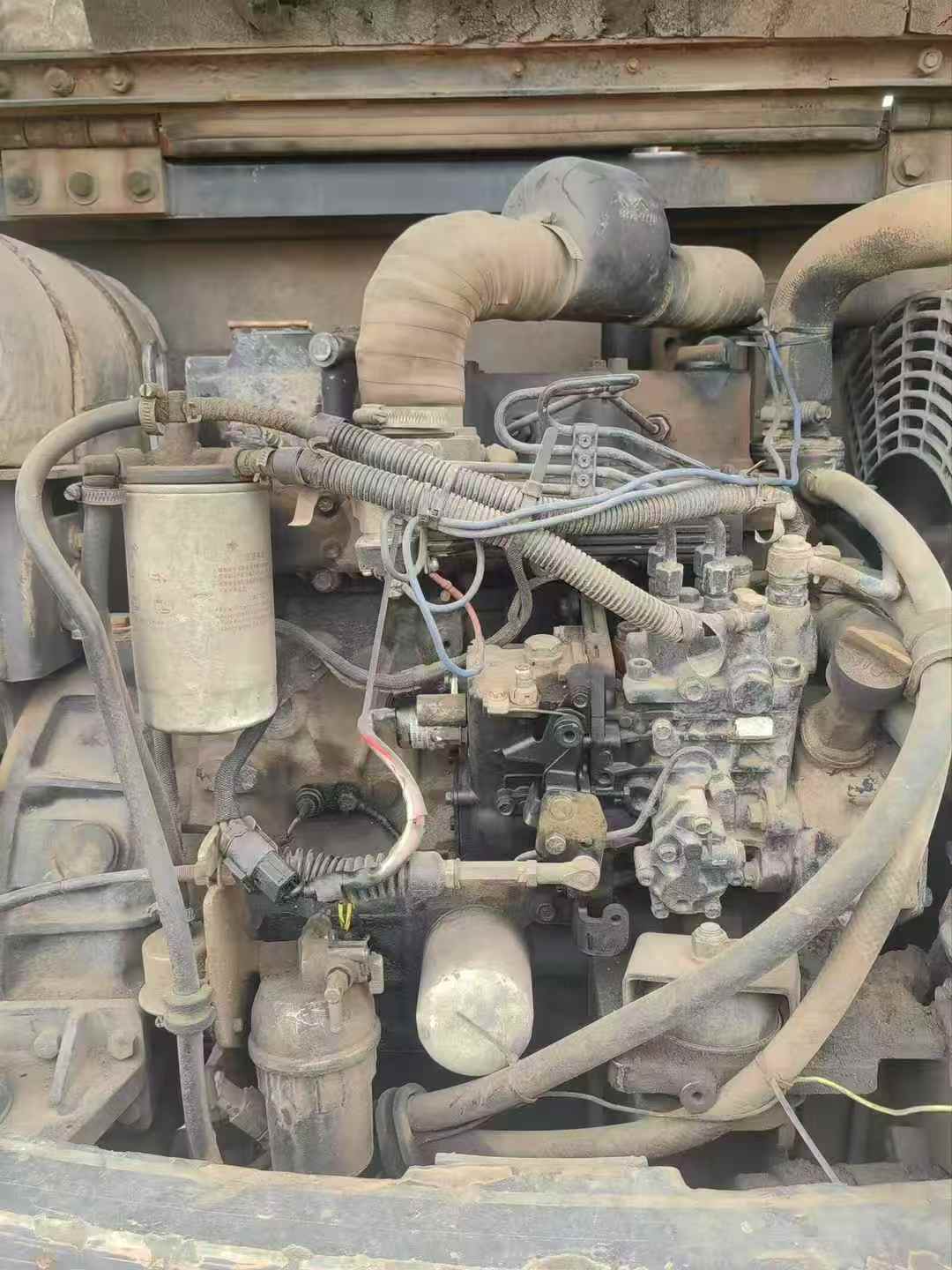

Equipped with a Yanmar 4TNV98-E engine, the 2016 Doosan DX55W delivers a rated power of 40.8 kW at 2400 rpm, ensuring robust performance and reliability. With a total displacement of 3.3 L, this excavator is designed for efficiency and durability.
- Hydraulic system capacity: 147.8 L, providing smooth and powerful operation with a main overflow set pressure of 22.5 Mpa.
- Engineered for precision, the DX55W features a maximum digging depth of 3495 mm and a maximum excavation height of 5980 mm.
- The machine's working weight of 5550 kg and 5-ton capacity make it ideal for a variety of heavy-duty tasks.
- Featuring a wheelbase of 2100 mm and a total transport width of 1920 mm, the DX55W ensures stability and maneuverability on any job site.
- Located in 贵州, this model is ready to meet your construction needs with its advanced engineering and technical superiority.
| Specifications | Value |
|---|---|
| No. | 1020271 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.18/0.06 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98-E |
| Rated power (kw/rpm) | 40.8/2400 |
| Total displacement (L) | 3.3 |
| Forward speed (Km/h) | 30 |
| Rotation speed (rpm) | 8.7 |
| Main overflow set pressure (Mpa) | 22.5 |
| Fuel Tank (L) | 120 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 147.8 |
| Total transport width (mm) | 1920 |
| Full cab height (mm) | 2855 |
| Counterweight ground clearance (mm) | 980 |
| Wheelbase (mm) | 2100 |
| Total tire outside width (mm) | 1920 |
| Minimum ground clearance (mm) | 290 |
| Maximum digging depth (mm) | 3495 |
| Maximum excavation height (mm) | 5980 |
| Maximum unloading height (mm) | 4265 |
