Product Description
Built in 2018, this Doosan DX55W wheeled excavator delivers proven performance backed by one of the industry's most reliable brands. Operating at 5.5 tons with a Yanmar 4TNV98-E engine producing 40.8 kW, this machine combines compact mobility with serious digging capability—reaching 3,495 mm depth and 5,980 mm maximum excavation height.
Doosan's reputation in the used equipment market stems from exceptional parts availability and strong resale value. This DX55W features a versatile dual-bucket system (0.18/0.06 m³), 30 km/h road speed, and 1,920 mm transport width for efficient site-to-site movement. Currently located in Lishui, Zhejiang, this wheeled excavator represents a smart investment for contractors seeking dependable Japanese-Korean engineering.

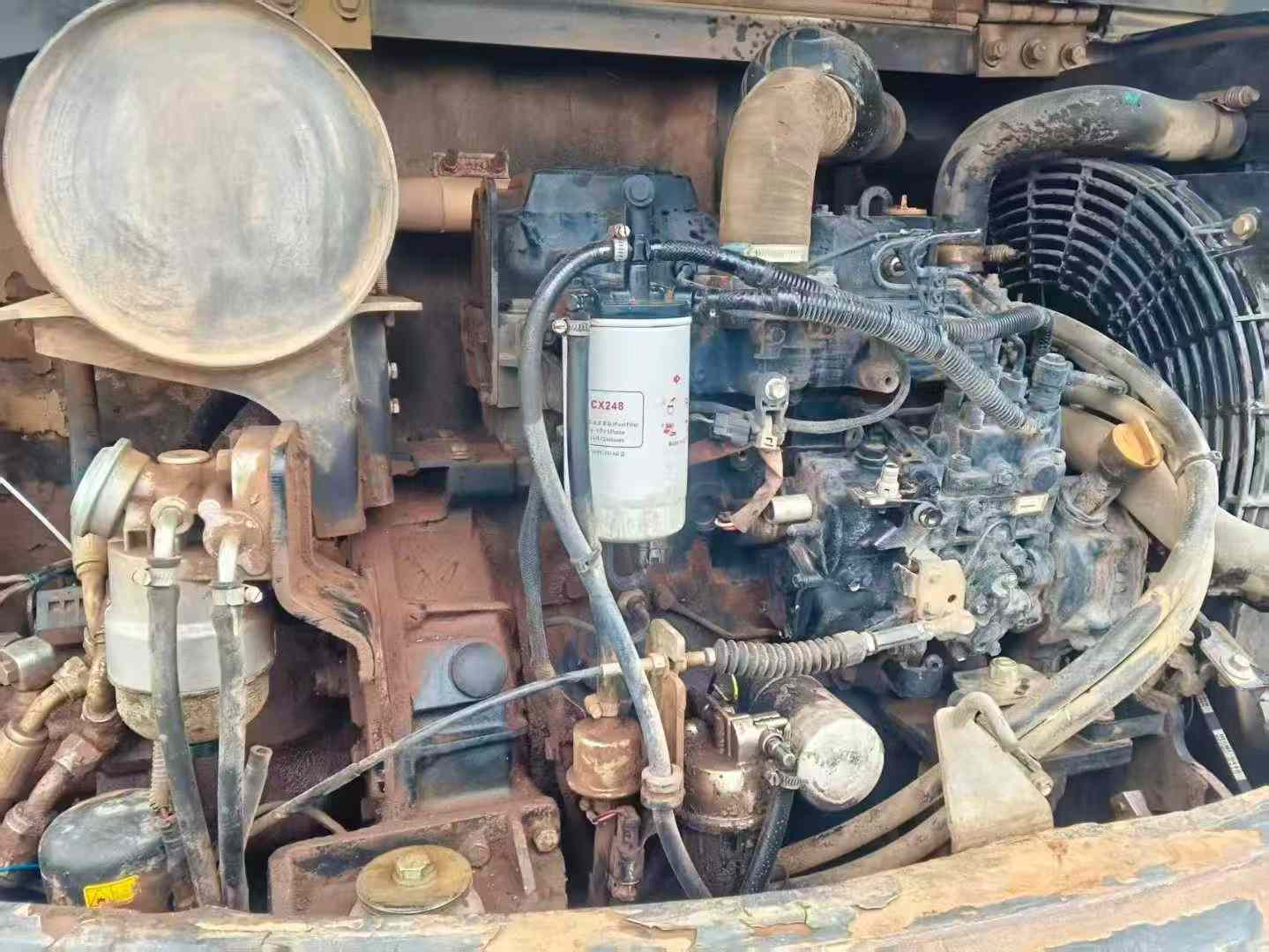

- Yanmar diesel engine: 40.8 kW at 2,400 rpm
- Hydraulic system capacity: 147.8 L with 22.5 Mpa pressure
- Maximum unloading height: 4,265 mm
- Fuel capacity: 120 L for extended operation
- Wheelbase: 2,100 mm with 290 mm ground clearance
| Specifications | Value |
|---|---|
| No. | 1018892 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.18/0.06 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98-E |
| Rated power (kw/rpm) | 40.8/2400 |
| Total displacement (L) | 3.3 |
| Forward speed (Km/h) | 30 |
| Rotation speed (rpm) | 8.7 |
| Main overflow set pressure (Mpa) | 22.5 |
| Fuel Tank (L) | 120 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 147.8 |
| Total transport width (mm) | 1920 |
| Full cab height (mm) | 2855 |
| Counterweight ground clearance (mm) | 980 |
| Wheelbase (mm) | 2100 |
| Total tire outside width (mm) | 1920 |
| Minimum ground clearance (mm) | 290 |
| Maximum digging depth (mm) | 3495 |
| Maximum excavation height (mm) | 5980 |
| Maximum unloading height (mm) | 4265 |
