Product Description

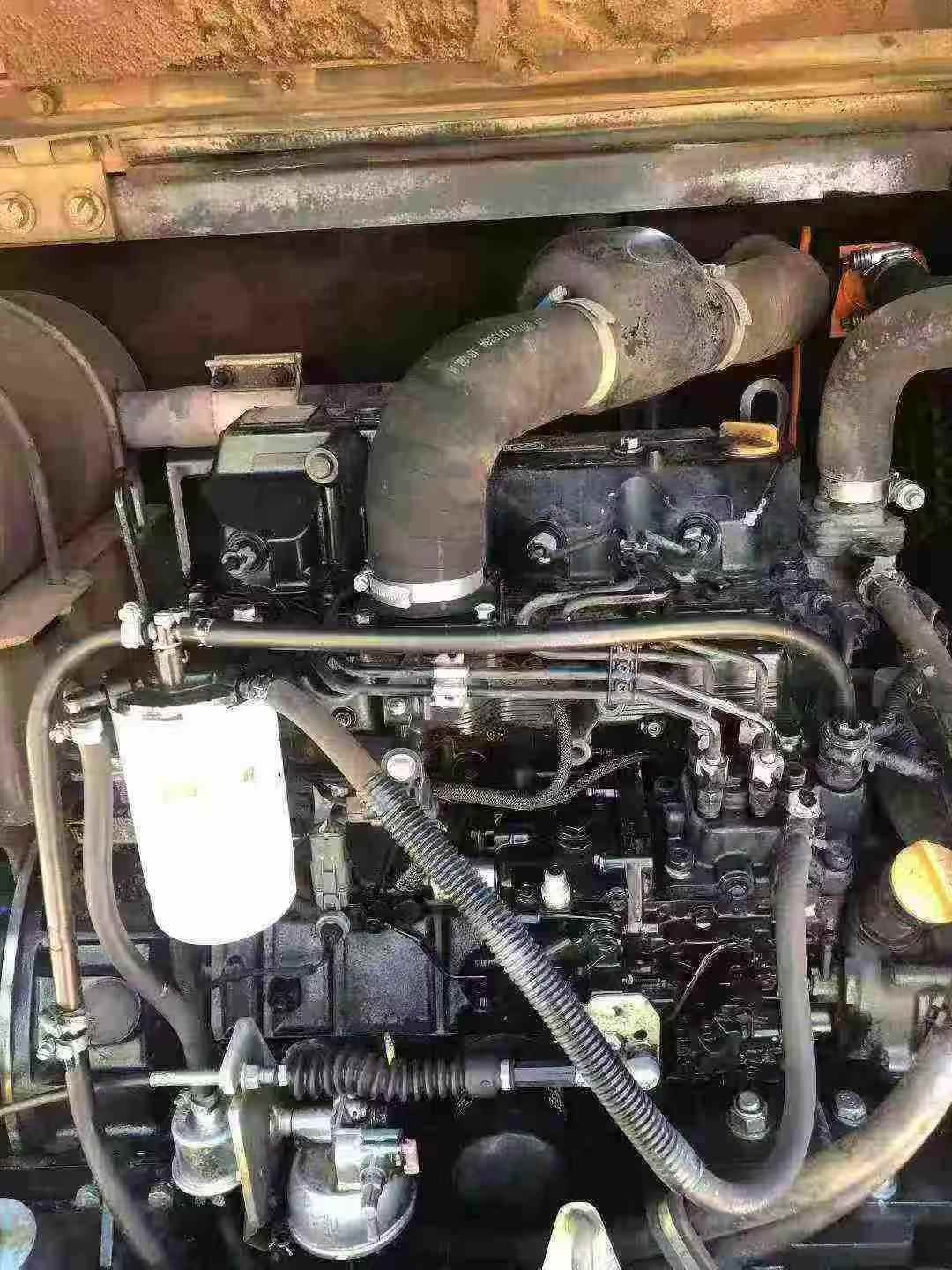

Gain exceptional value with this 2019 Doosan DX55W wheeled excavator—a smart alternative to new equipment at a fraction of the cost. Powered by a reliable Yanmar 4TNV98-E engine delivering 40.8 kW at 2400 rpm, this 5.5-ton machine combines mobility with robust digging performance. With a maximum digging depth of 3495 mm and excavation height reaching 5980 mm, it handles demanding tasks across construction and utility projects with ease.
Key specifications include:
- Working weight: 5550 kg with 0.18/0.06 m³ bucket capacity
- Road speed: 30 km/h for rapid site-to-site mobility
- Compact dimensions: 1920 mm transport width, 2855 mm cab height
- Hydraulic system: 147.8 L capacity at 22.5 Mpa overflow pressure
- Fuel efficiency: 120 L tank with 3.3 L displacement engine
Currently located in Guizhou, this joint venture-manufactured wheeled excavator delivers proven Doosan reliability without the premium new-equipment price tag. Invest wisely in high-performance machinery that protects your bottom line while meeting operational demands.
| Specifications | Value |
|---|---|
| No. | 1011094 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.18/0.06 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98-E |
| Rated power (kw/rpm) | 40.8/2400 |
| Total displacement (L) | 3.3 |
| Forward speed (Km/h) | 30 |
| Rotation speed (rpm) | 8.7 |
| Main overflow set pressure (Mpa) | 22.5 |
| Fuel Tank (L) | 120 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 147.8 |
| Total transport width (mm) | 1920 |
| Full cab height (mm) | 2855 |
| Counterweight ground clearance (mm) | 980 |
| Wheelbase (mm) | 2100 |
| Total tire outside width (mm) | 1920 |
| Minimum ground clearance (mm) | 290 |
| Maximum digging depth (mm) | 3495 |
| Maximum excavation height (mm) | 5980 |
| Maximum unloading height (mm) | 4265 |
