Product Description

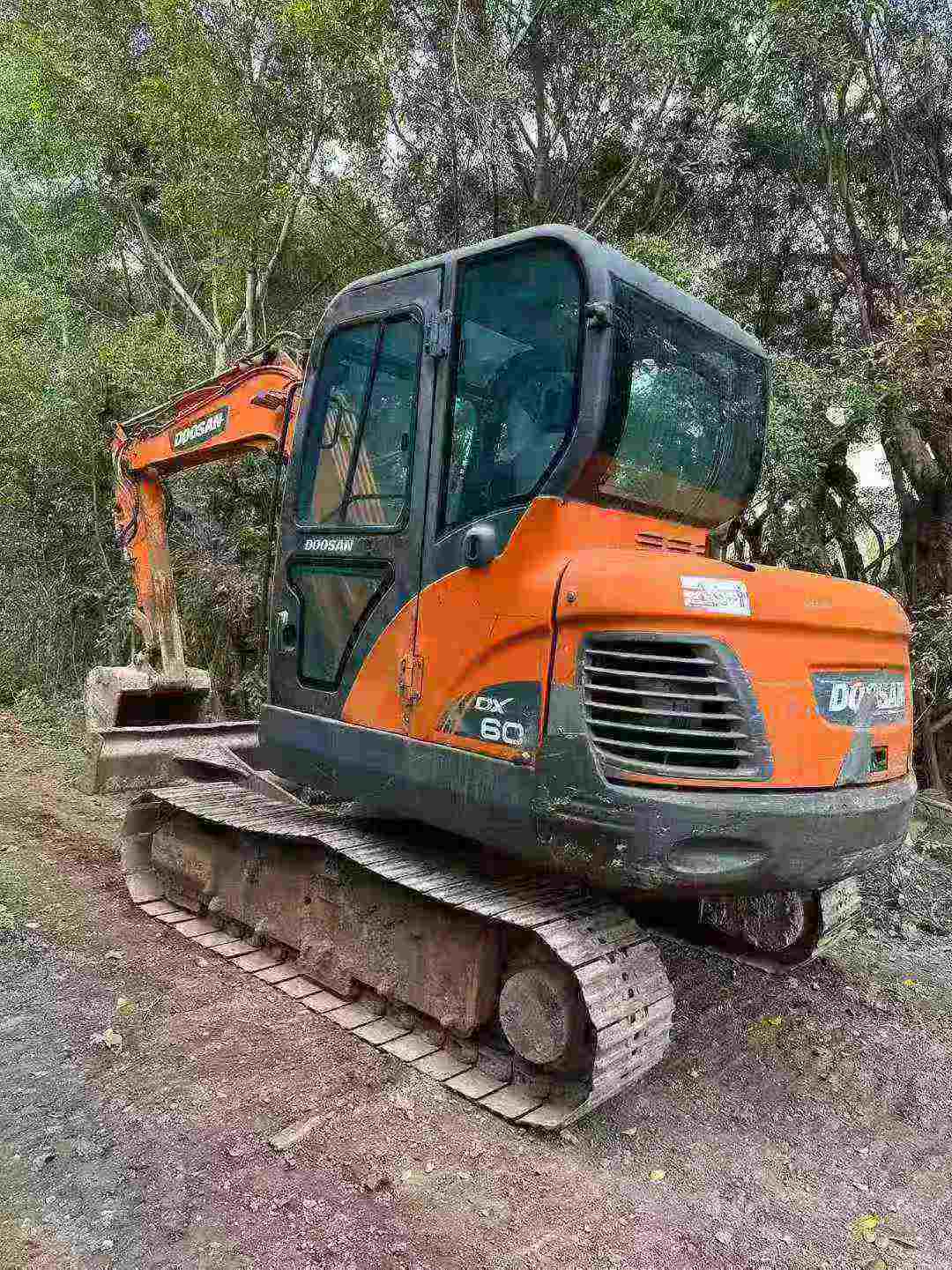

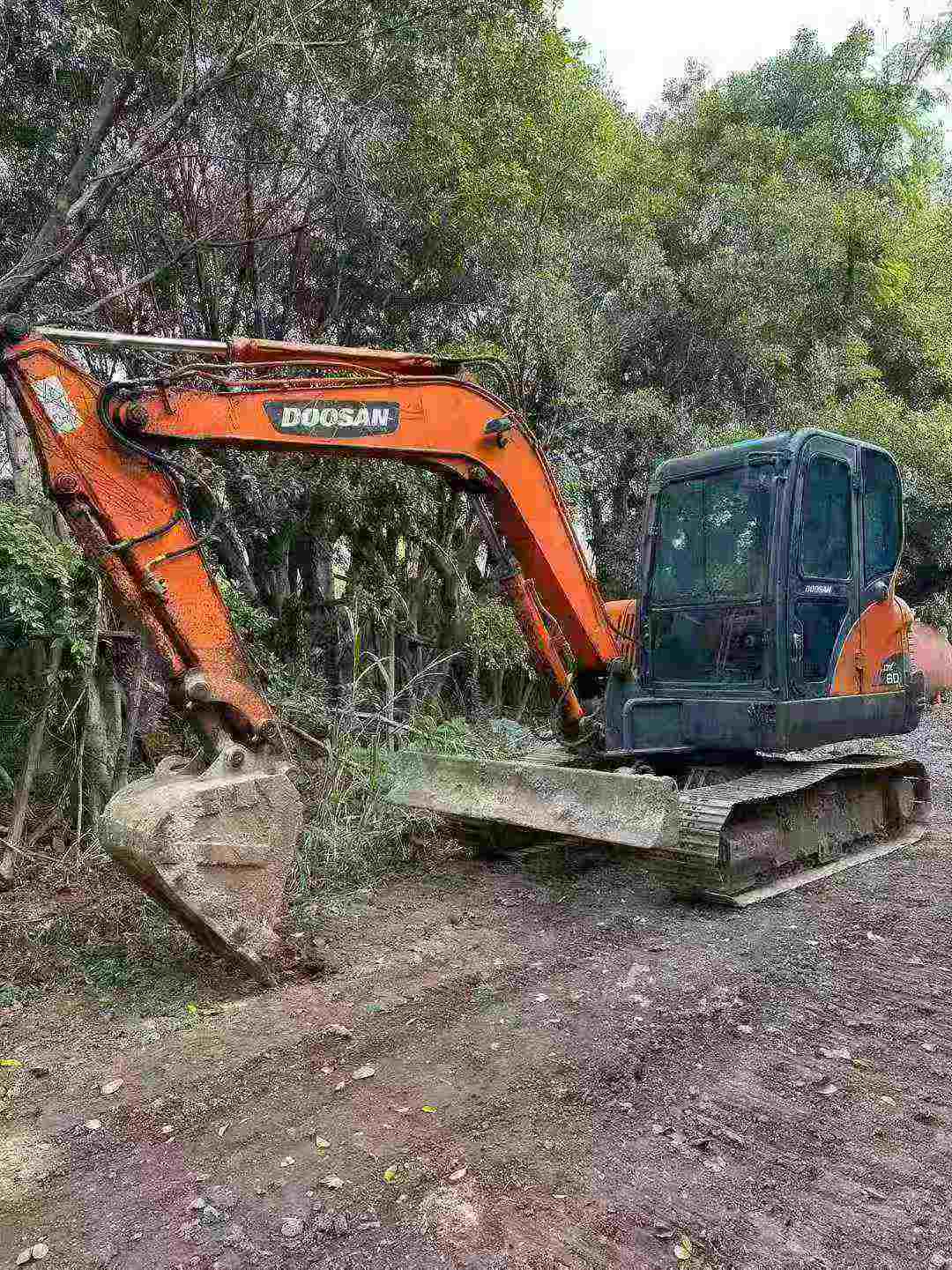

With a working weight of 5700 kg and a bucket capacity of 0.21 m³, this 2015 Doosan DX60 excavator offers reliable performance for various construction tasks. Located in Guangxi, this machine is powered by a Yanmar 4TNV94L engine, delivering 39.7 kW at 2200 rpm. Its robust design includes a 3000 mm boom and 1600 mm rod, ensuring efficient digging and lifting capabilities.

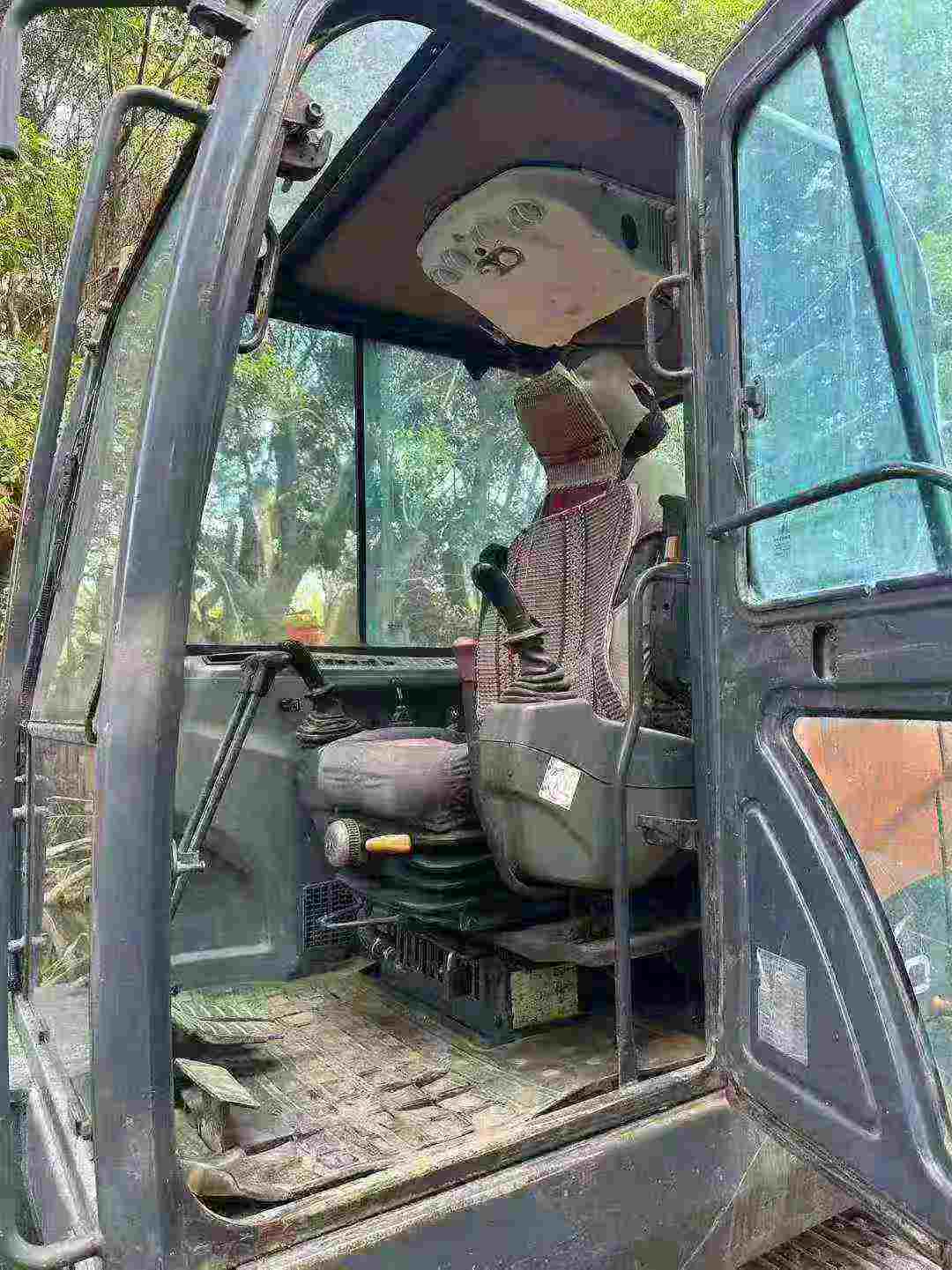

- Enhanced visibility from the operator's cabin provides clear sightlines to the work area, improving safety and precision.
- Stability and handling are optimized with a maximum tractive force of 58 kN, allowing for smooth operation even on challenging terrains.
- Travel speed of 4.1 km/h and 3.0 km/h ensures swift movement between tasks, reducing downtime.
- The DX60's 78% climbing ability and 30-degree angle make it suitable for a wide range of construction sites.
| Specifications | Value |
|---|---|
| No. | 1002240 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

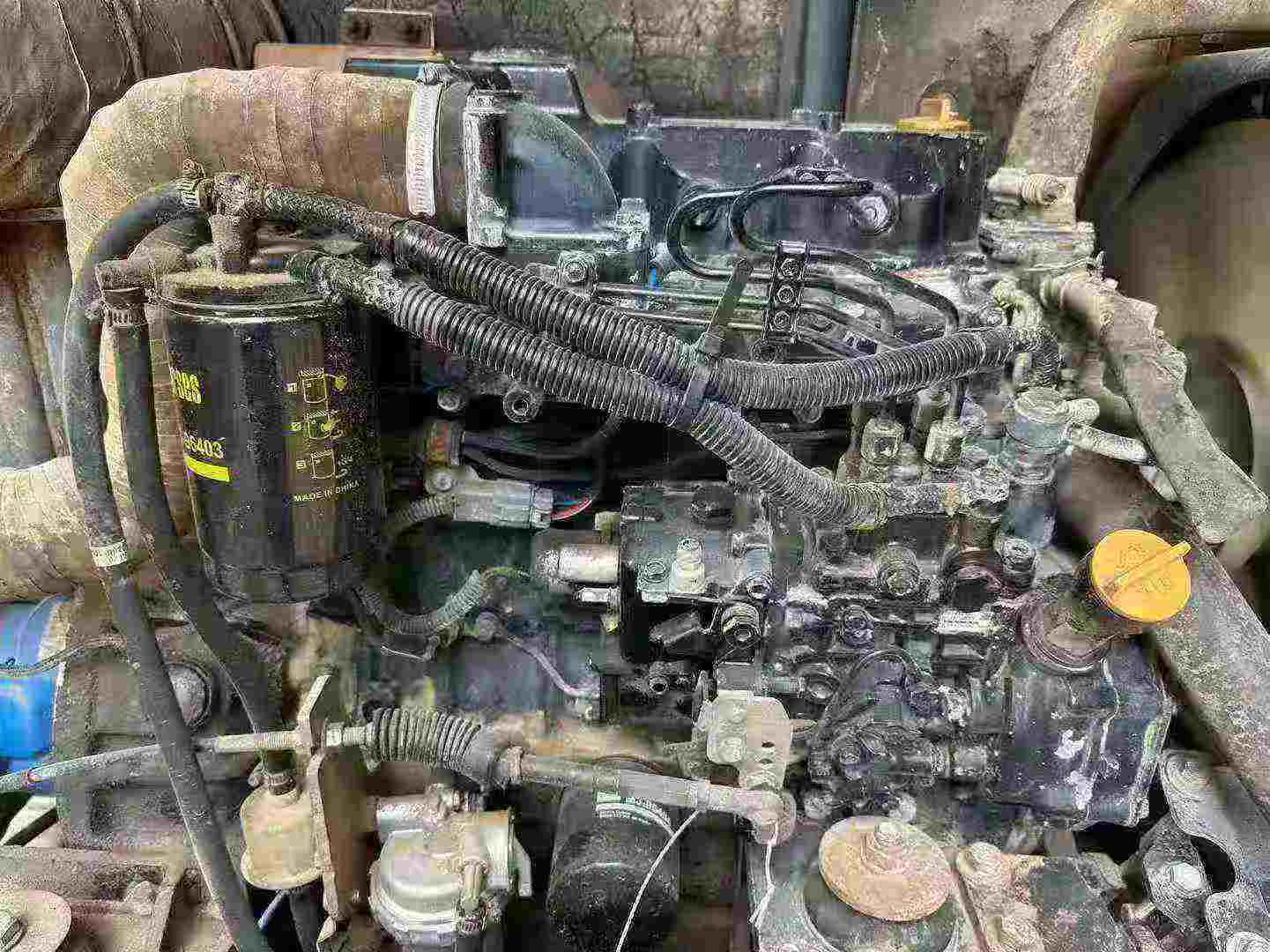

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
