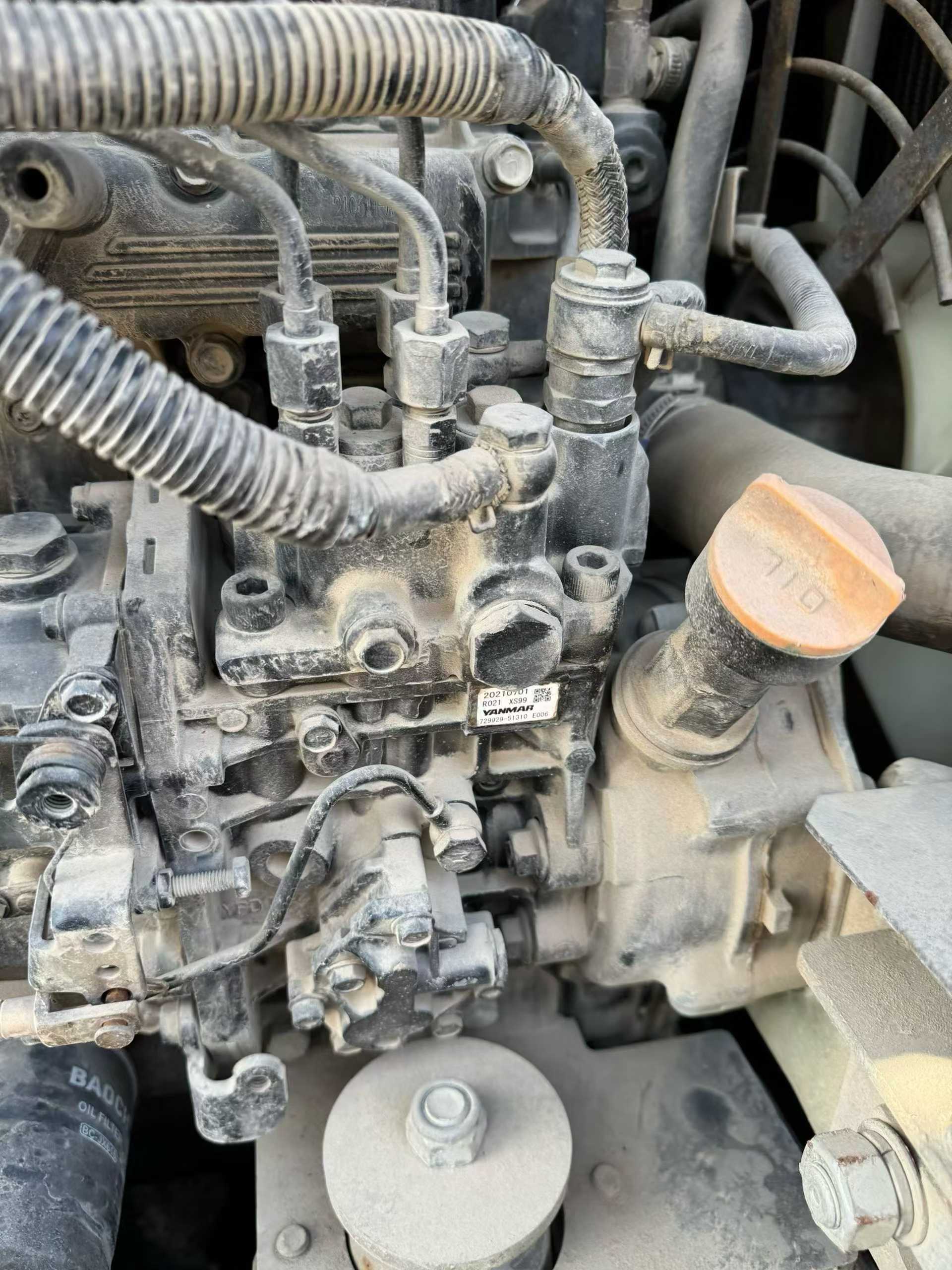

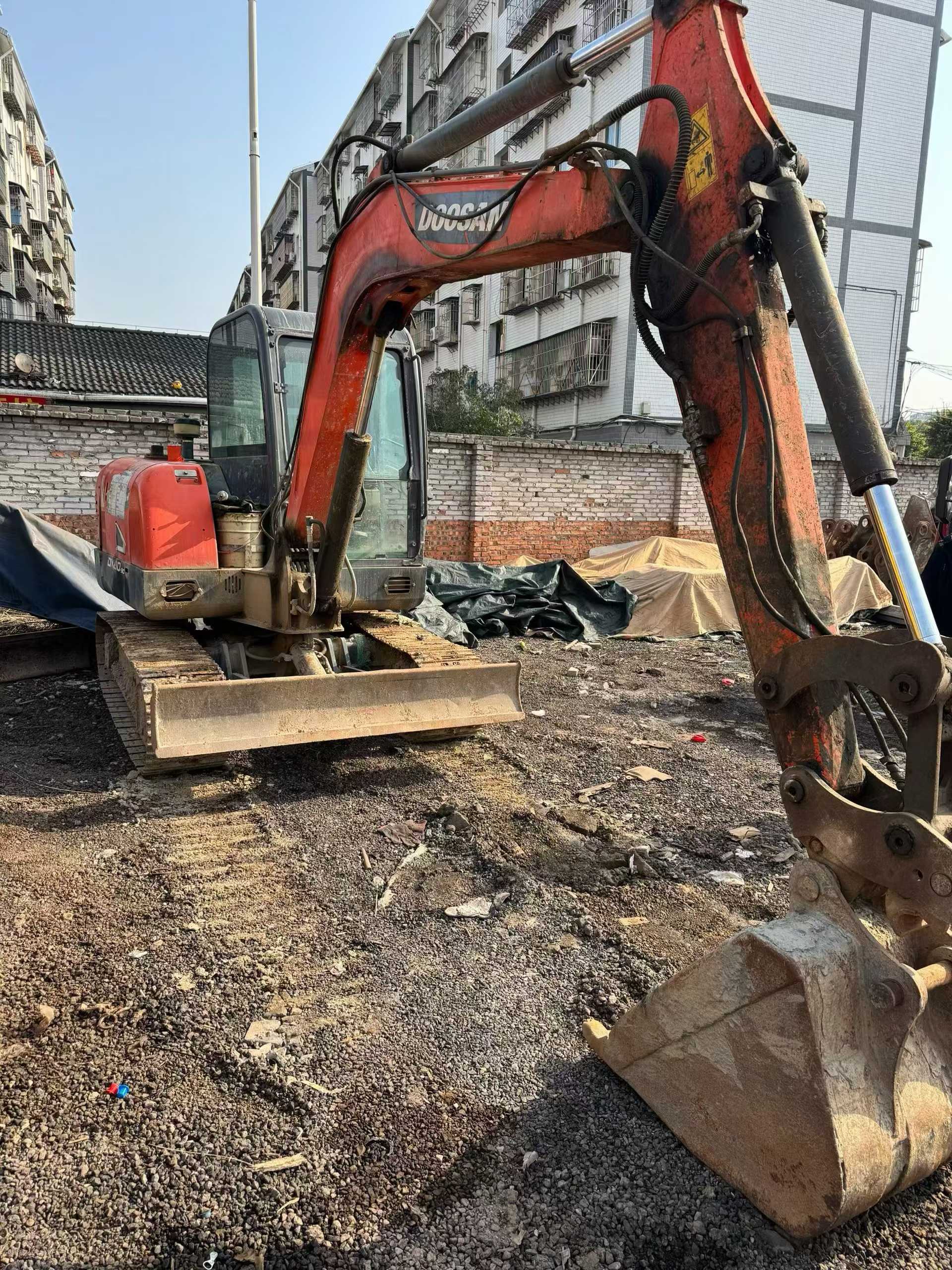

Featuring a robust Yanmar 4TNV94L engine, this 2016 Doosan DX60 excavator delivers 39.7 kW of power at 2200 rpm, ideal for demanding digging and grading tasks. With a 6-ton working weight and a 0.21 m³ bucket capacity, it is designed to handle a variety of construction and demolition projects efficiently. The machine's 3000 mm boom and 1600 mm rod provide an impressive maximum digging depth of 3805 mm and a maximum excavation height of 5790 mm.
- Maximum torque: 20-22 N.m at 1100 rpm
- Bucket digging force: 44 kN
- Rod digging force: 28 kN
- Travel speed: 4.1 km/h (high), 3.0 km/h (low)
- Fuel tank capacity: 115 L
Located in 重庆, this site-ready excavator is equipped with a backhoe bucket, making it versatile for both fine grading and heavy digging. Its 78% climbing ability and 400 mm minimum ground clearance ensure it can navigate challenging terrains. Ready to work immediately, the DX60 is a reliable choice for your next project.
| Specifications | Value |
|---|---|
| No. | 1000276 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
