Product Description

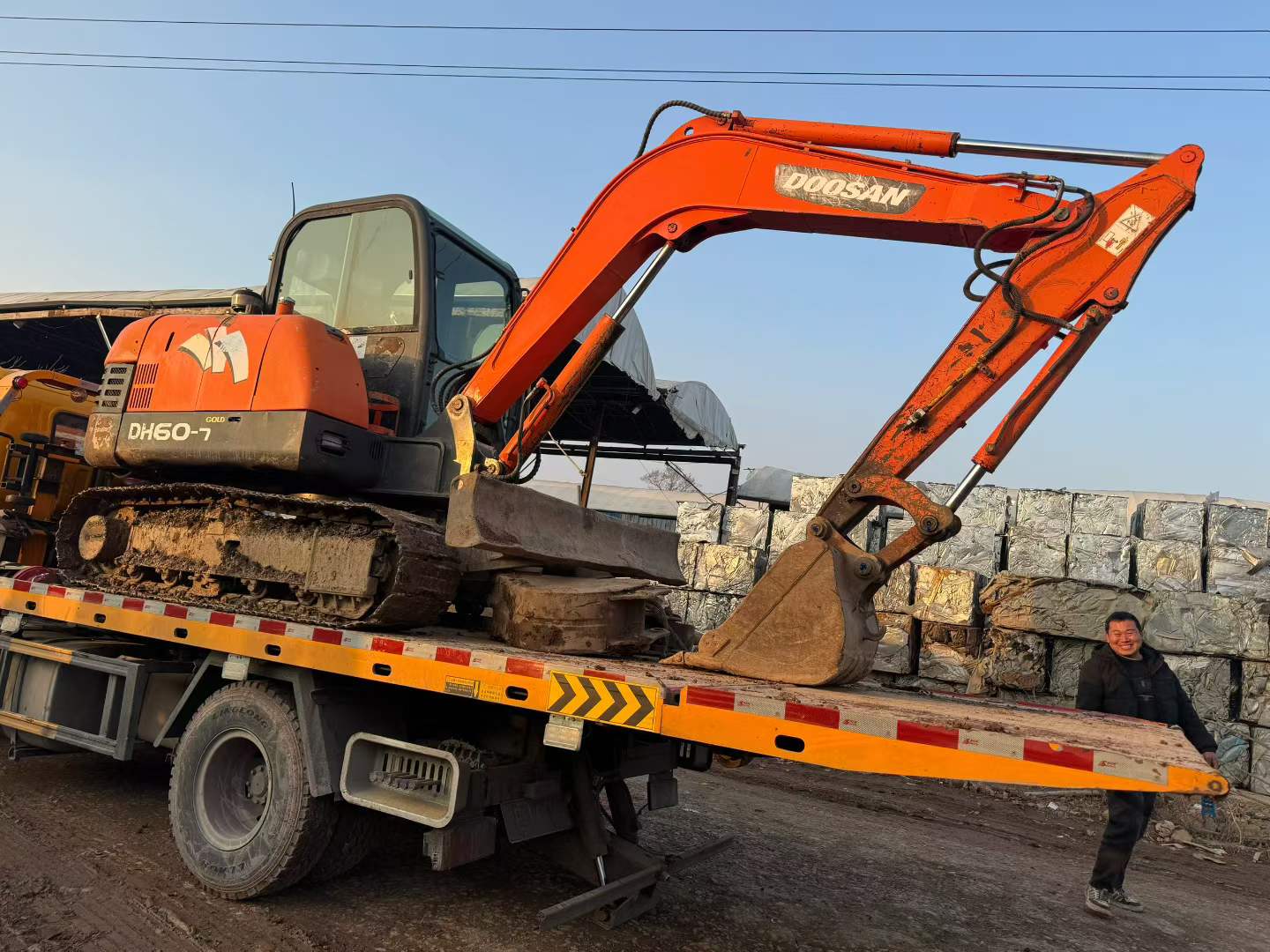

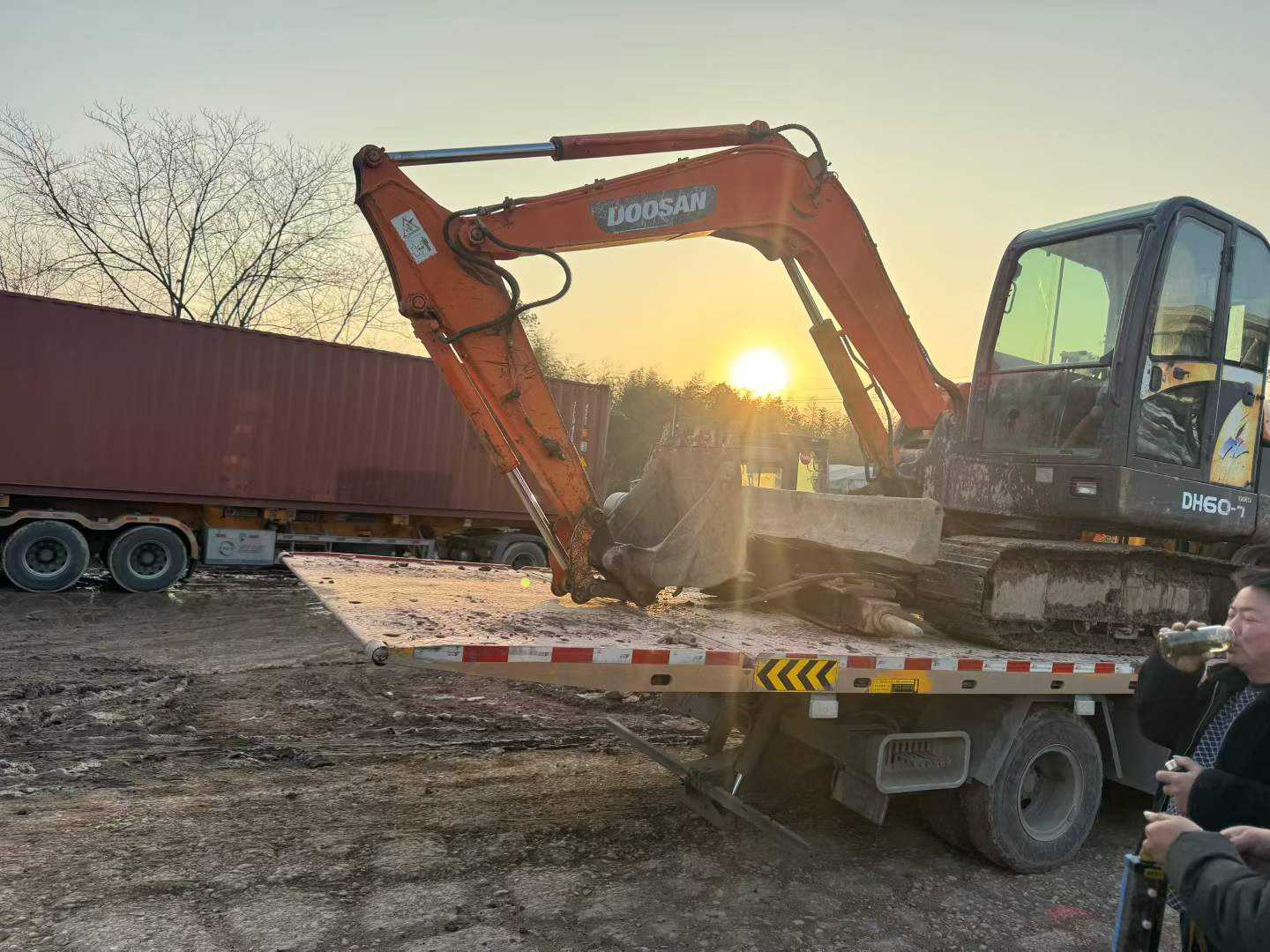

Built to endure the toughest jobsite conditions, this 2016 Doosan DX60 mini excavator demonstrates proven reliability through years of consistent performance. Operating at 6 tons with a working weight of 5,700 kg, this compact powerhouse combines maneuverability with substantial capability. The Yanmar 4TNV94L engine delivers 39.7 kW of rated power, providing dependable performance for demanding excavation tasks.
Engineered for versatility, this machine offers impressive reach specifications including a 6,150 mm maximum digging radius and 3,805 mm maximum digging depth. The 0.21 m³ bucket capacity paired with 44 kN bucket digging force ensures productive material handling across various applications. With a 78% climbing ability and compact dimensions of 5,850 mm length by 2,000 mm width, this excavator navigates confined spaces while maintaining stability.
- Proven Yanmar engine technology with 39.7 kW output
- Dual main pump system: 60.5 x 2 + 36 l/min flow capacity
- Compact 1,650 mm rear turning radius for tight workspaces
- 115-liter fuel tank for extended operation
- Currently located in Jinhua, Zhejiang
This joint venture-manufactured workhorse represents solid valu
| Specifications | Value |
|---|---|
| No. | 1005173 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
