Product Description

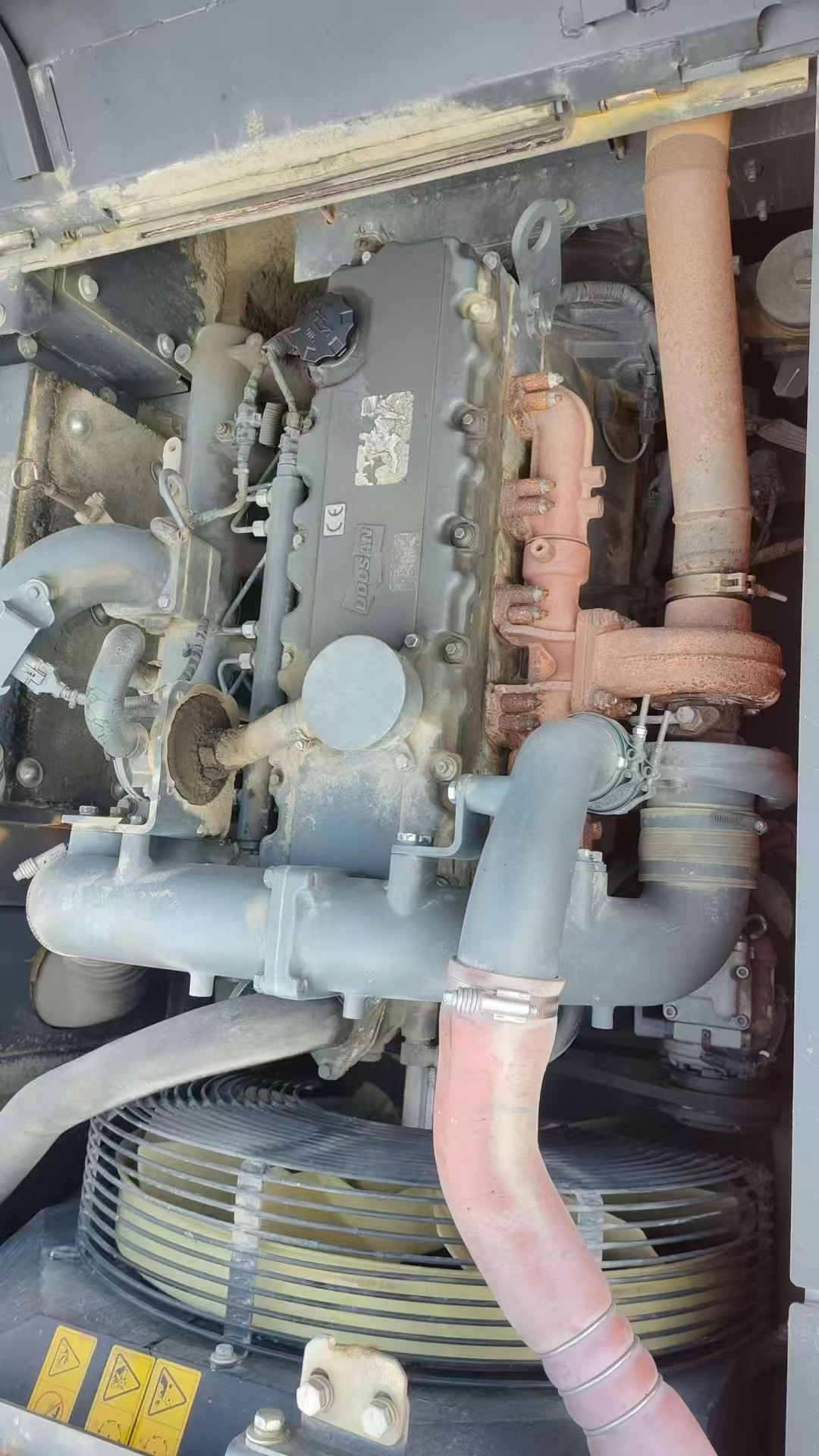

Engineered for precision and reliability, this 2017 Doosan DX60 mini excavator delivers exceptional performance in the 6-ton class. At its core sits the proven Yanmar 4TNV94L engine, generating 39.7 kW at 2200 rpm with consistent torque delivery of 20-22 N·m. Hydraulic efficiency defines this machine: dual main pumps supply 60.5 l/min each, supplemented by an additional 36 l/min circuit, operating at 21.6 MPa across both travel and working systems. This configuration ensures responsive control and powerful digging forces—44 kN bucket force and 28 kN arm force—backed by a maximum tractive effort of 58 kN.
Performance specifications include:
- Maximum digging reach: 6150 mm with 3805 mm depth capability
- Compact footprint: 5850 mm transport length, 2000 mm width
- Superior maneuverability: 1650 mm rear swing radius, 9.5 rpm rotation speed
- Impressive climbing ability: 78% gradient (30 degrees)
- Extended operational range: 115-liter fuel capacity
Currently located in Putian, Fujian, this joint-venture manufactured unit represents Doosan's commitment to robust construction equipment with practical engineering solutions for demanding jobsites.
| Specifications | Value |
|---|---|
| No. | 1005931 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
