Product Description

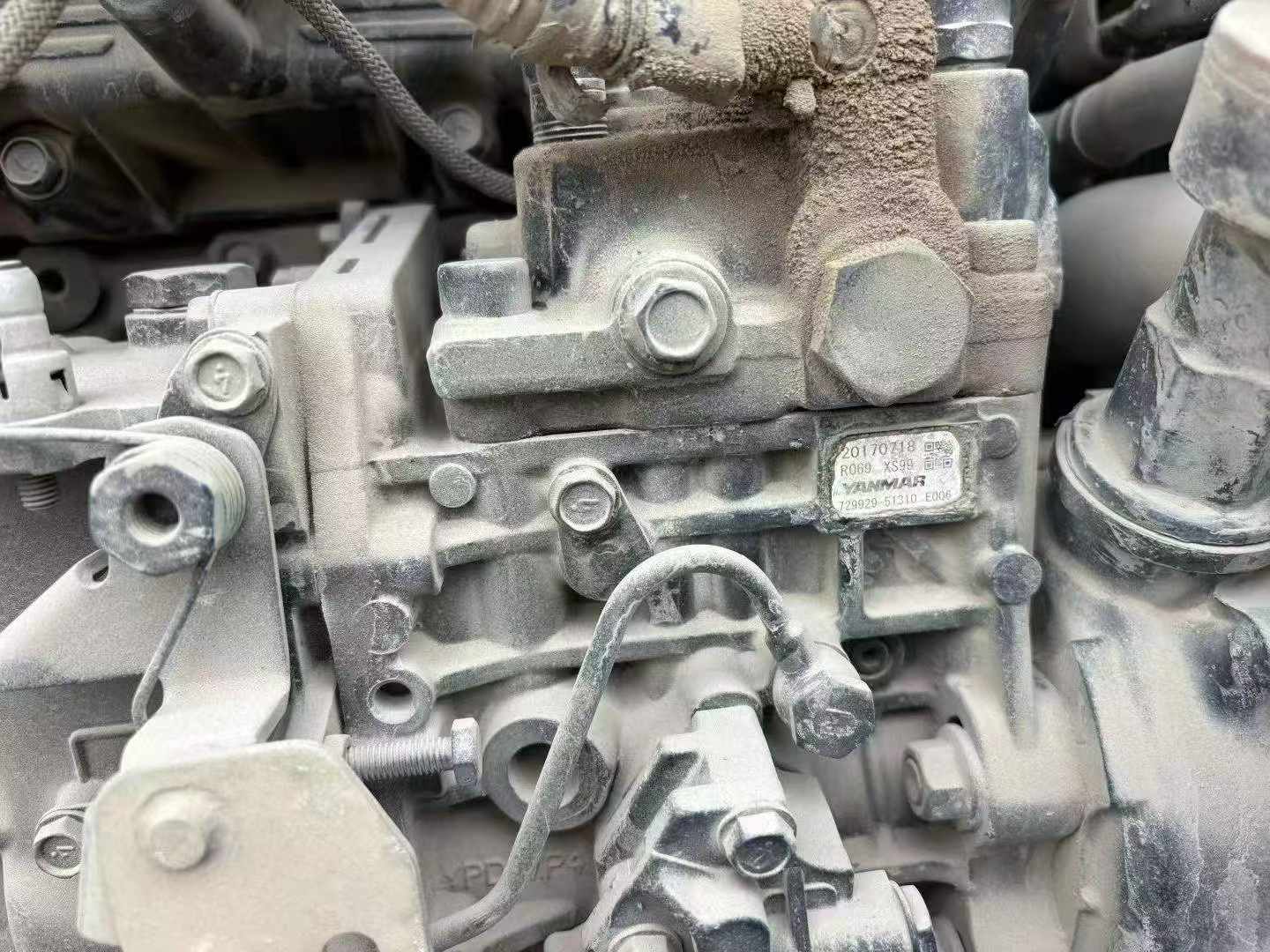

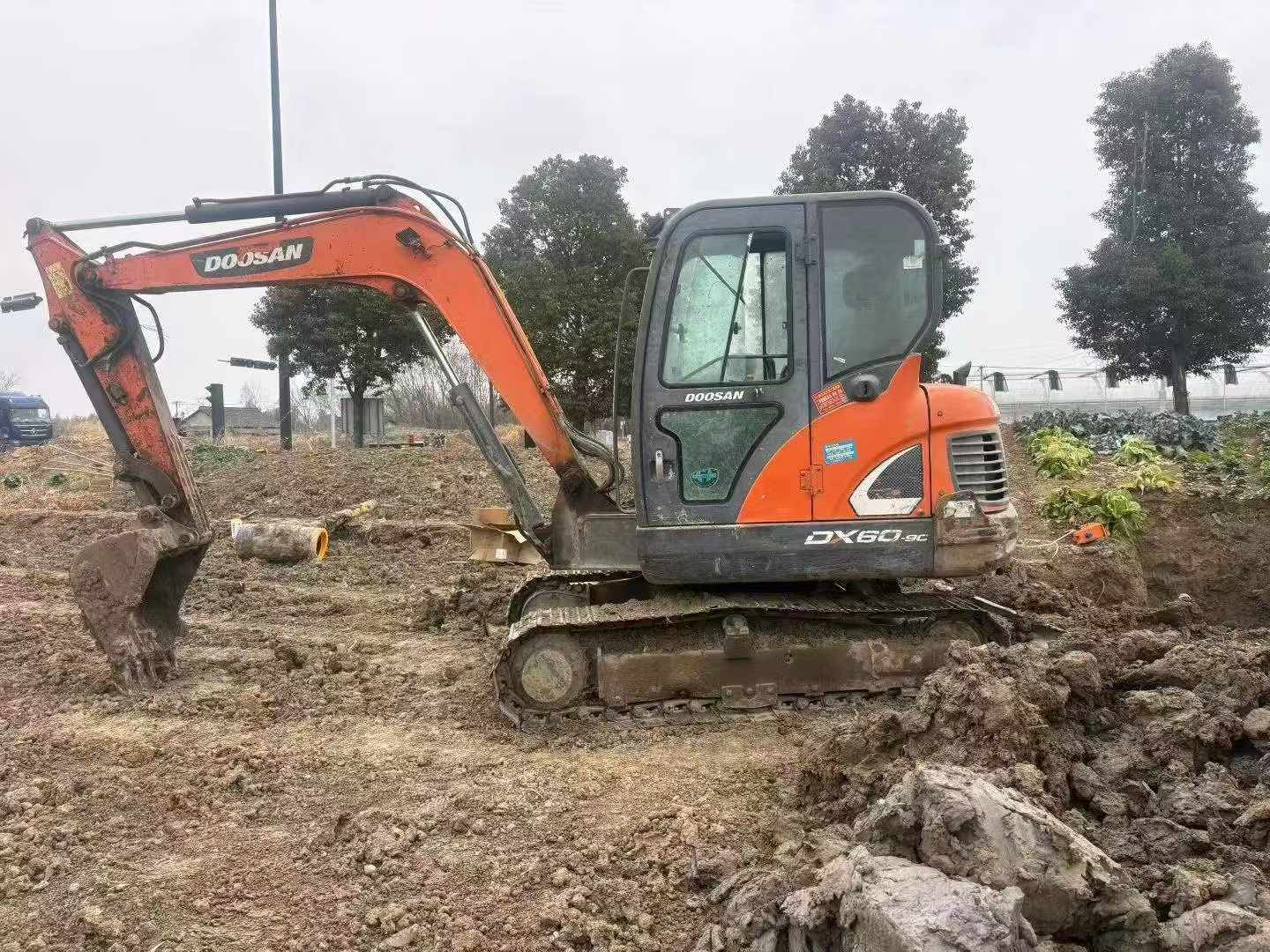

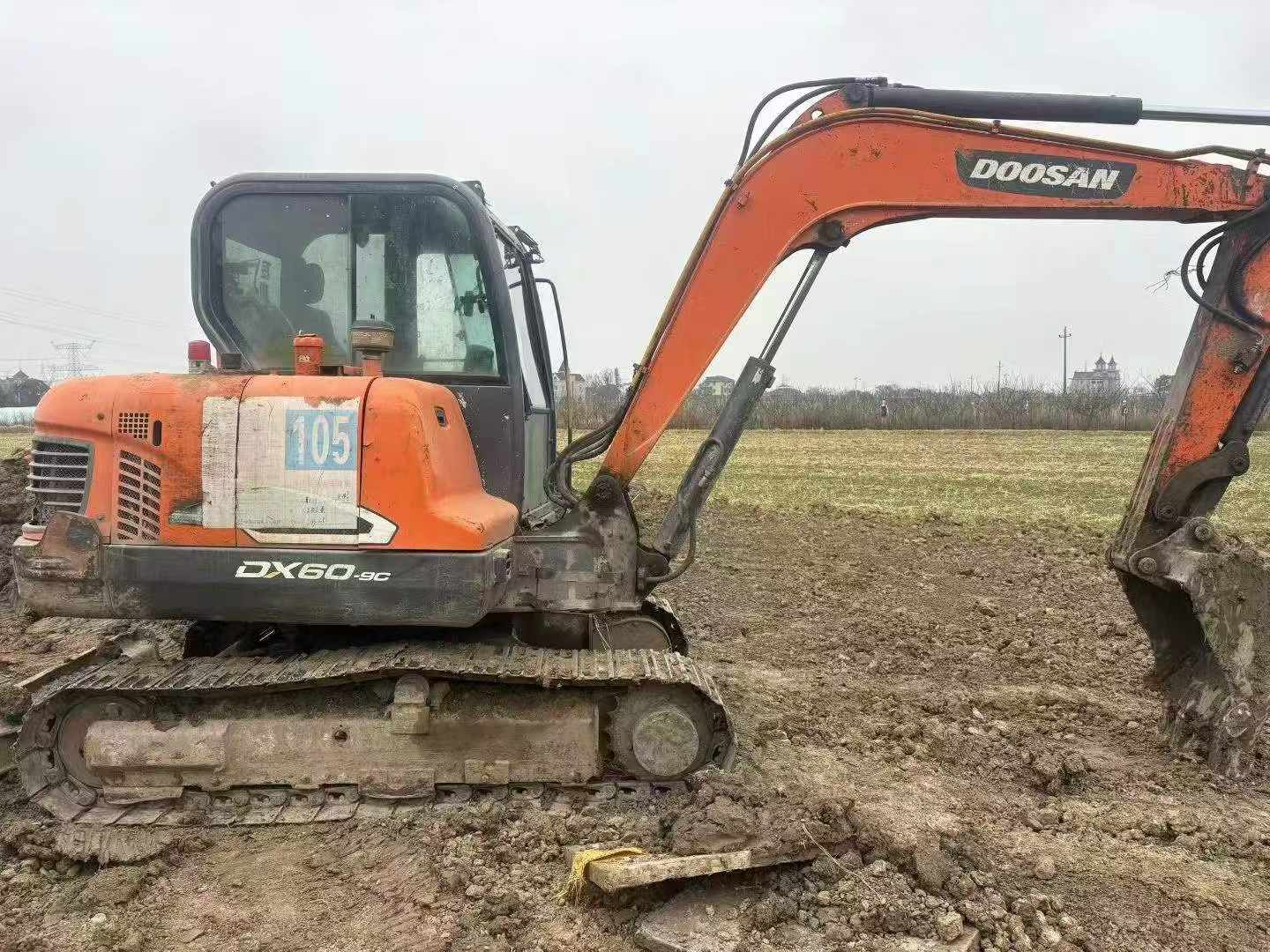

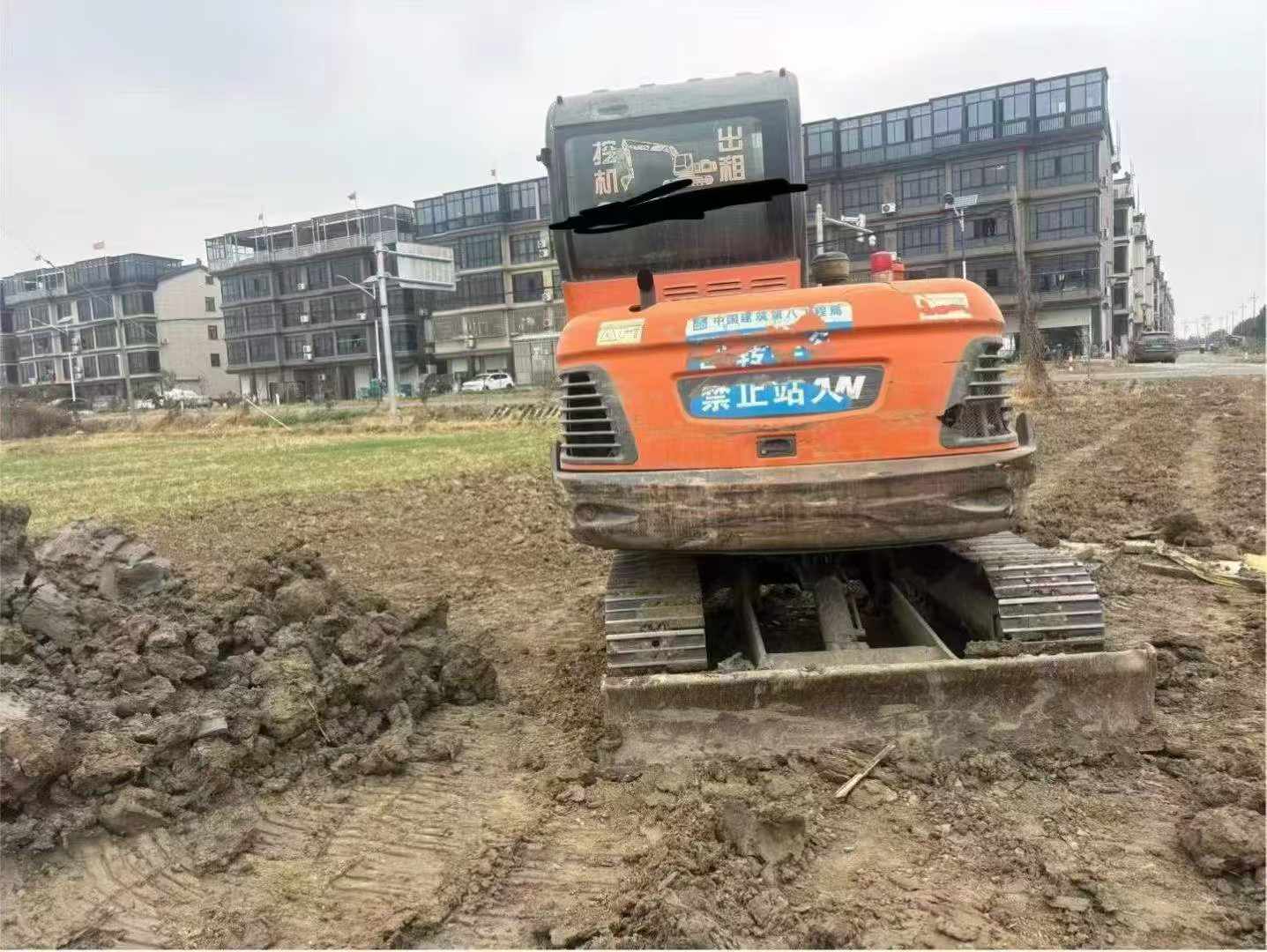

With a working weight of 5700 kg and a bucket capacity of 0.21 m³, this 2018 Doosan DX60 excavator is ready for immediate deployment from 浙江杭州. Featuring a Yanmar YANMAR 4TNV94L engine, it delivers 39.7 kW at 2200 rpm, ensuring robust performance on any job site. Skip the factory lead times and get your project moving with this reliable machine, available now.
- Maximum digging depth: 3805 mm
- Maximum excavation height: 5790 mm
- Travel speed: 4.1 / 3.0 km/h
- Fuel tank capacity: 115 L
- Total transport dimensions: 5850 x 2000 x 2575 mm (LxWxH)
Fast deployment to your site means you can start work immediately, leveraging the DX60's powerful 44 kN bucket digging force and 28 kN rod digging force. This excavator is ideal for logistics and construction projects requiring quick and efficient machinery.
| Specifications | Value |
|---|---|
| No. | 1000712 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
